Installation

AIR CONDITIONING: AIR CONDITIONING AMPLIFIER: INSTALLATION

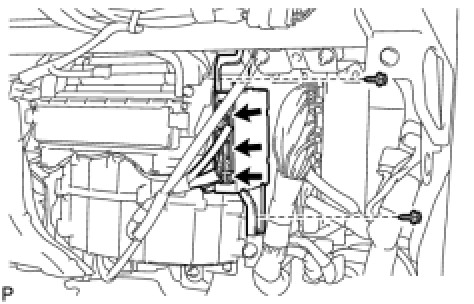

1. INSTALL AIR CONDITIONING AMPLIFIER ASSEMBLY

(a) Install the air conditioning amplifier assembly with the 2 screws.





(b) Connect each connector.

2. INSTALL CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) (w/ Smart Key System) Installation

3. INSTALL LOWER INSTRUMENT PANEL SUB-ASSEMBLY Installation

4. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation

6. INSTALL FRONT DOOR SCUFF PLATE RH Installation
