Installation

1AR-FE ENGINE CONTROL SYSTEM: CRANKSHAFT POSITION SENSOR: INSTALLATION

1. INSTALL CRANKSHAFT POSITION SENSOR

(a) Apply a light coat of engine oil to the O-ring of the sensor.

NOTICE:
Make sure that the O-ring is not cracked or does not jump out of position during installation.

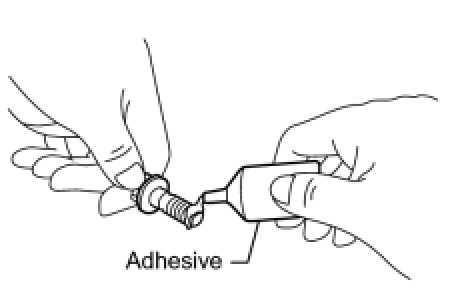

(b) Apply adhesive to 2 or 3 threads of the bolt.





Adhesive:

Toyota Genuine Adhesive 1344, Three Bond 1344 or equivalent.

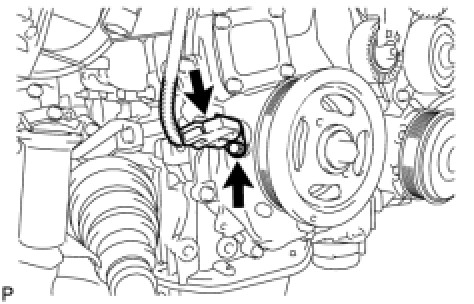

(c) Install the sensor with the bolt.





Torque : 10 Nm (102 kgf-cm, 7 ft-lbf)

(d) Connect the sensor connector.

2. INSPECT FOR OIL LEAK

3. INSTALL FRONT FENDER APRON SEAL RH Installation
