Removal

1AR-FE ENGINE CONTROL SYSTEM: KNOCK SENSOR: REMOVAL

1. REMOVE INTAKE MANIFOLD

(a) Remove the intake manifold Removal.

2. REMOVE KNOCK SENSOR

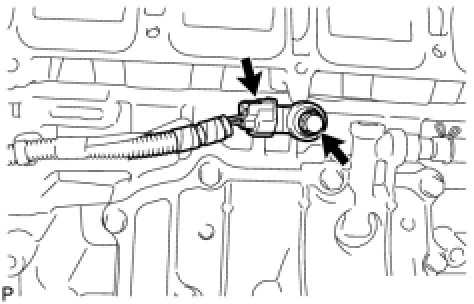

(a) Disconnect the sensor connector.





(b) Remove the bolt and sensor.
