Removal

1AR-FE ENGINE CONTROL SYSTEM: INTEGRATION RELAY: REMOVAL

1. SEPARATE BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY Removal

2. REMOVE RESERVOIR BRACKET Removal

3. REMOVE NO. 1 RELAY BLOCK COVER

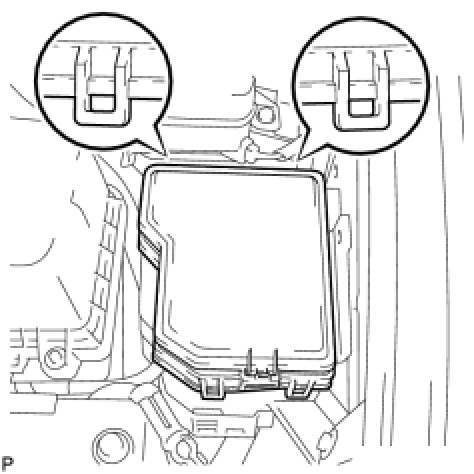

(a) Remove the No. 1 relay block cover.





4. REMOVE ENGINE ROOM JUNCTION BLOCK ASSEMBLY

(a) Using a screwdriver with its tip wrapped in protective tape, disengage the 2 claws and disconnect the engine room junction block assembly.

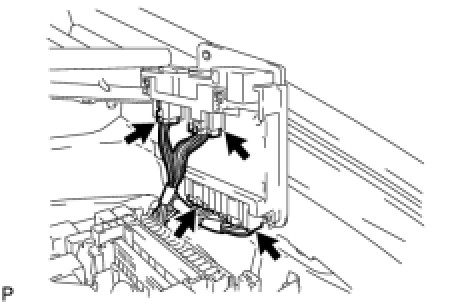

(b) Disconnect the 4 connectors.
