Wireless Door Lock Control System (w/o Smart Key System)

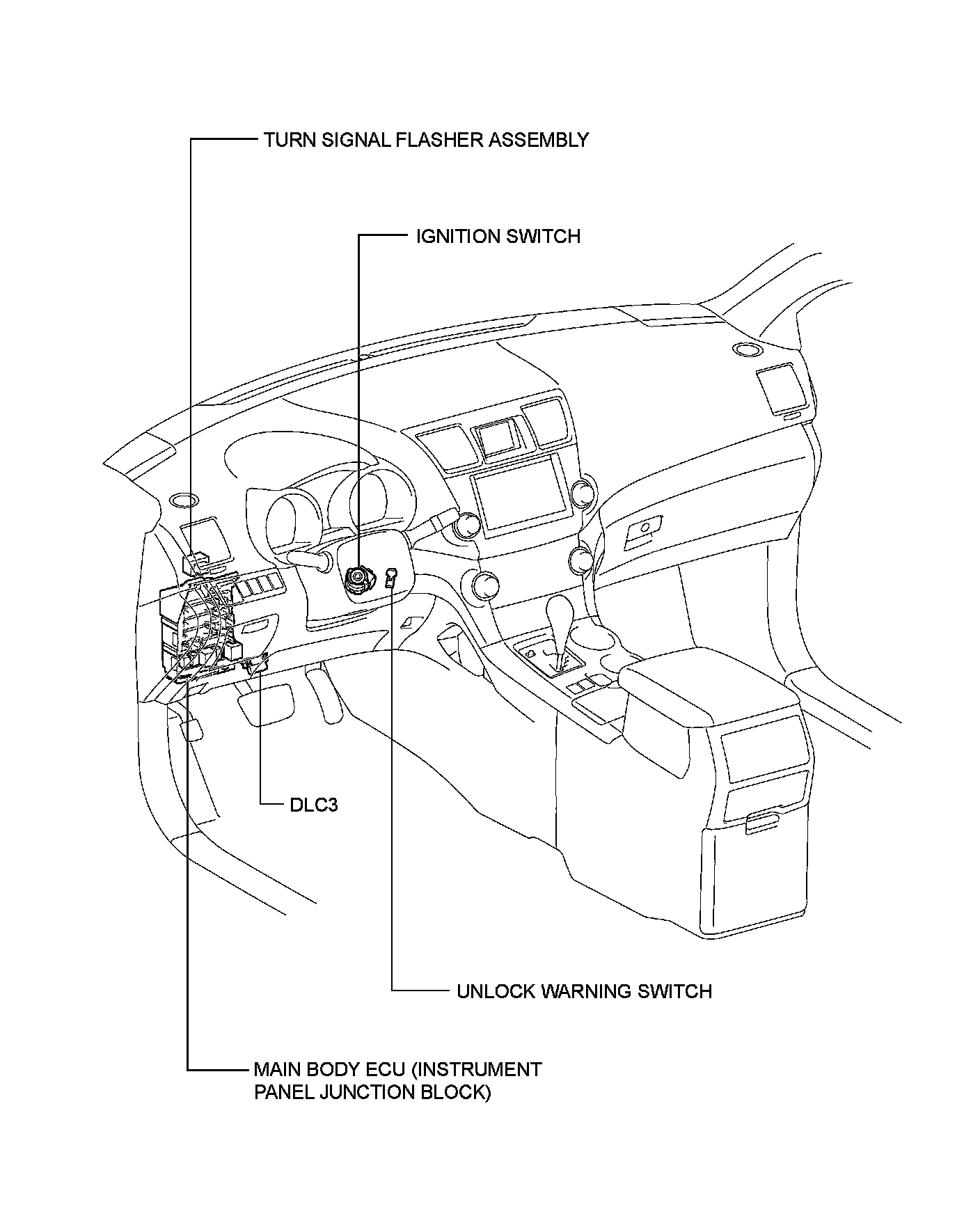

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/o Smart Key System): PARTS LOCATION
