Connecting Rod, Engine

PISTON WITH CONNECTING ROD

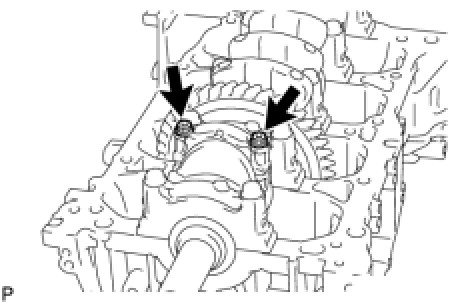

Temporarily install the connecting rod bolts.

The connecting rod bolts are tightened in 2 progressive steps.

Step 1

Alternately tighten the connecting rod bolts in several steps.

Torque 40 Nm (408 kgf-cm, 30 ft-lbf)


Step 2

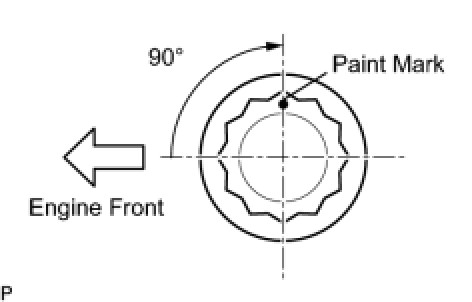

Mark the front of the connecting rod bolts with paint.

Tighten the bolts 90° as shown in the illustration.

Check that the painted marks are now at a 90° angle to the front.

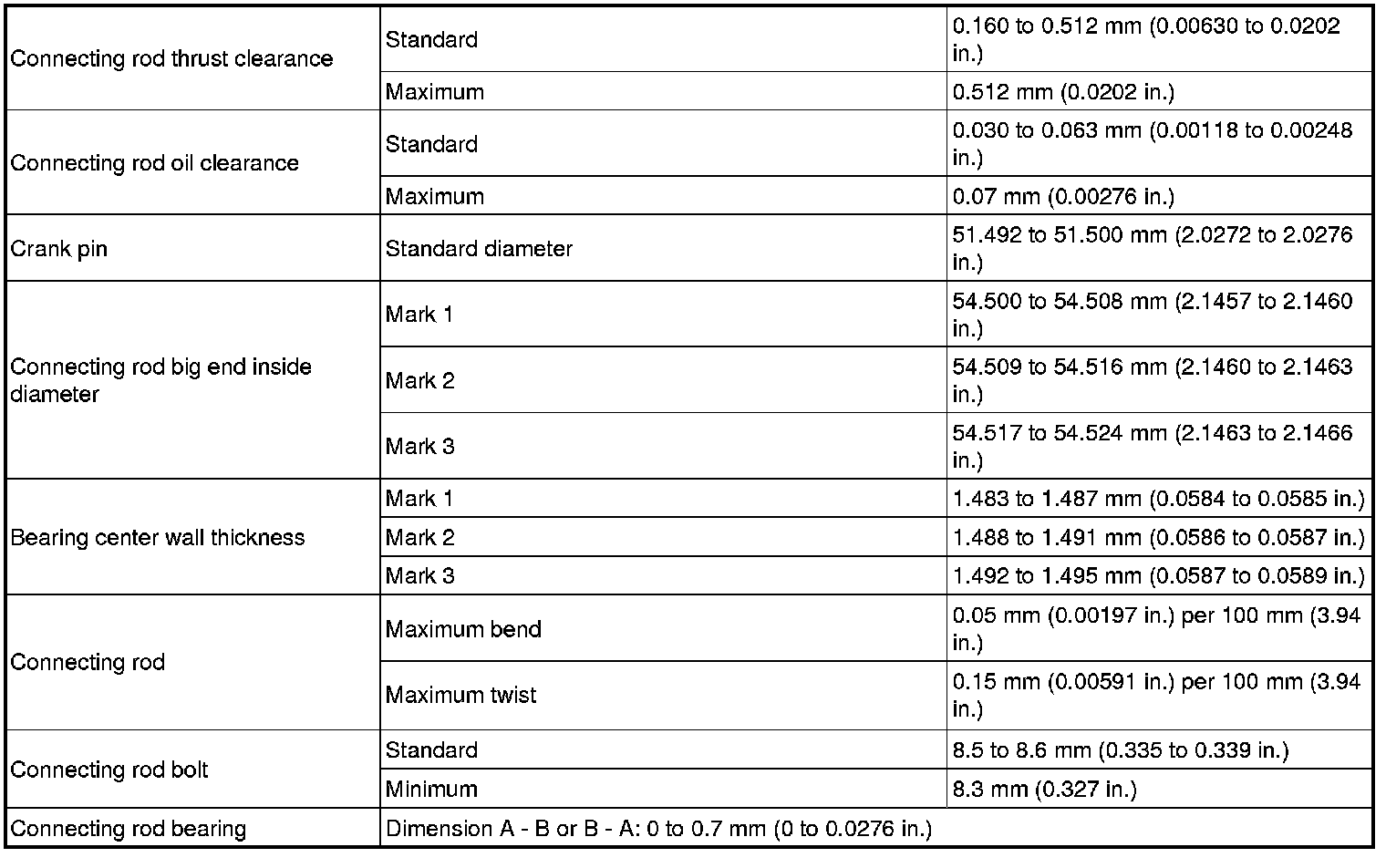

Connecting Rod Side Clearance, Out-of-round, & Diameter
