Spark Plug

SPARK PLUG

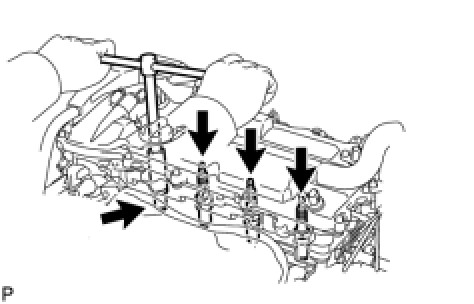

Using a spark plug wrench, install the 4 spark plugs.






Torque 25 Nm (254 kgf-cm, 18 ft-lbf)

Gap

Maximum Electrode Gap for a Used Spark Plug 1.3 mm (0.0512 in.)

Electrode Gap for a New Spark Plug 1.0 to 1.1 mm (0.0394 to 0.0433 in.)
