Inspection

HEATING / AIR CONDITIONING: COMPRESSOR (for 2AZ-FE): INSPECTION

1. INSPECT COMPRESSOR AND PULLEY (A/C COMPRESSOR)

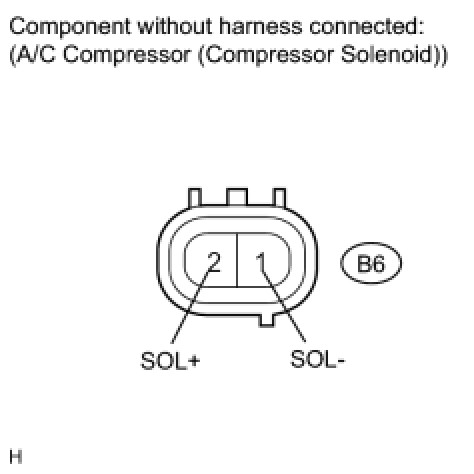

(a) Disconnect the A/C compressor (compressor solenoid) connector.





(b) Measure the resistance according to the value(s) in the table below.

Standard resistance:





If the resistance is not as specified, replace the compressor and pulley.
