Pinout Values and Diagnostic Parameters

U140F AUTOMATIC TRANSMISSION / TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: TERMINALS OF ECM

1. ECM





HINT

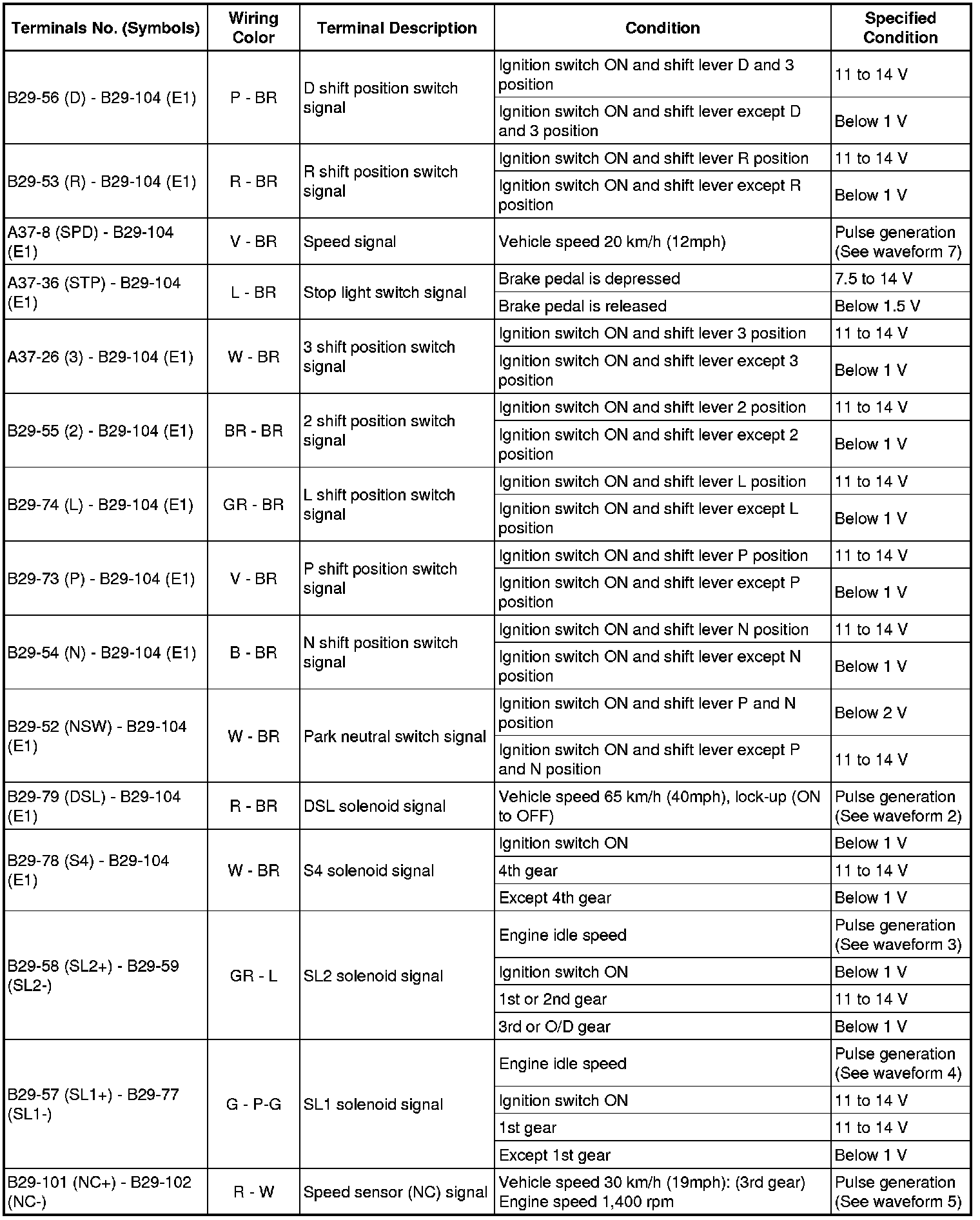

Each ECM terminal's standard voltage is shown in the table below.

In the table, first follow the information under "Condition". Look under "Terminal No. (Symbols)" for the terminals to inspected. The standard voltage between the terminals is shown under "Specified Condition".

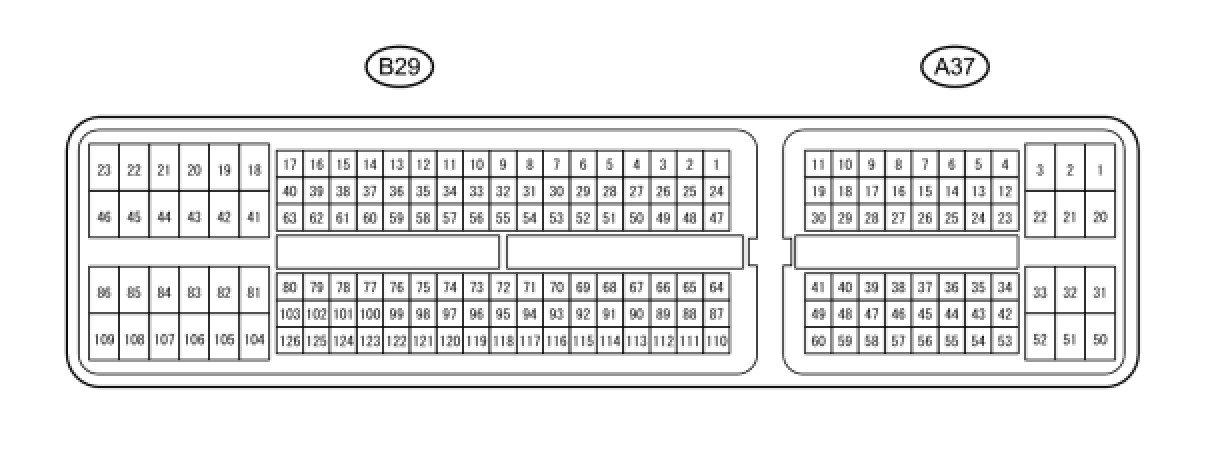

Use the illustration above as a reference for the ECM terminals.

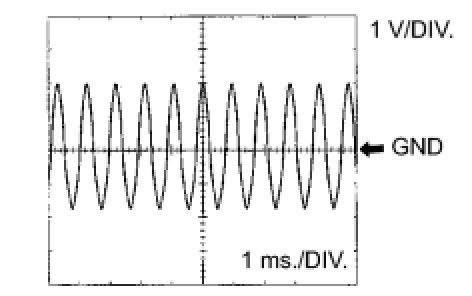

(a) Waveform 1





Reference:

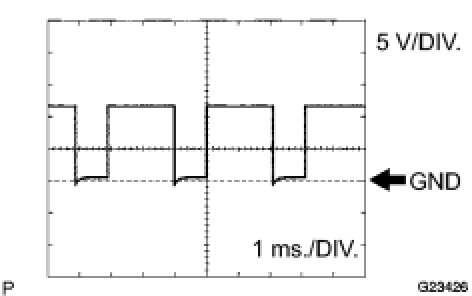

(b) Waveform 2





Reference:

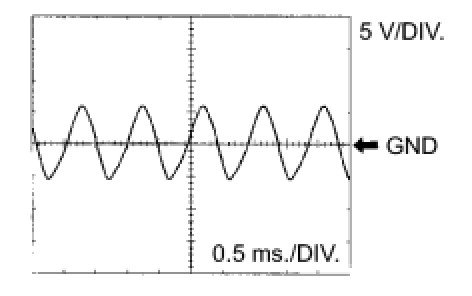

(c) Waveform 3





Reference:

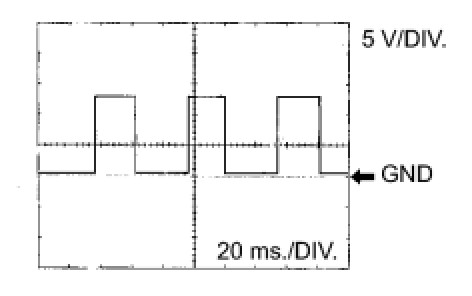

(d) Waveform 4





Reference:

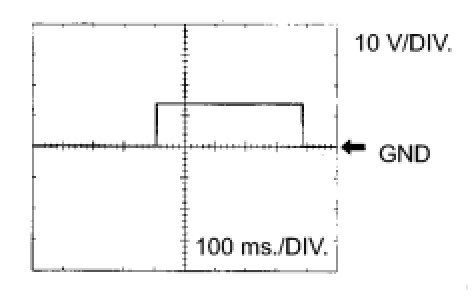

(e) Waveform 5





Reference:





(f) Waveform 6





Reference:





(g) Waveform 7





Reference:





HINT
Depending on the vehicle, the output waveform voltage, influenced by optionally installed systems, may become 5V.
