Quarter Window Glass: Components: Illustration

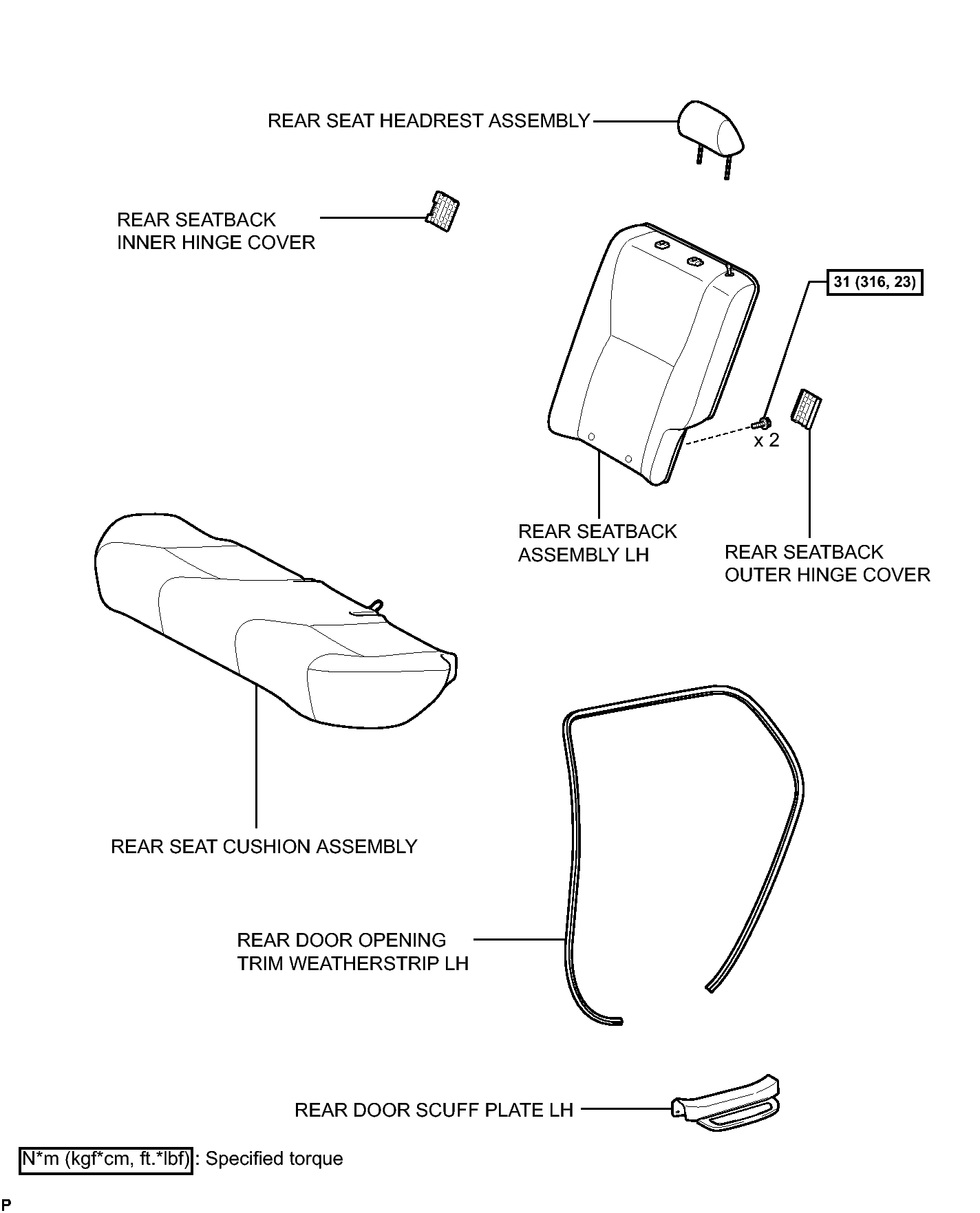

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (1 Of 4)
GTY241494Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

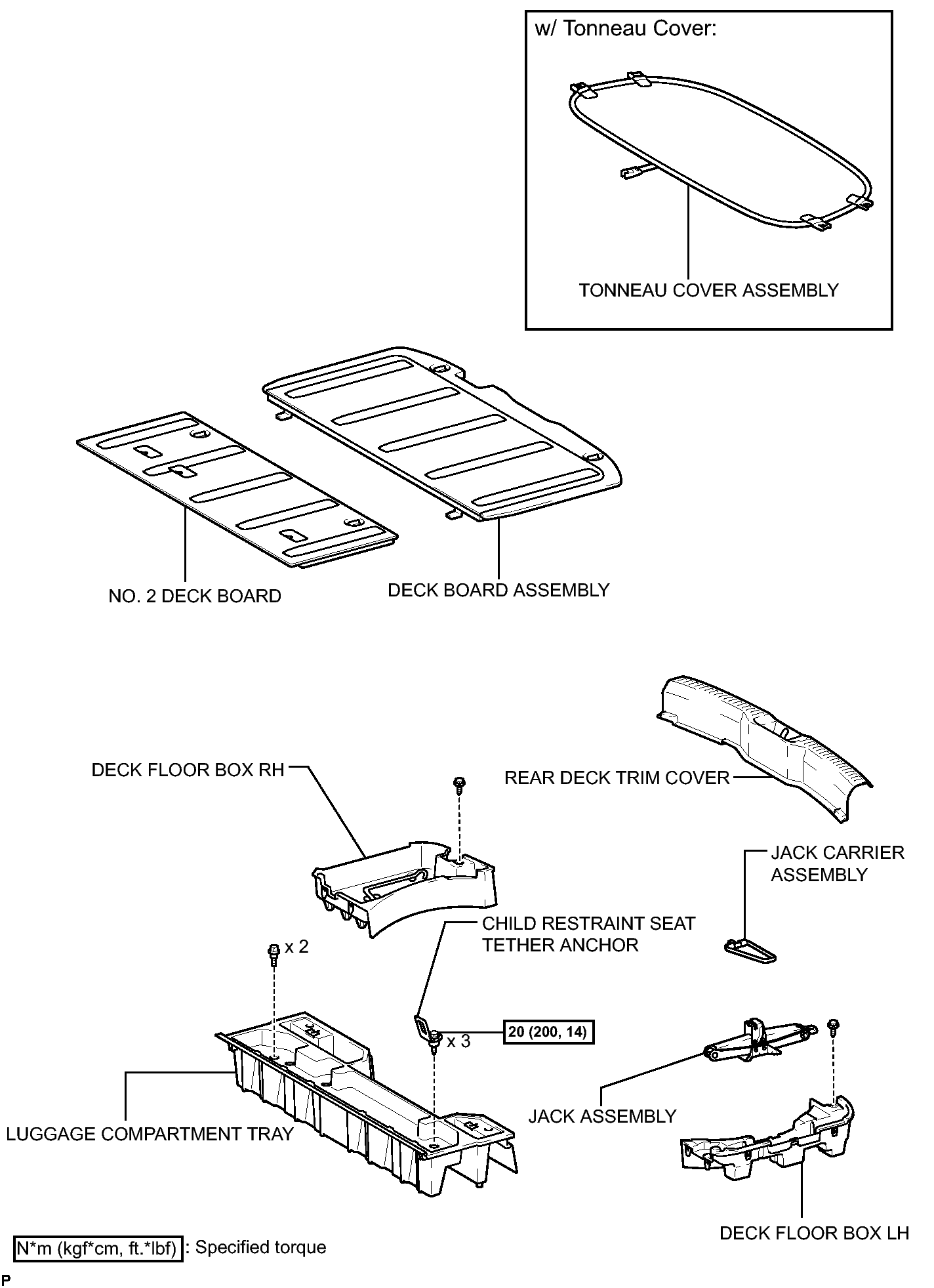

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (2 Of 4)
GTY242284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

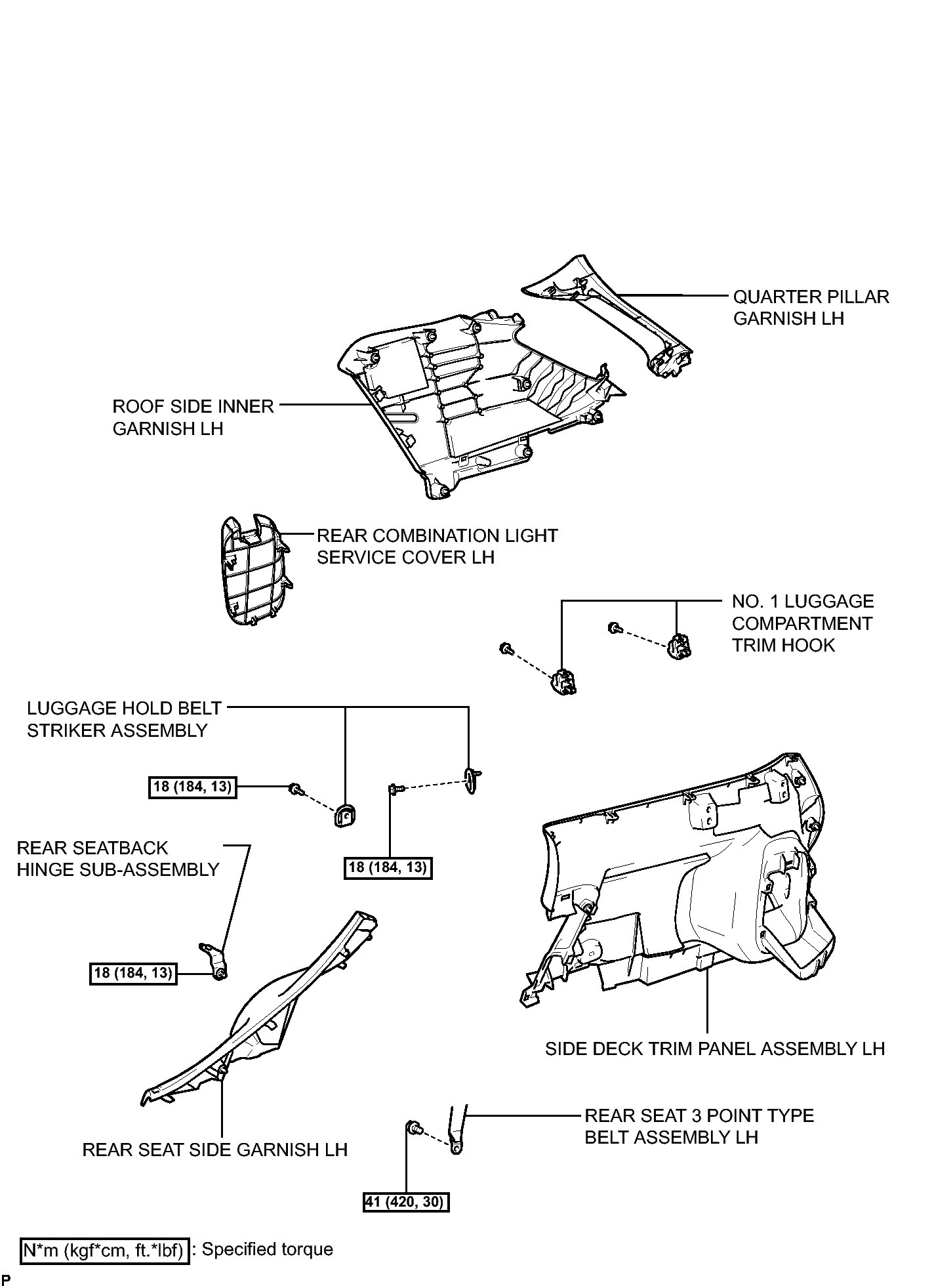

Fig 1: Identifying Quarter Window Glass Replacement Components With Torque Specifications (3 Of 4)
GTY241515Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Quarter Window Glass Replacement Components (4 Of 4)
GTY242134Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
