Air Fuel Ratio Sensor: Removal: Removal

  1. REMOVE FRONT WIPER ARM HEAD CAP  . Refer to REMOVAL - Step 1
  2. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to REMOVAL - Step 2
  3. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to REMOVAL - Step 3
  4. REMOVE HOOD TO COWL TOP SEAL  . Refer to REMOVAL - Step 4
  5. REMOVE COWL TOP VENTILATOR LOUVER RH  . Refer to REMOVAL - Step 5
  6. REMOVE COWL TOP VENTILATOR LOUVER LH  . Refer to REMOVAL - Step 6
  7. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY  . Refer to REMOVAL - Step 7
  8. REMOVE OUTER COWL TOP PANEL  . Refer to REMOVAL - Step 8
  9. REMOVE NO. 2 CYLINDER HEAD COVER  . Refer to REMOVAL - Step 10
  10. REMOVE AIR FUEL RATIO SENSOR
    1. Disconnect the air fuel ratio sensor connector and clamp.

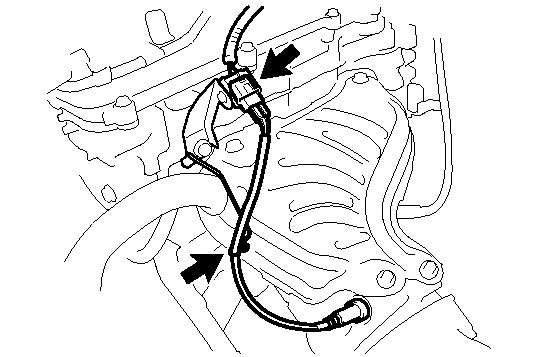

      Fig 1: Identifying Air Fuel Ratio Sensor Connector & Clamp
      GTY290372Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the air fuel ratio sensor.

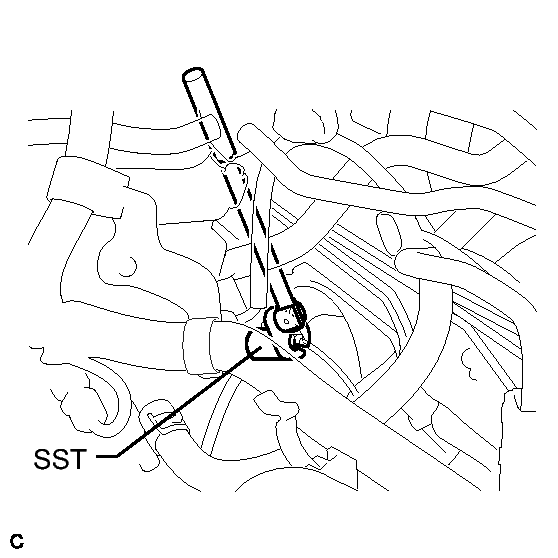

      Fig 2: Removing Air Fuel Ratio Sensor
      GTY194549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      • SST: 09224-00010
