Transmission Control Cable: Components: Illustration

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (1 Of 3)
GTY220871Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

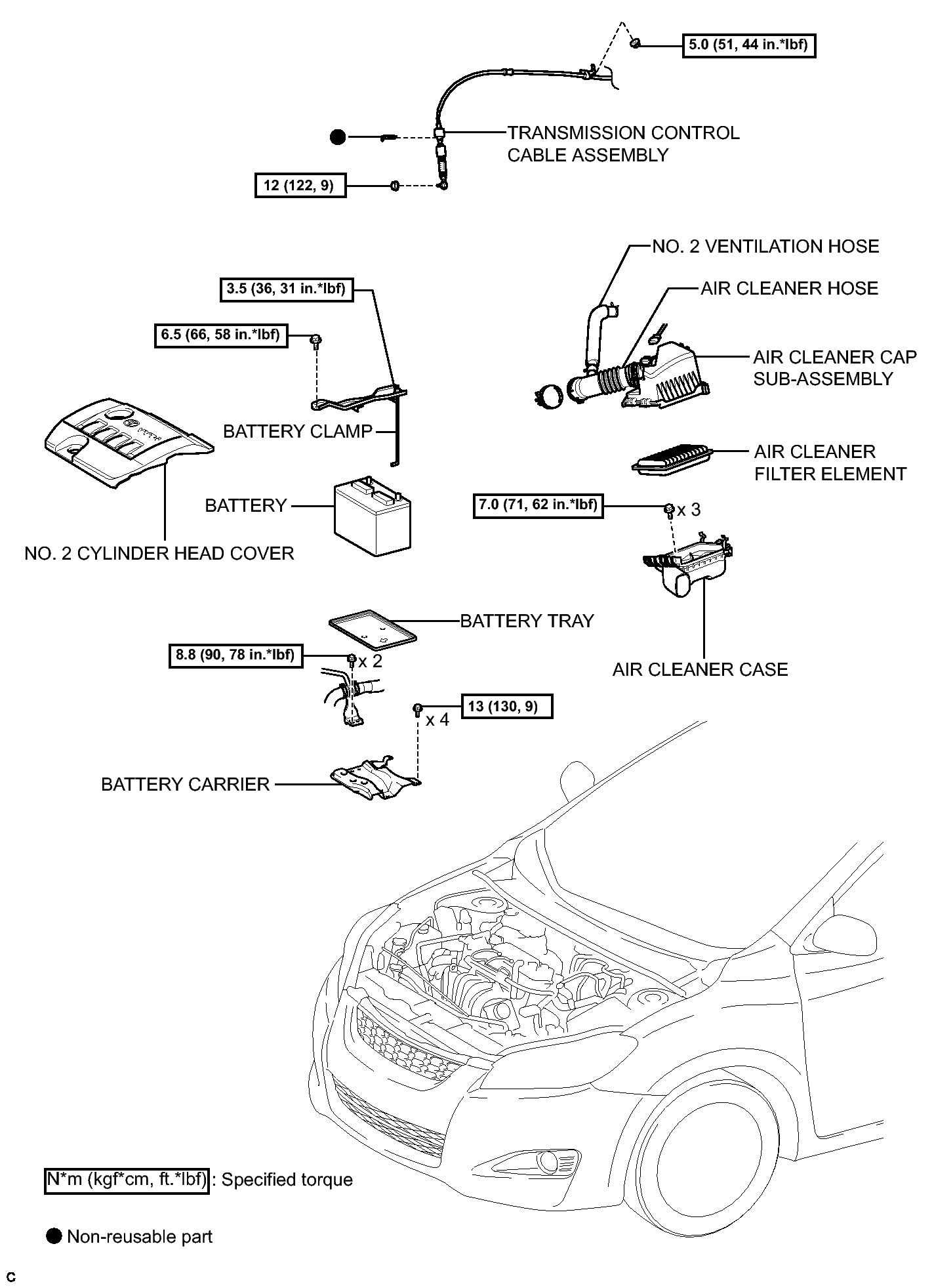

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (2 Of 3)
GTY245231Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

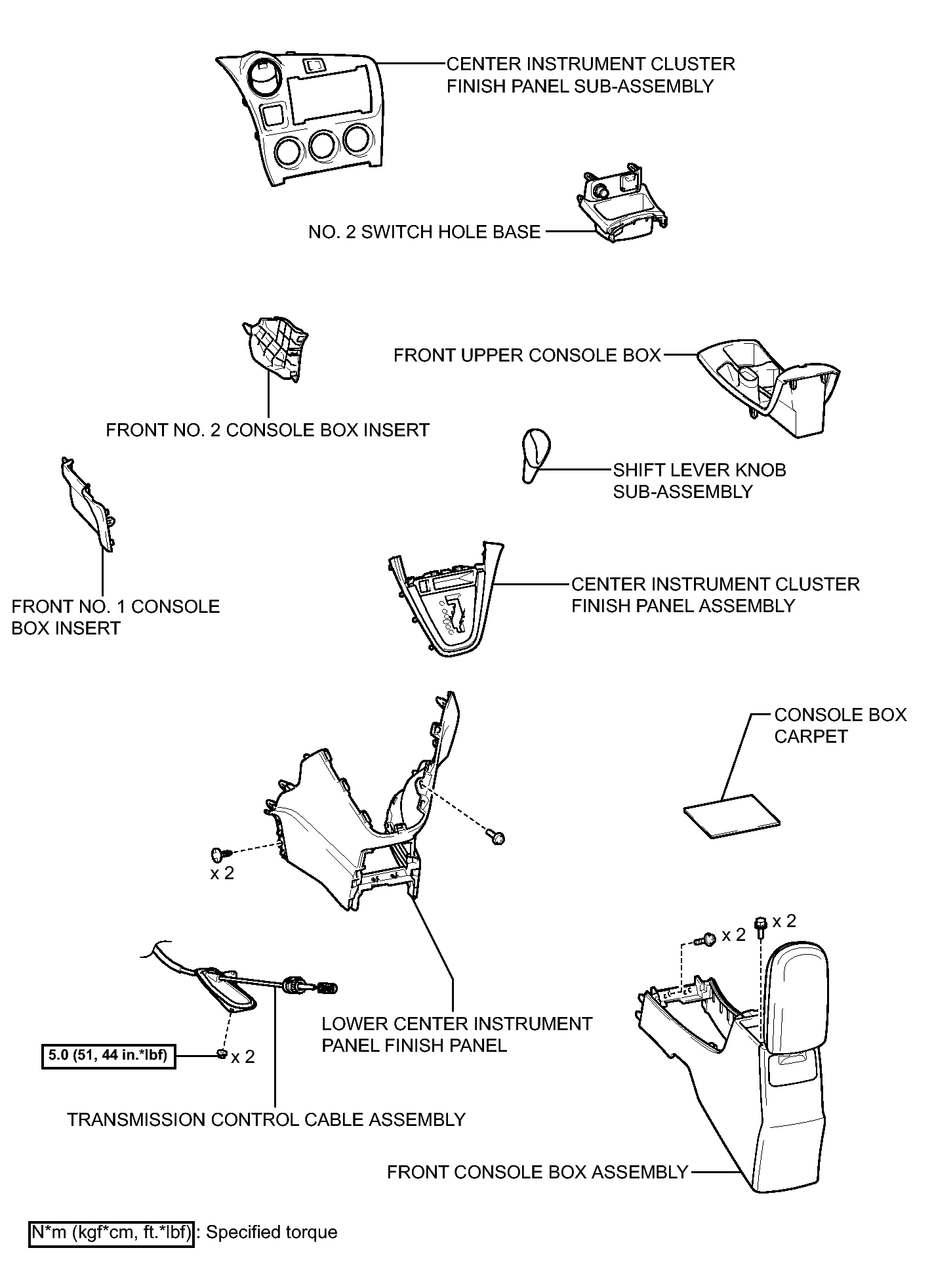

Fig 1: Identifying Transmission Control Cable Replacement Components With Torque Specifications (3 Of 3)
GTY244873Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
