Audio System and Navigation System (Except TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

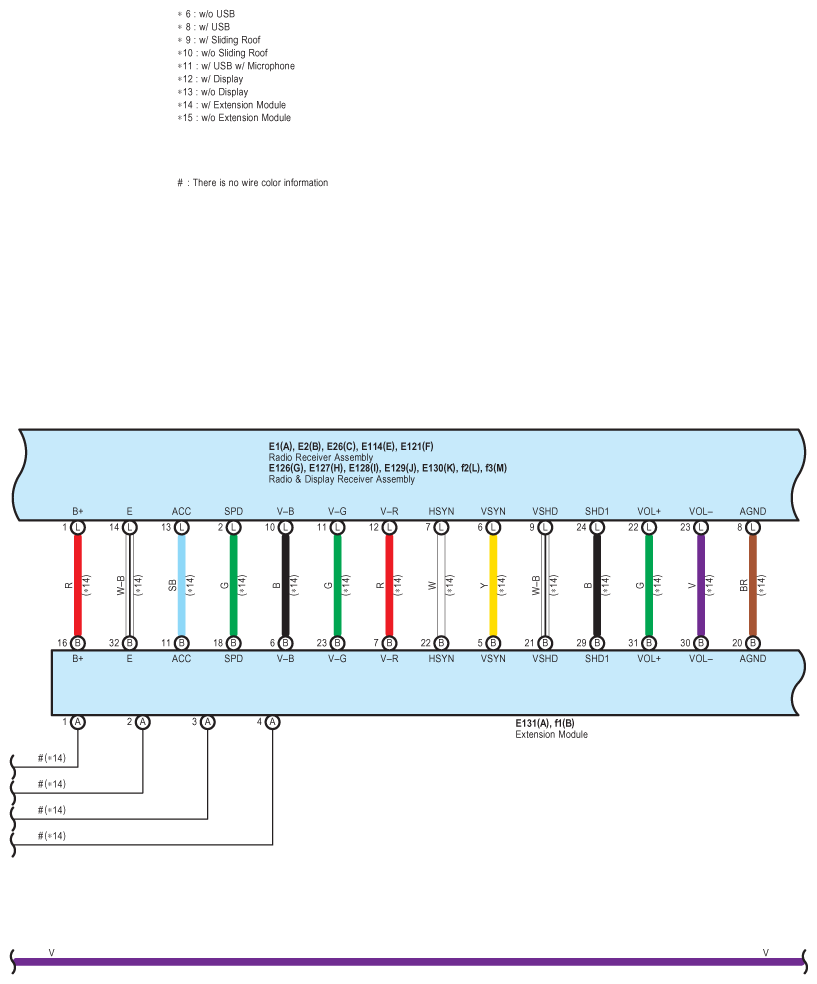

Fig 1: Audio System And Navigation System Wiring Diagram (Except TMC Made; 1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

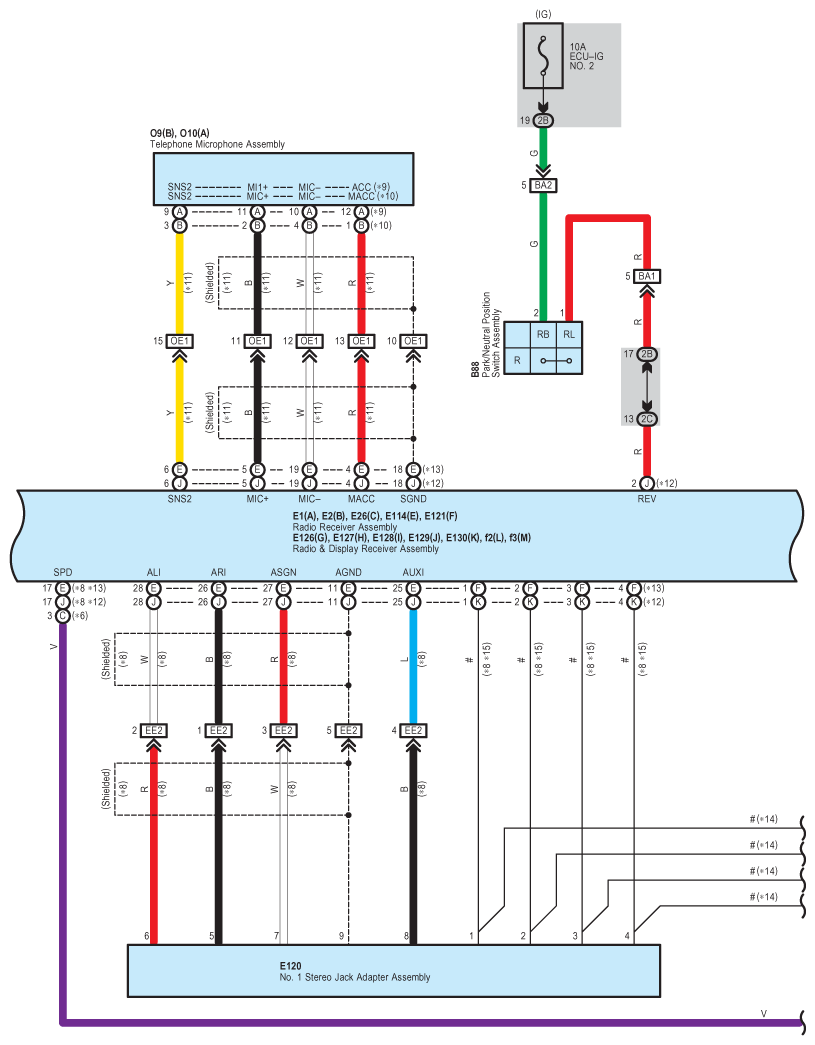

Fig 2: Audio System And Navigation System Wiring Diagram (Except TMC Made; 2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

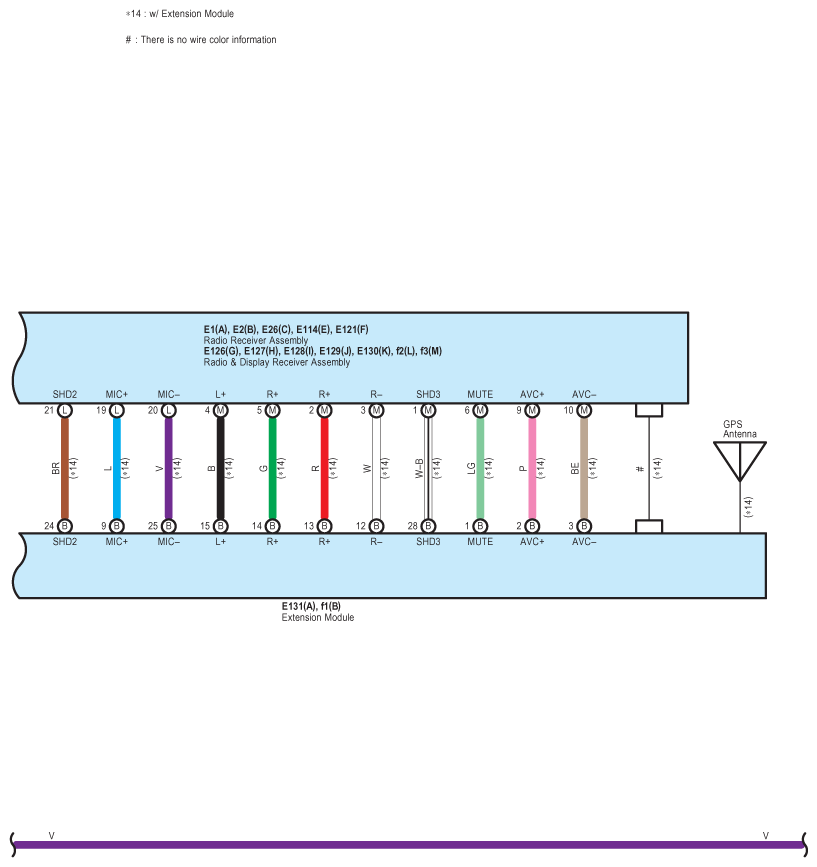

Fig 3: Audio System And Navigation System Wiring Diagram (Except TMC Made; 3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

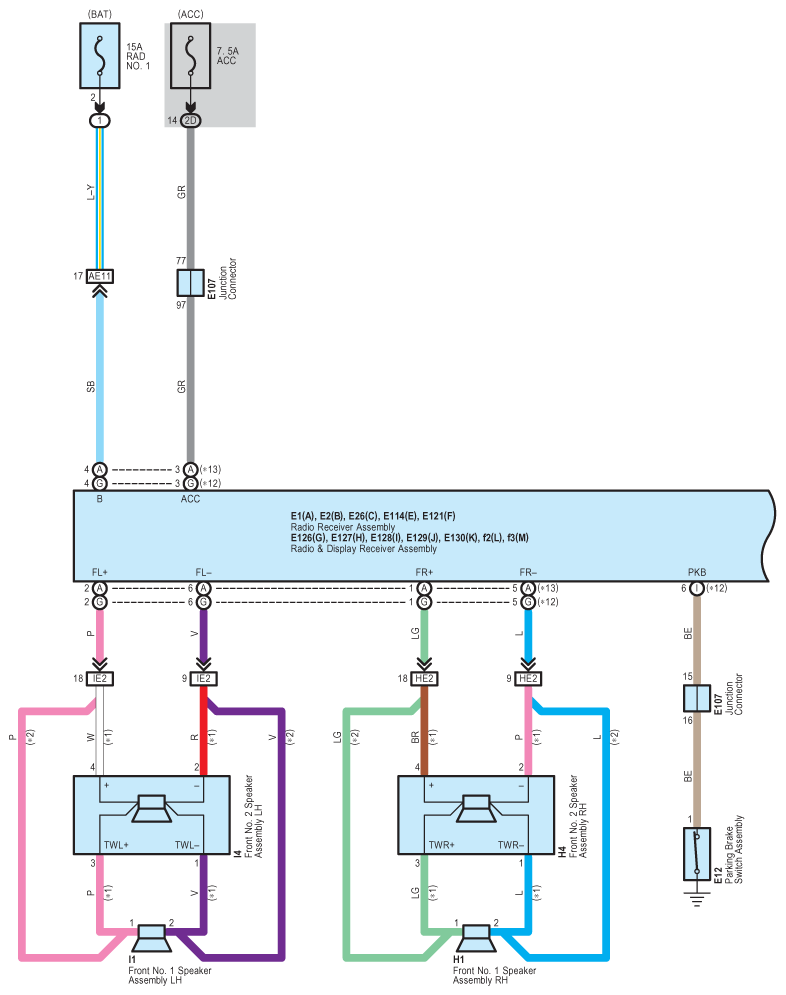

Fig 4: Audio System And Navigation System Wiring Diagram (Except TMC Made; 4 Of 6)

Fig 5: Audio System And Navigation System Wiring Diagram (Except TMC Made; 5 Of 6)

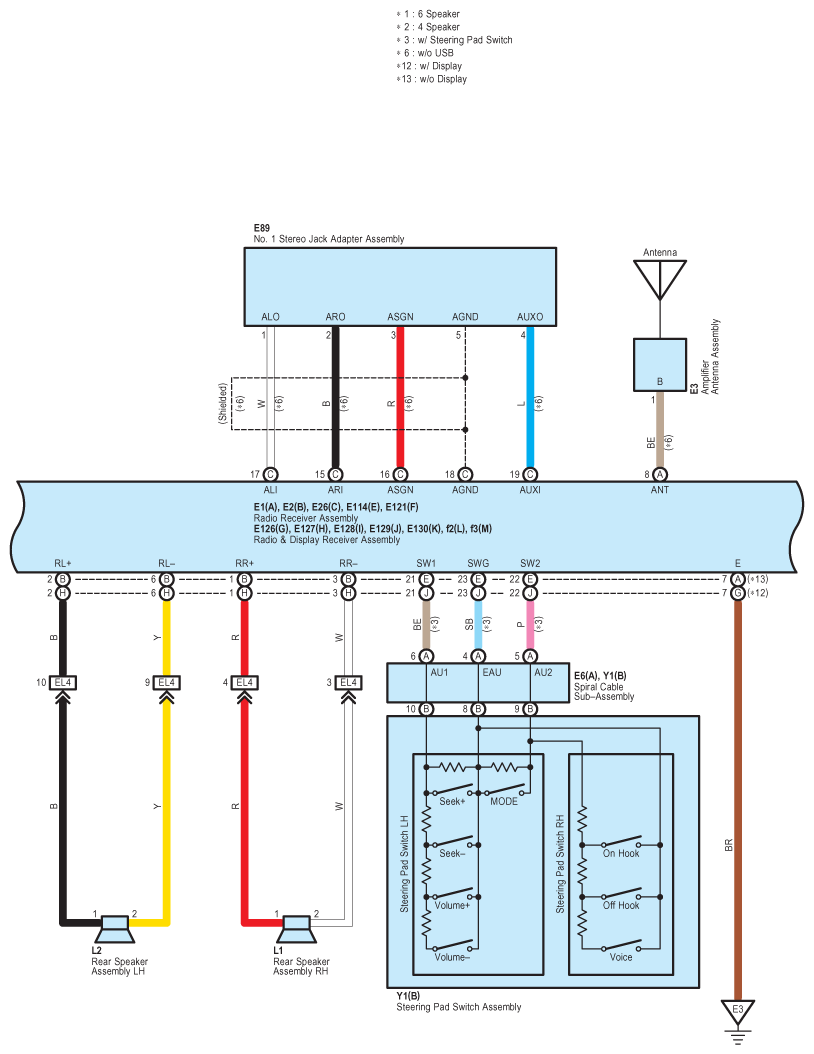

Fig 6: Audio System And Navigation System Wiring Diagram (Except TMC Made; 6 Of 6)
