Combination Meter (TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

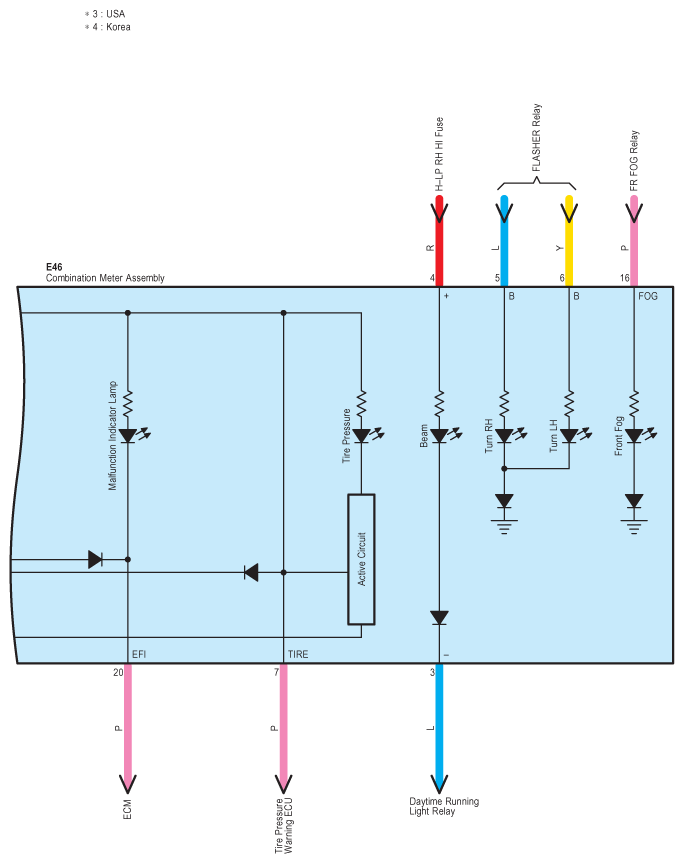

Fig 1: Combination Meter System Wiring Diagram (TMC Made; (1 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

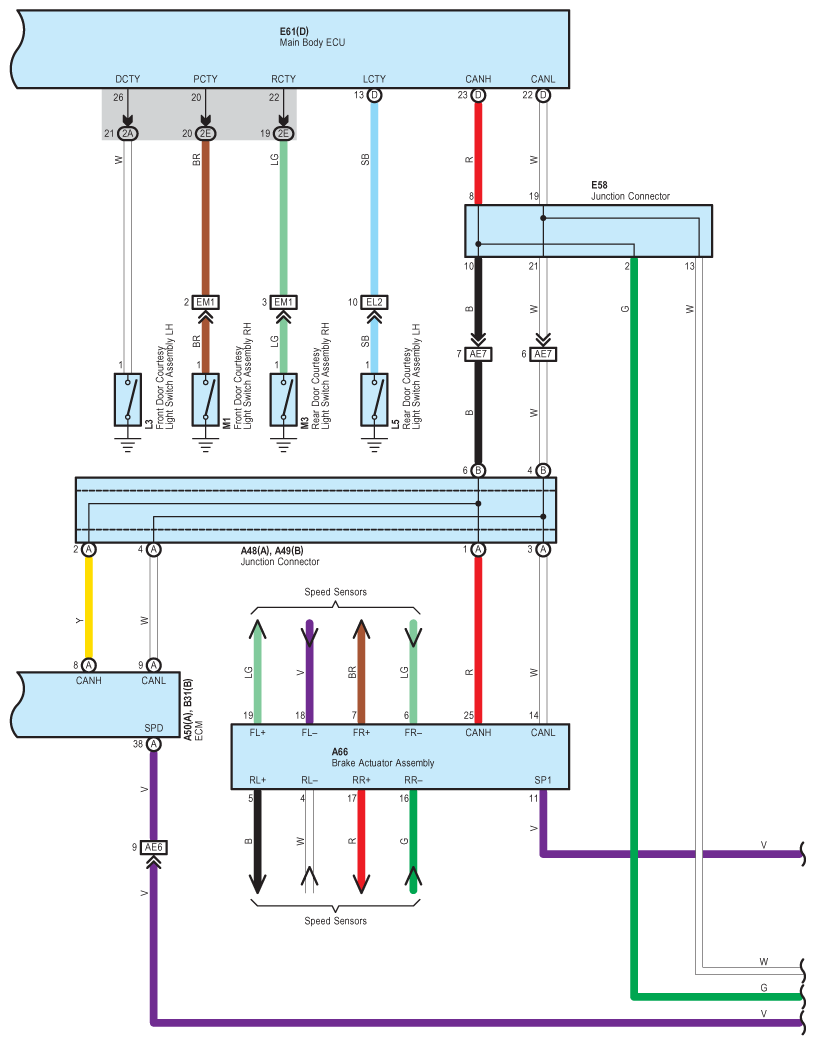

Fig 2: Combination Meter System Wiring Diagram (TMC Made; (2 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

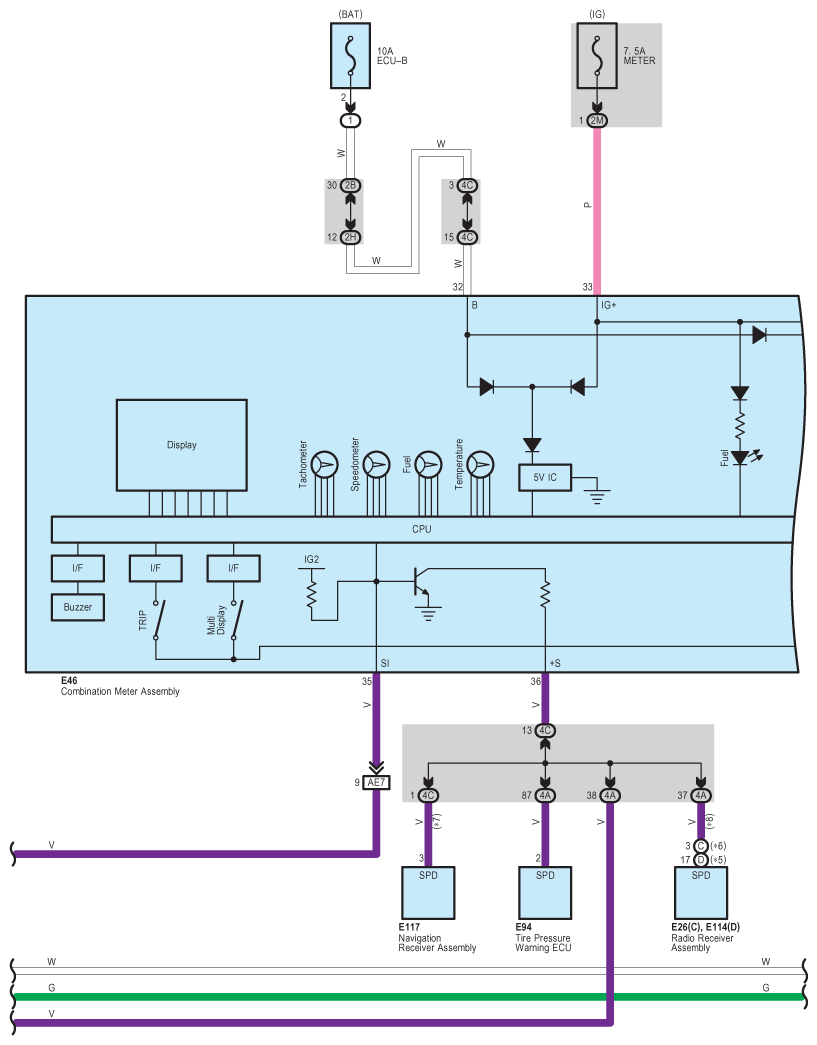

Fig 3: Combination Meter System Wiring Diagram (TMC Made; (3 Of 6)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

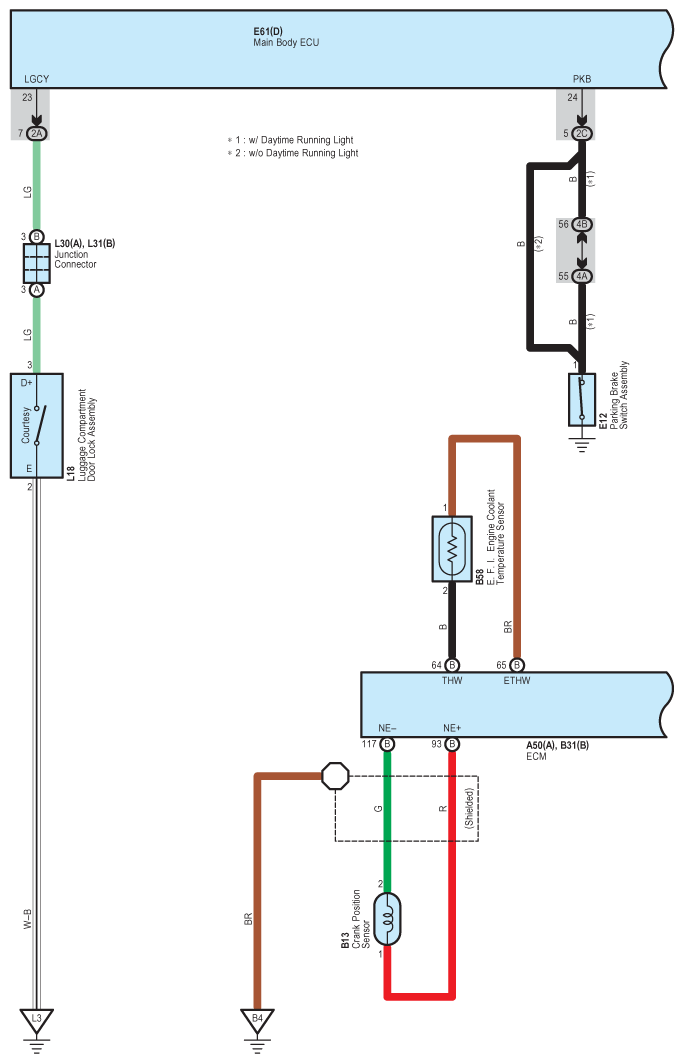

Fig 4: Combination Meter System Wiring Diagram (TMC Made; (4 Of 6)

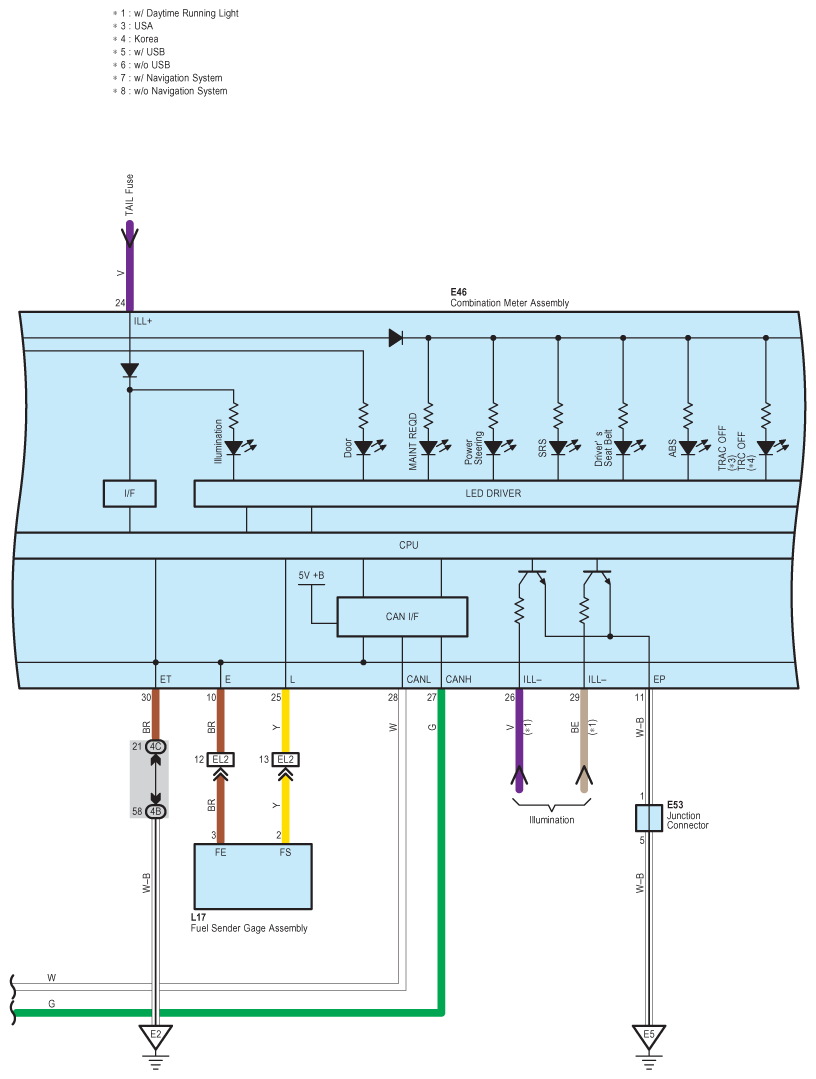

Fig 5: Combination Meter System Wiring Diagram (TMC Made; (5 Of 6)

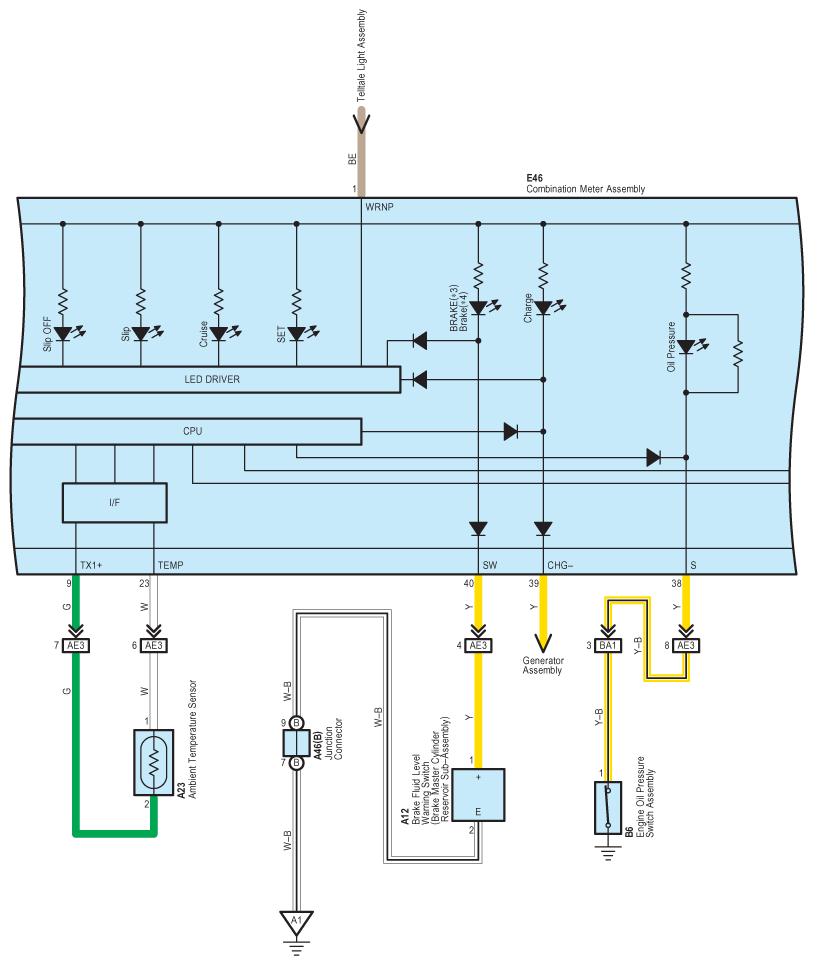

Fig 6: Combination Meter System Wiring Diagram (TMC Made; (6 Of 6)
