Data Link Connector 3 (Except TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

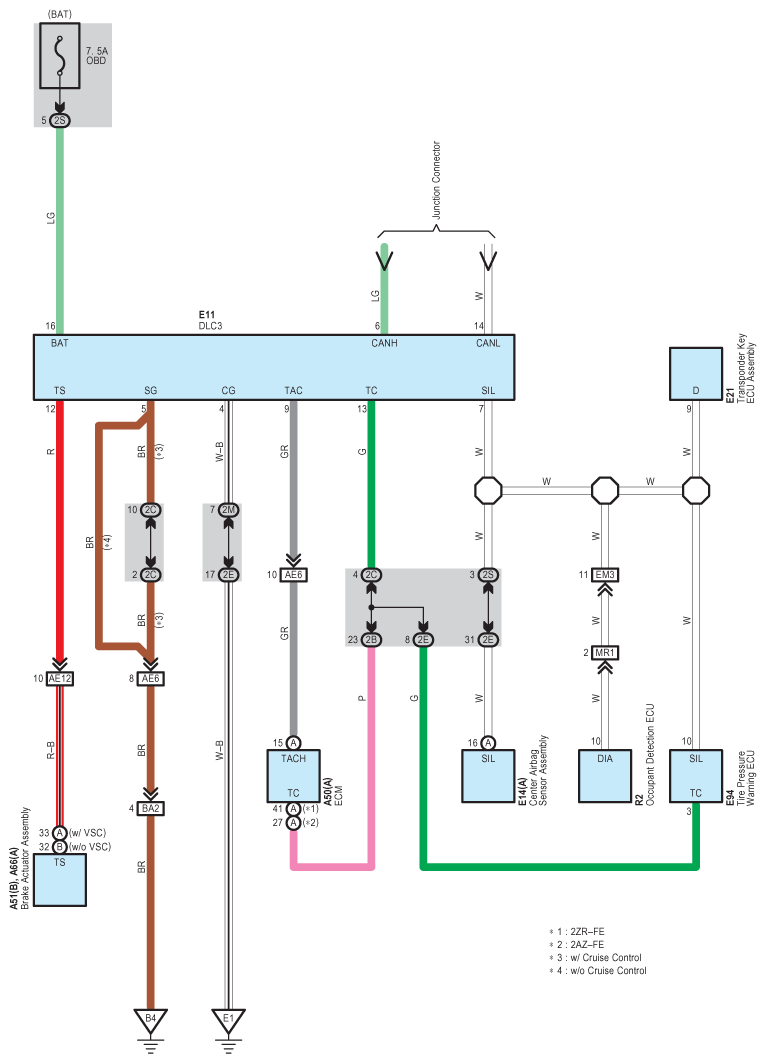

Fig 1: Data Link Connector 3 System Wiring Diagram (Except TMC Made)
G08842886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
