Engine Control (2ZR-FE) (Except TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

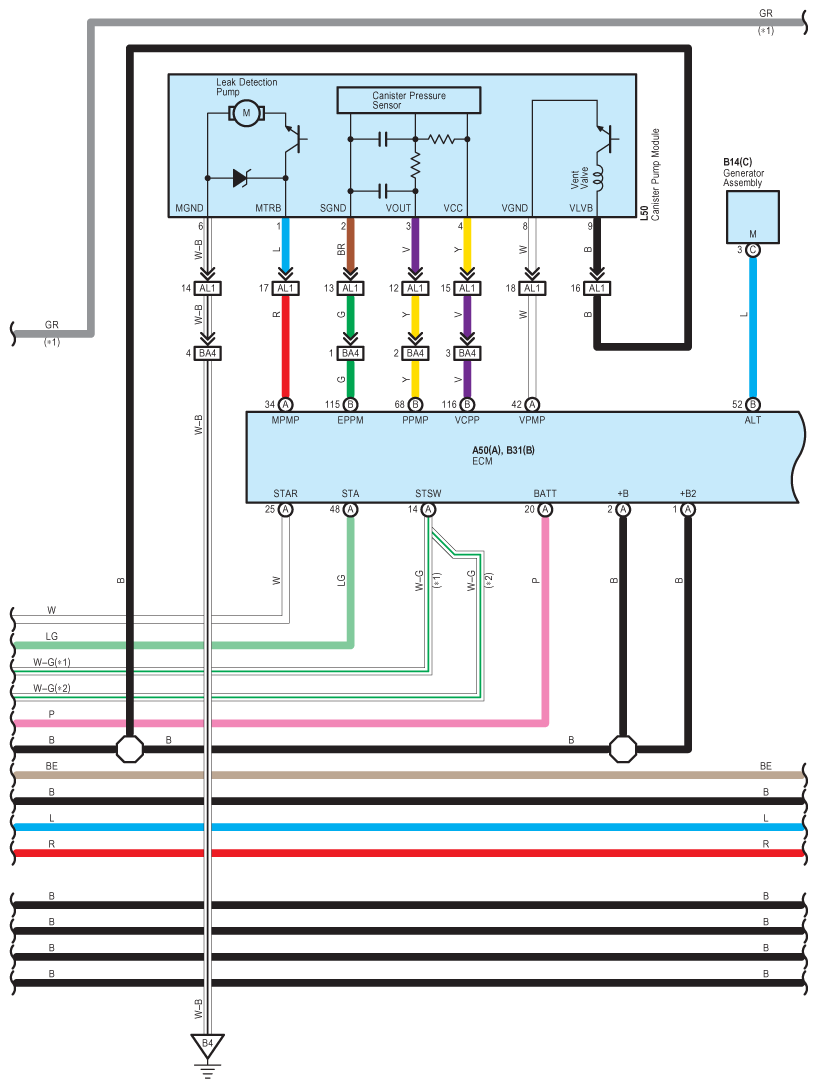

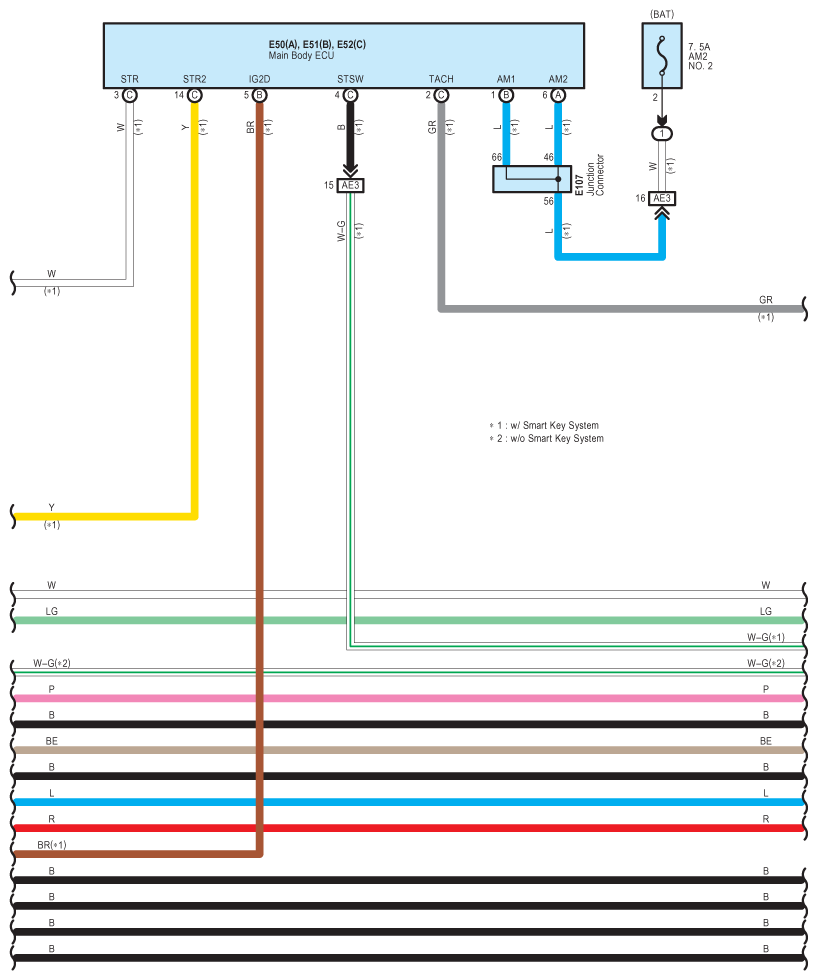

Fig 1: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 1 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

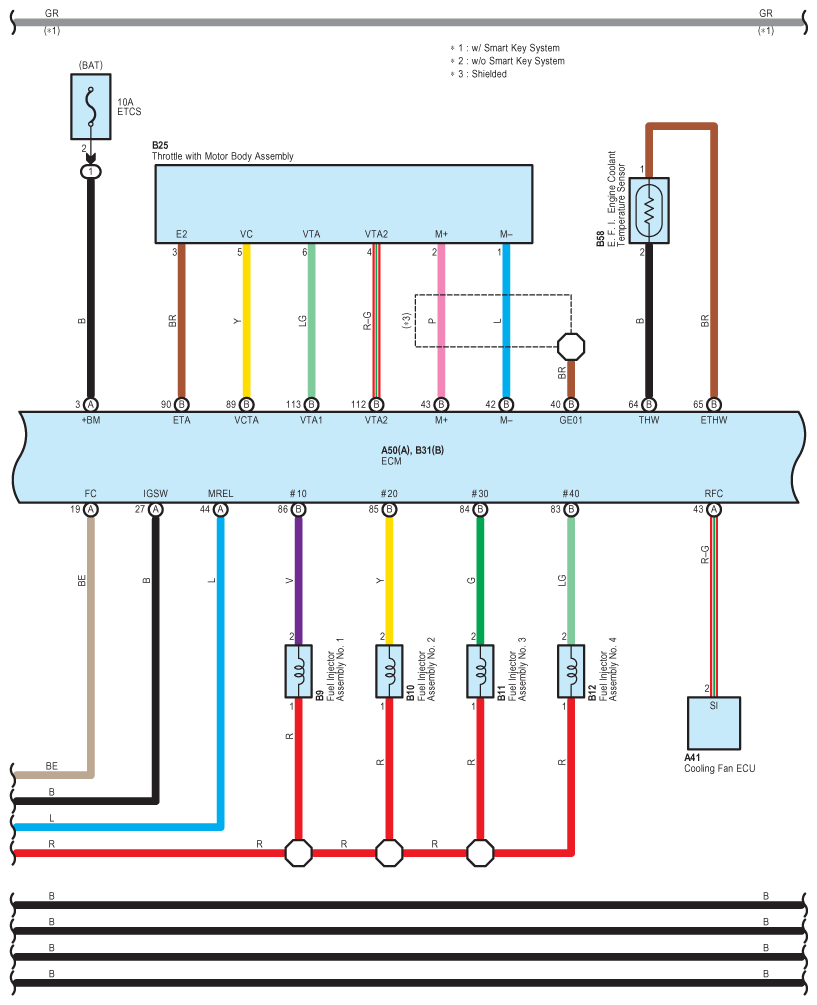

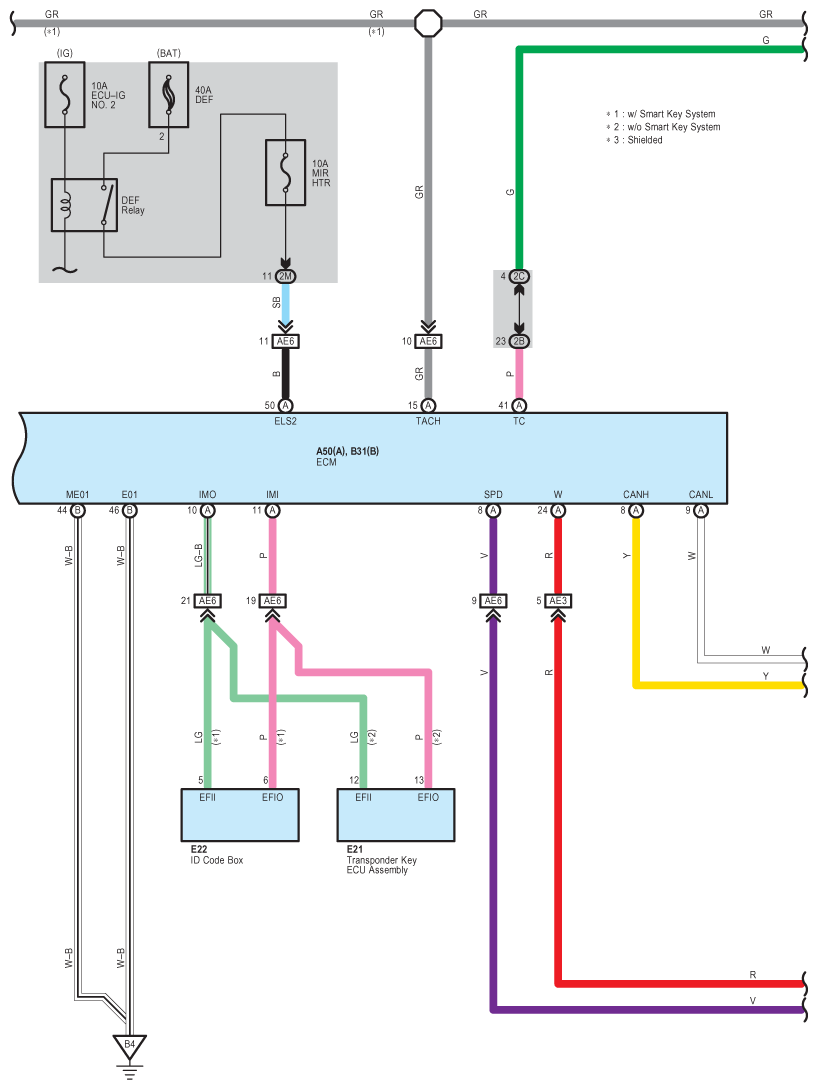

Fig 2: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 2 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

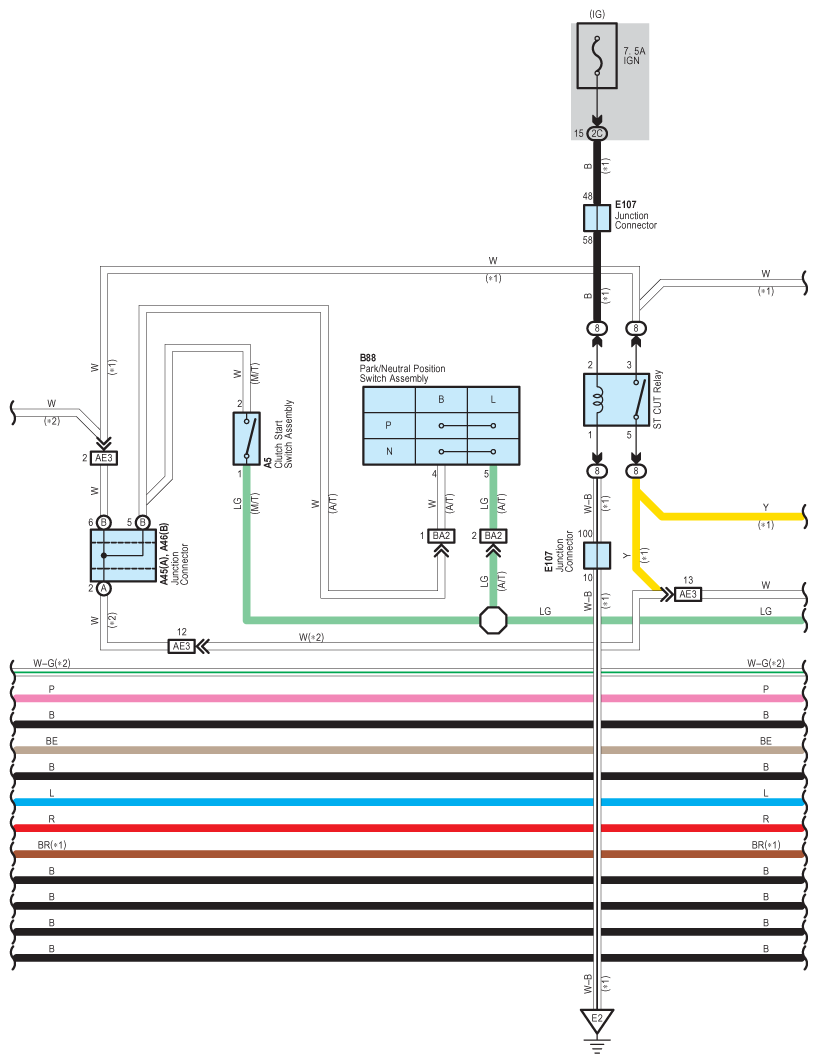

Fig 3: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 3 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

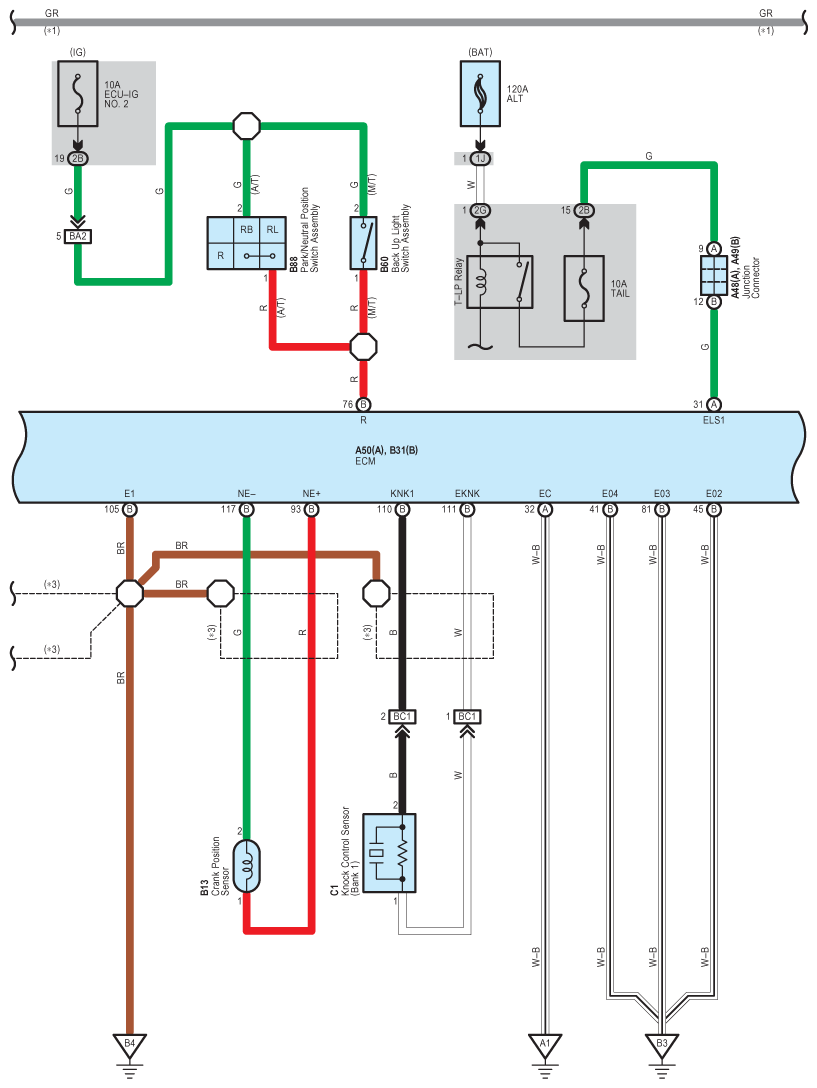

Fig 4: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 4 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

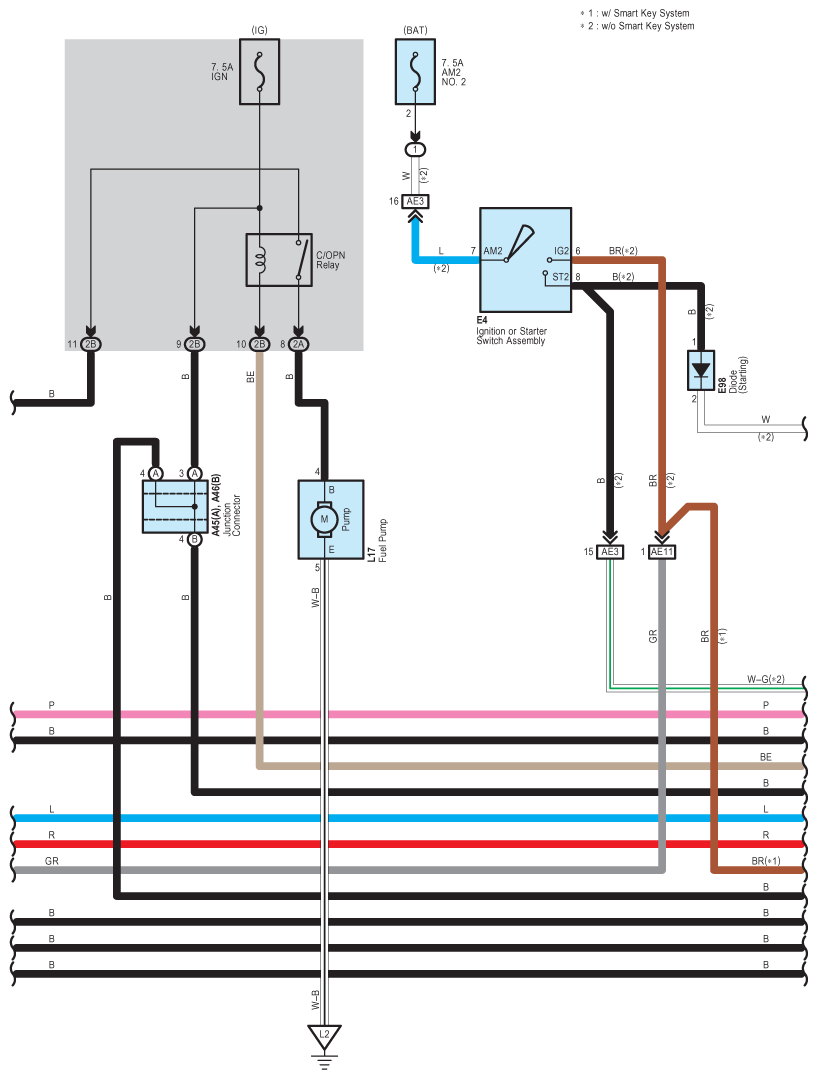

Fig 5: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 5 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

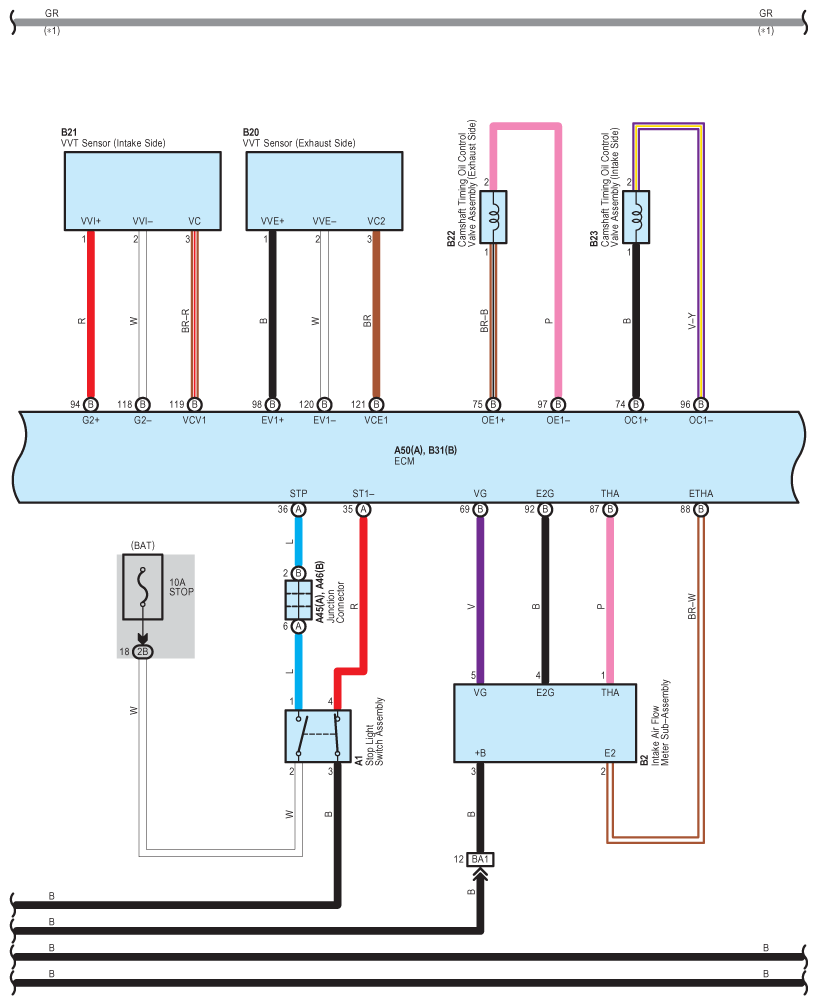

Fig 6: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 6 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

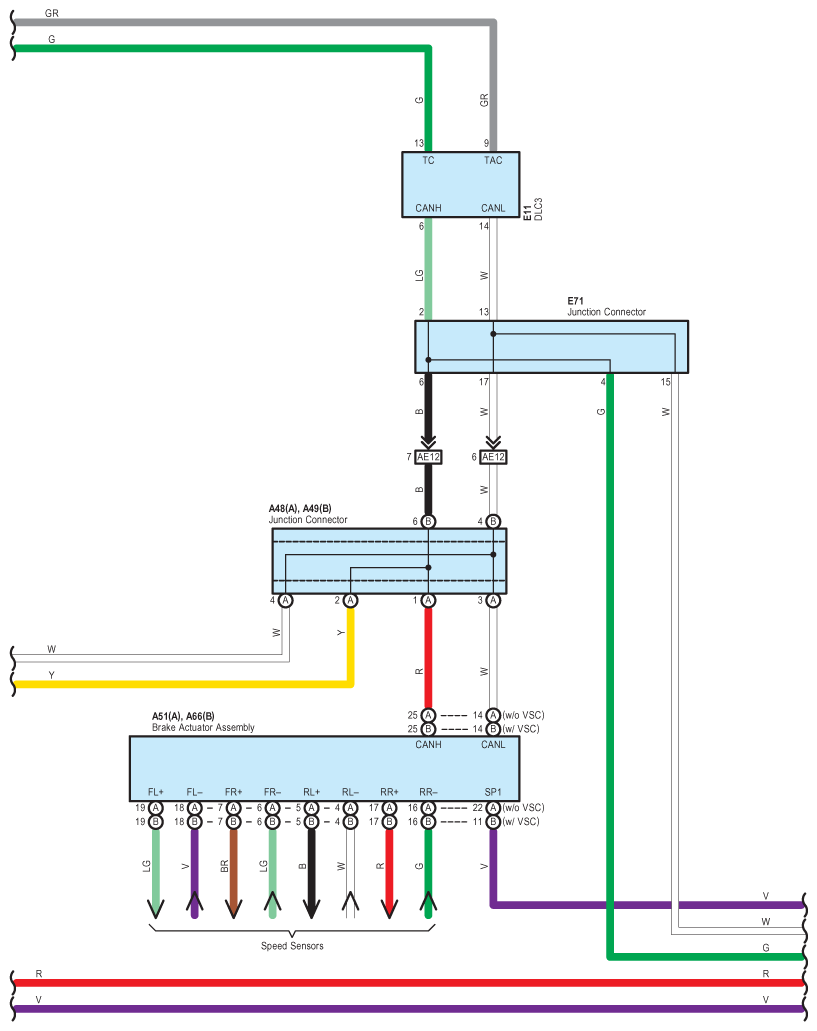

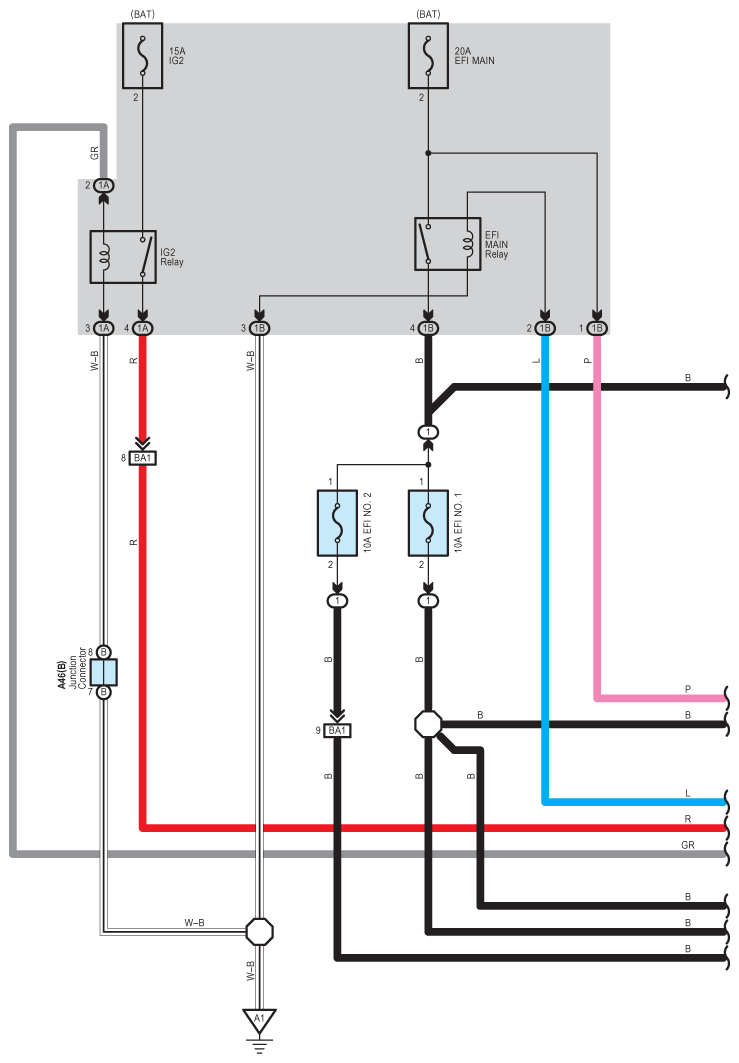

Fig 7: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 7 Of 12)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

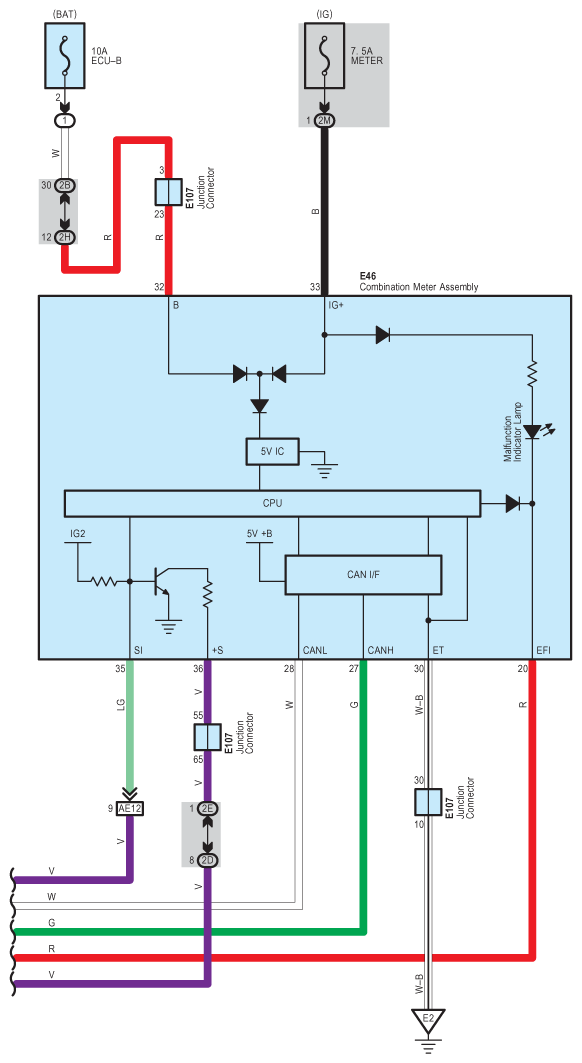

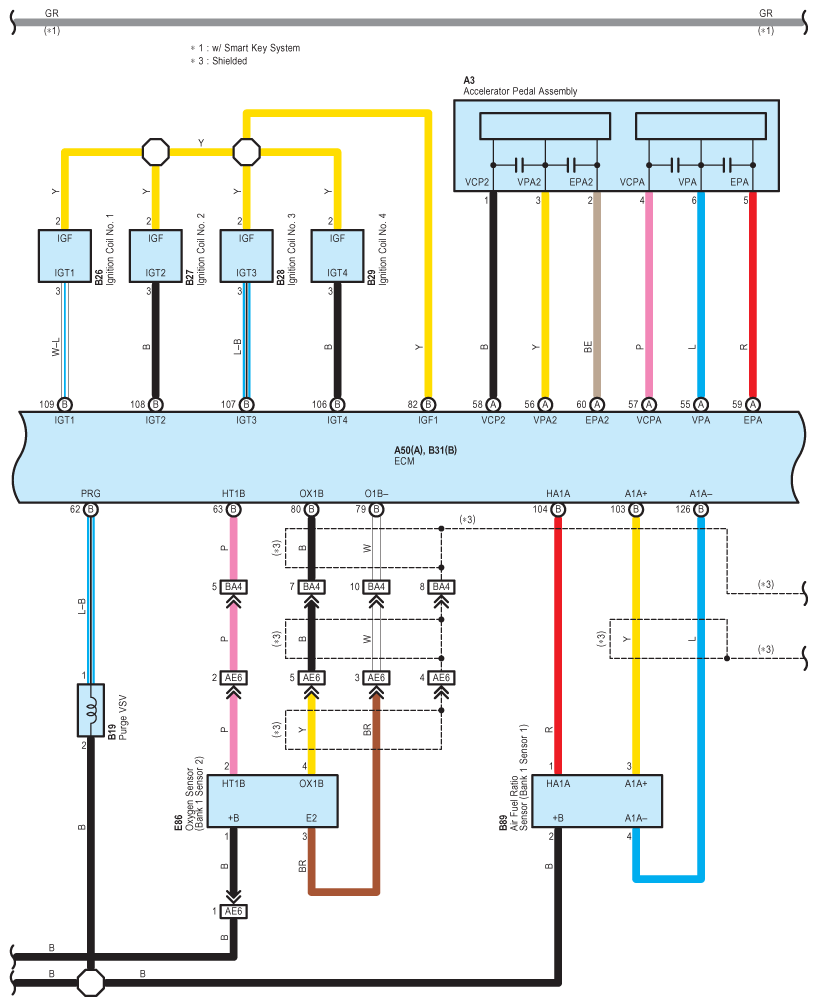

Fig 8: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 8 Of 12)

Fig 9: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 9 Of 12)

Fig 10: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 10 Of 12)

Fig 11: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 11 Of 12)

Fig 12: Engine Control (2ZR-FE) System Wiring Diagram (Except TMC Made; 12 Of 12)
