Multiplex Communication System (CAN) (Except TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

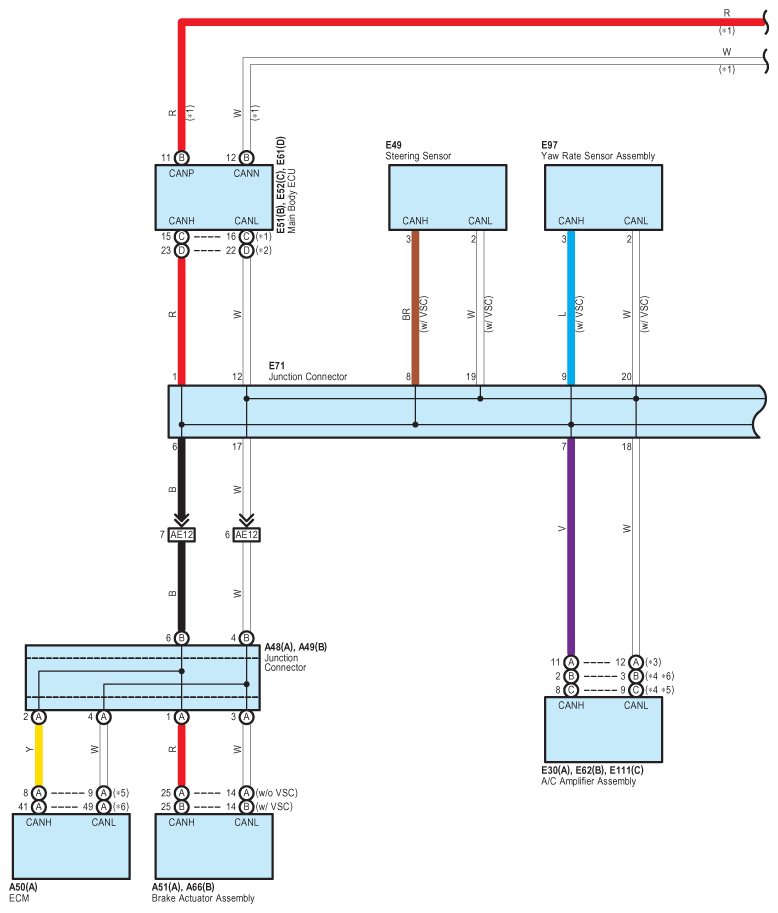

Fig 1: Multiplex Communication System (CAN) Wiring Diagram (Except TMC Made; 1 Of 2)

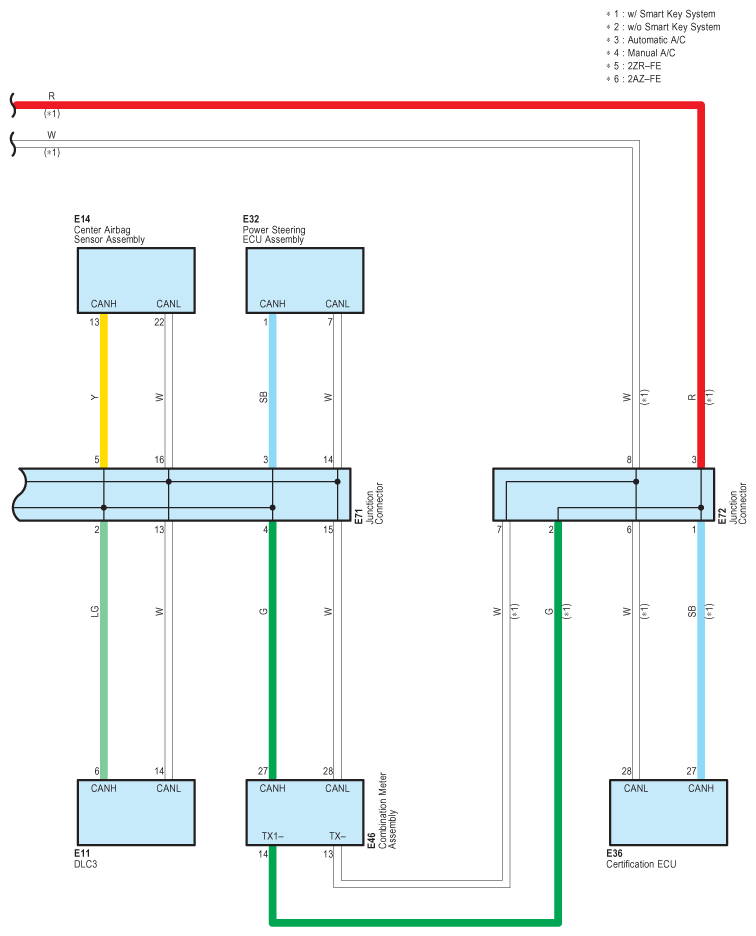

Fig 2: Multiplex Communication System (CAN) Wiring Diagram (Except TMC Made; 2 Of 2)
