Multiplex Communication System (CAN) (TMC Made): Notes
WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

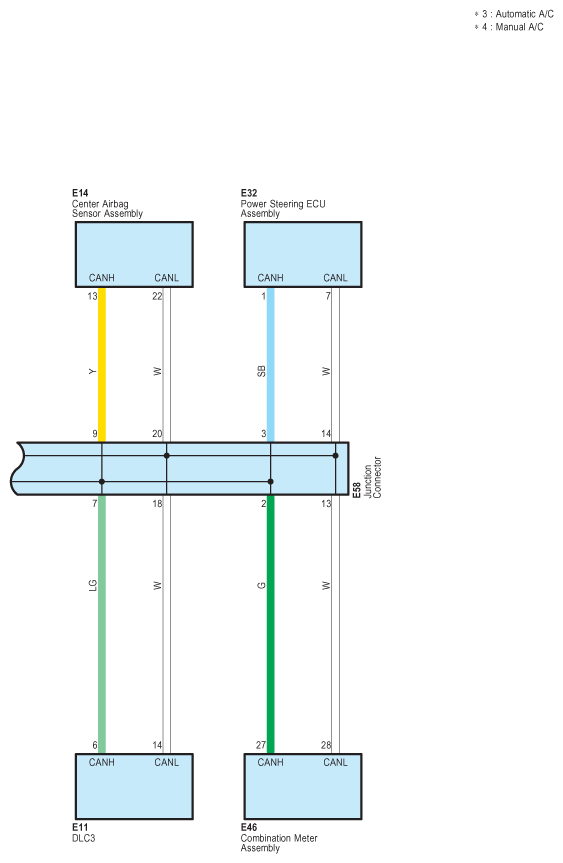

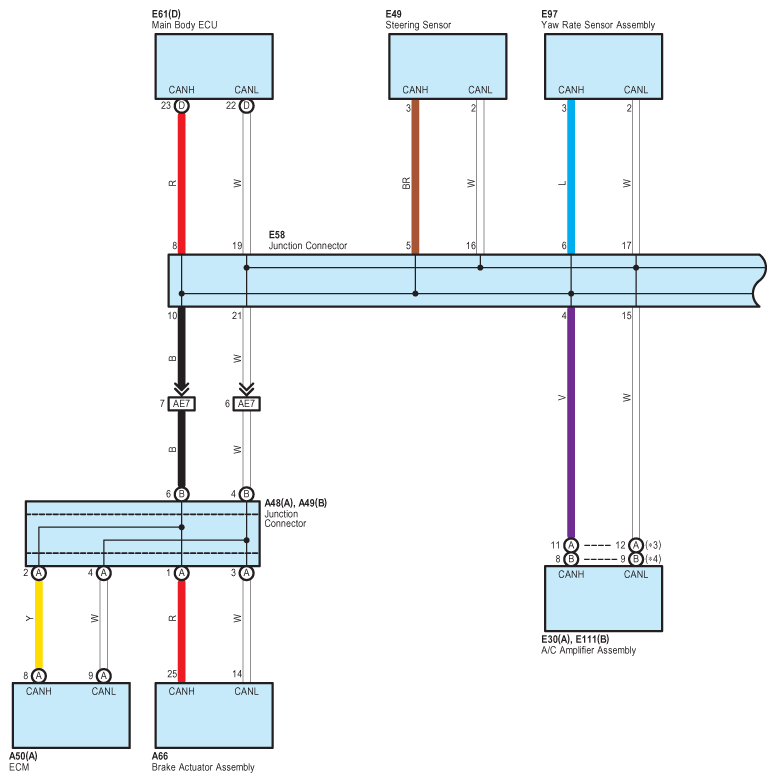

Fig 1: Multiplex Communication (CAN) System Wiring Diagram (TMC Made; 1 Of 2)
