Wireless Door Lock Control (w/o Smart Key System) (Except TMC Made): Notes

WARNING: This page is about a different car, the 2012 Toyota Corolla. However, it is still accessible from the selected car via links, so may be relevant.

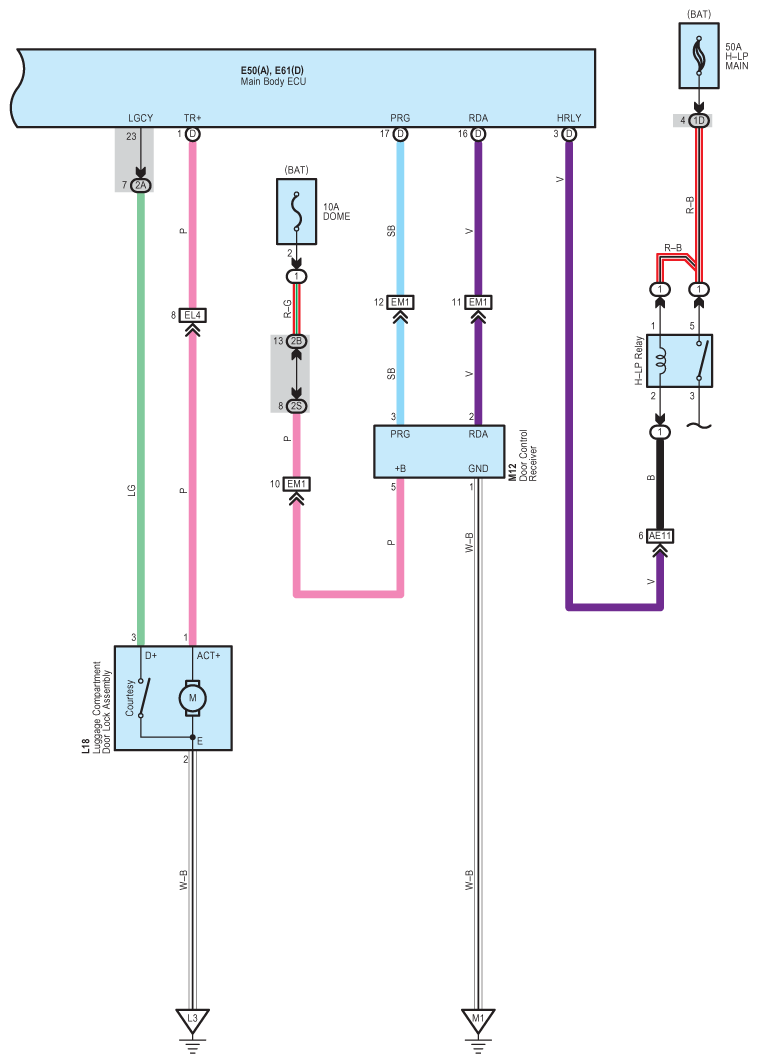

Fig 1: Wireless Door Lock Control (W/O Smart Key System) System Wiring Diagram (Except TMC Made; 1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

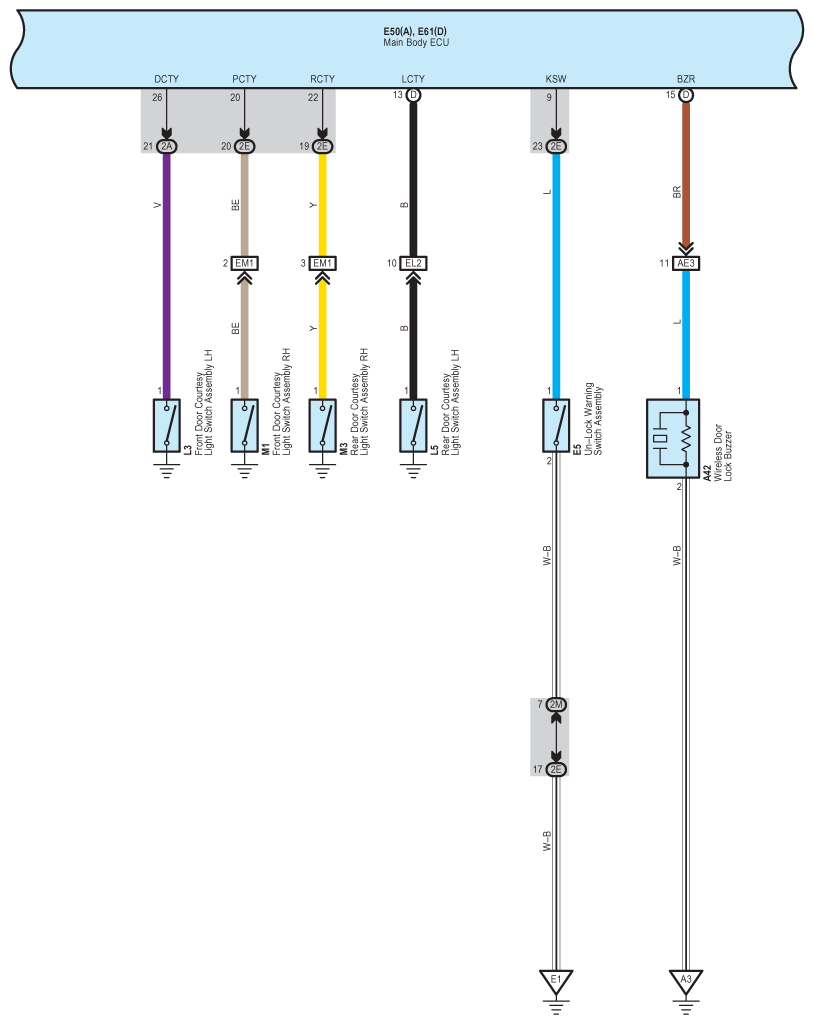

Fig 2: Wireless Door Lock Control (W/O Smart Key System) System Wiring Diagram (Except TMC Made; 2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

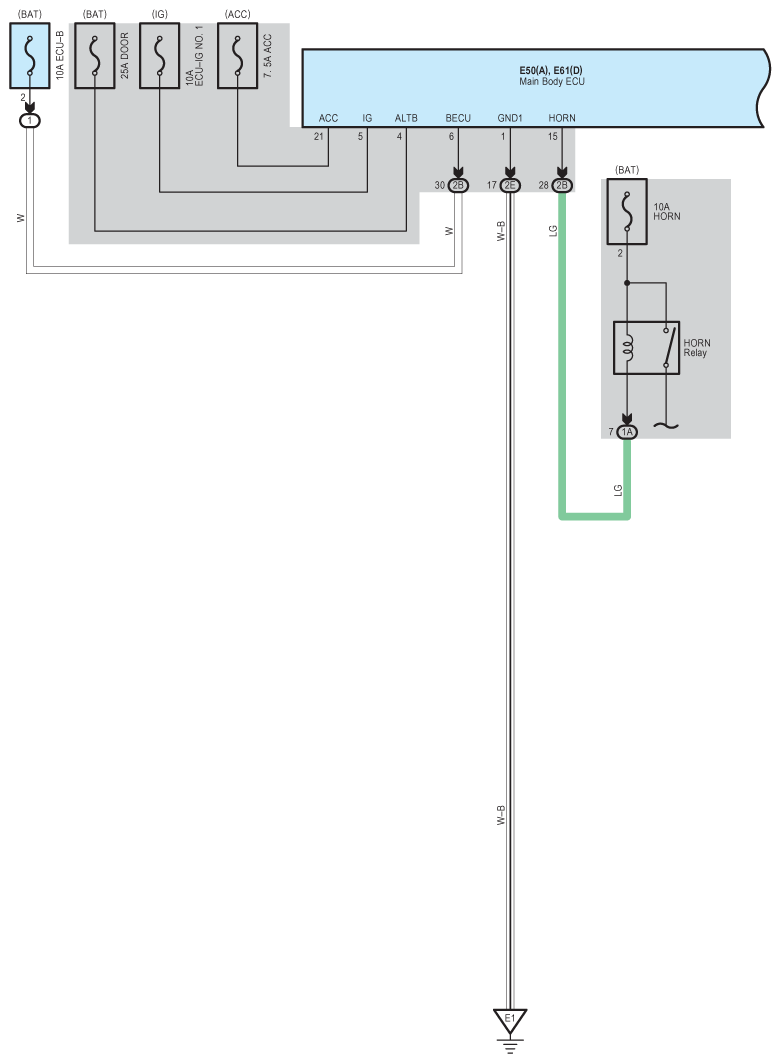

Fig 3: Wireless Door Lock Control (W/O Smart Key System) System Wiring Diagram (Except TMC Made; 3 Of 4)

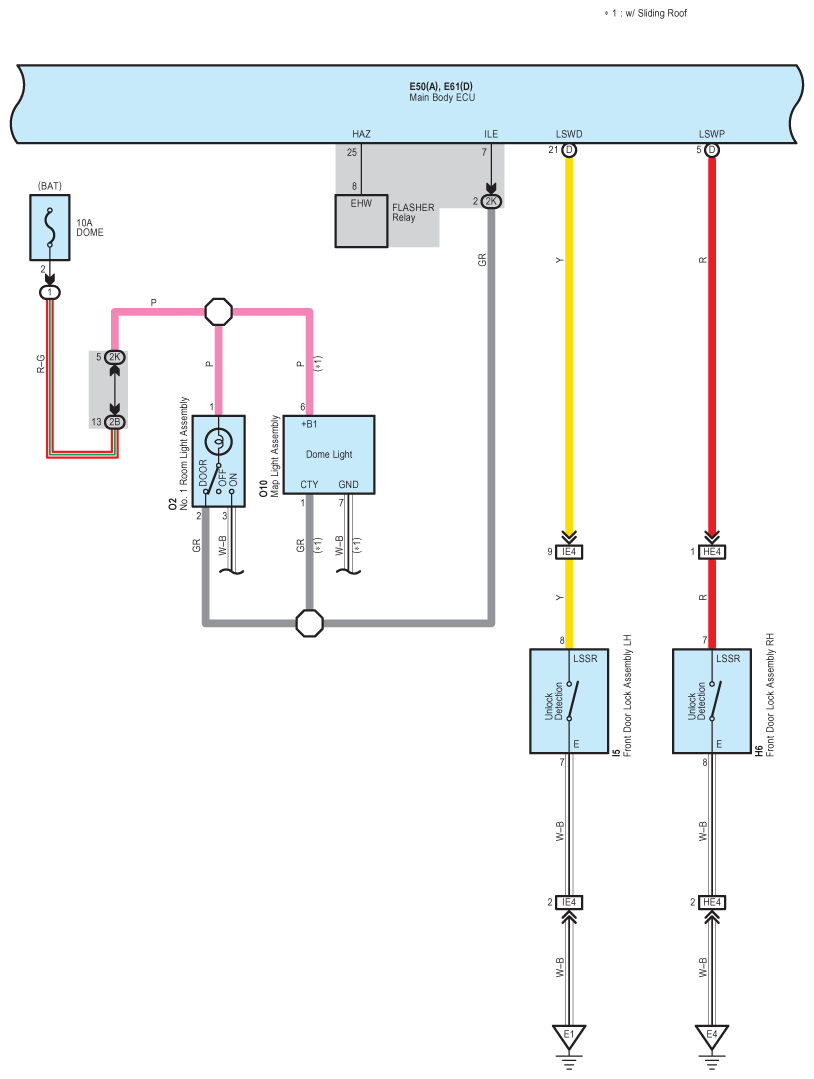

Fig 4: Wireless Door Lock Control (W/O Smart Key System) System Wiring Diagram (Except TMC Made; 4 Of 4)
