Connector Locations

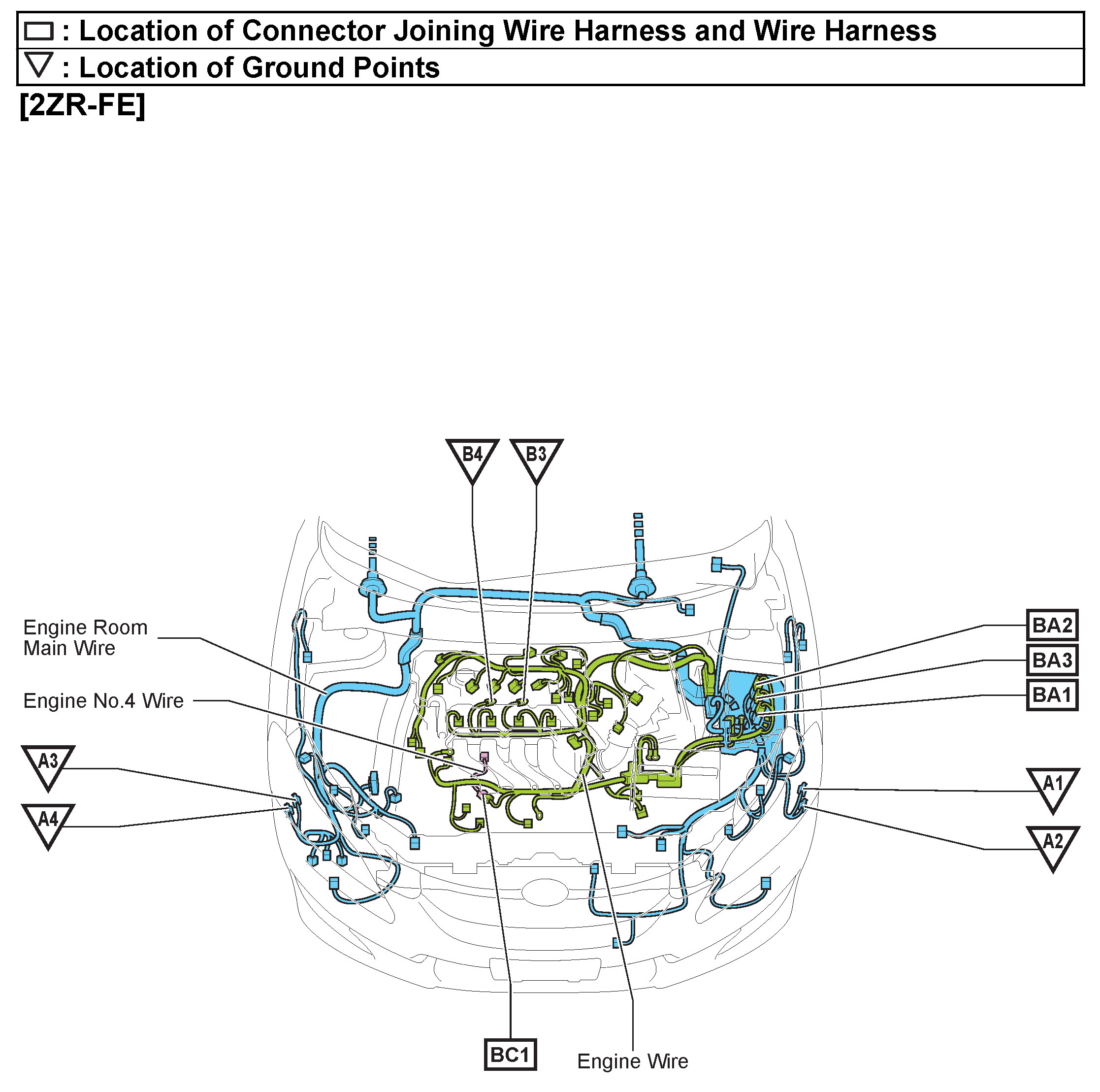

51 - A1-B4, BA1-BC1:






52 - AE1-OE1:






53 - L2-M2, JM1-PL2:






54 - MS1:
