2AZ-FE ENGINE CONTROL: CAMSHAFT OIL CONTROL VALVE: INSTALLATION

1. INSTALL CAMSHAFT TIMING OIL CONTROL VALVE ASSEMBLY

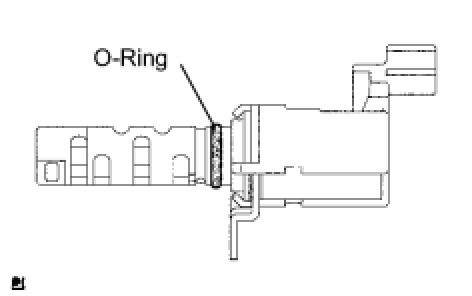

(a) Apply a light coat of engine oil to a new O-ring and install it onto the camshaft timing oil control valve assembly.

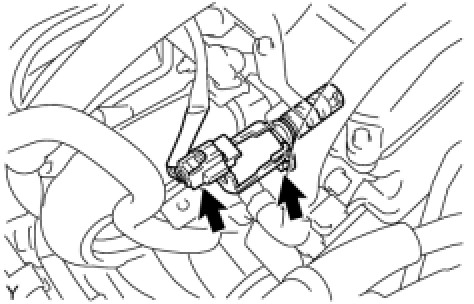

(b) Install the camshaft timing oil control valve assembly with the bolt.





Torque : 9.0 Nm (92 kgf-cm, 80 in-lbf)

(c) Connect the camshaft timing oil control valve connector.

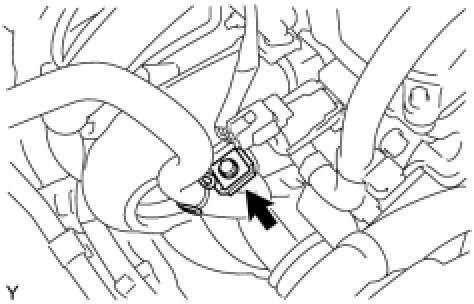

(d) Install the vacuum hose clamp with the bolt.





Torque : 8.5 Nm (87 kgf-cm, 75 in-lbf)

2. INSPECT FOR OIL LEAK

3. INSTALL NO. 1 ENGINE COVER SUB-ASSEMBLY Installation
