Flywheel

FLYWHEEL SUB-ASSEMBLY (for Manual Transaxle)

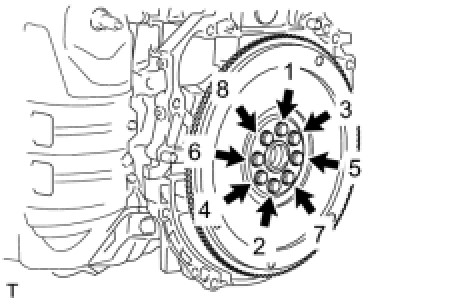

In several steps, uniformly install and tighten the 8 bolts in the sequence shown in the illustration.






Torque 130 Nm (1326 kgf-cm, 96 ft-lbf)
