Service Data





SPECIFICATIONS: E351 MANUAL TRANSMISSION / TRANSAXLE: SERVICE DATA

MANUAL TRANSAXLE ASSEMBLY:

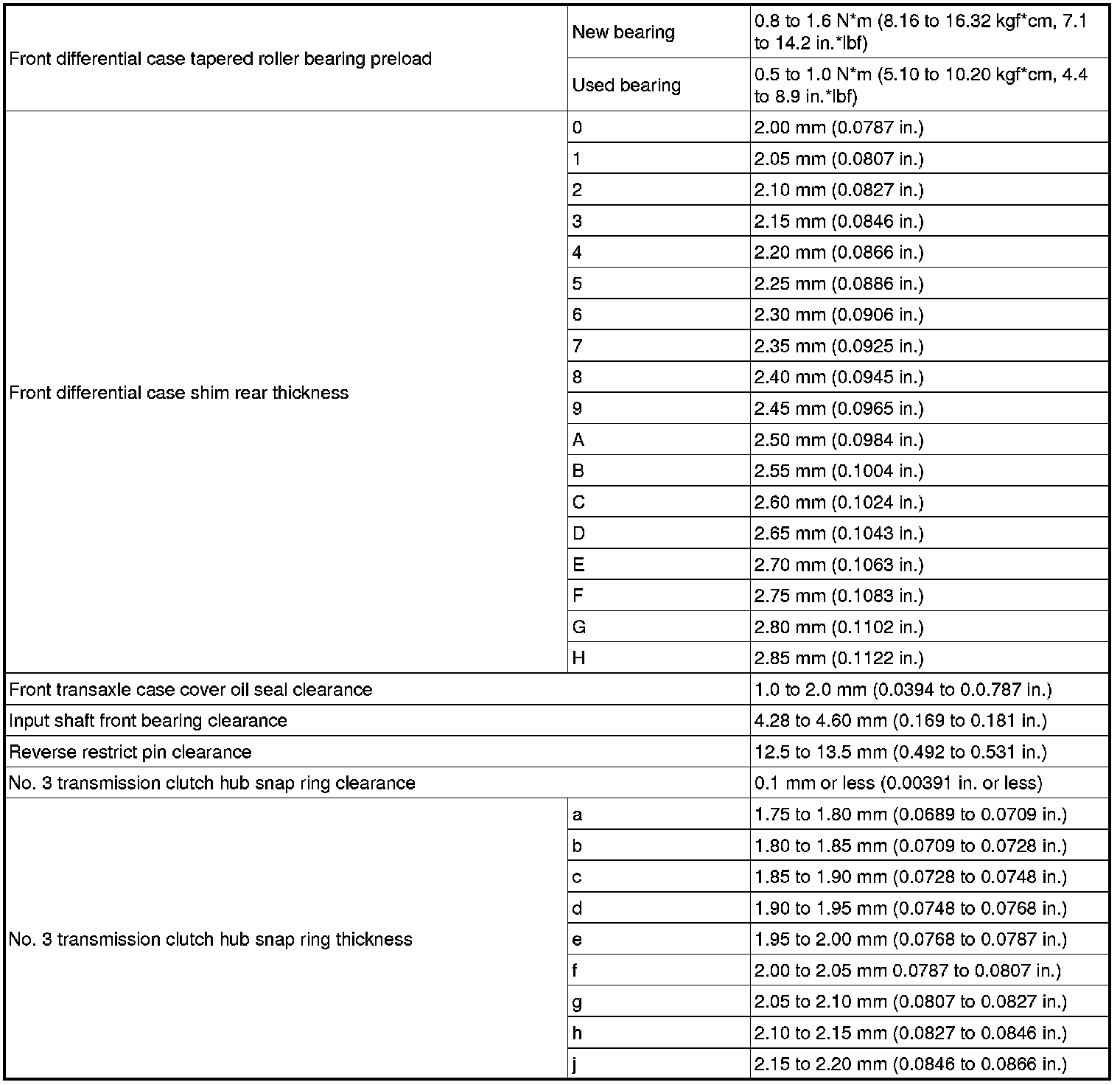

MANUAL TRANSAXLE UNIT:

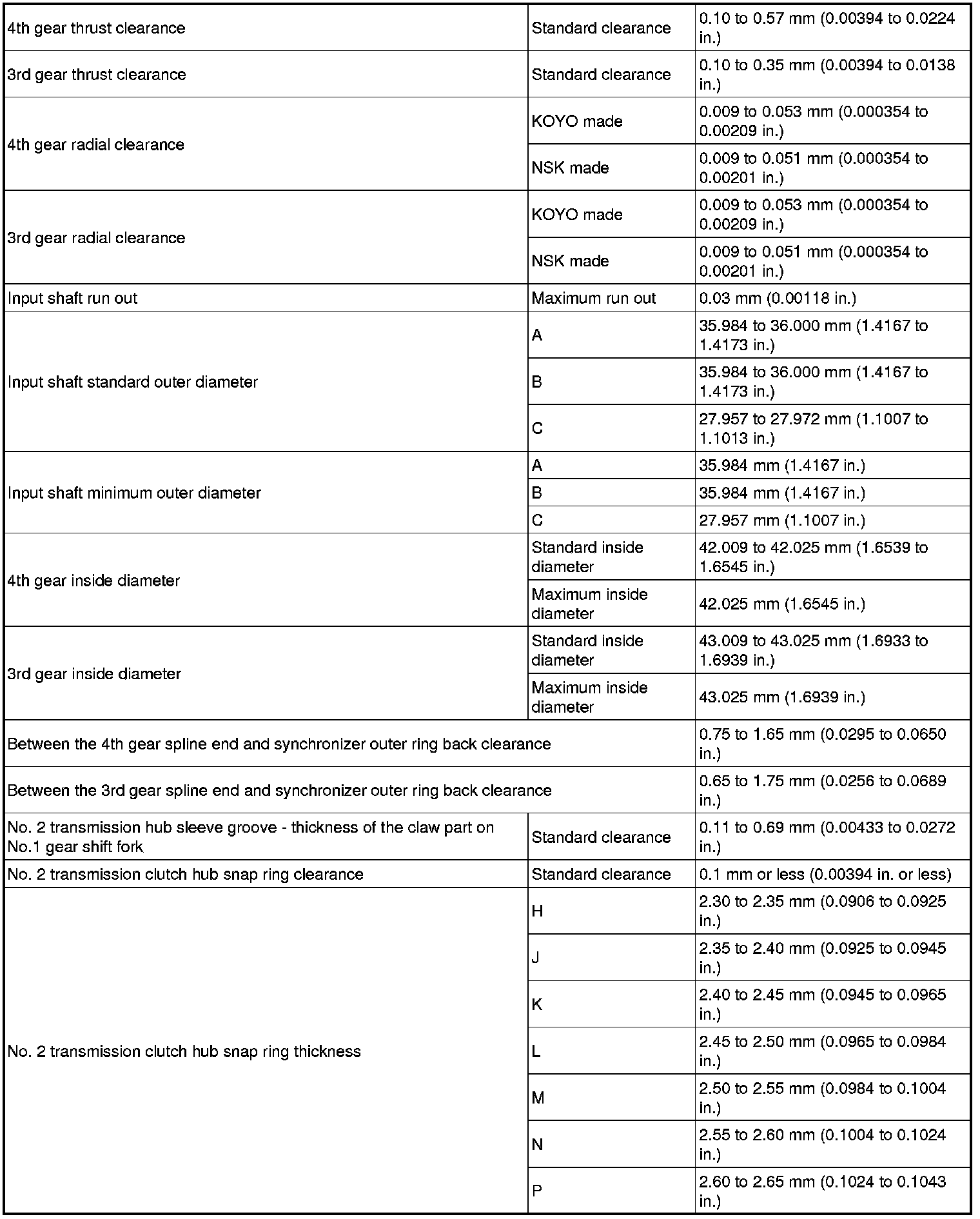

INPUT SHAFT ASSEMBLY:

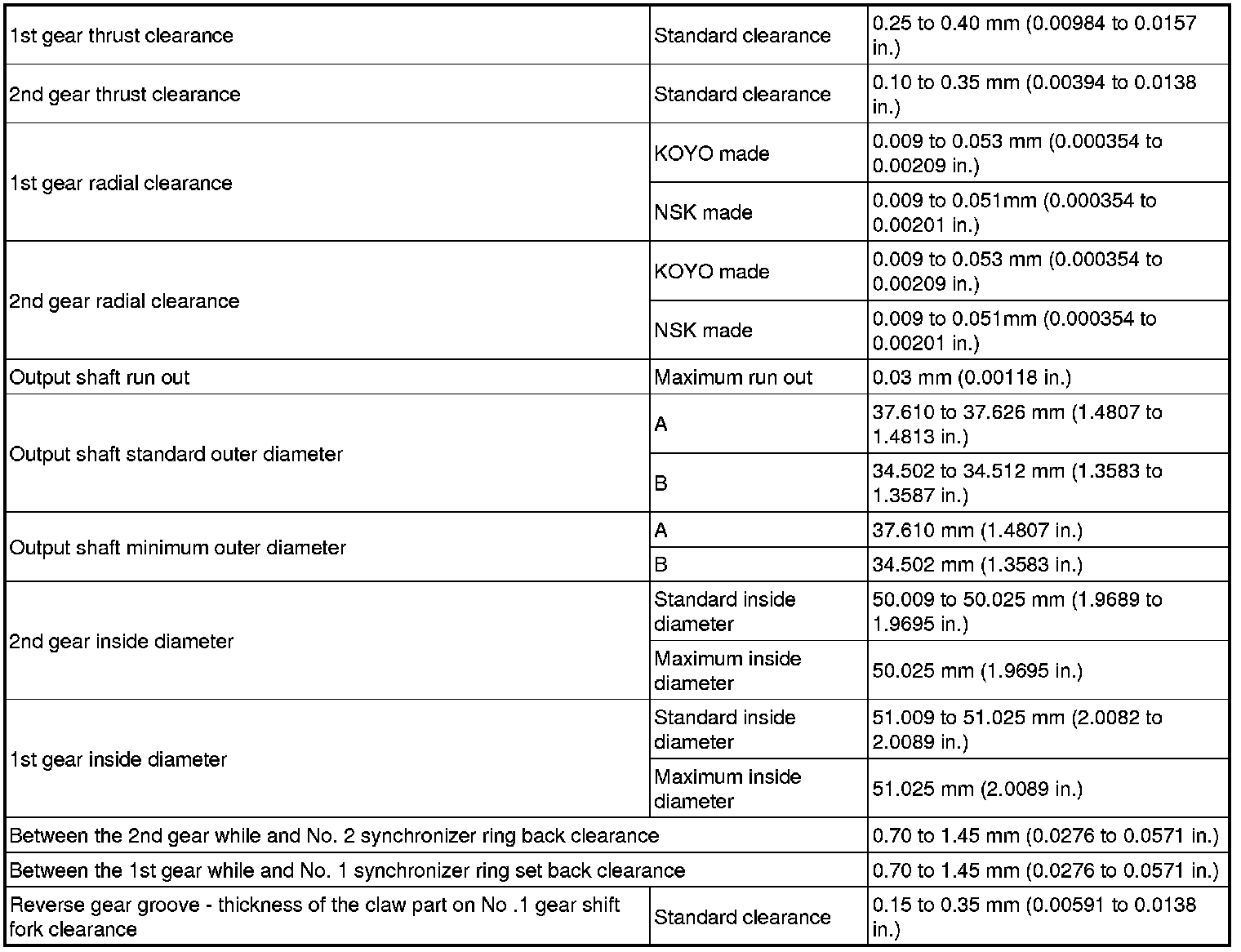

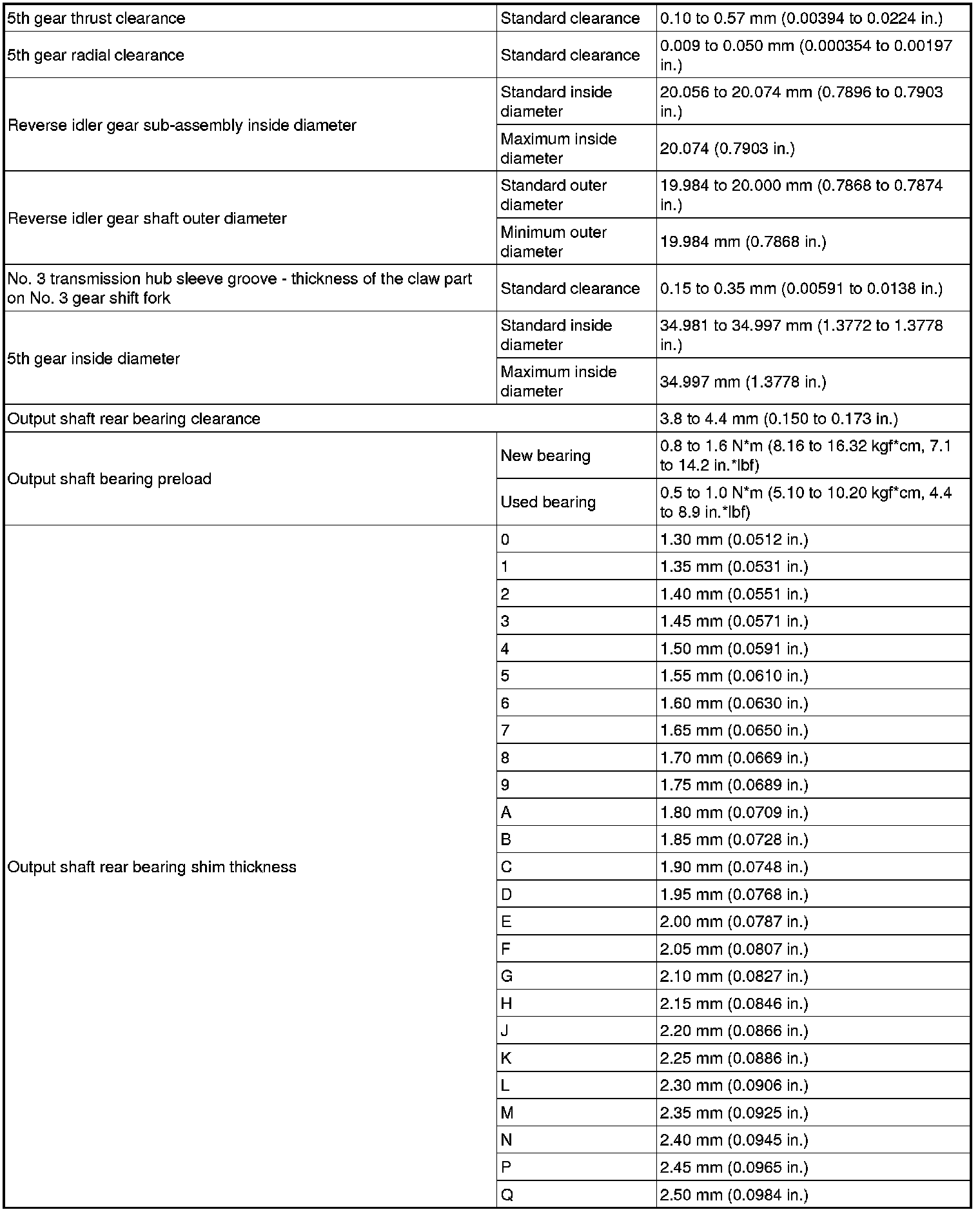

OUTPUT SHAFT ASSEMBLY:






SHIFT AND SELECT LEVER SHAFT ASSEMBLY:






DIFFERENTIAL CASE ASSEMBLY:
