Repair Instruction - Customize Parameters

INTRODUCTION: REPAIR INSTRUCTION: CUSTOMIZE PARAMETERS

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

1. POWER DOOR LOCK CONTROL SYSTEM

Main Body

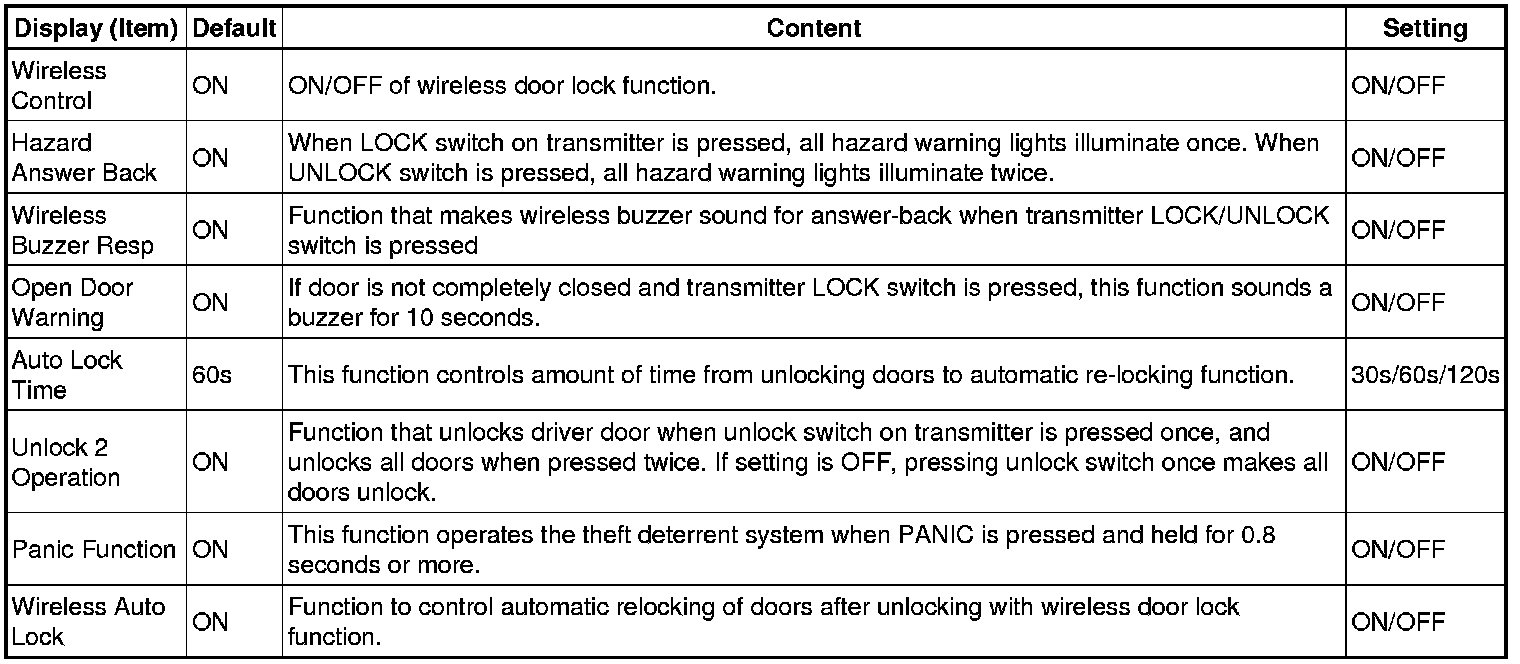

2. WIRELESS DOOR LOCK CONTROL SYSTEM

Wireless Door Lock





3. LIGHTING SYSTEM

Illuminated Entry





* *1: w/ Sliding Roof

* *2: w/ Power Door Lock Control System

4. METER / GAUGE SYSTEM

Combination Meter





HINT
*: This setting is only valid for the buzzer which sounds at 20 km/h (12 mph) or more.
