Engine Coolant Temperature Sensor: Removal: Removal

  1. REMOVE NO. 1 ENGINE COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 11
  2. DRAIN ENGINE COOLANT  . Refer to REPLACEMENT - Step 1
  3. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH HOSE  See step  3
  4. REMOVE AIR CLEANER CASE  . Refer to REMOVAL - Step 14
  5. REMOVE ENGINE COOLANT TEMPERATURE SENSOR
    1. Disconnect the engine coolant temperature sensor connector.

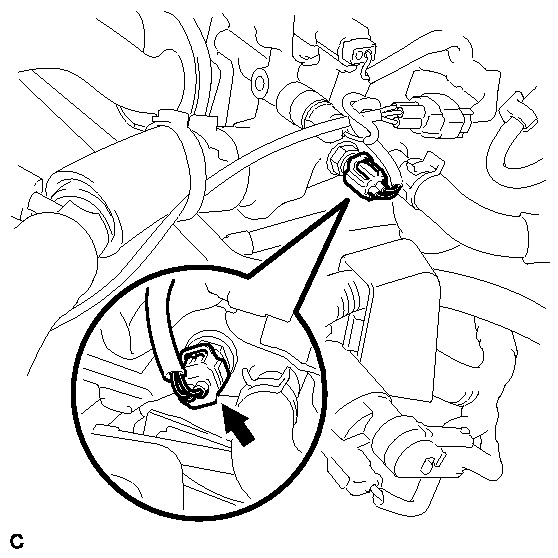

      Fig 1: Locating Engine Coolant Temperature Sensor Connector
      GTY194546Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the engine coolant temperature sensor and gasket.

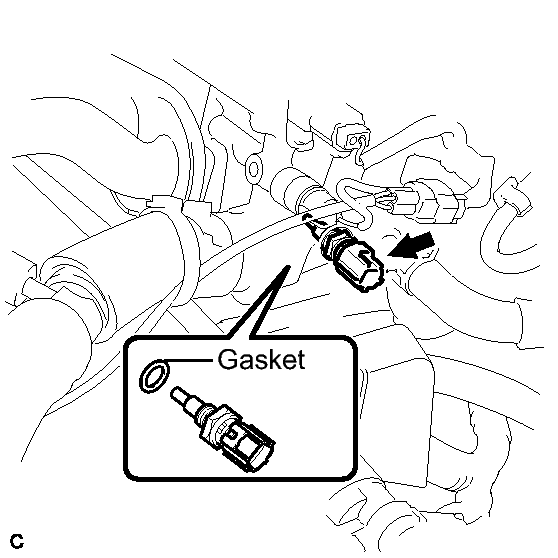

      Fig 2: Identifying Engine Coolant Temperature Sensor And Gasket
      GTY194547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
