Parts Location: Illustrations

WARNING: This page is about a different variant/trim than selected.

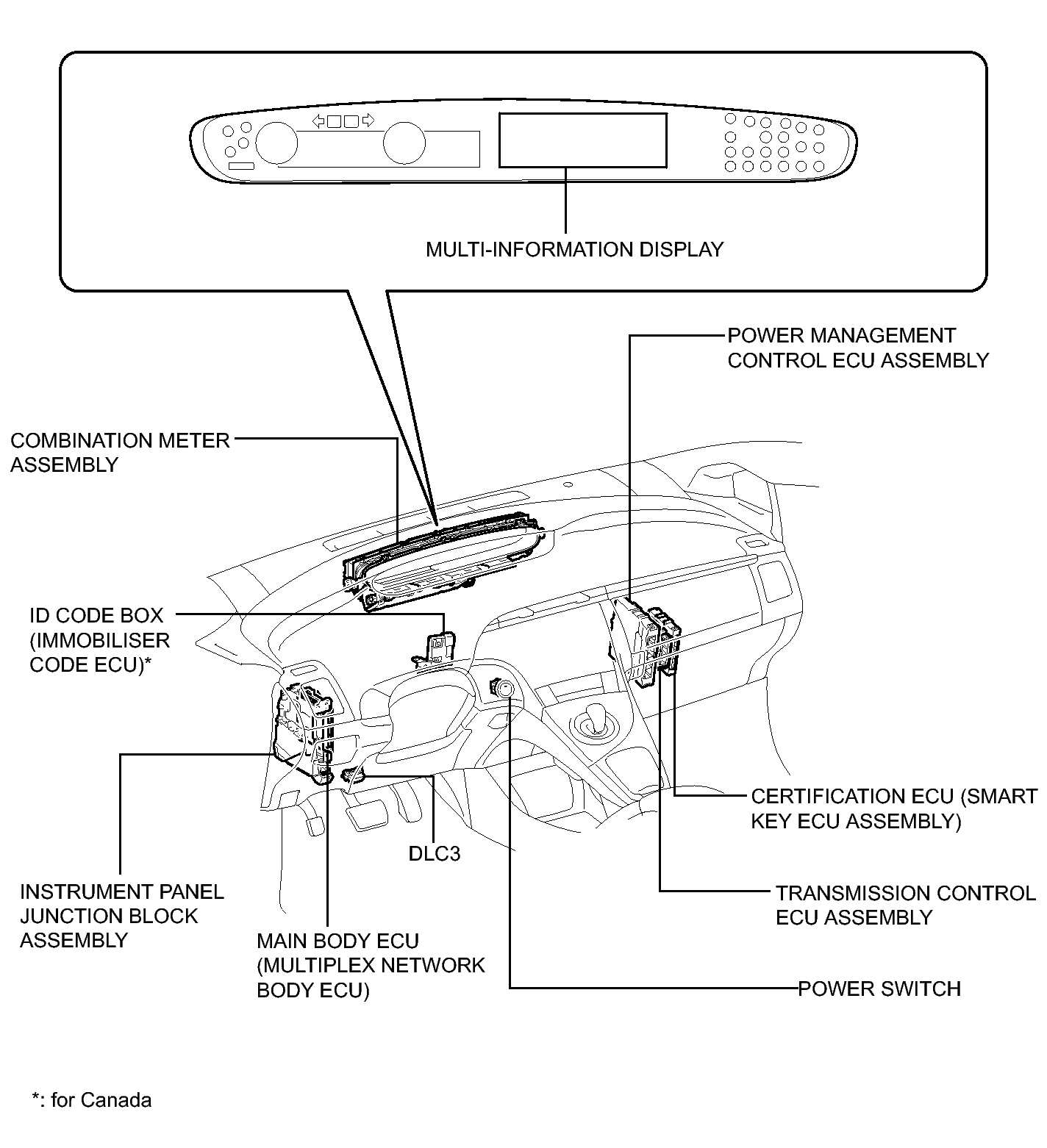

Fig 1: Identifying Smart Key System Components Location (1 Of 3)
GTY342977Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

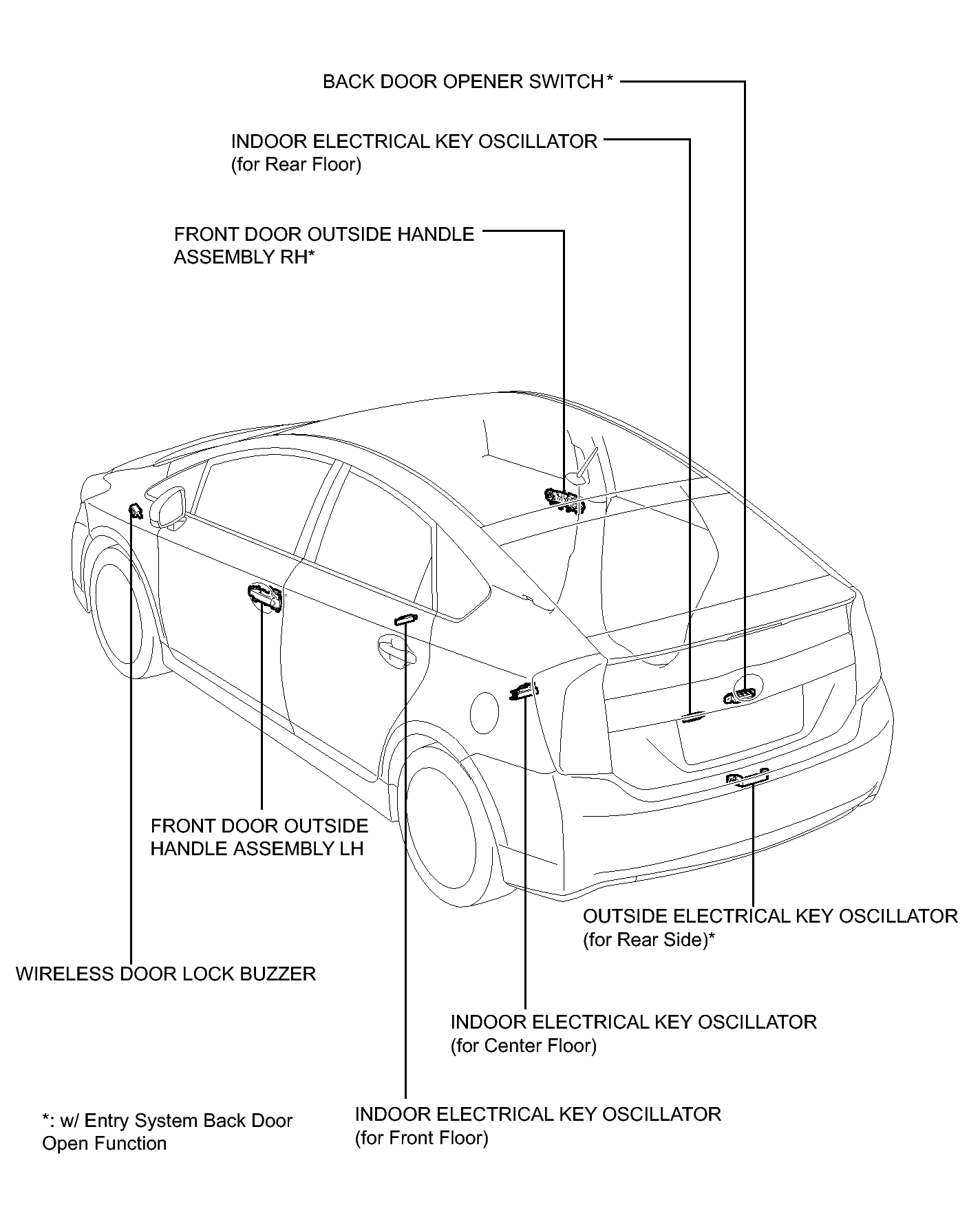

Fig 2: Identifying Smart Key System Components Location (2 Of 3)
GTY215337Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: Identifying Smart Key System Components Location (3 Of 3)
GTY225362Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
