Section 145 (Vehicle Proximity Notification System (Except Plug-In) (Diagnostics))
>>
Vehicle Proximity Notification System
>>
System Diagram
>>
System Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
System Diagram
WARNING:
This page is about a different variant/trim than selected.

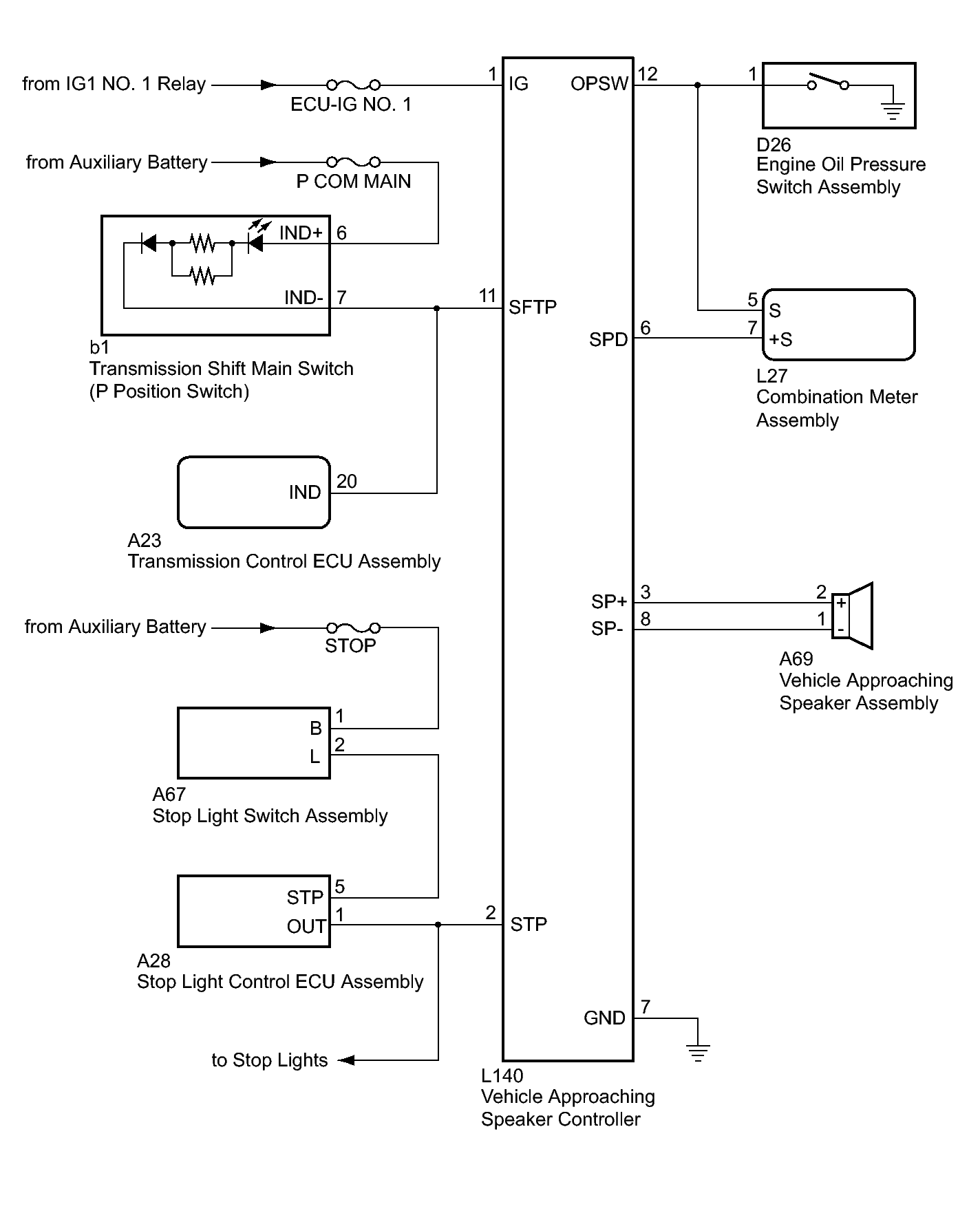

Fig 1: Vehicle Proximity Notification System Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
