Parts Location: Illustration
WARNING:
This page is about a different variant/trim than selected.

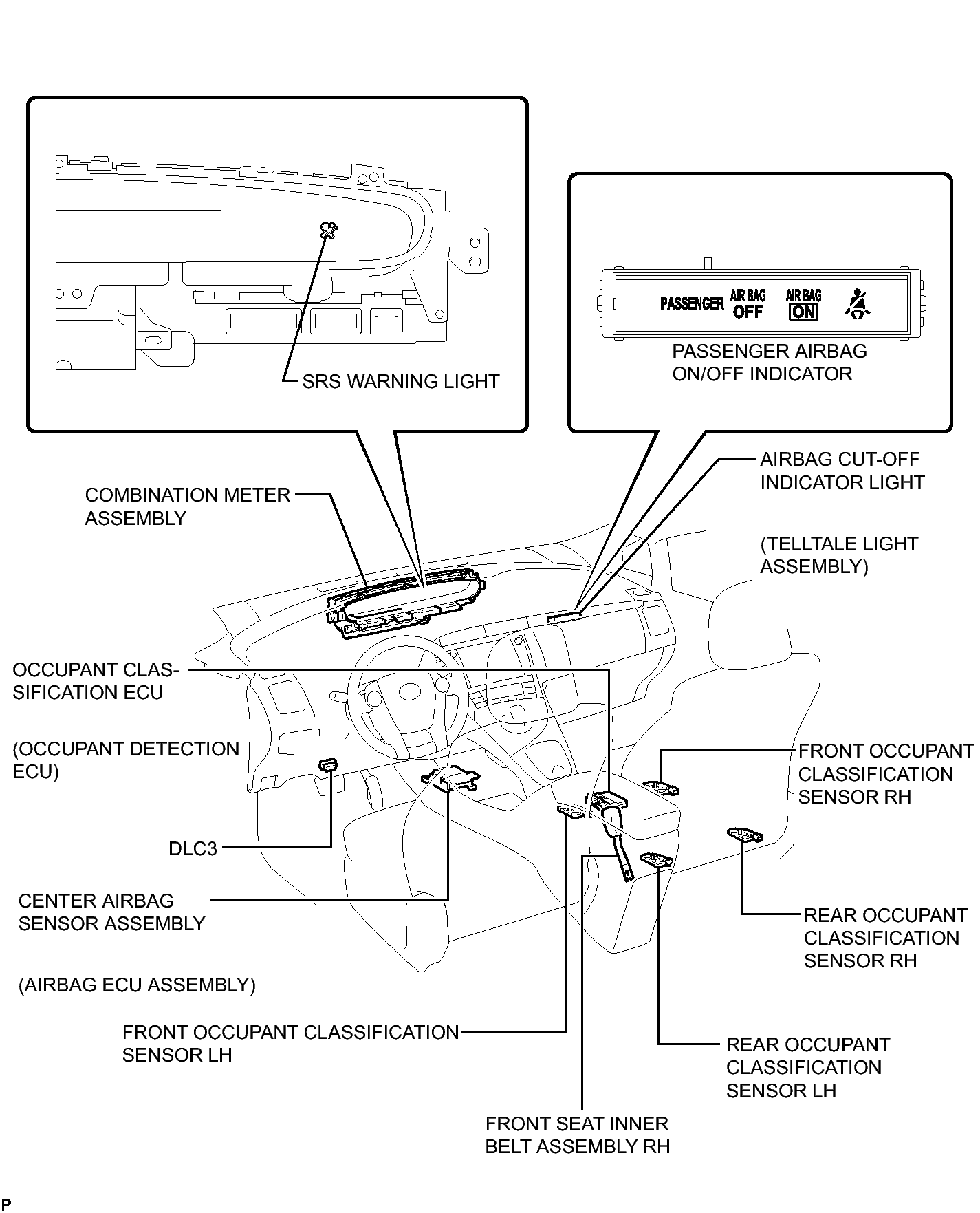

Fig 1: Identifying Occupant Classification System Component Location (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

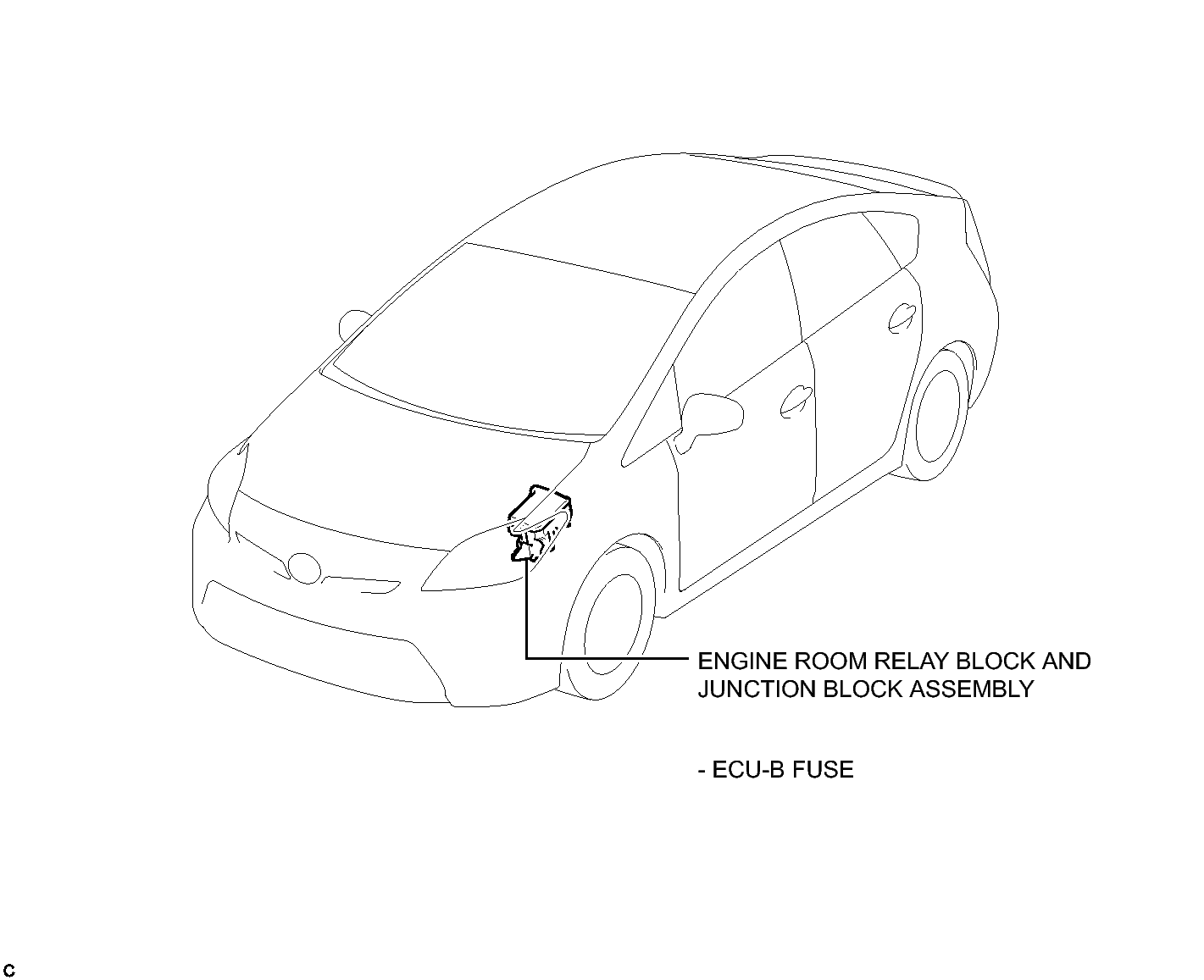

Fig 1: Identifying Occupant Classification System Component Location (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
