System Diagram

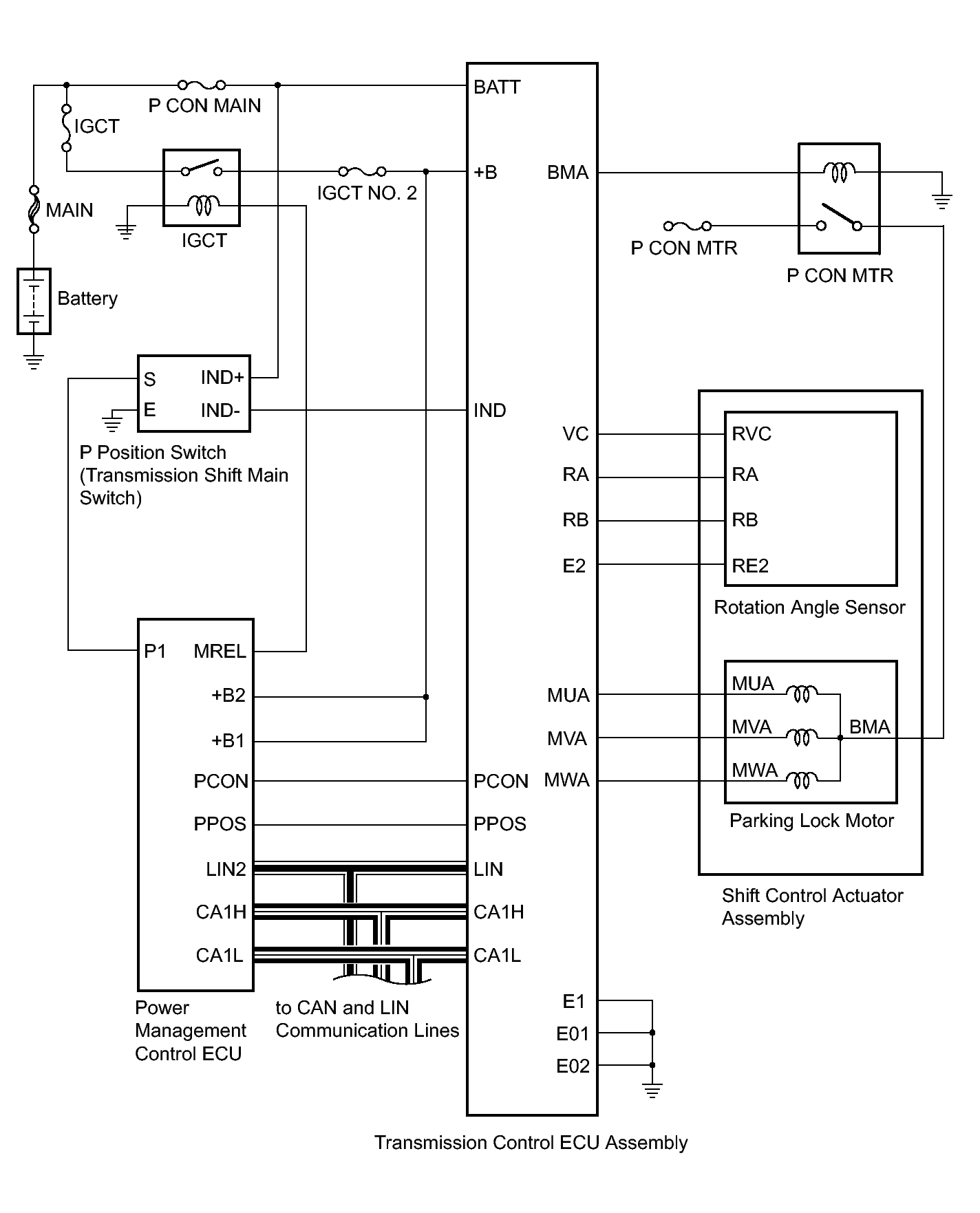

Fig 1: Identifying Transmission Control Assembly ECU Diagram
GTY290740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
