Installation

CRUISE CONTROL: CRUISE CONTROL MAIN SWITCH: INSTALLATION

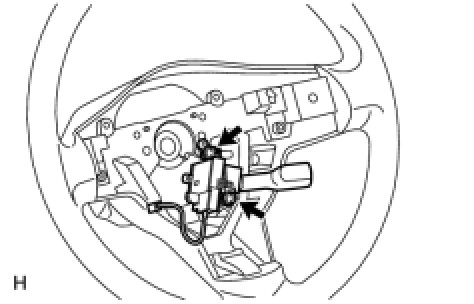

1. INSTALL CRUISE CONTROL MAIN SWITCH





(a) Install the switch with the 2 screws.

Torque : 1.7 to 3.0 Nm (17.34 to 30.60 kgf-cm, 15.04 to 26.55 in-lbf)

(b) Connect the connector.

2. INSTALL STEERING PAD ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

4. CHECK SRS WARNING LIGHT

(a) Check the SRS warning light Diagnosis System.
