Transmission Control Systems: Locations

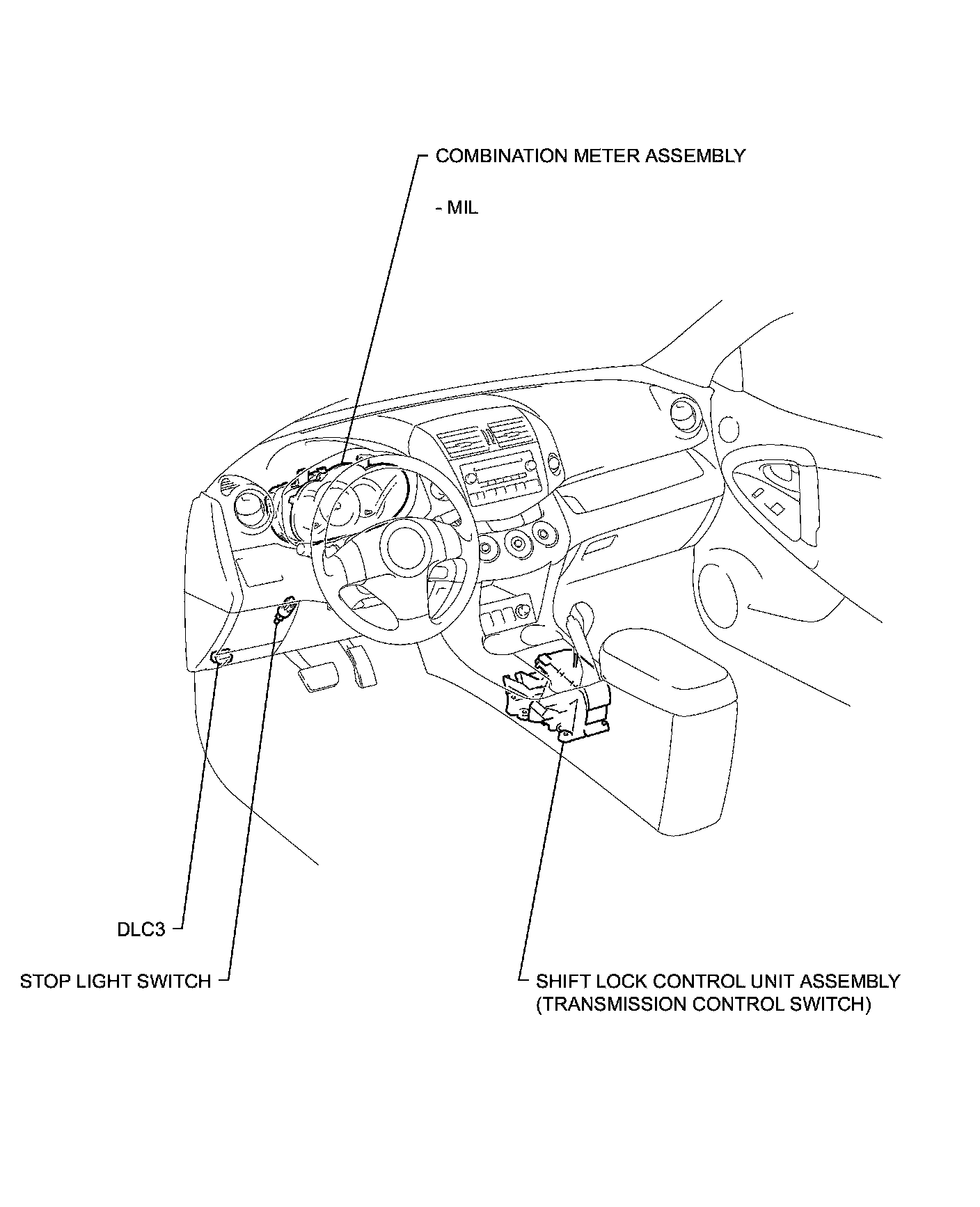

U140F AUTOMATIC TRANSAXLE: AUTOMATIC TRANSAXLE SYSTEM: PARTS LOCATION
