Installation

GF1A TRANSFER: 4WD CONTROL ECU: INSTALLATION

NOTICE:
When the 4WD control ECU is replaced with a normal one from another vehicle, perform calibration Programming and Relearning. If the 4WD control ECU is replaced with a new one, calibration is unnecessary.

HINT
Calibrate the 4WD control ECU by performing calibration of the vehicle stability control system.

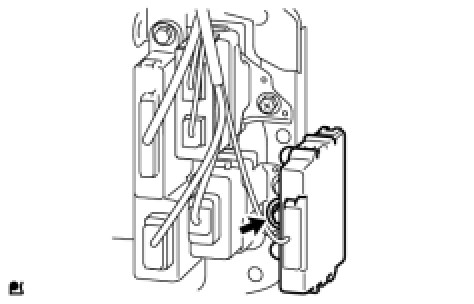

1. INSTALL 4WD CONTROL ECU





(a) Install the ECU with the bolt.

Torque : 4.5 Nm (46 kgf-cm, 40 in-lbf)

(b) Connect the connector.

2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
