System Diagram

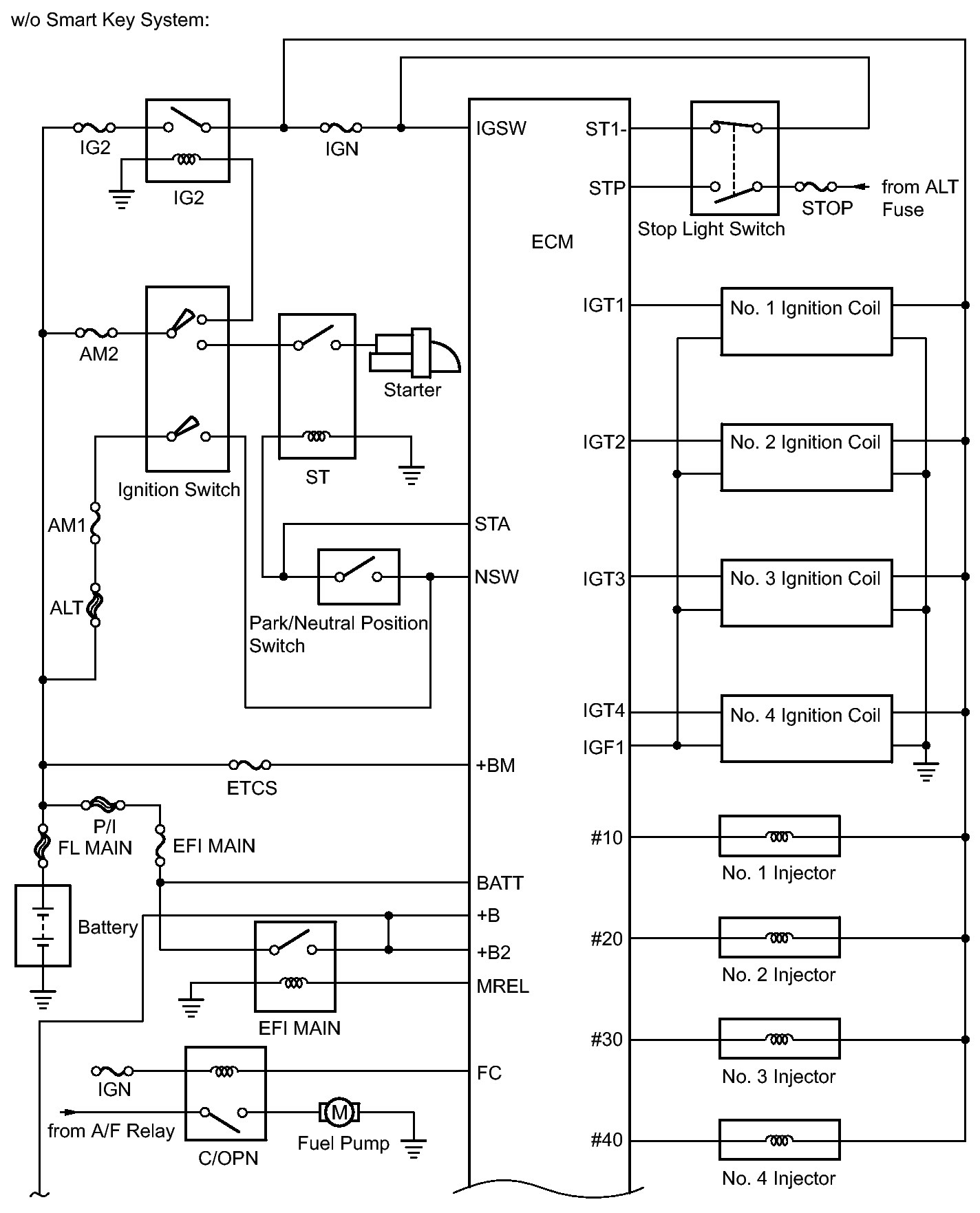

Fig 1: Identifying SFI System Circuit Diagram (1 Of 4)
GTY225694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

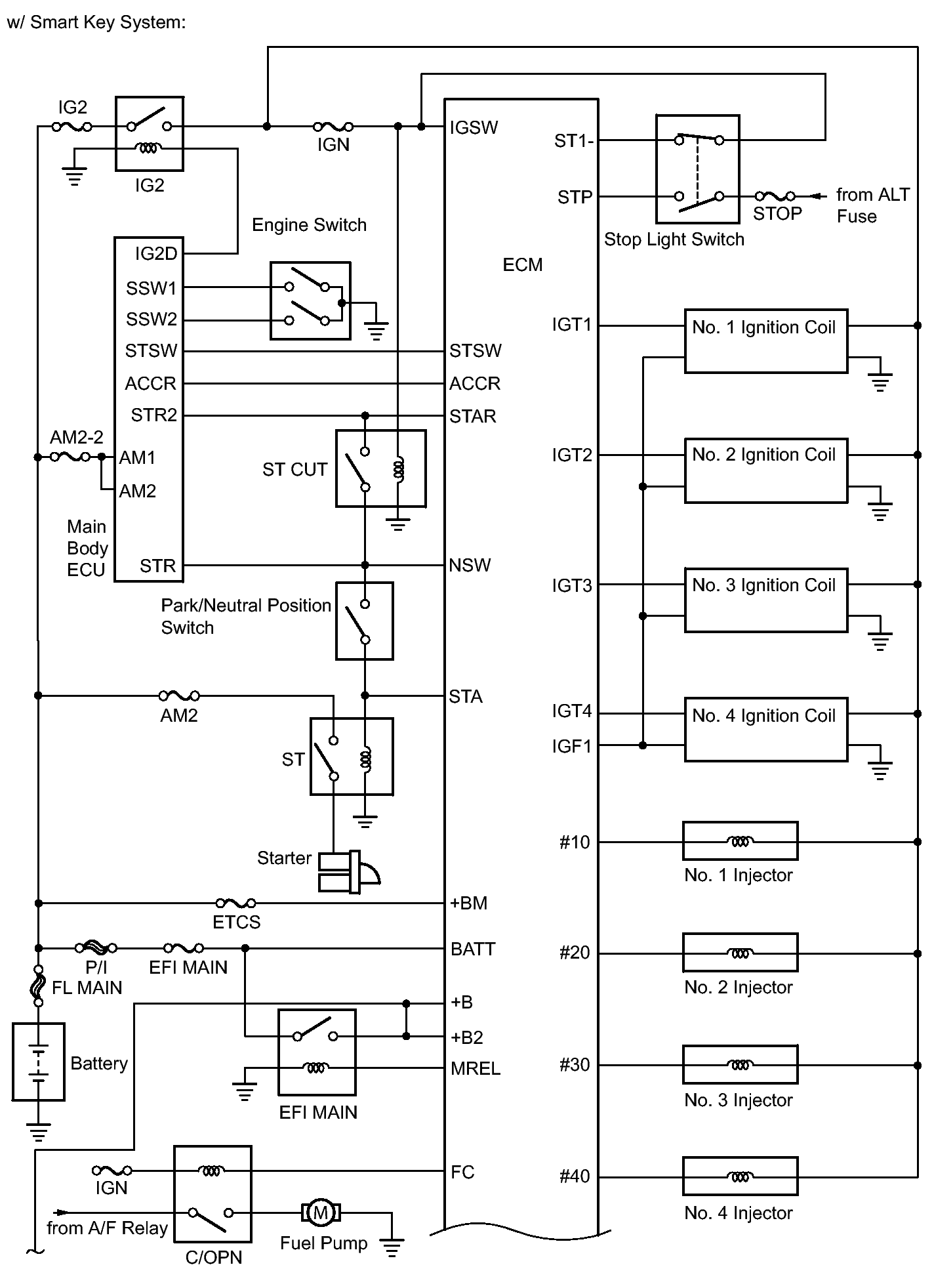

Fig 2: Identifying SFI System Circuit Diagram (2 Of 4)
GTY309530Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

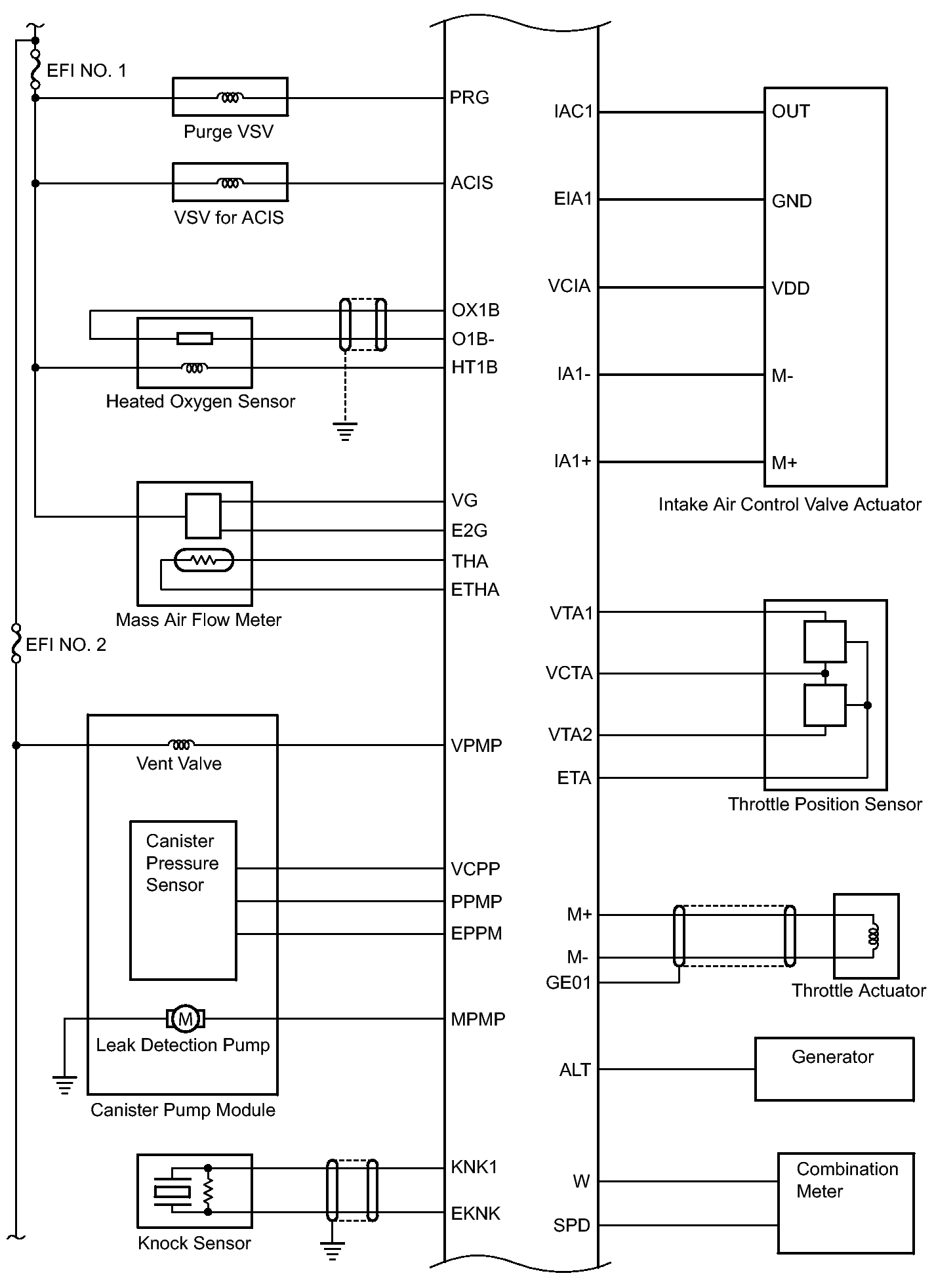

Fig 3: Identifying SFI System Circuit Diagram (3 Of 4)
GTY238593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

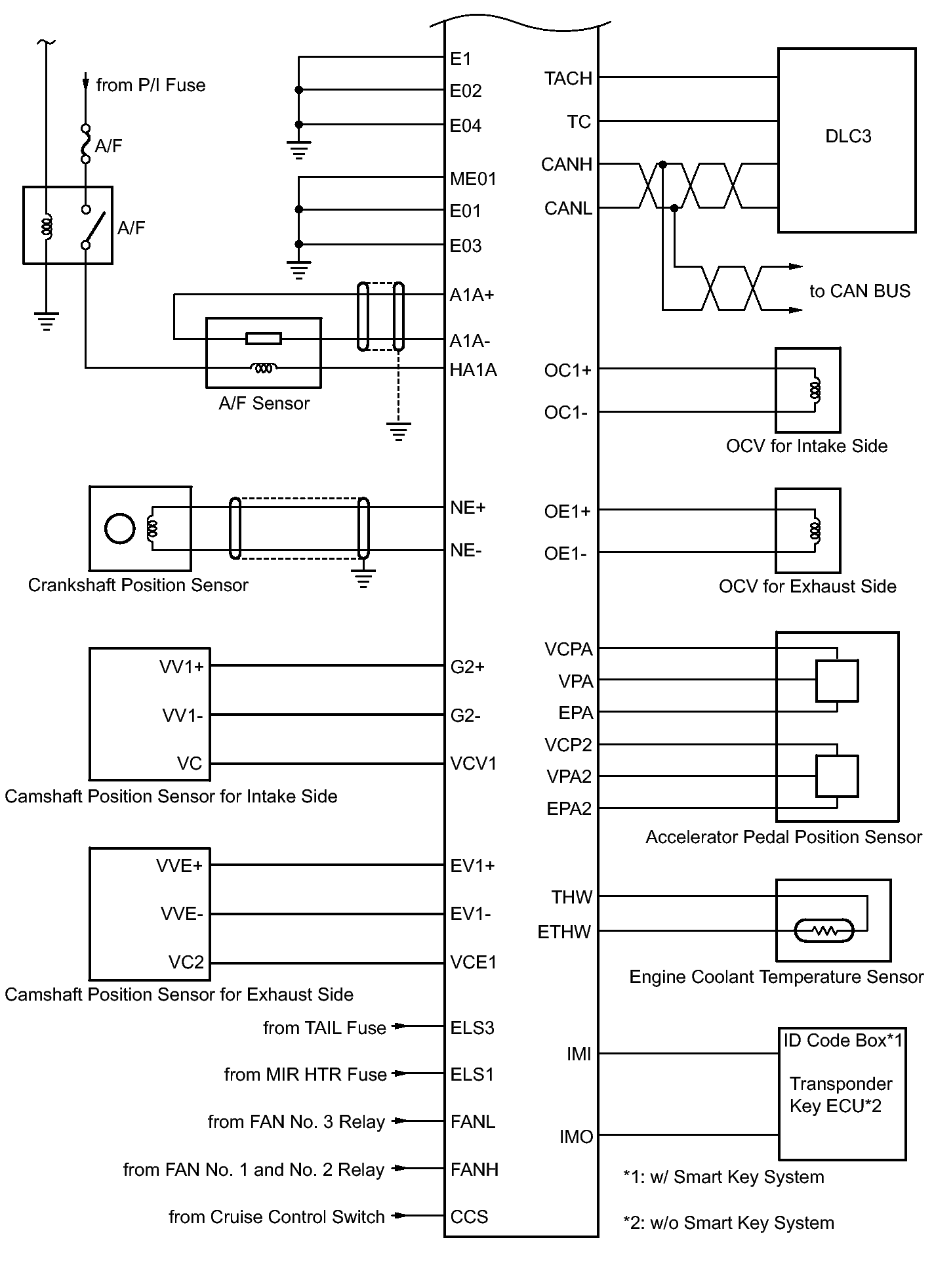

Fig 4: Identifying SFI System Circuit Diagram (4 Of 4)
GTY238660Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
