Fuse: Locations



Fus Locations

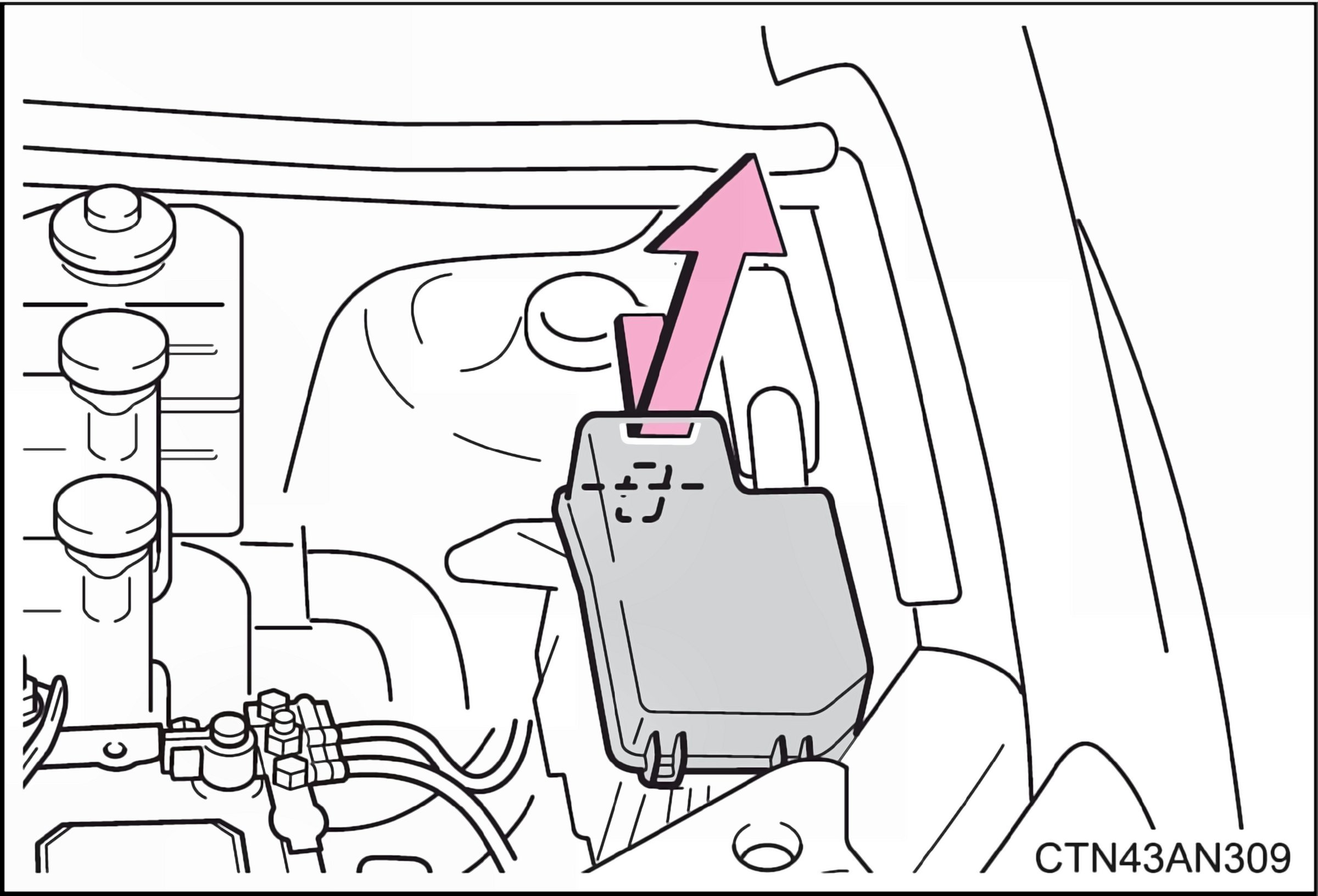

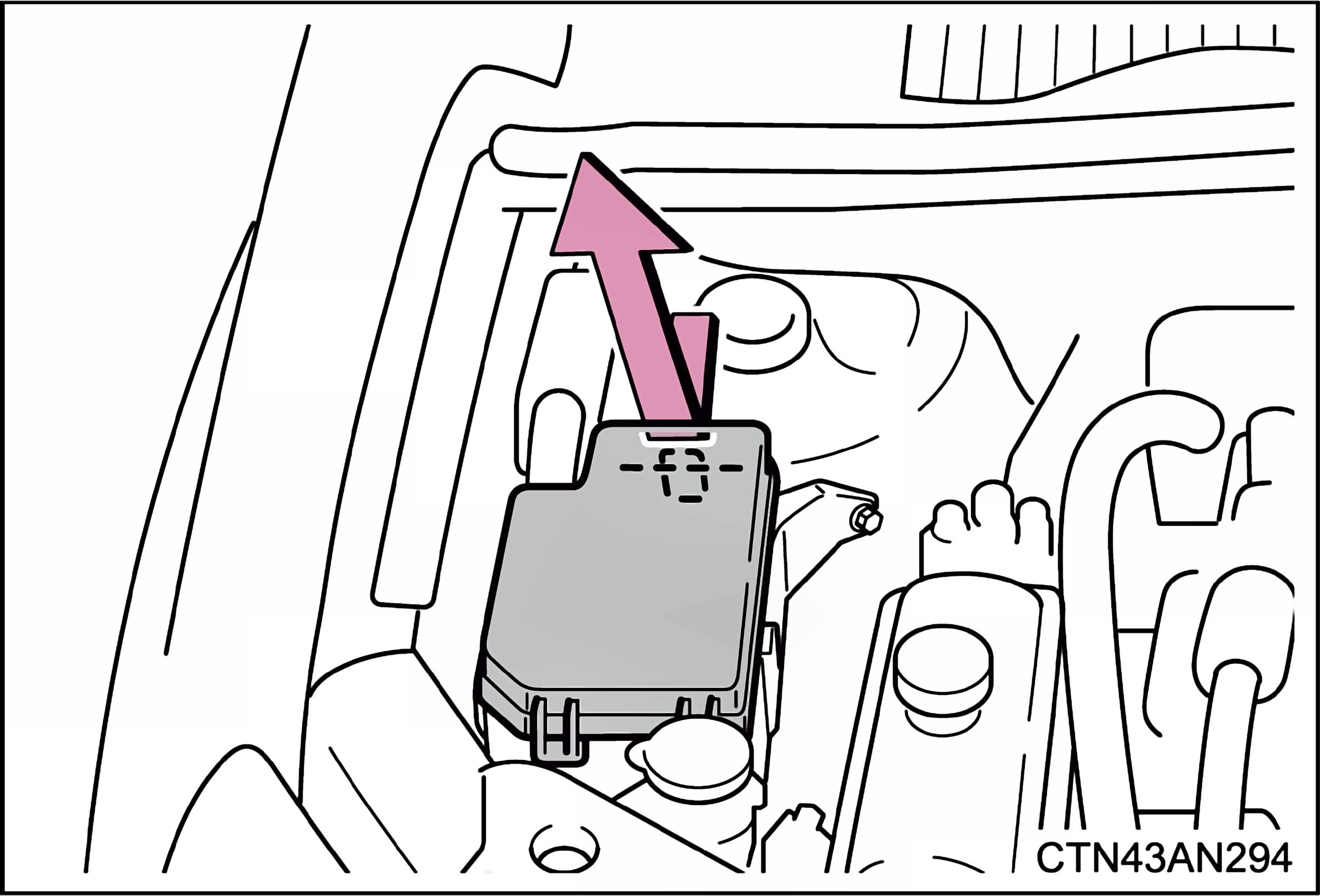

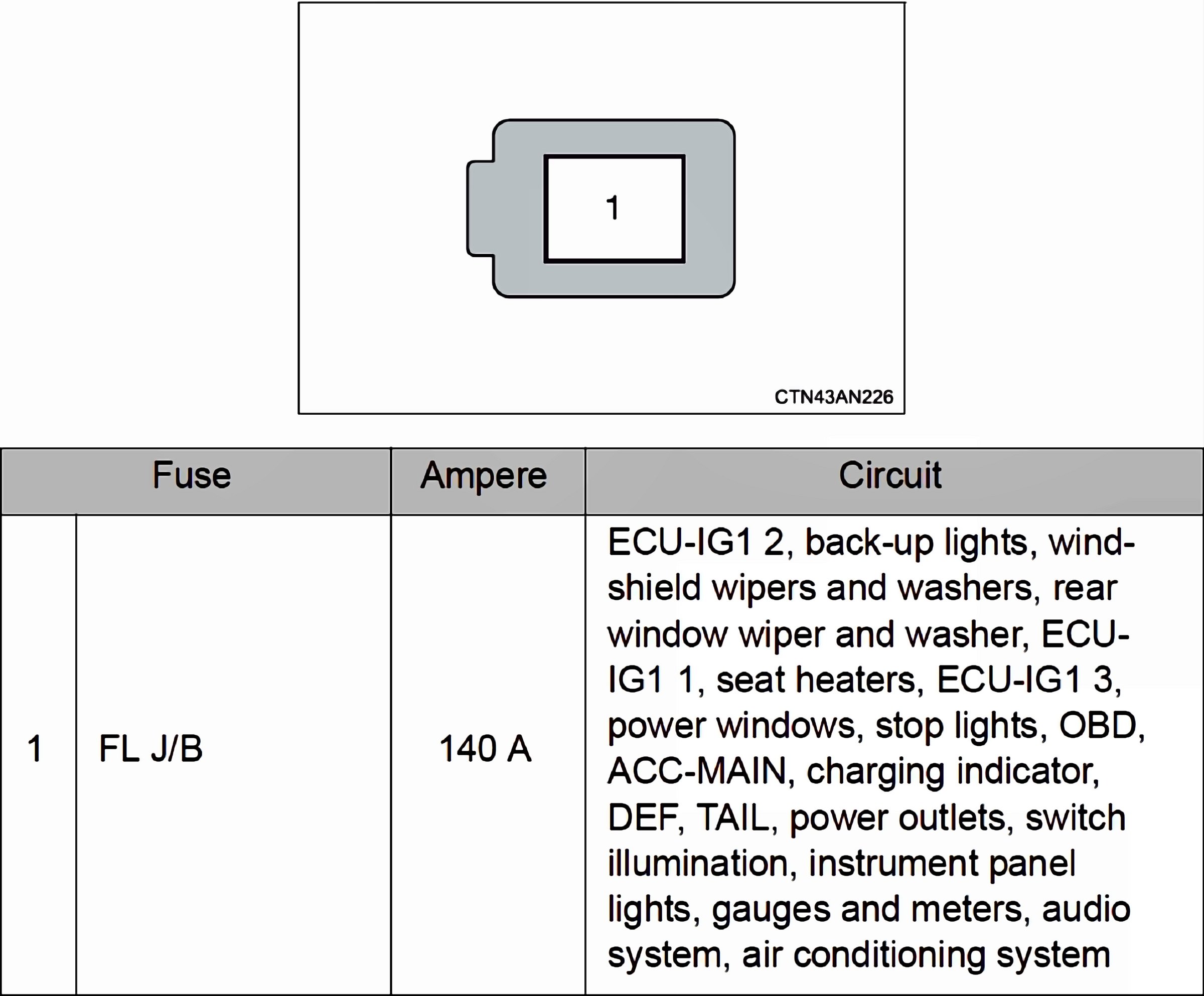

Motor Compartment

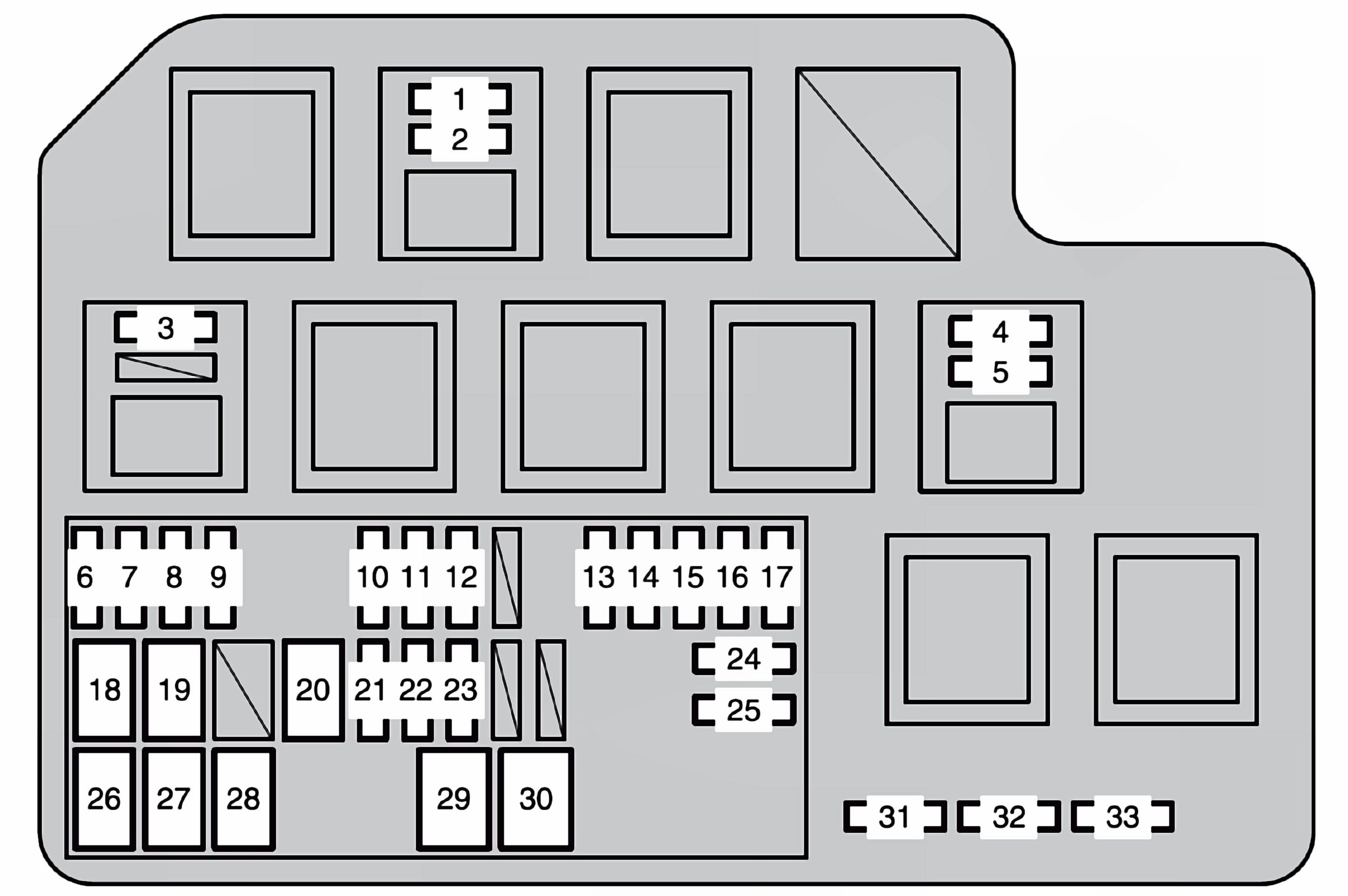

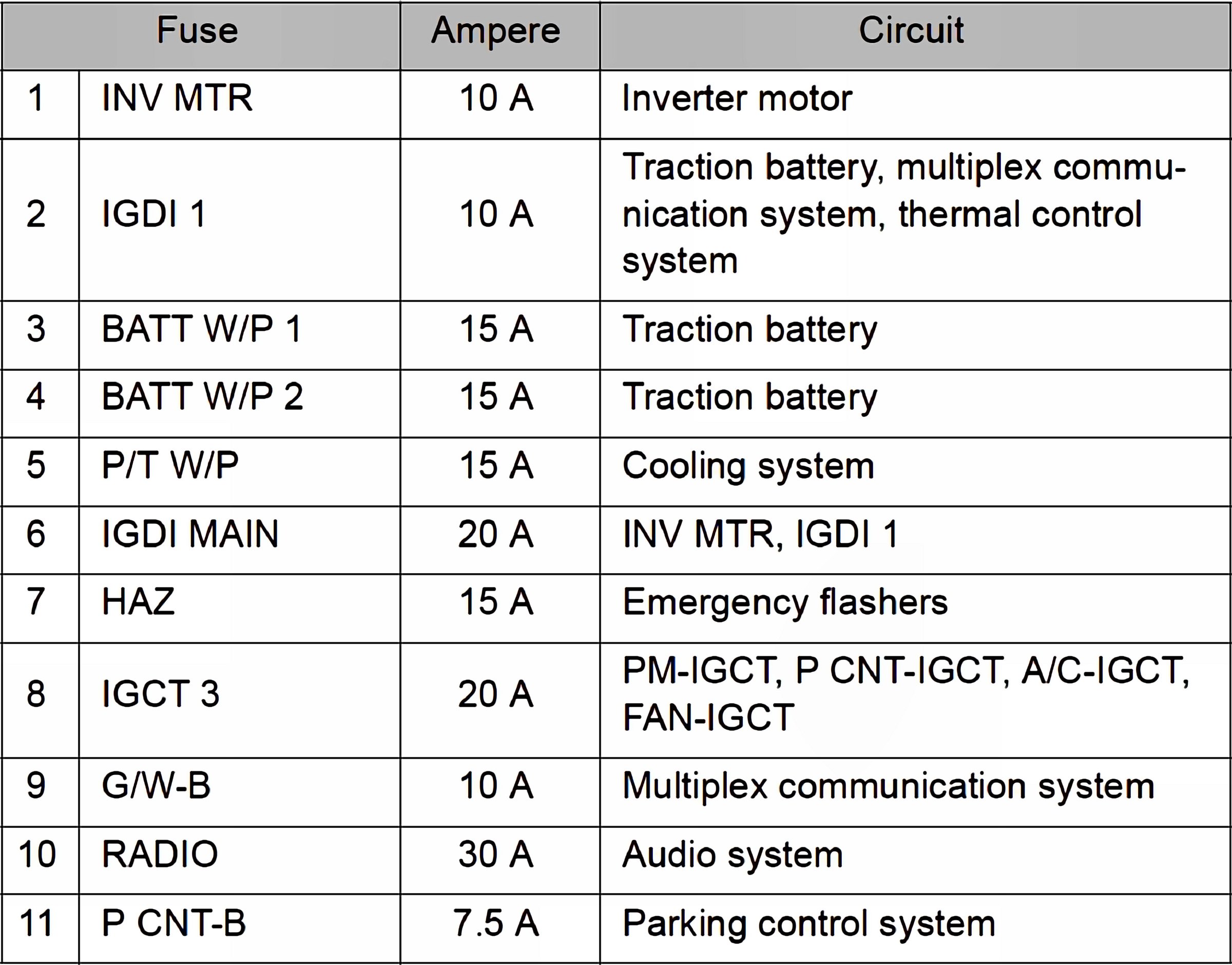

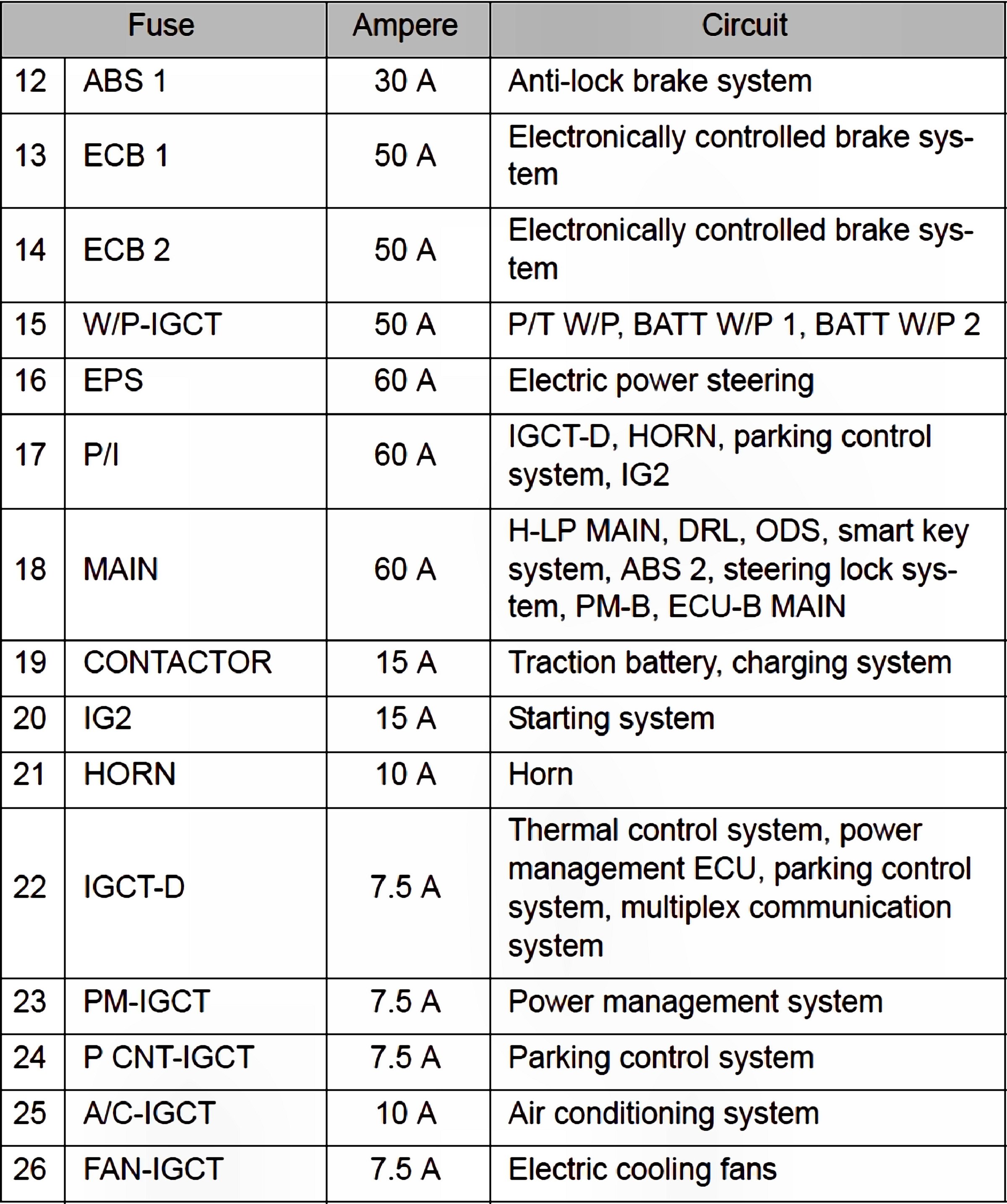

Type A:

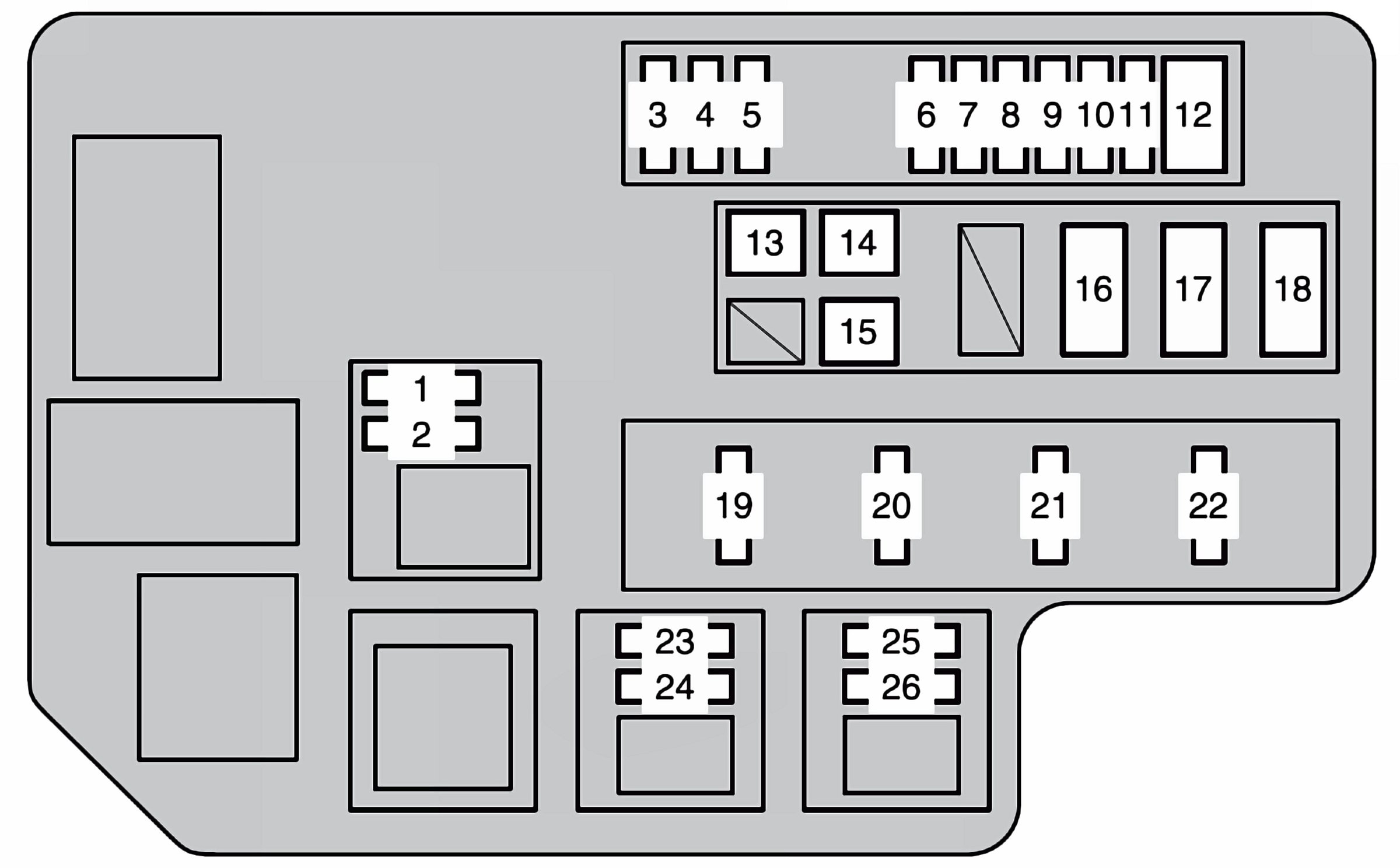

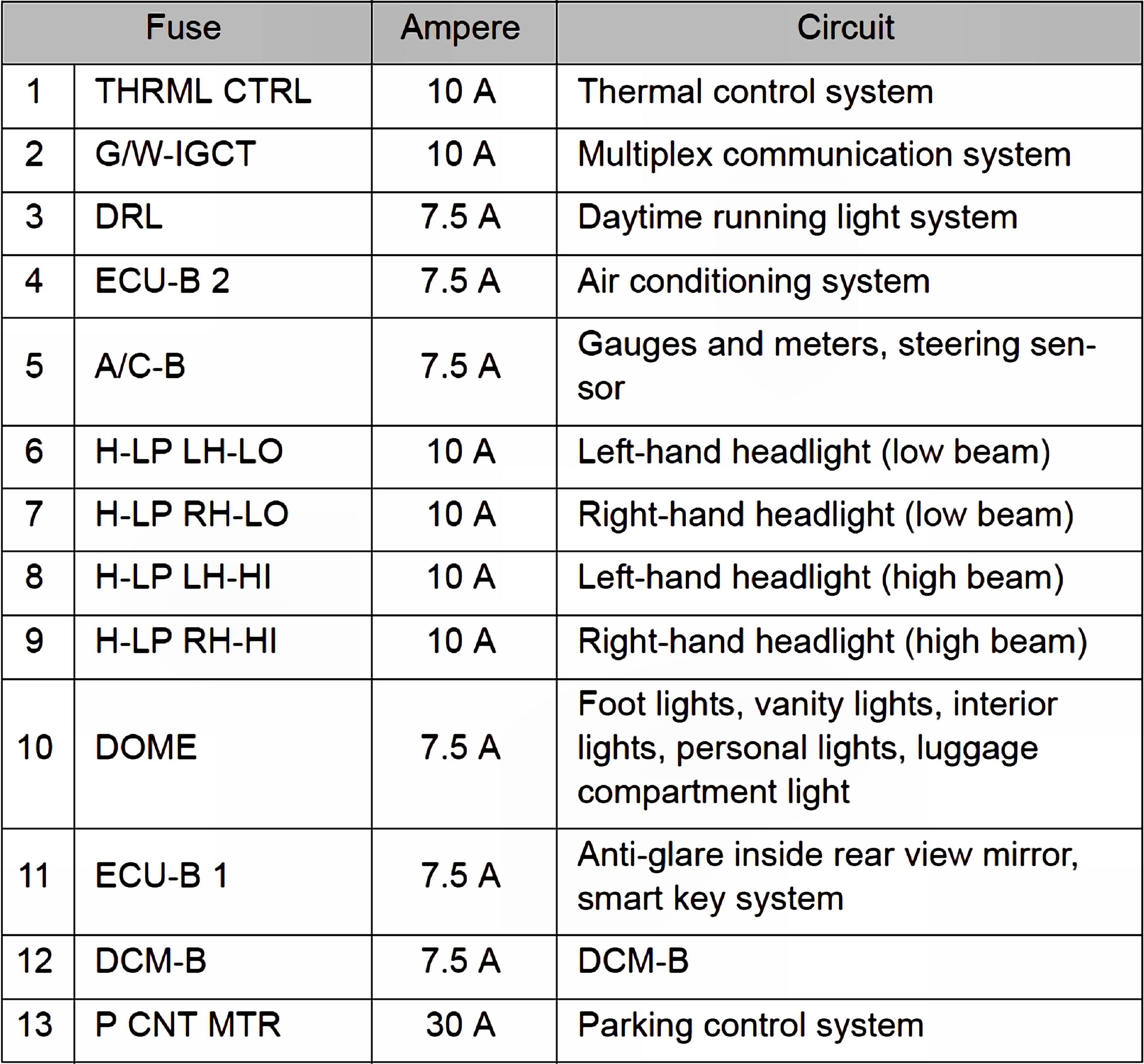

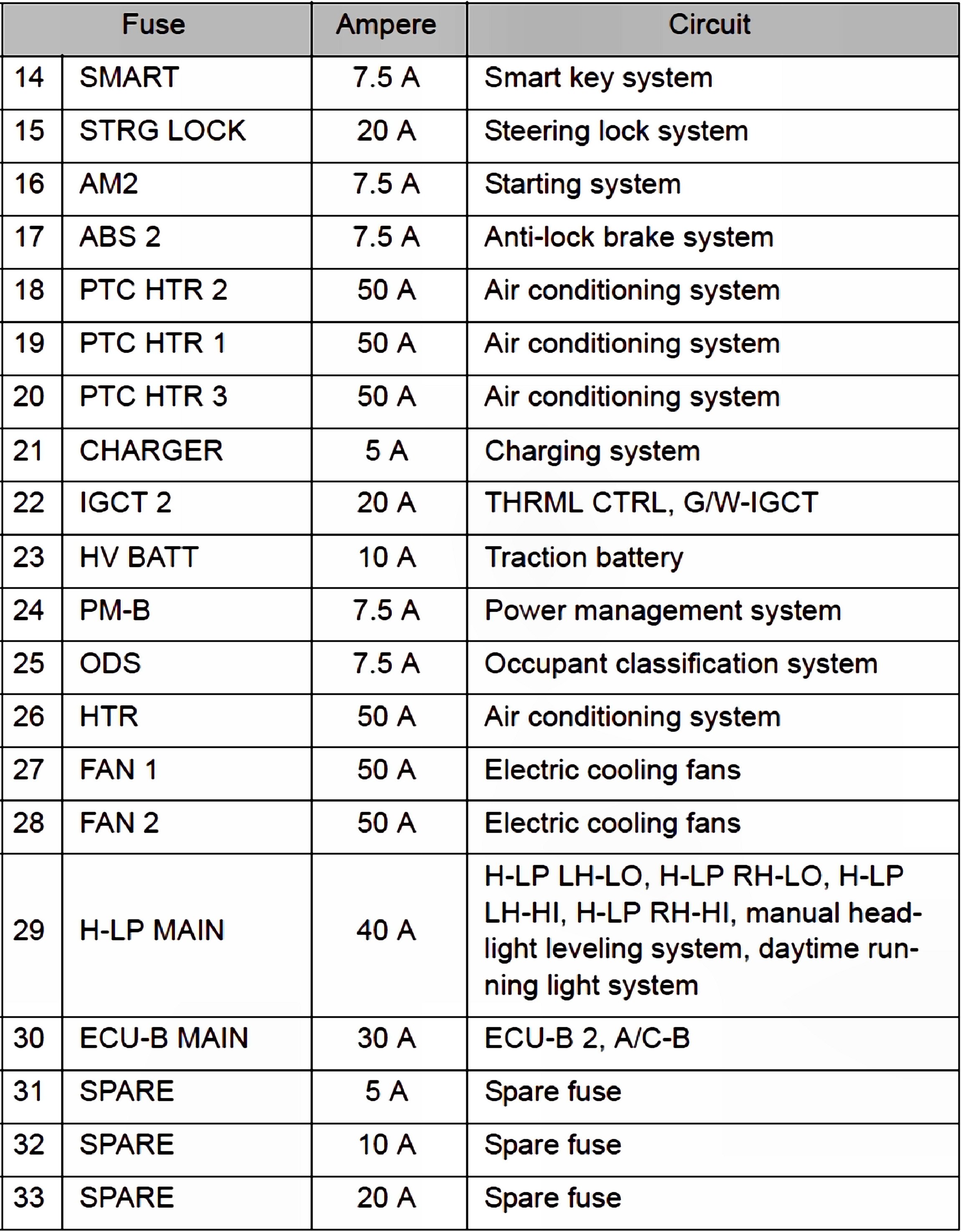

Type B:

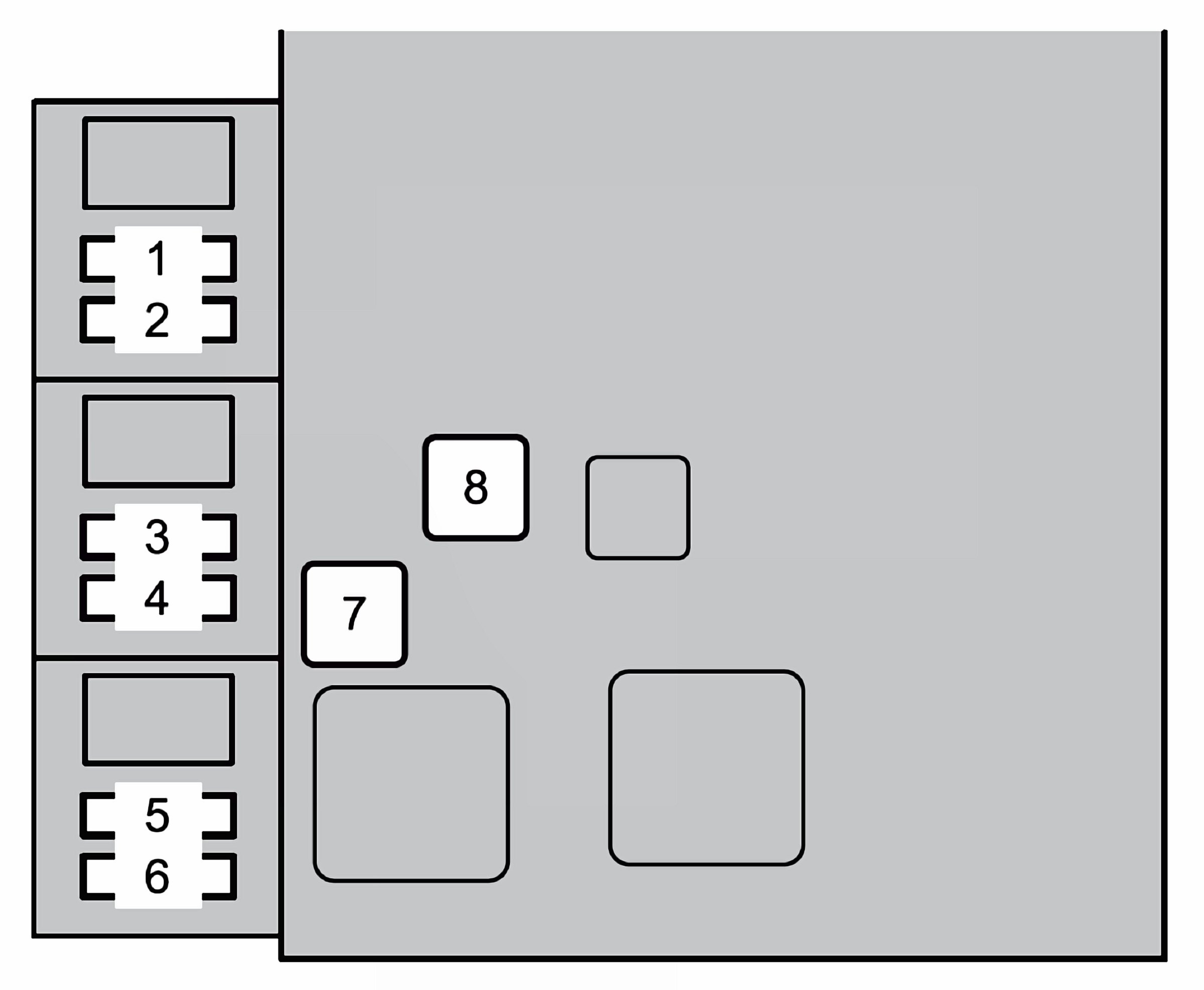

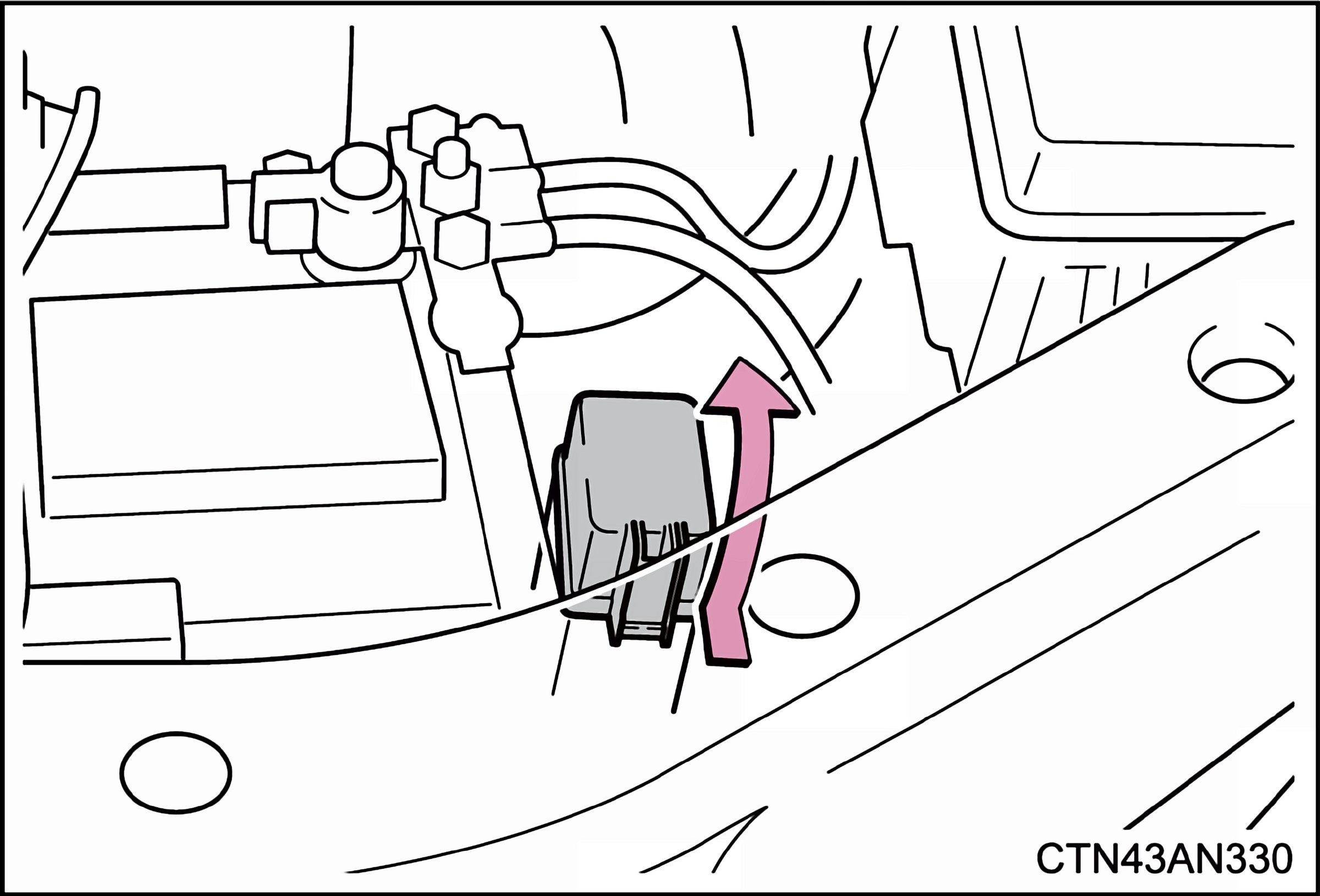

Type C:

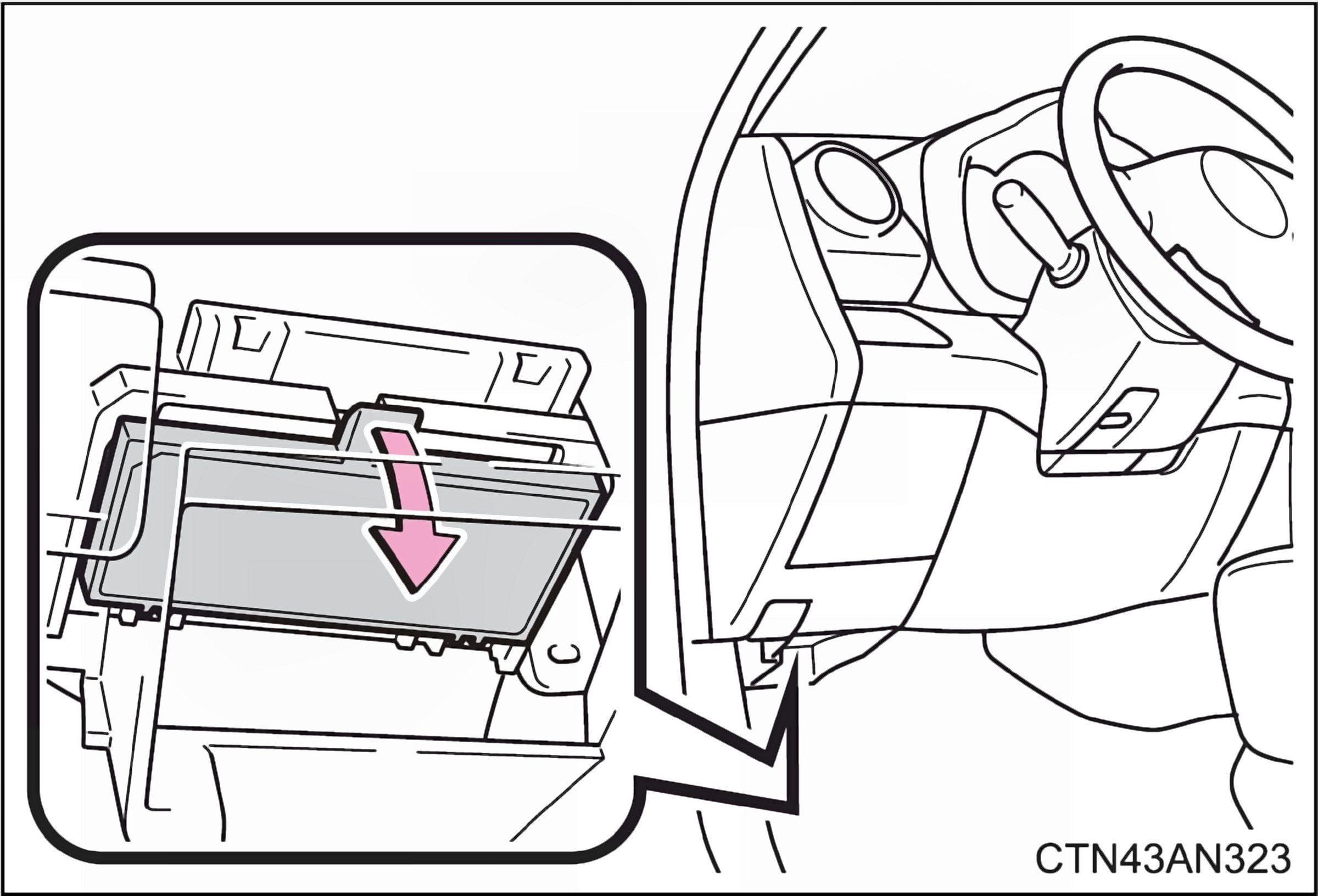

Under the Instrument Panel

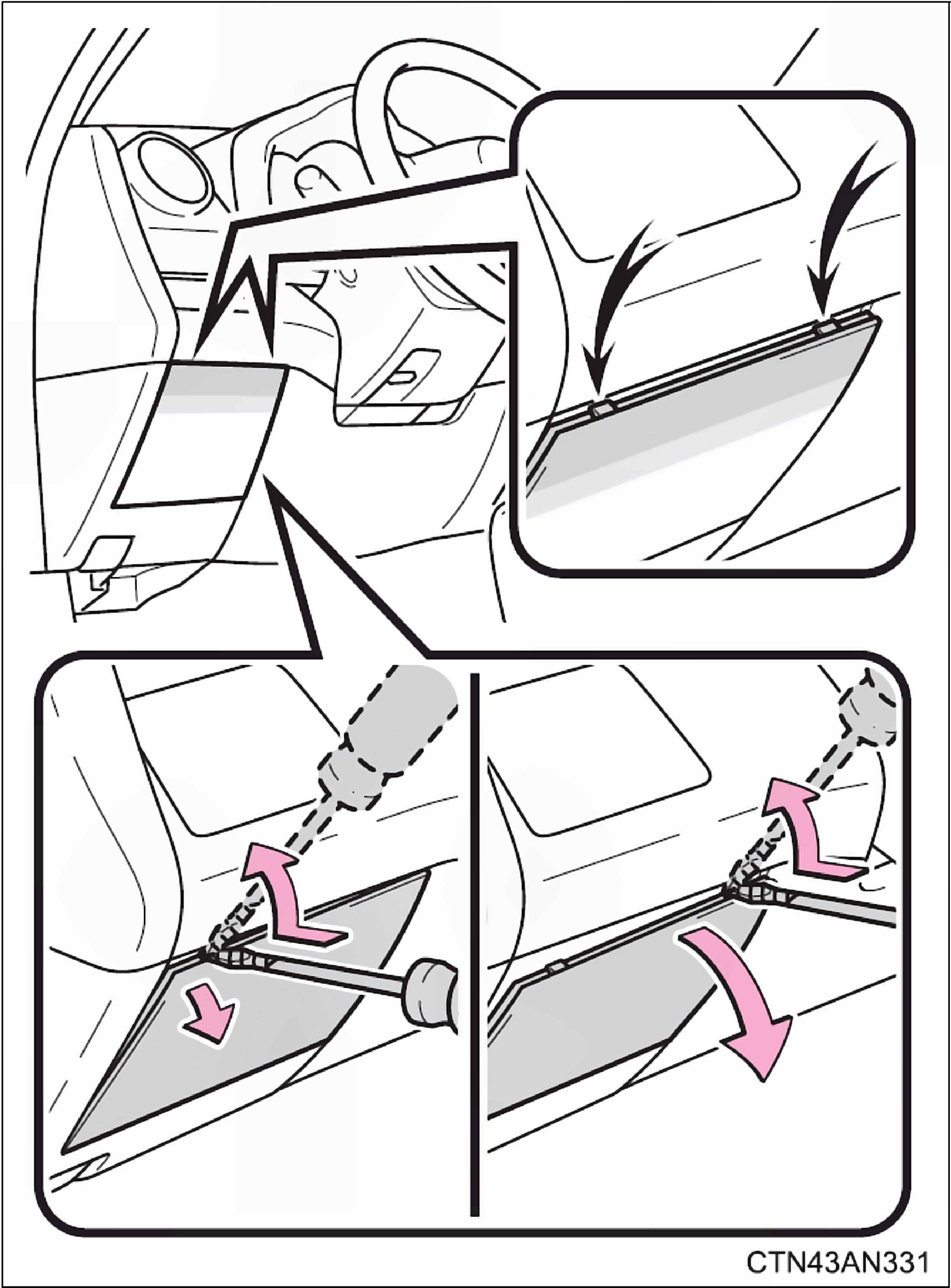

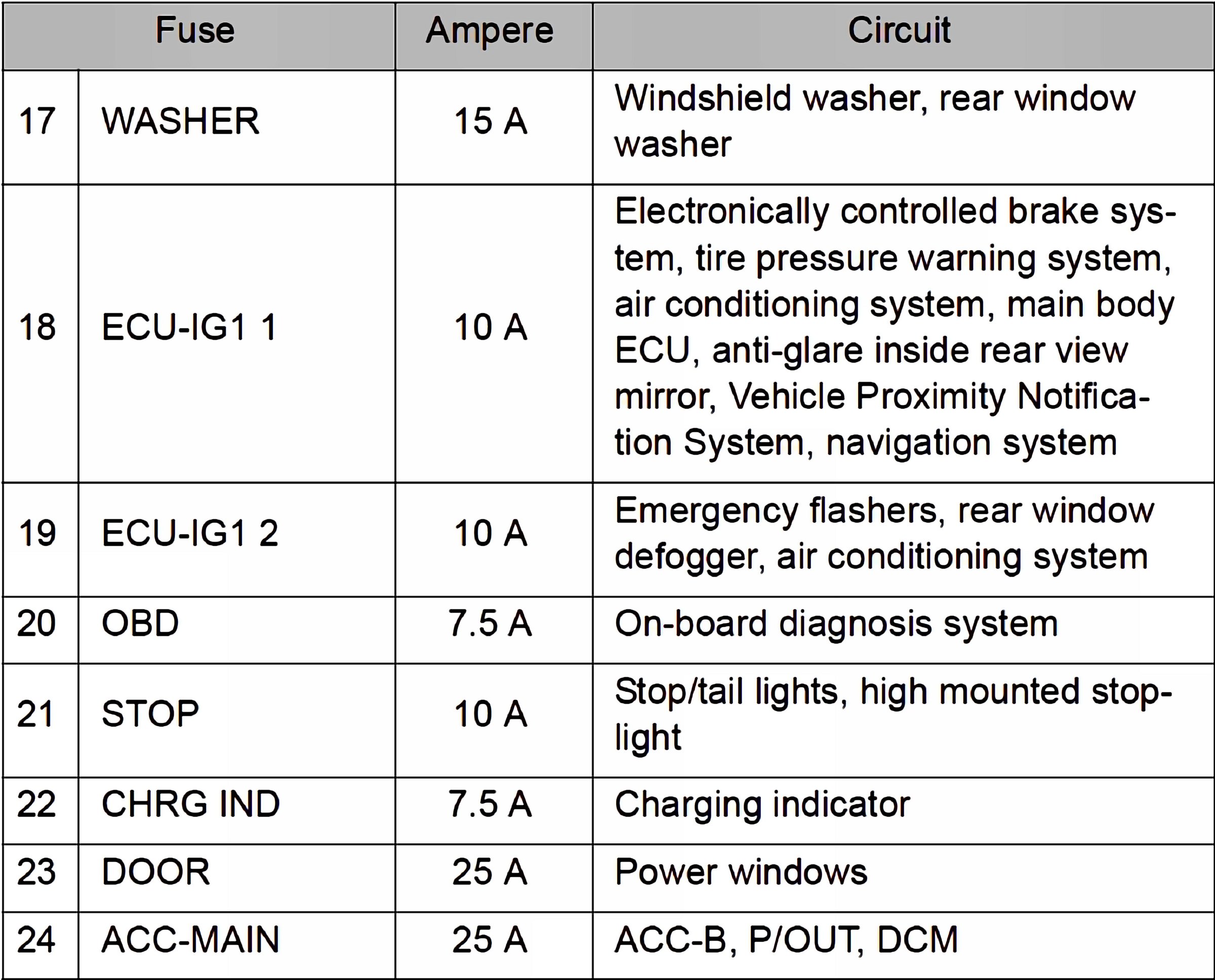

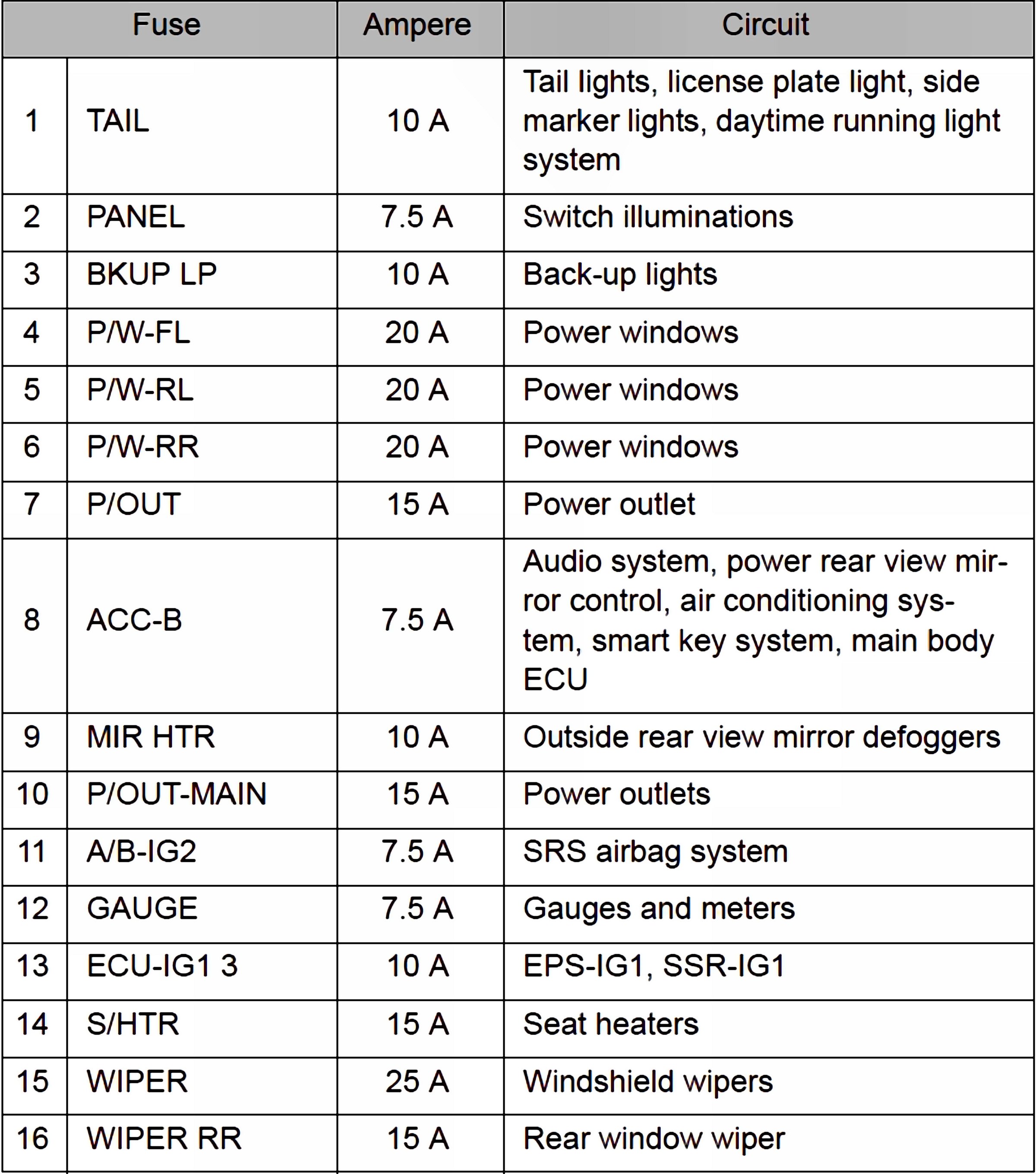

Under The Instrument Panel:

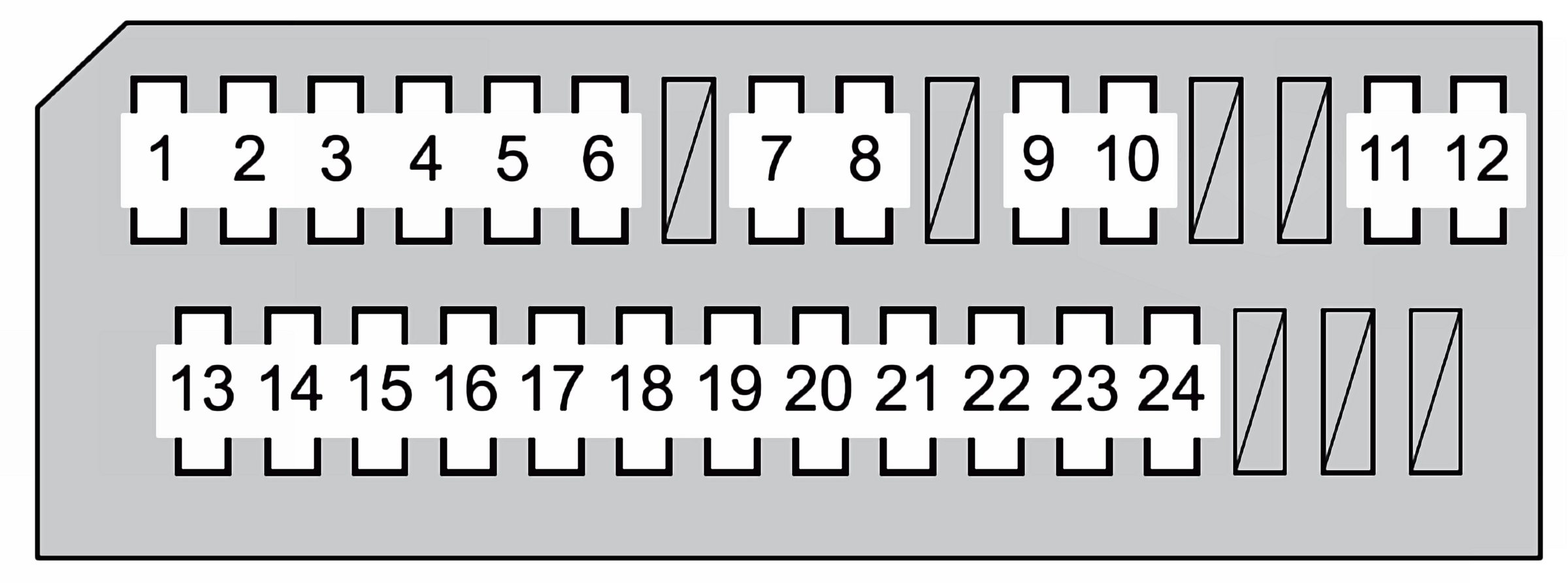

Front Side Of Fuse Block:










Underside View:





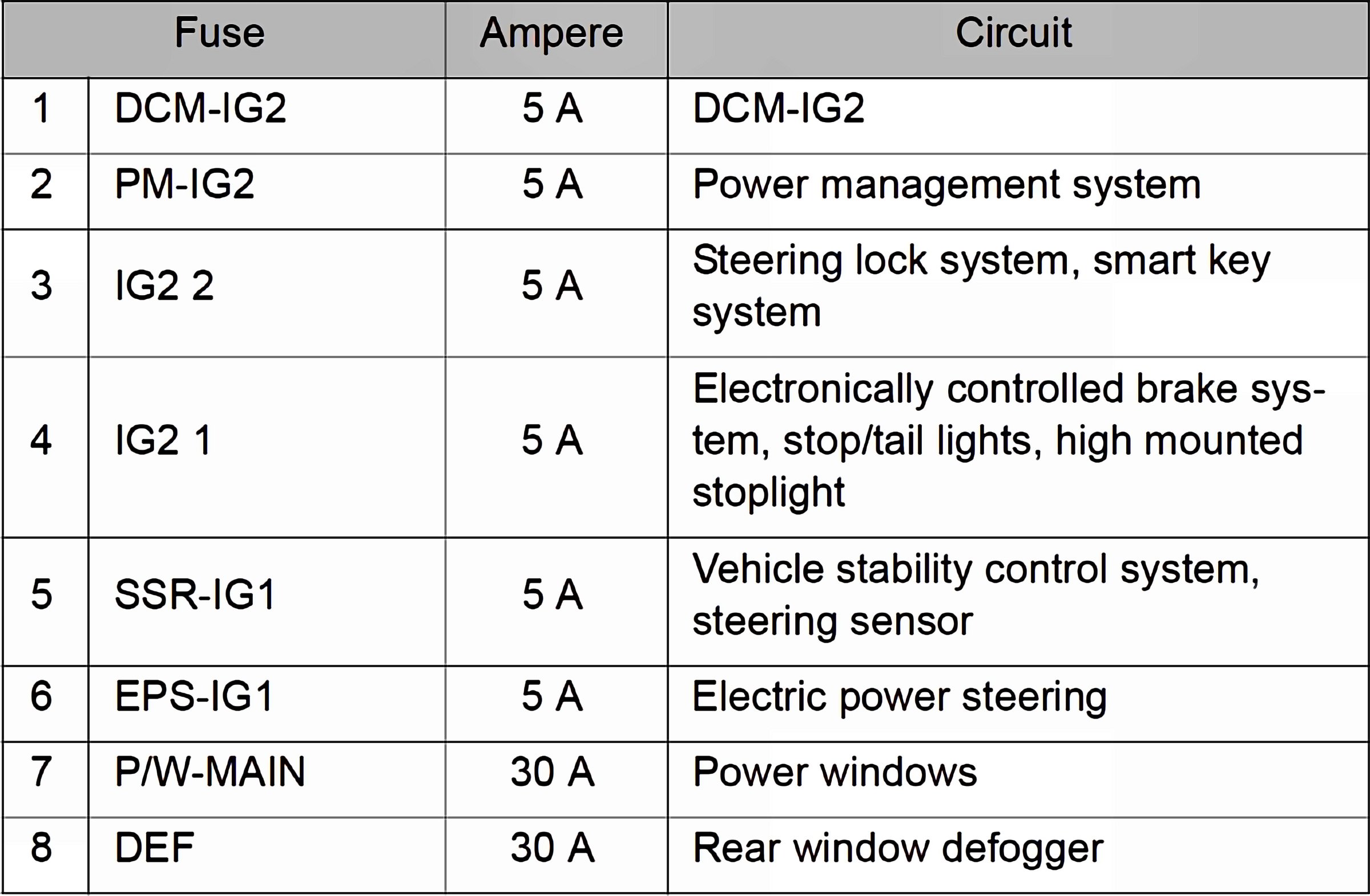

Fuse Block Underside View:
