OEM System Circuits: 4WD: Notes

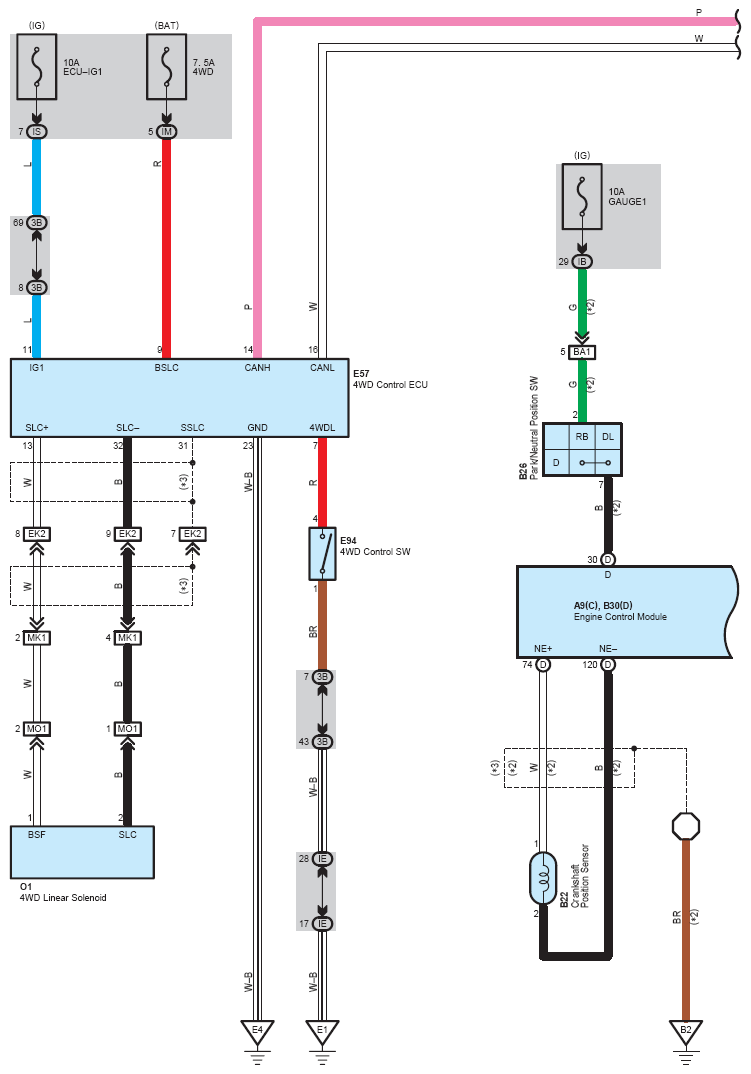

Fig 1: 4WD System Wiring Diagram (1 Of 7)

G08845300

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

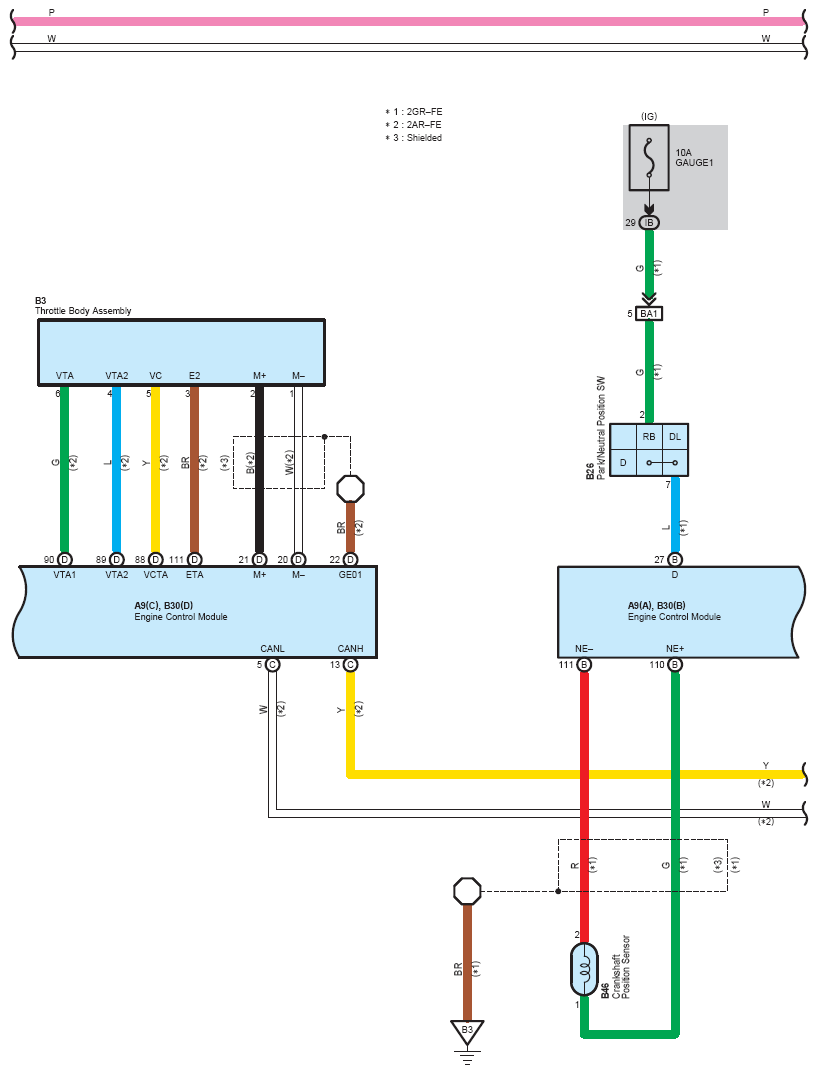

Fig 2: 4WD System Wiring Diagram (2 Of 7)

G08845301

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

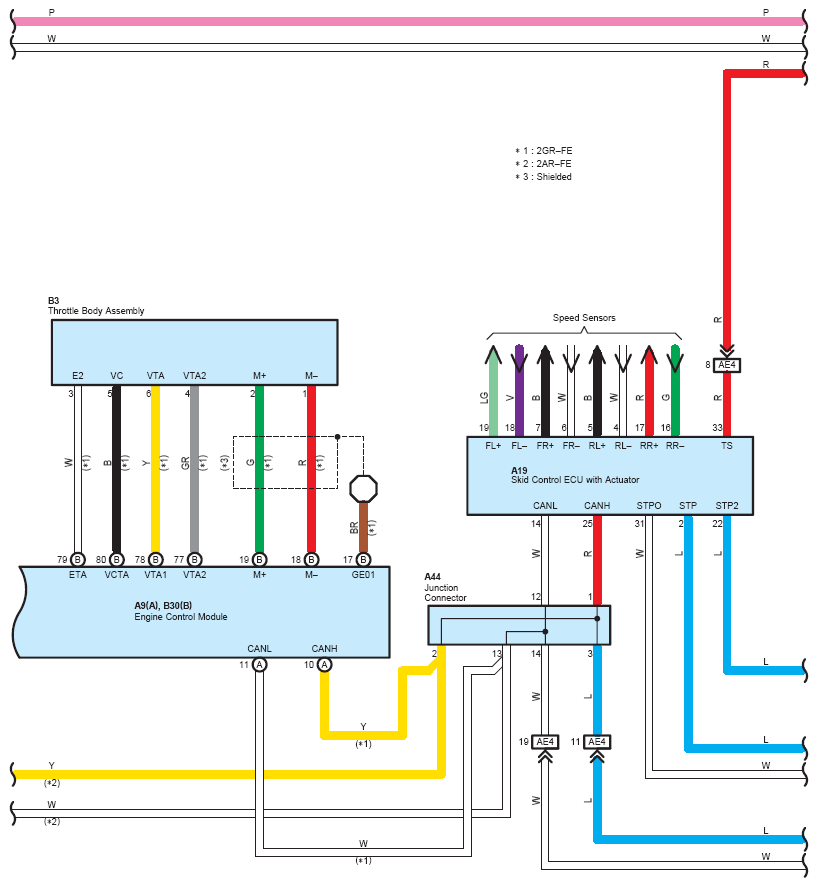

Fig 3: 4WD System Wiring Diagram (3 Of 7)

G08845302

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

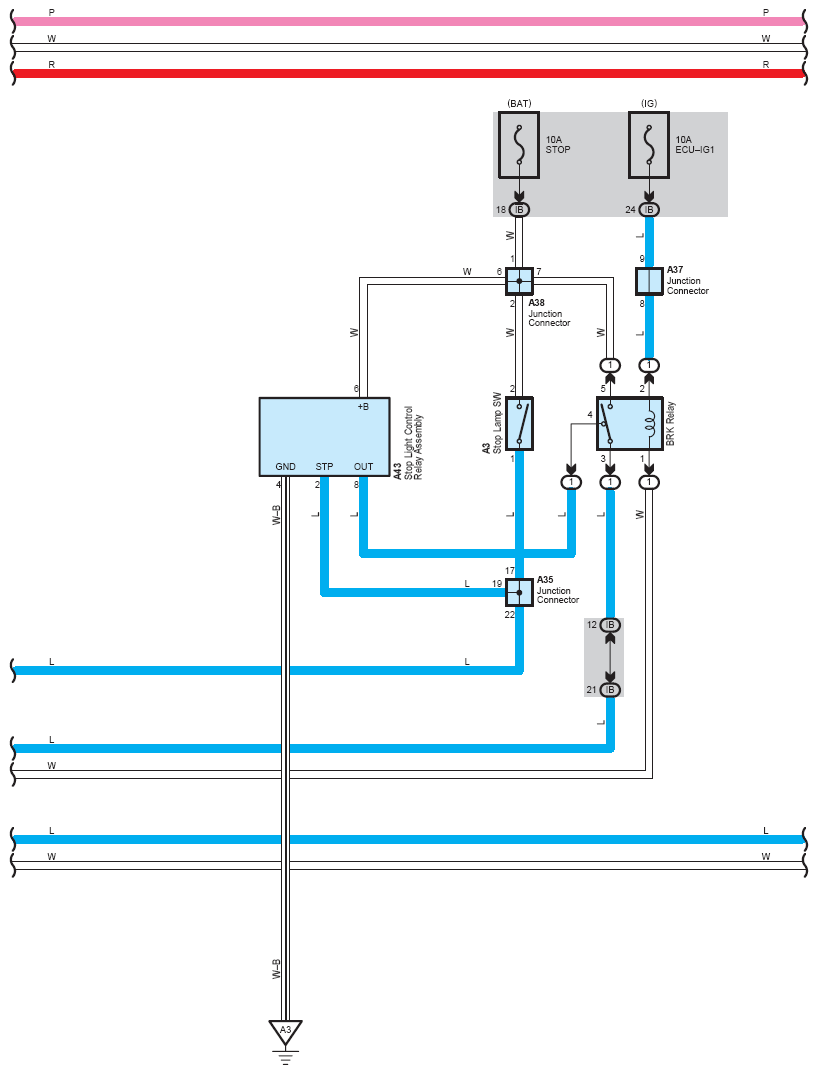

Fig 4: 4WD System Wiring Diagram (4 Of 7)

G08845303

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

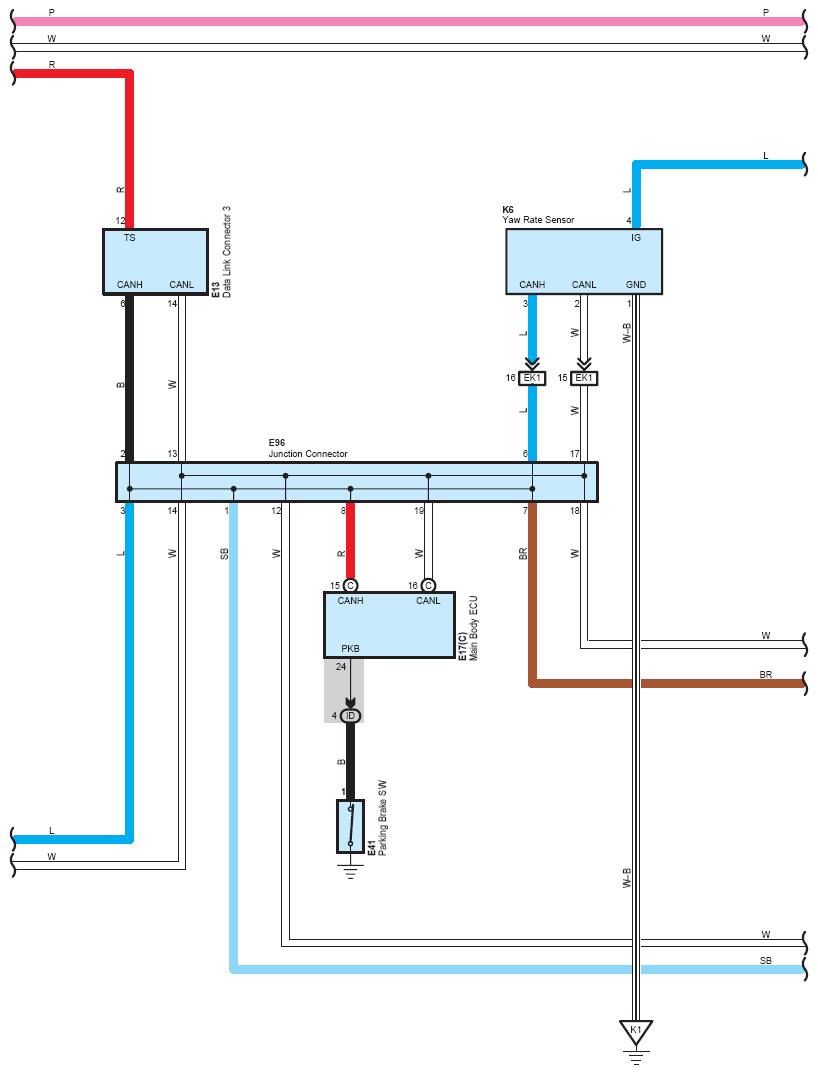

Fig 5: 4WD System Wiring Diagram (5 Of 7)

G08845304

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

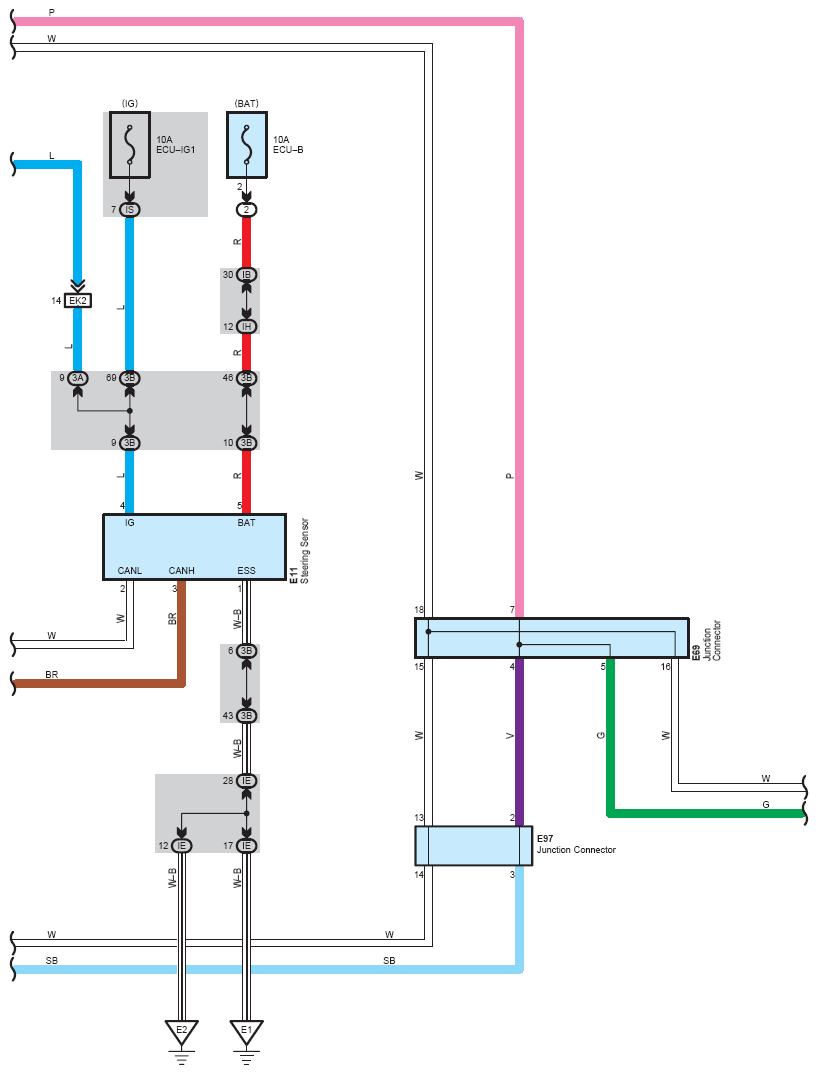

Fig 6: 4WD System Wiring Diagram (6 Of 7)

G08845305

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

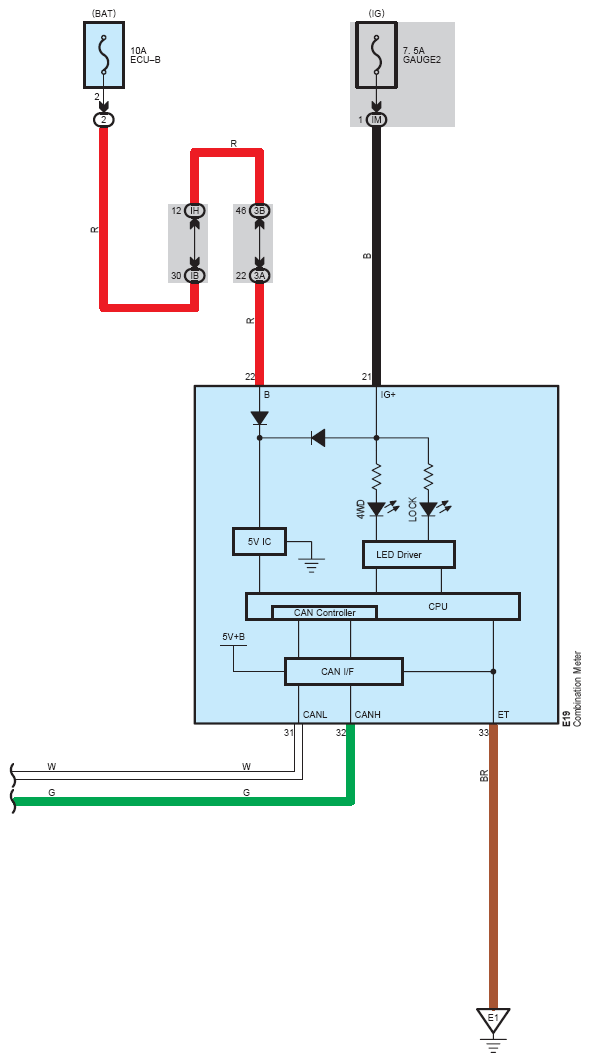

Fig 7: 4WD System Wiring Diagram (7 Of 7)

G08845306

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
