Engine Control (2GR-FE): Notes

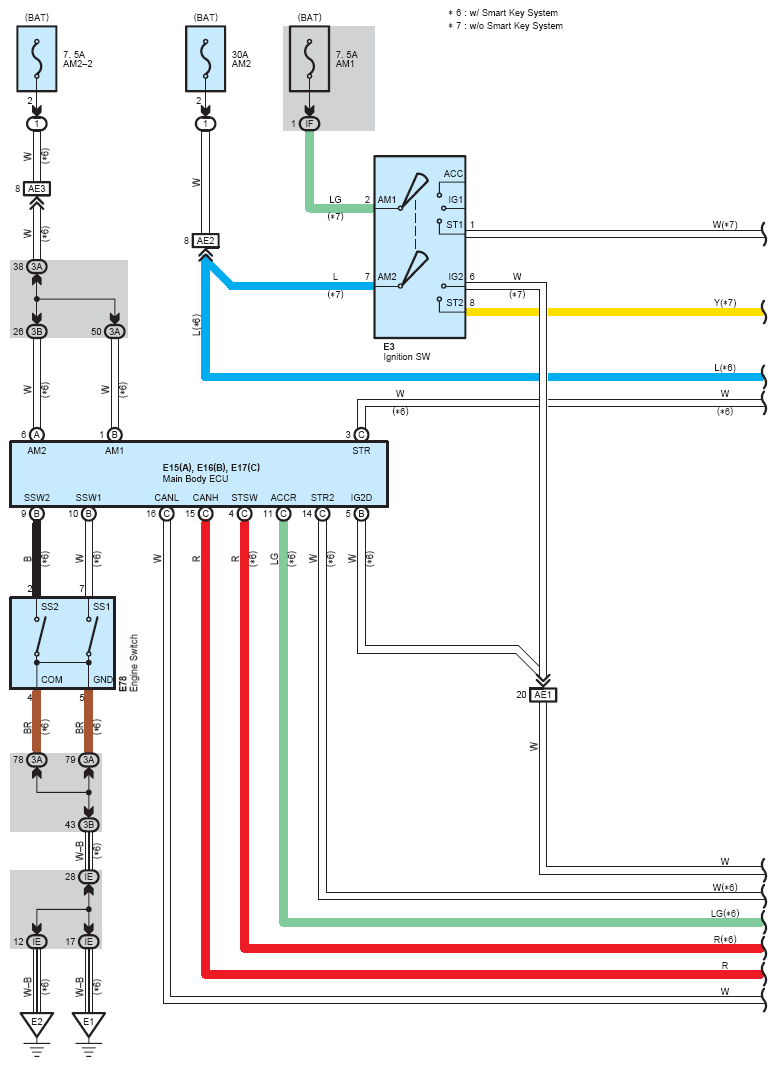

Fig 1: Engine Control System Wiring Diagram (2GR-FE; 1 Of 20)

G08845190

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

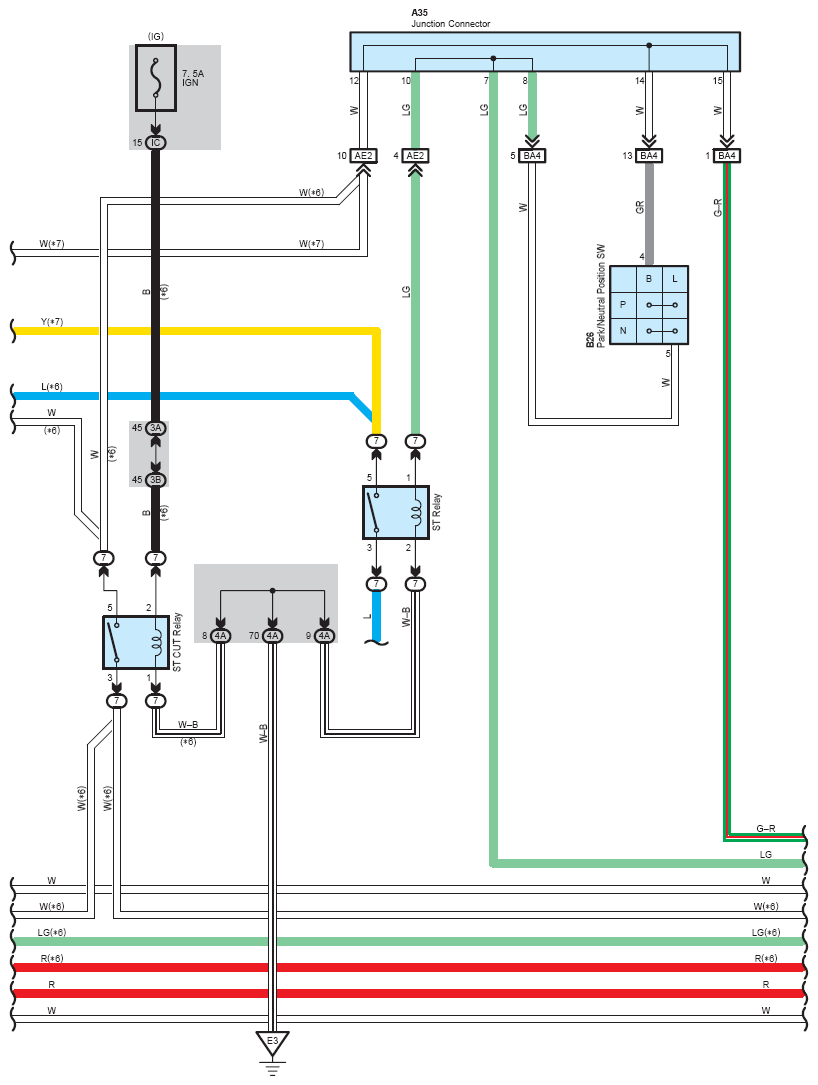

Fig 2: Engine Control System Wiring Diagram (2GR-FE; 2 Of 20)

G08845191

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

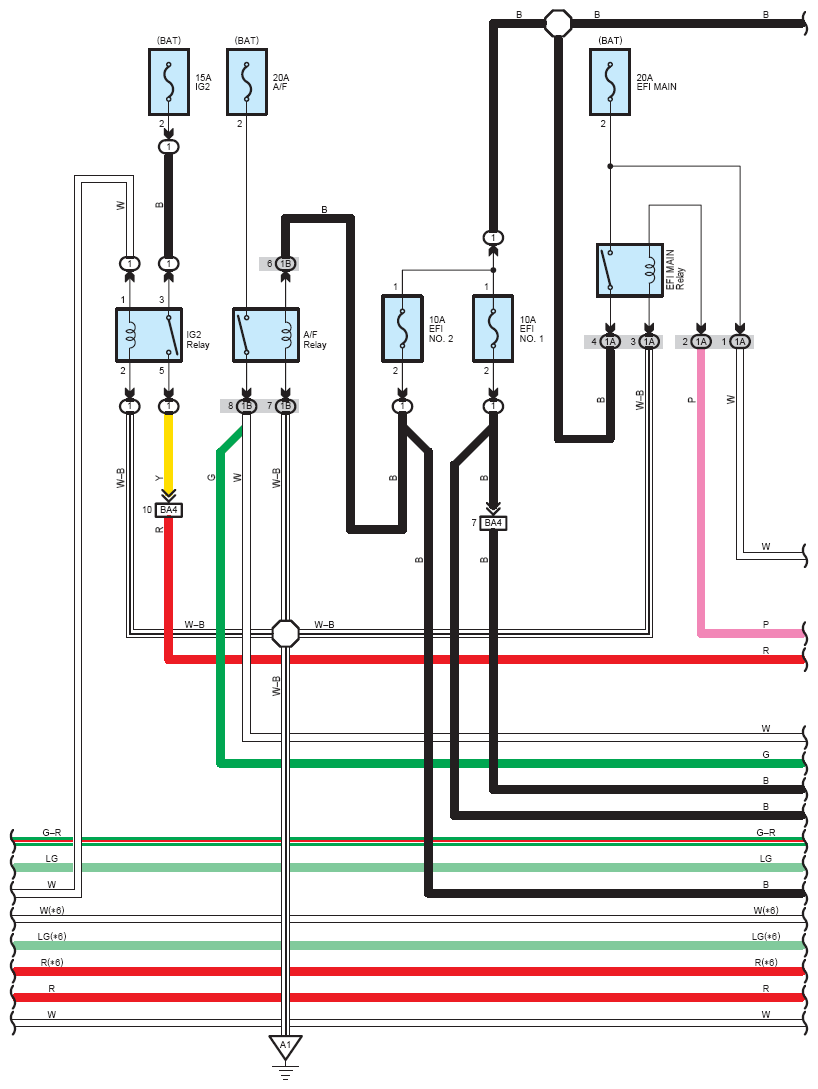

Fig 3: Engine Control System Wiring Diagram (2GR-FE; 3 Of 20)

G08845192

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

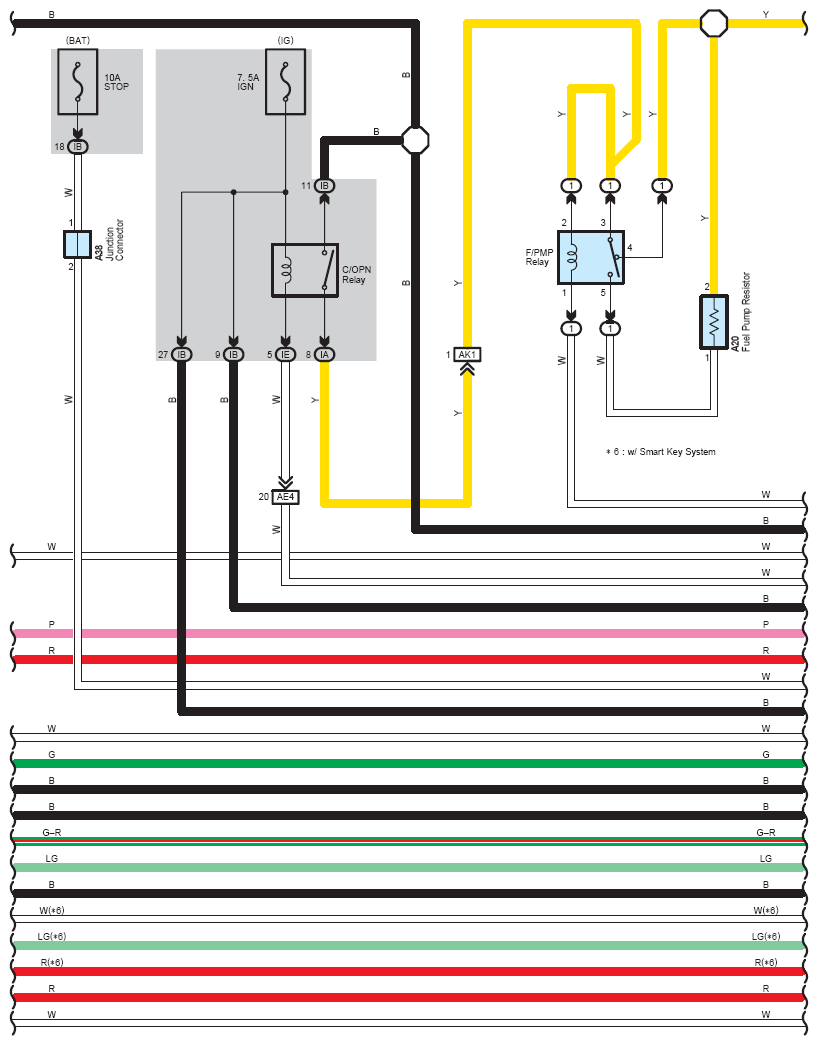

Fig 4: Engine Control System Wiring Diagram (2GR-FE; 4 Of 20)

G08845193

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

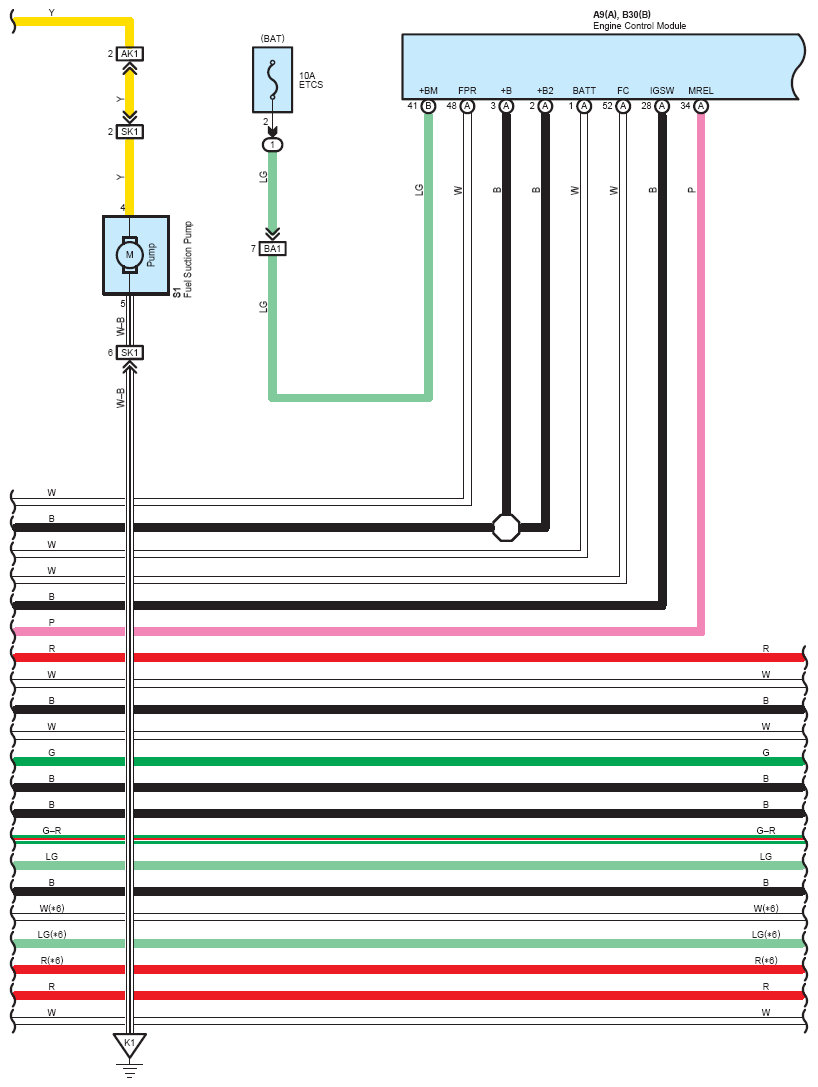

Fig 5: Engine Control System Wiring Diagram (2GR-FE; 5 Of 20)

G08845194

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

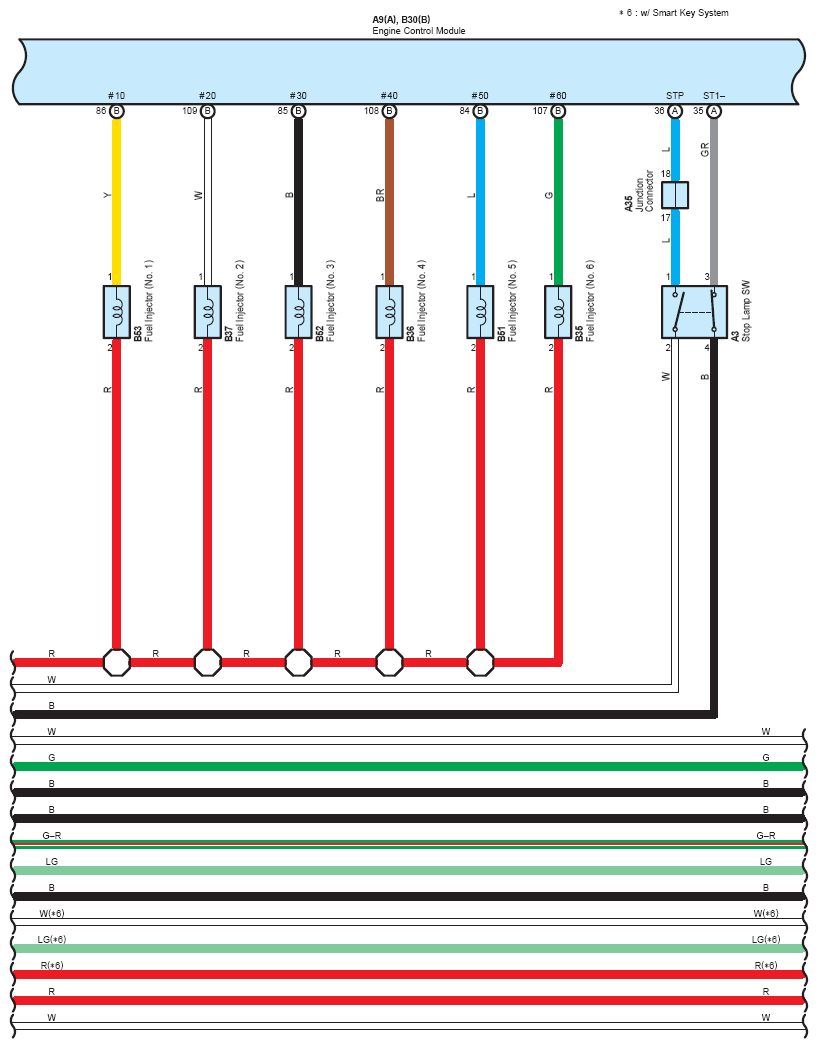

Fig 6: Engine Control System Wiring Diagram (2GR-FE; 6 Of 20)

G08845195

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

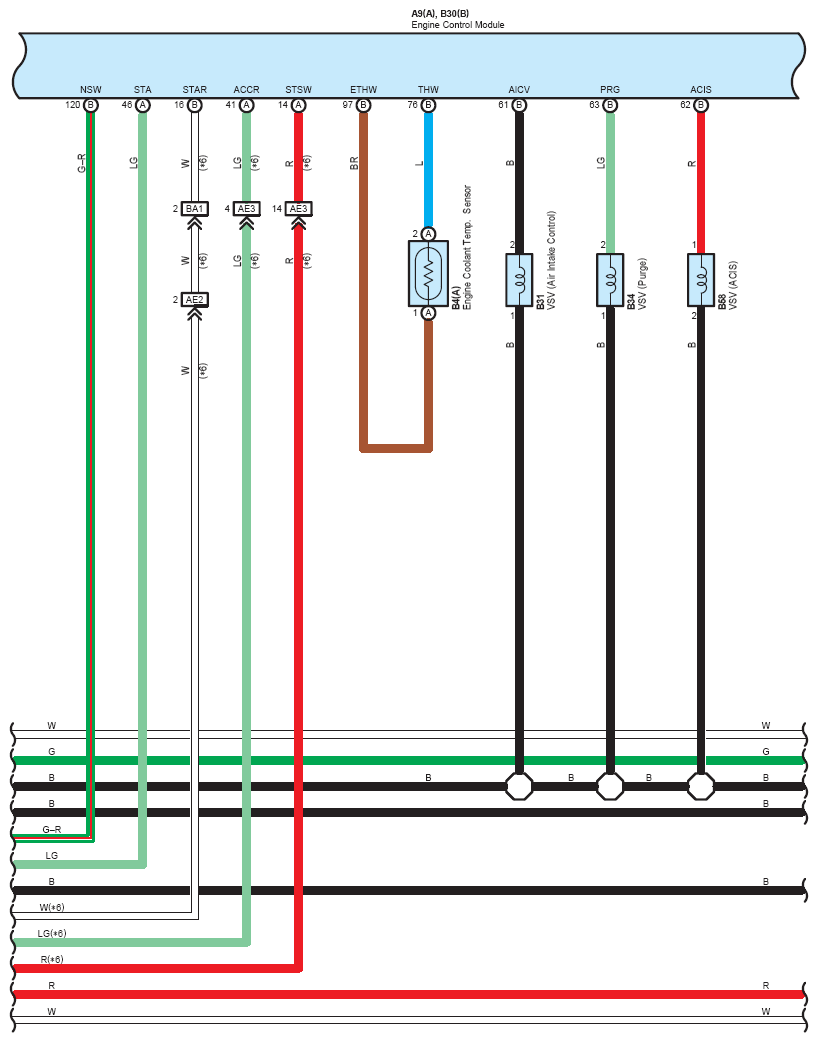

Fig 7: Engine Control System Wiring Diagram (2GR-FE; 7 Of 20)

G08845196

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

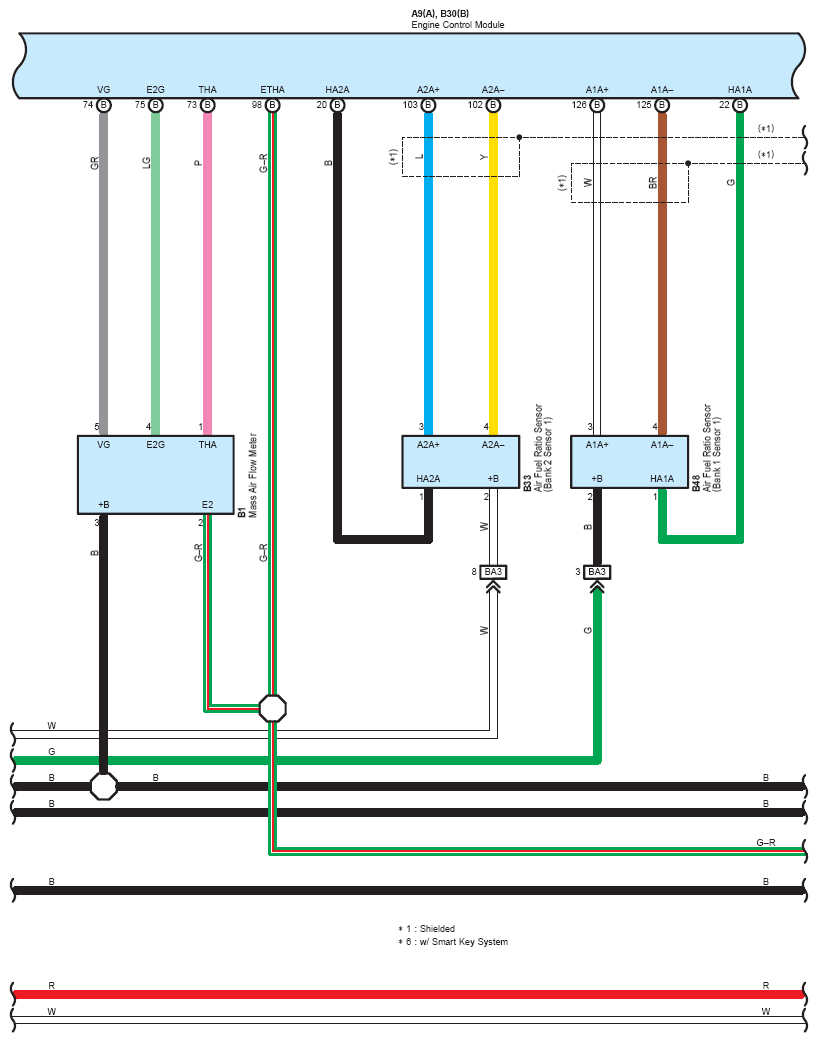

Fig 8: Engine Control System Wiring Diagram (2GR-FE; 8 Of 20)

G08845197

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

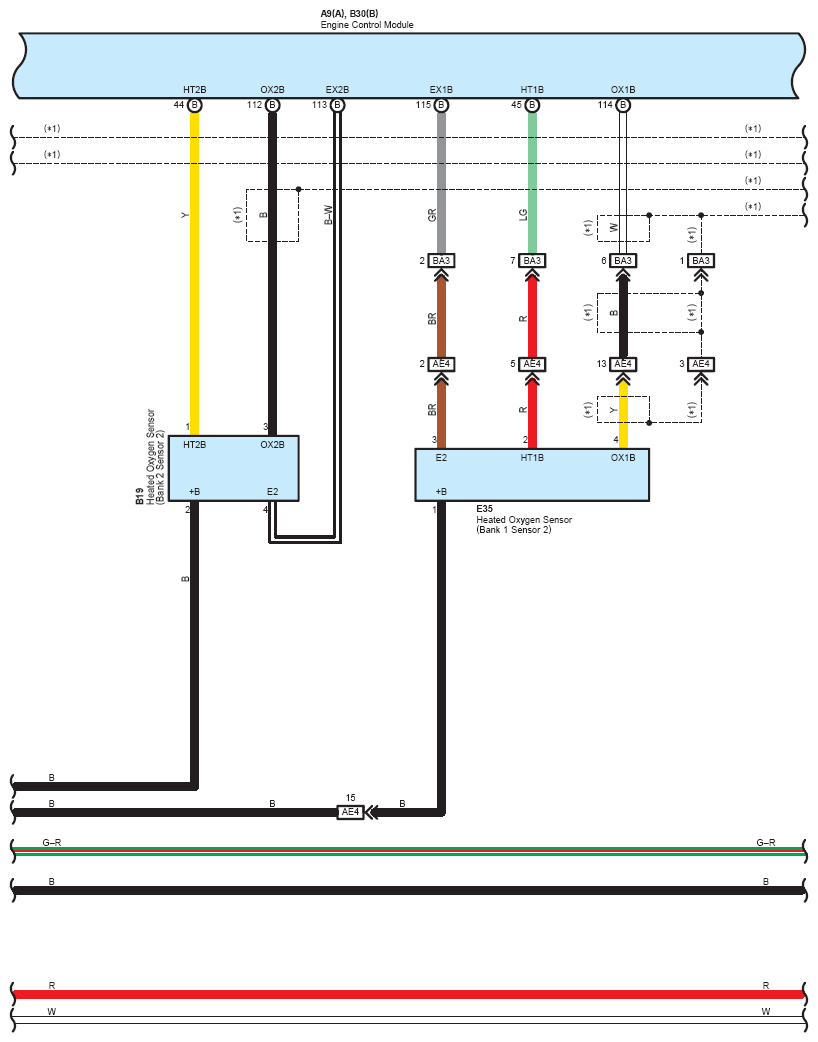

Fig 9: Engine Control System Wiring Diagram (2GR-FE; 9 Of 20)

G08845198

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

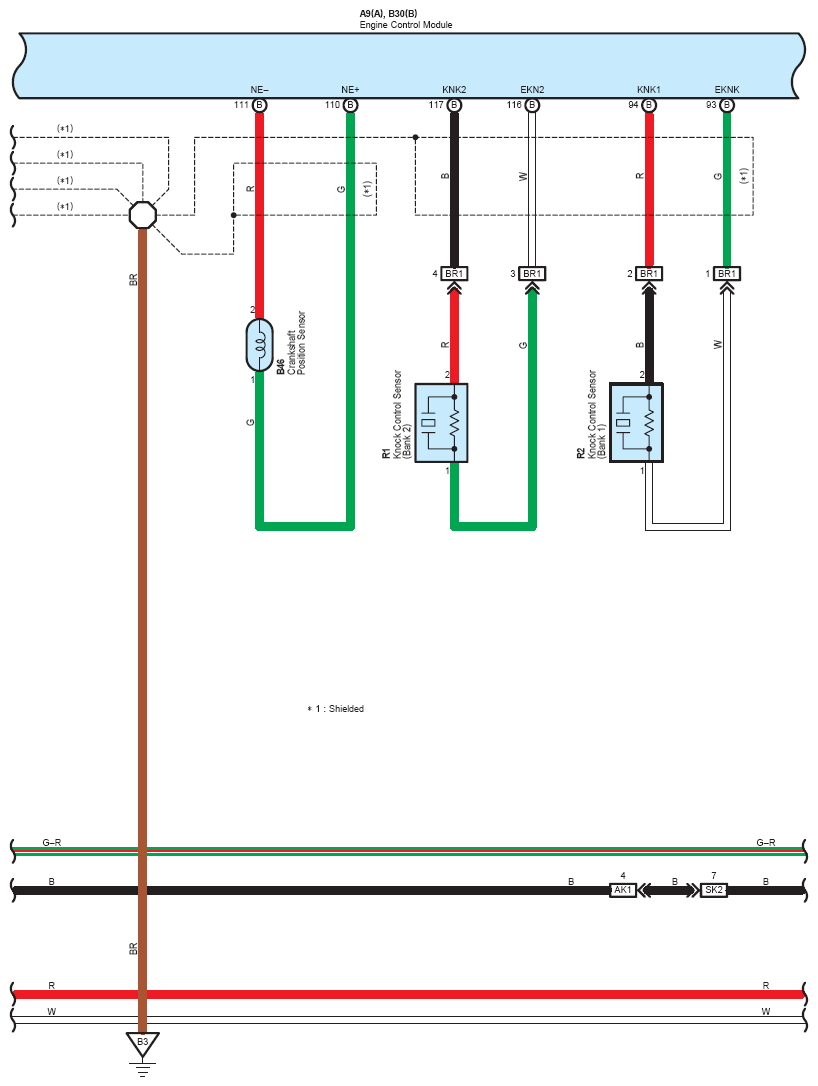

Fig 10: Engine Control System Wiring Diagram (2GR-FE; 10 Of 20)

G08845199

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

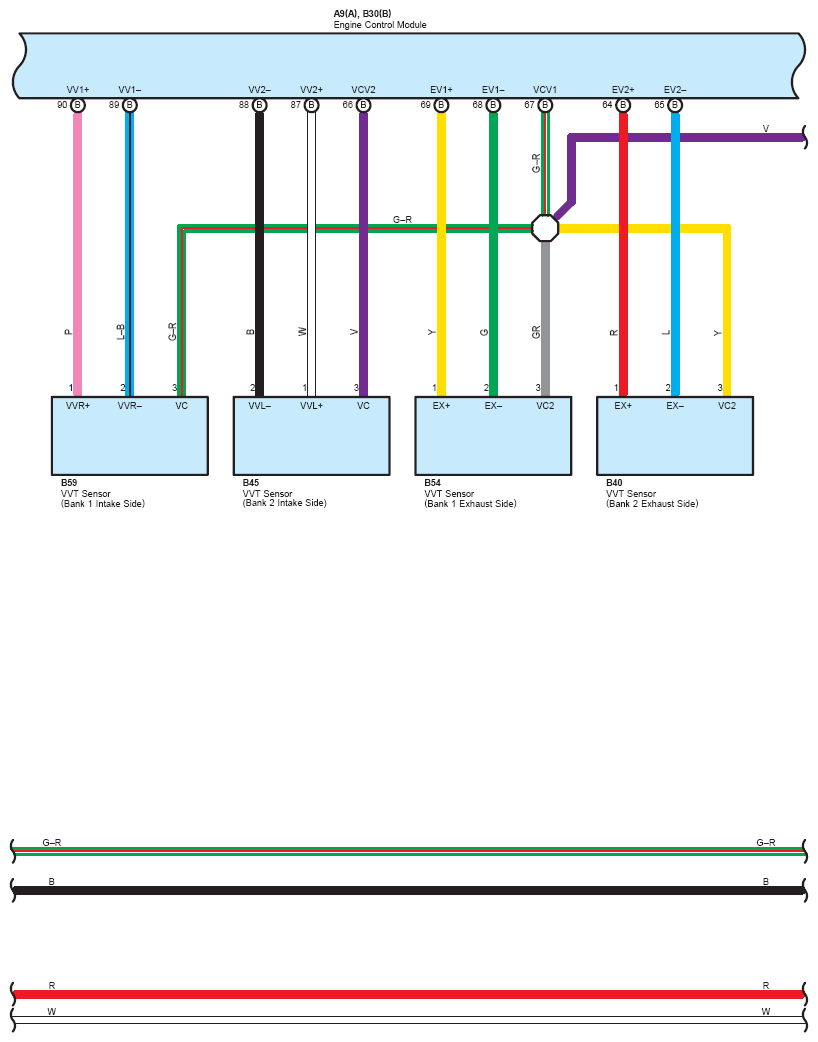

Fig 11: Engine Control System Wiring Diagram (2GR-FE; 11 Of 20)

G08845200

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

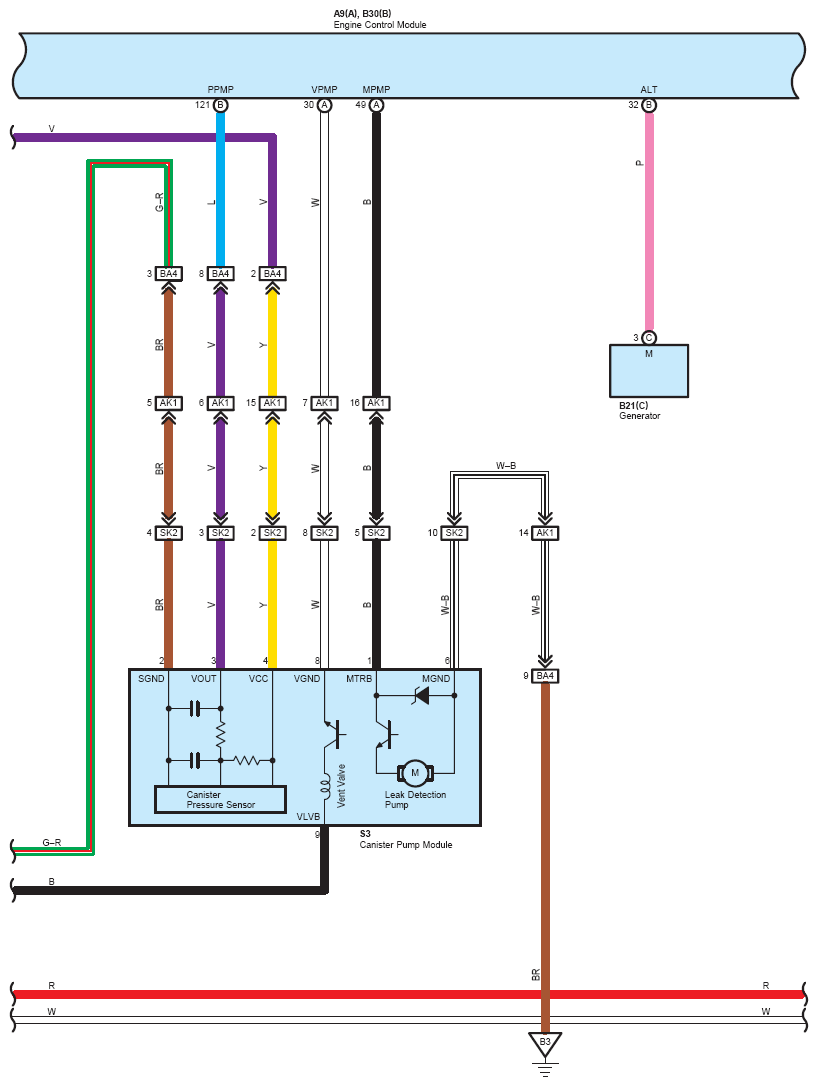

Fig 12: Engine Control System Wiring Diagram (2GR-FE; 12 Of 20)

G08845201

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

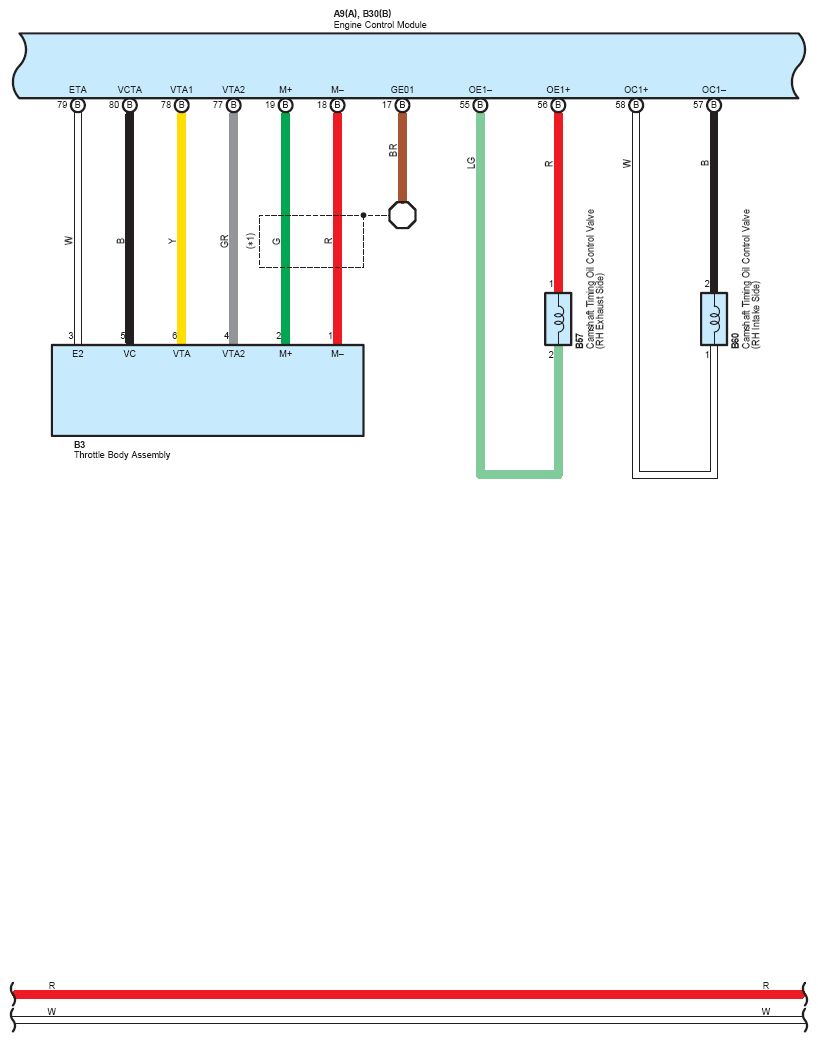

Fig 13: Engine Control System Wiring Diagram (2GR-FE; 13 Of 20)

G08845202

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

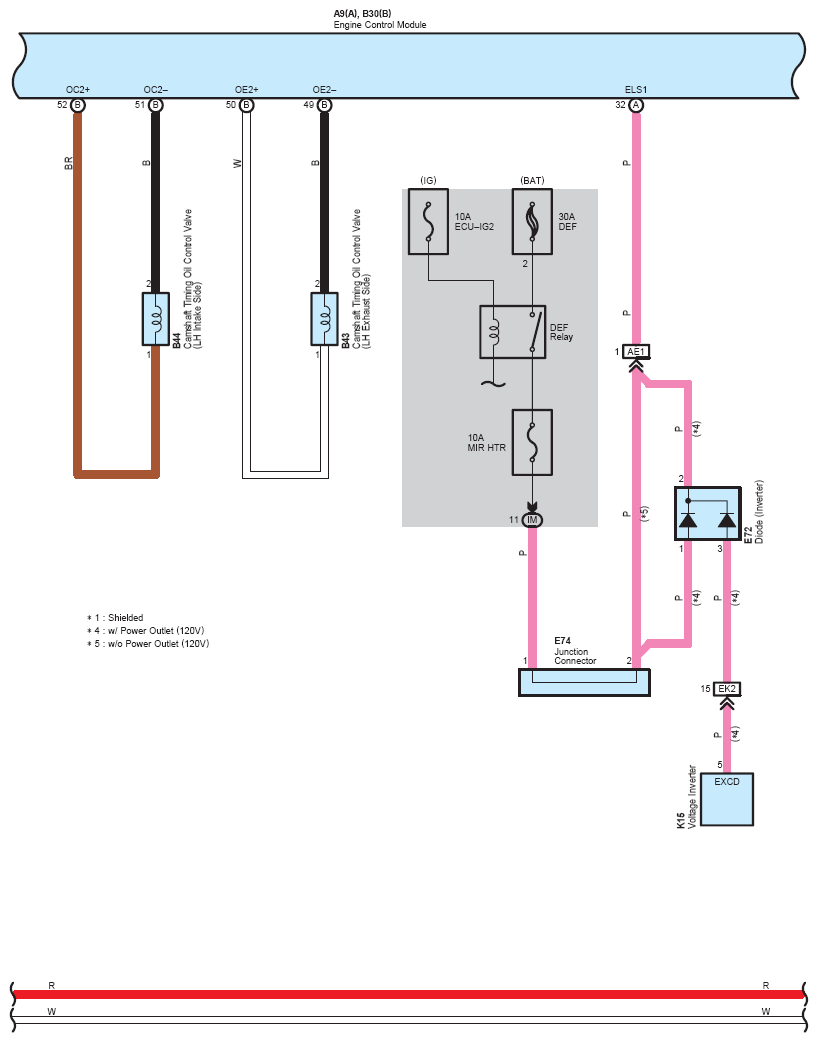

Fig 14: Engine Control System Wiring Diagram (2GR-FE; 14 Of 20)

G08845203

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

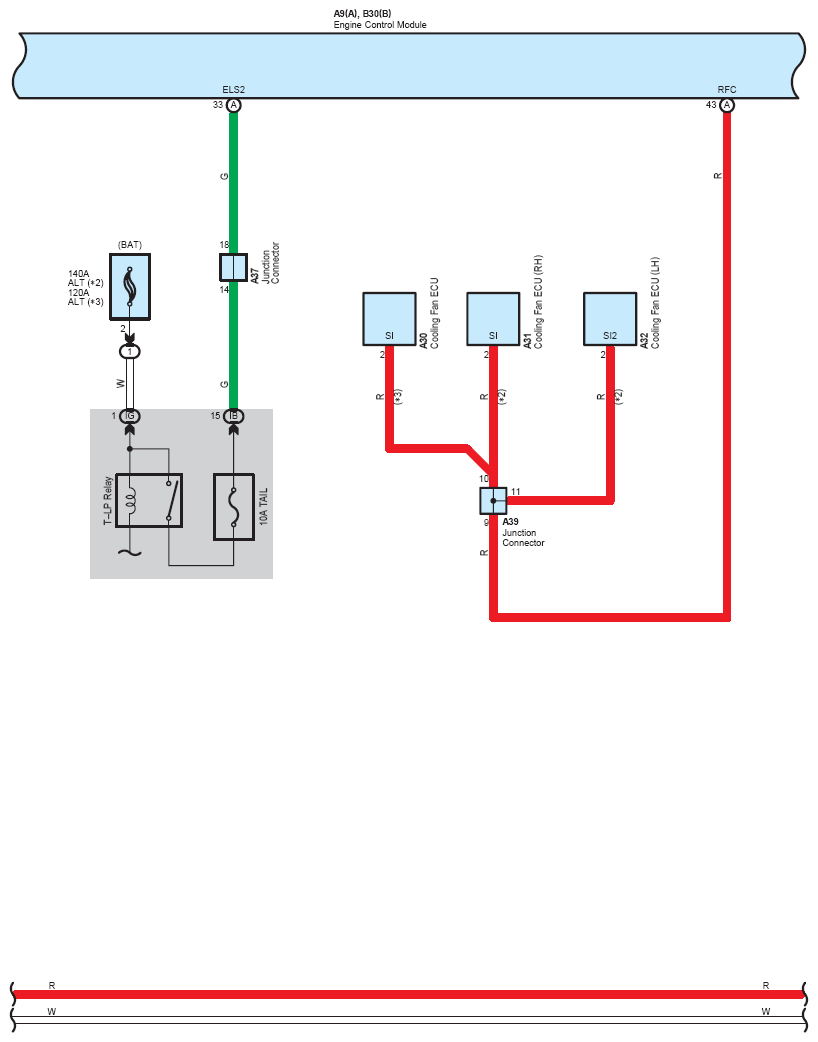

Fig 15: Engine Control System Wiring Diagram (2GR-FE; 15 Of 20)

G08845204

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

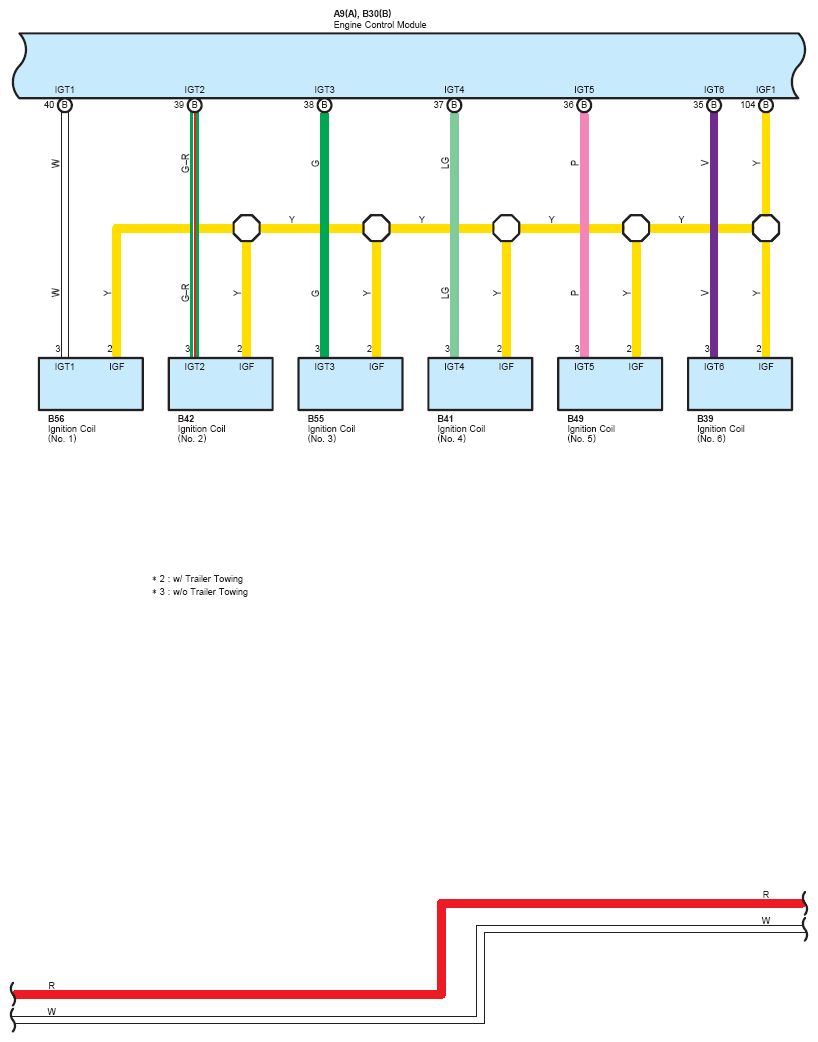

Fig 16: Engine Control System Wiring Diagram (2GR-FE; 16 Of 20)

G08845205

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

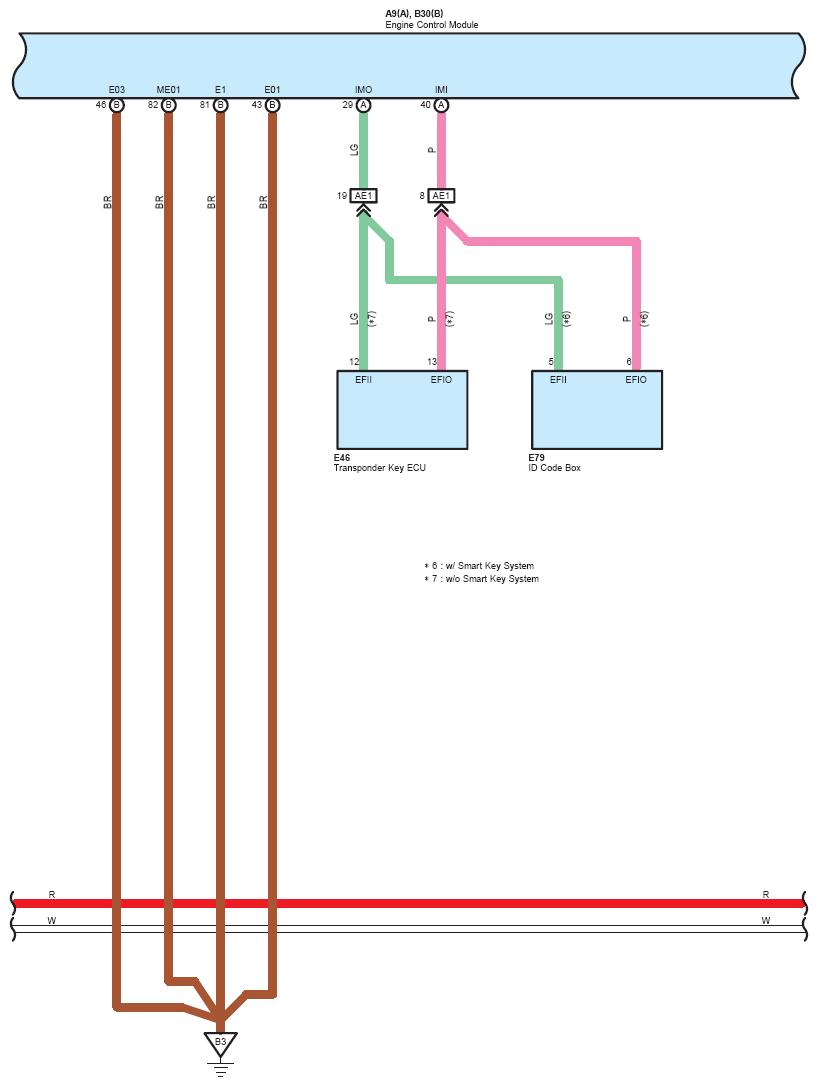

Fig 17: Engine Control System Wiring Diagram (2GR-FE; 17 Of 20)

G08845206

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

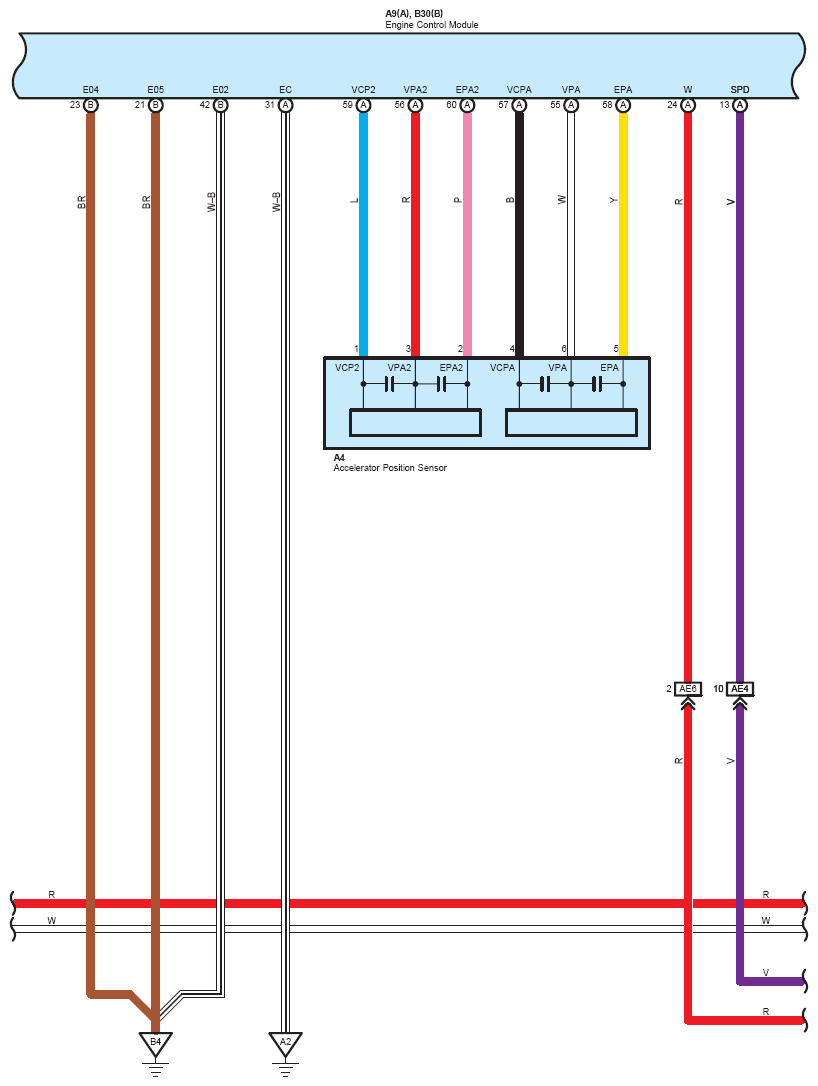

Fig 18: Engine Control System Wiring Diagram (2GR-FE; 18 Of 20)

G08845207

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

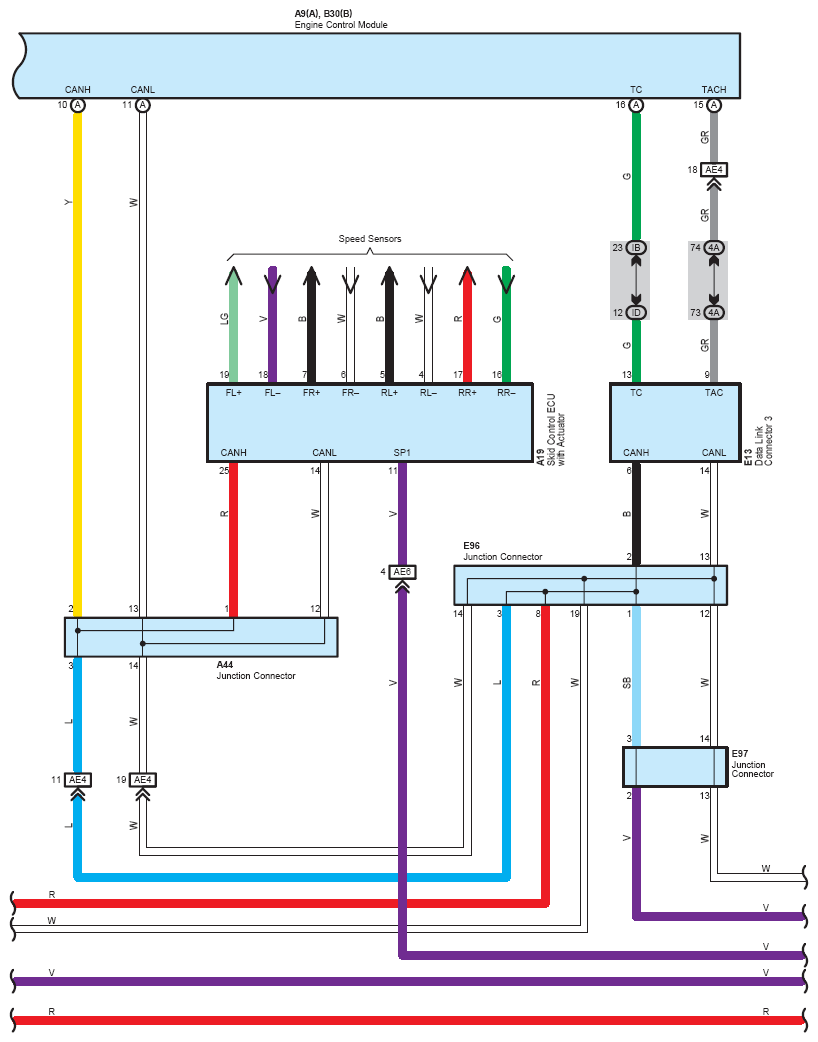

Fig 19: Engine Control System Wiring Diagram (2GR-FE; 19 Of 20)

G08845208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

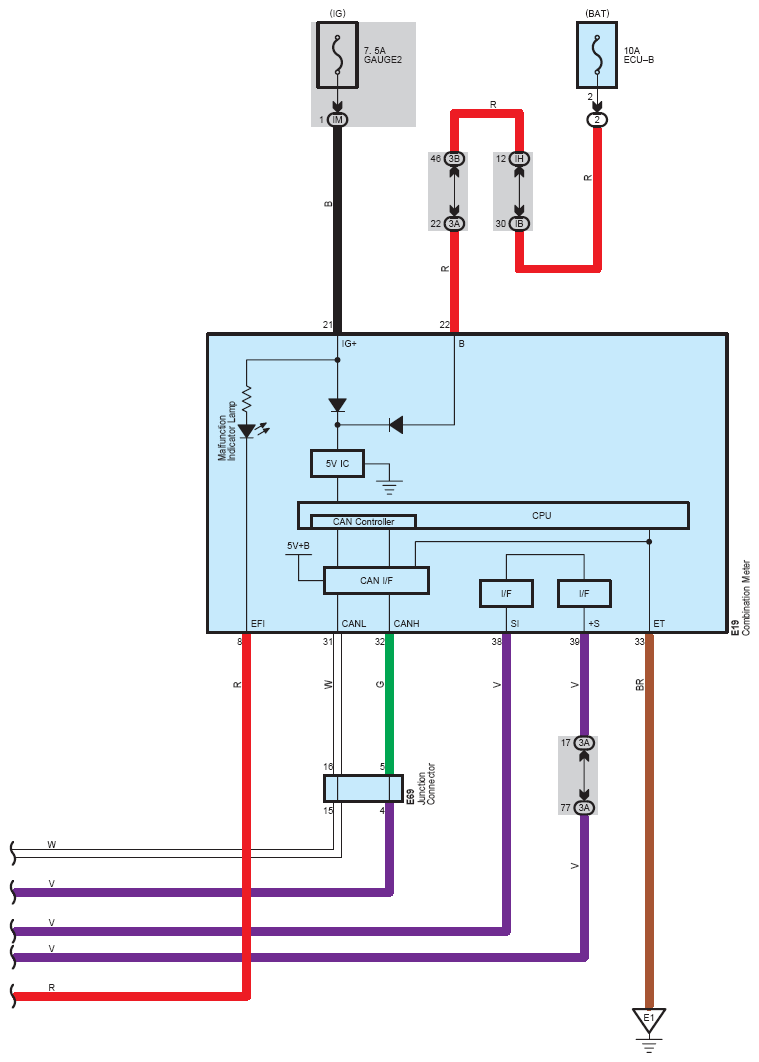

Fig 20: Engine Control System Wiring Diagram (2GR-FE; 20 Of 20)

G08845209

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
