Key Reminder (w/o Smart Key System): Notes

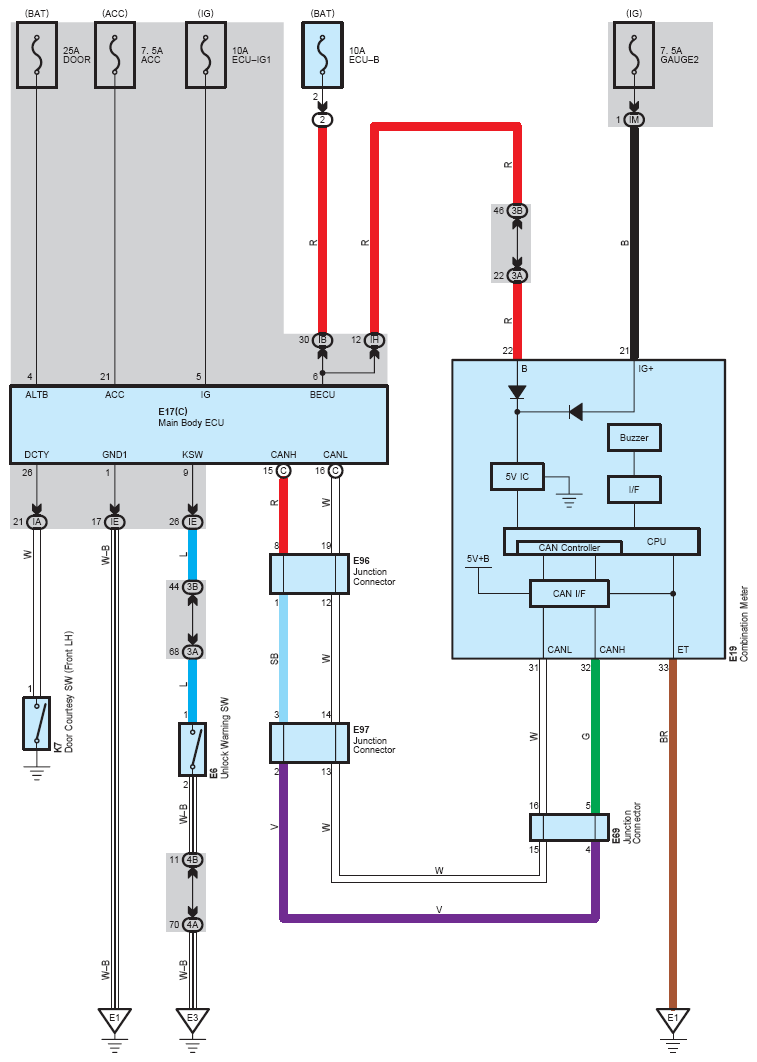

Fig 1: Key Reminder (W/O Smart Key System) System Wiring Diagram
G08845251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
