Front Wiper Deicer: Notes

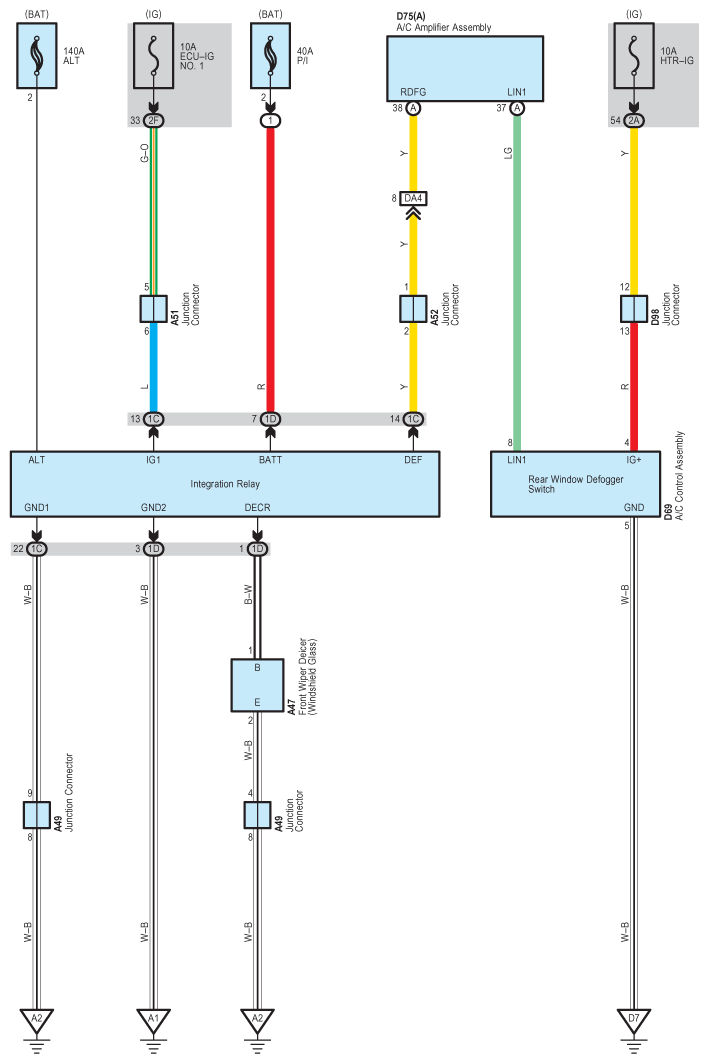

Fig 1: Front Wiper Deicer Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
