Parts Location: Illustration

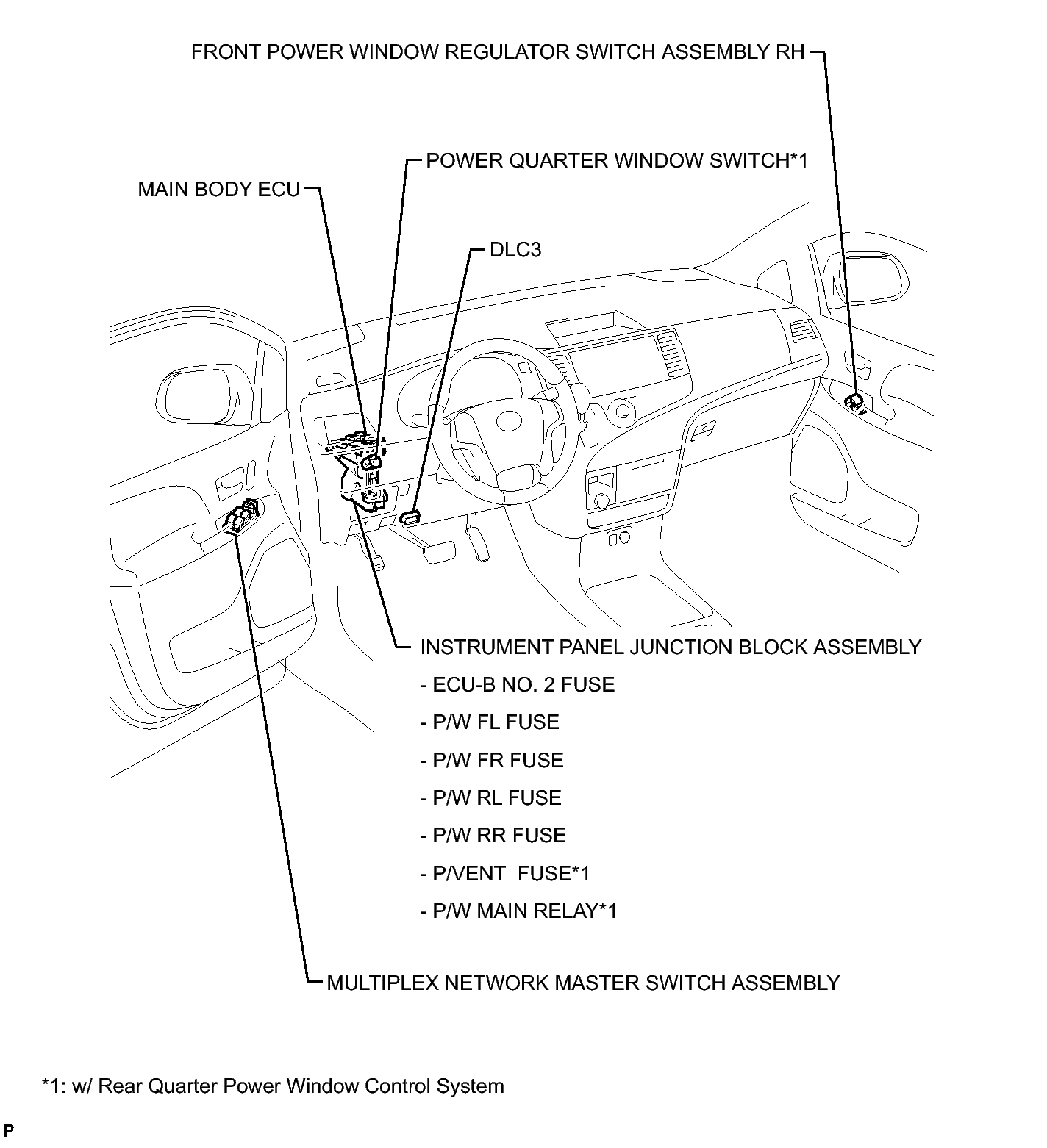

Fig 1: Power Window Control System Component Location (1 Of 2)
GTY299407Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

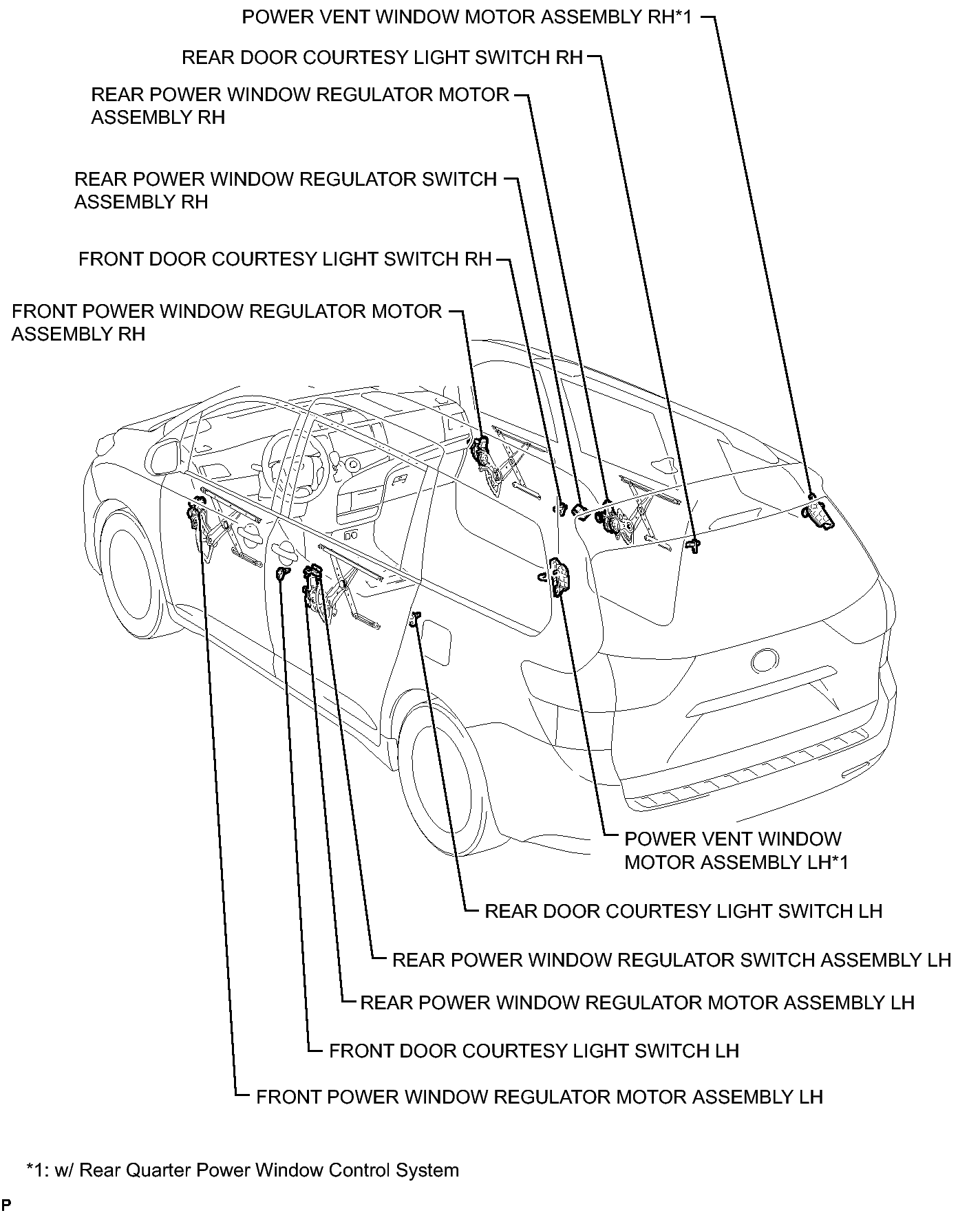

Fig 1: Power Window Control System Component Location (2 Of 2)
GTY302108Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
