Yaw Rate And Acceleration Sensor: Components: Illustration

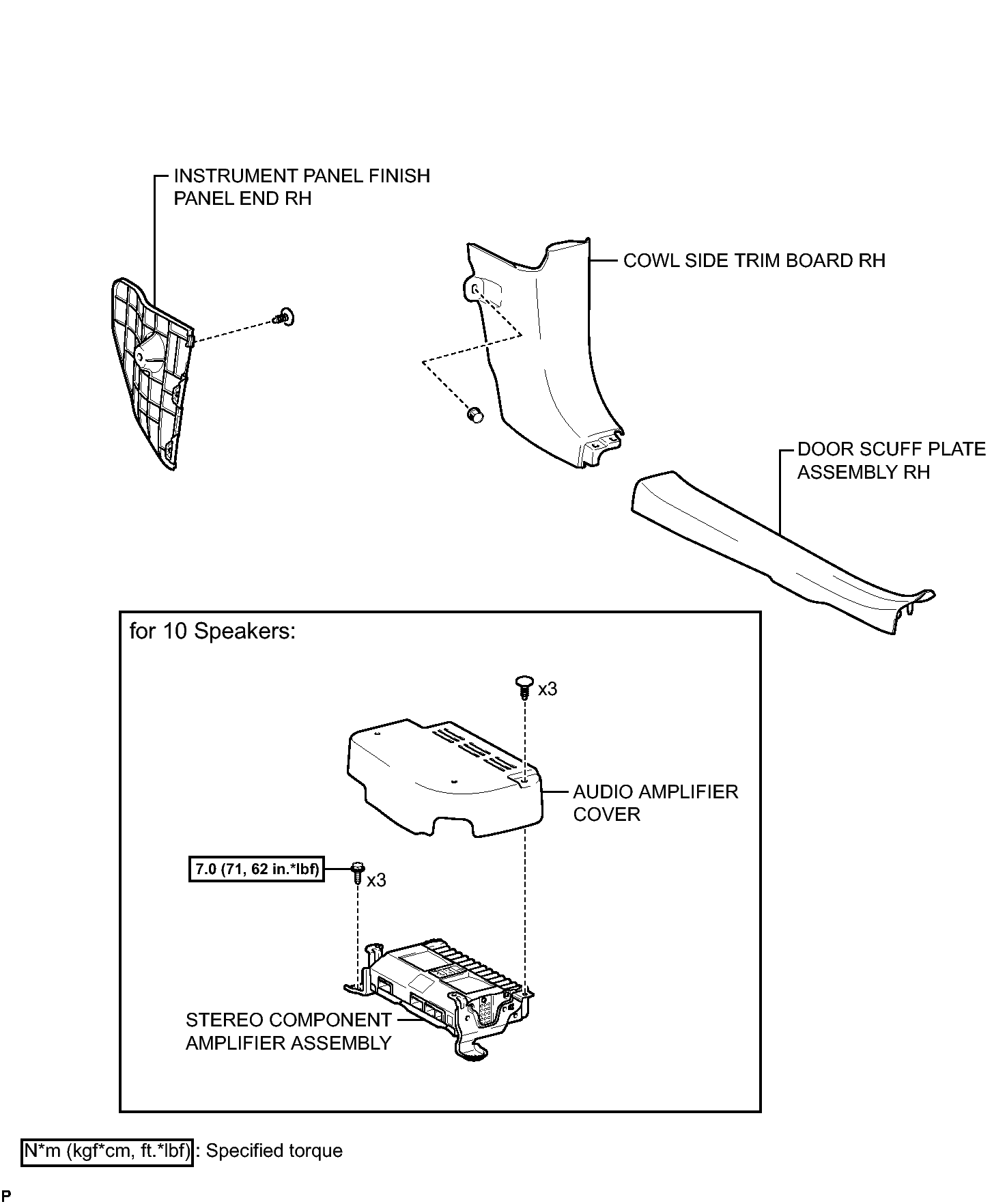

Fig 1: Yaw Rate & Acceleration Sensor Replacement Components With Torque Specifications (1 of 2)
GTY294988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

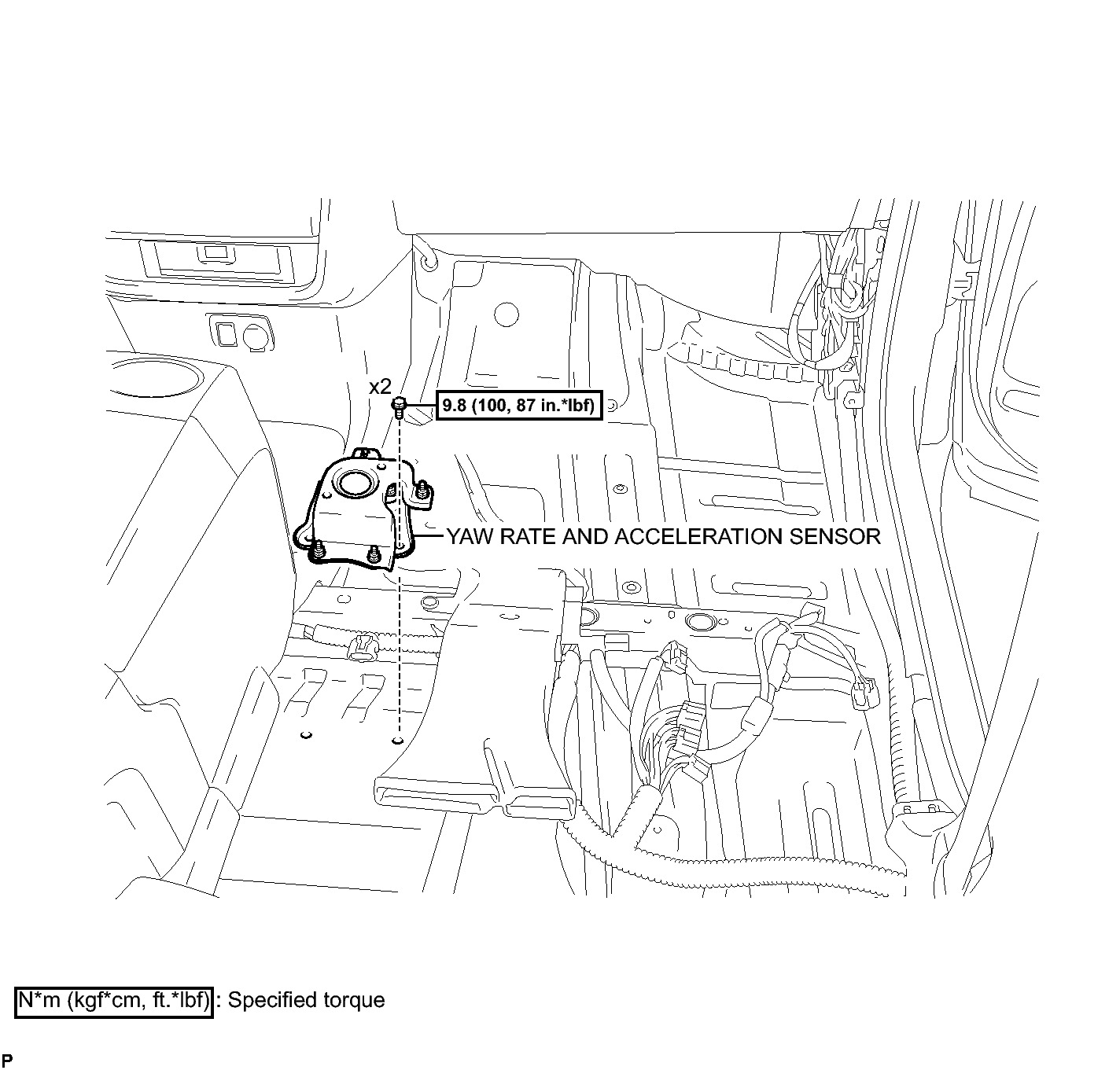

Fig 1: Yaw Rate & Acceleration Sensor Replacement Components With Torque Specifications (2 of 2)
GTY302356Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
