Back Door Opener: Notes

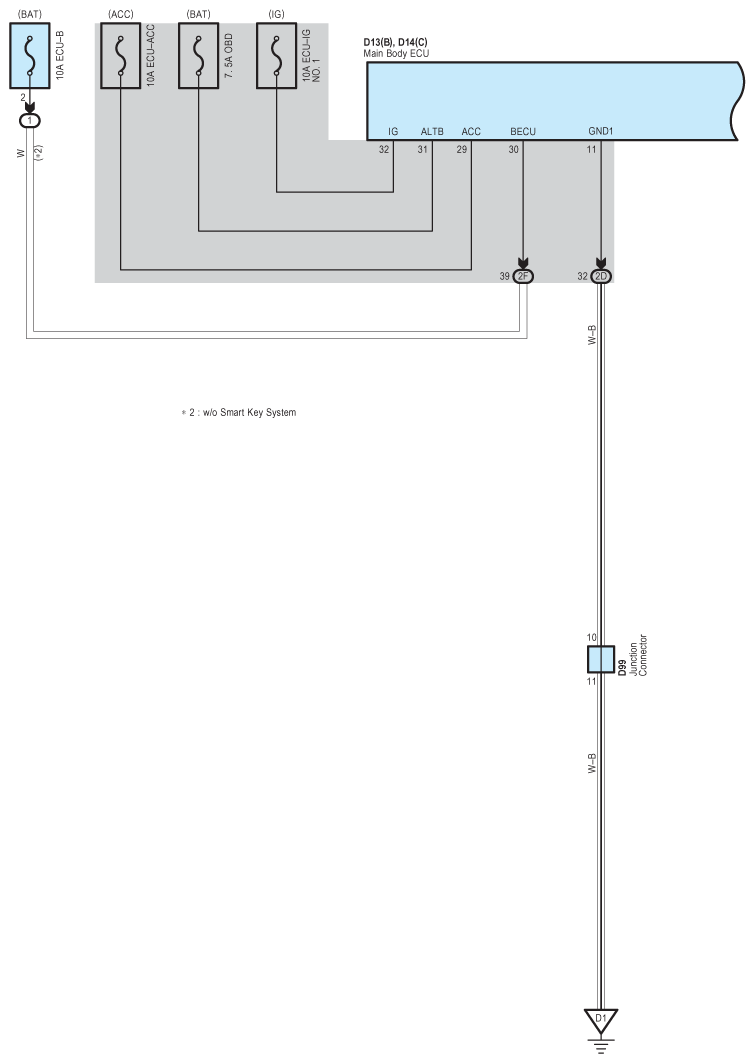

Fig 1: Back Door Opener Wiring Diagram (1 Of 5)
G08846242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

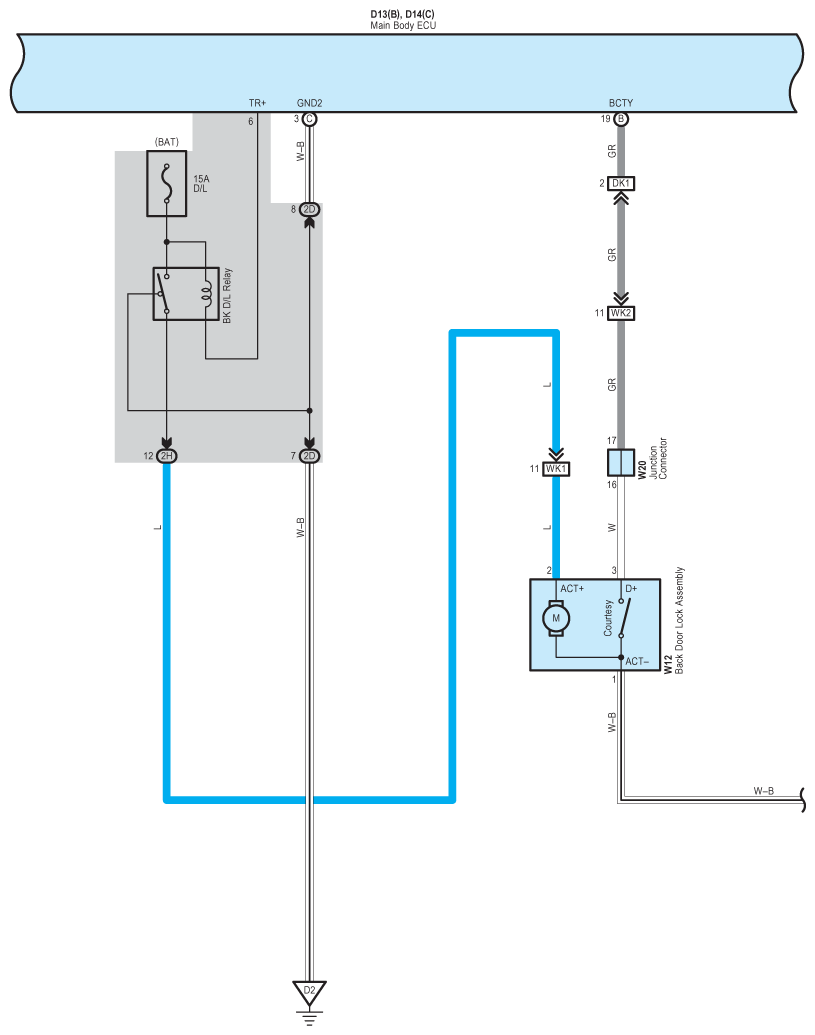

Fig 2: Back Door Opener Wiring Diagram (2 Of 5)
G08846243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

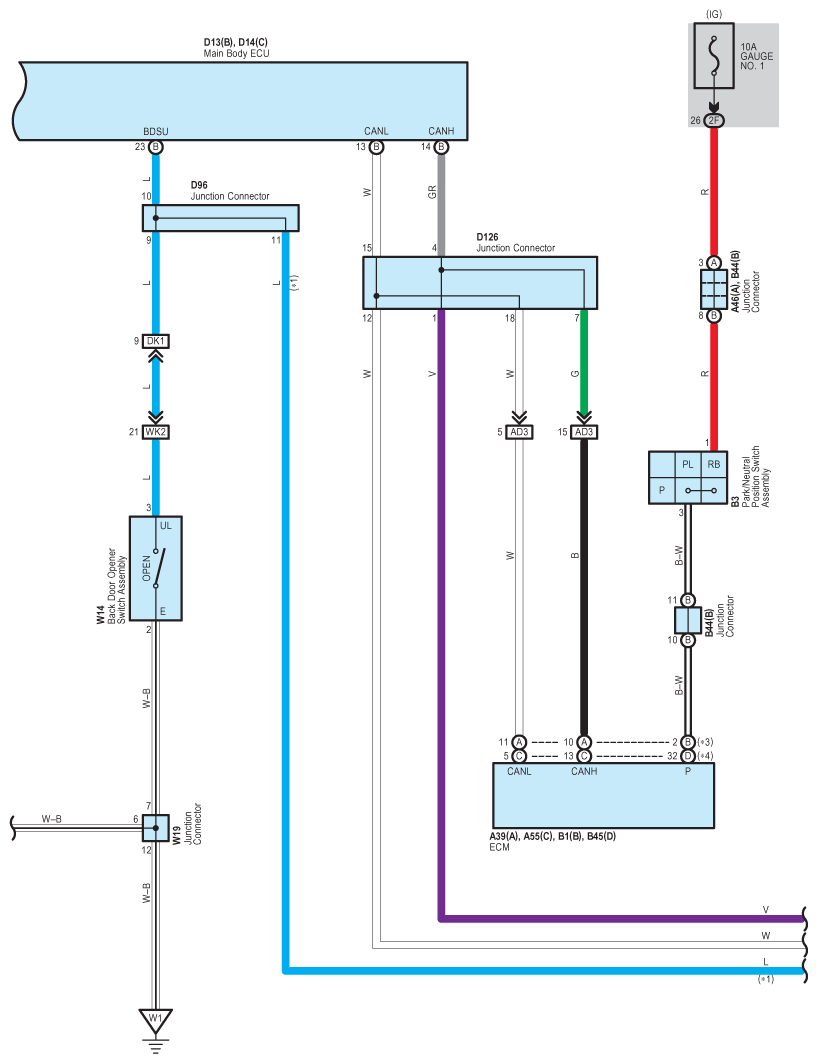

Fig 3: Back Door Opener Wiring Diagram (3 Of 5)
G08846244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

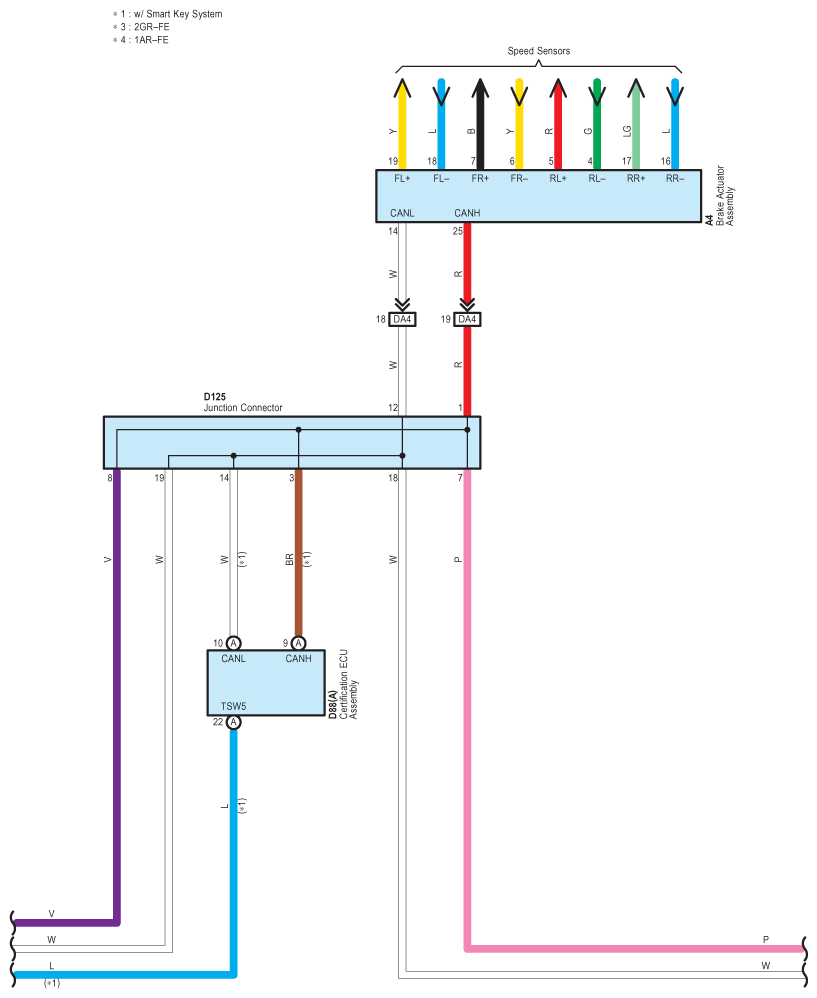

Fig 4: Back Door Opener Wiring Diagram (4 Of 5)
G08846245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

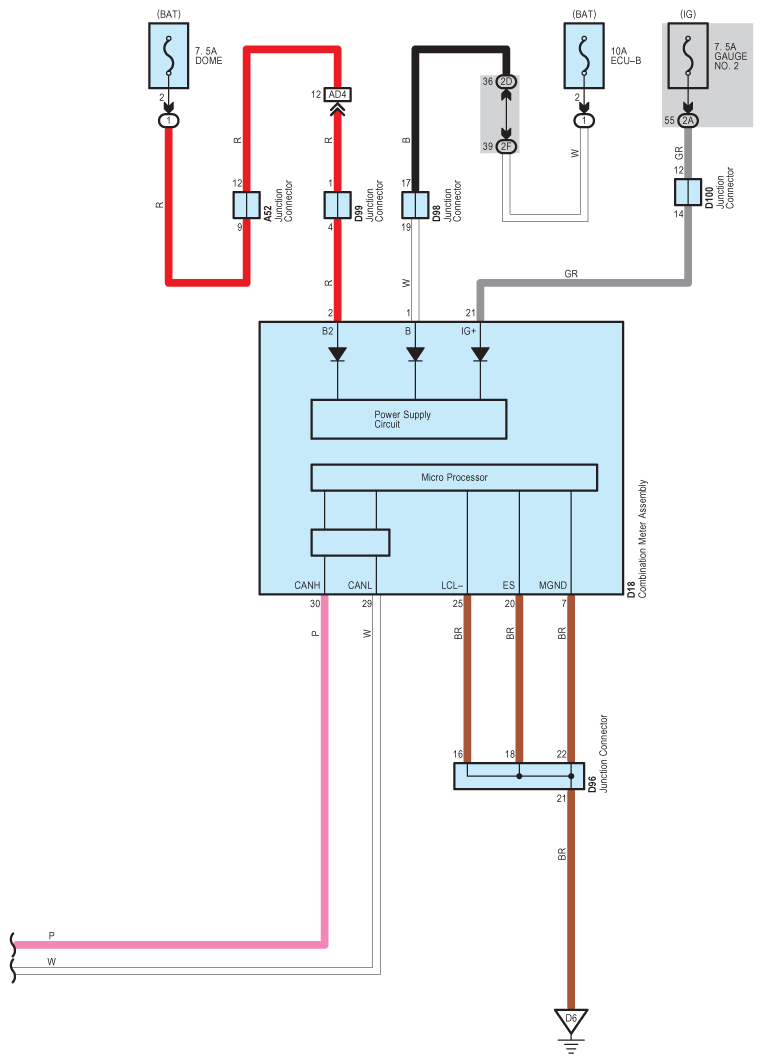

Fig 5: Back Door Opener Wiring Diagram (5 Of 5)
G08846246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
