Ignition (2GR-FE): Notes

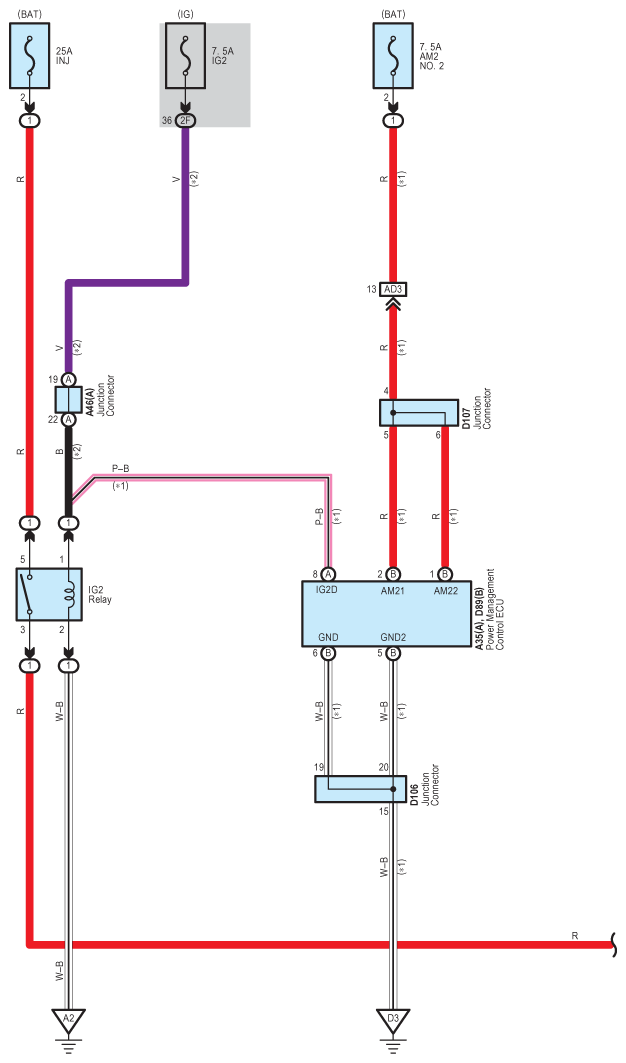

Fig 1: Ignition Wiring Diagram (2GR-FE; 1 Of 4)
G08846064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

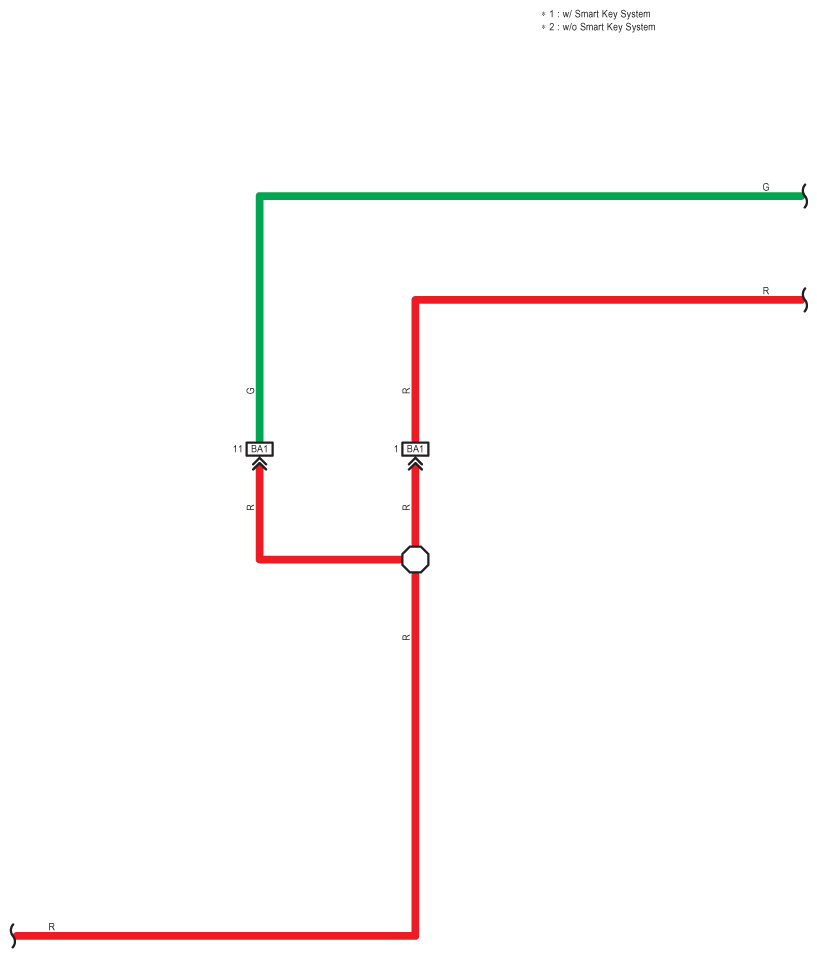

Fig 2: Ignition Wiring Diagram (2GR-FE; 2 Of 4)
G08846065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

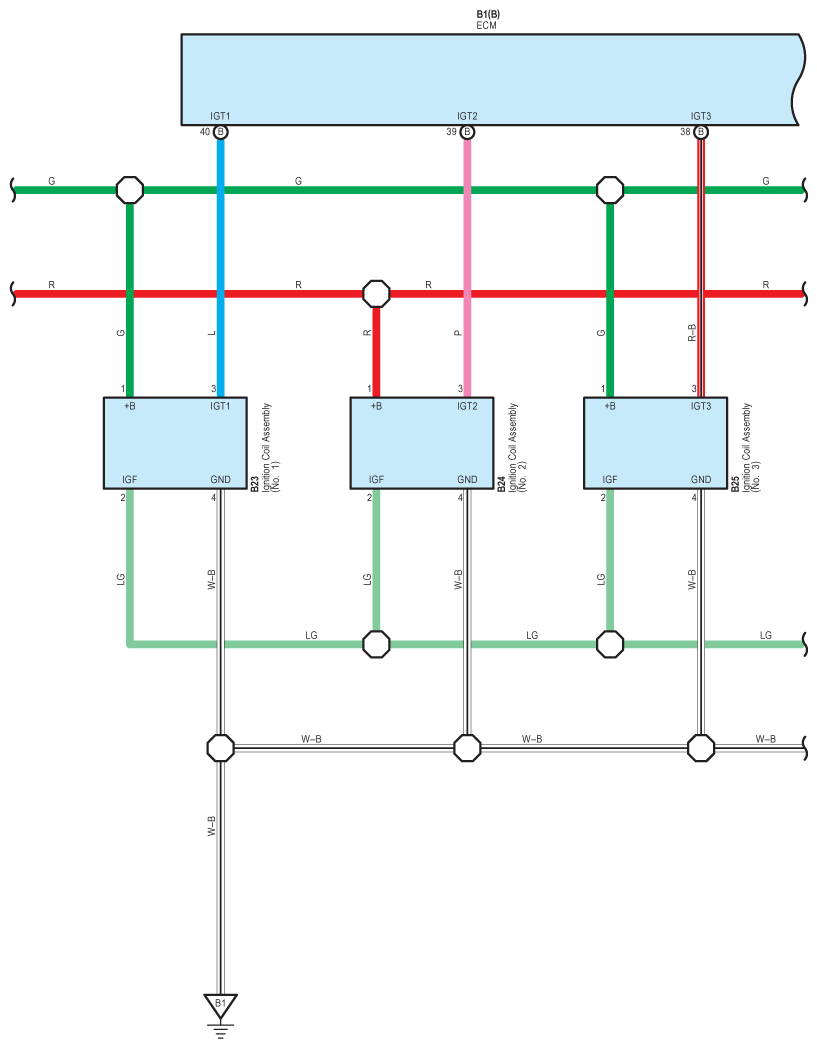

Fig 3: Ignition Wiring Diagram (2GR-FE; 3 Of 4)
G08846066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

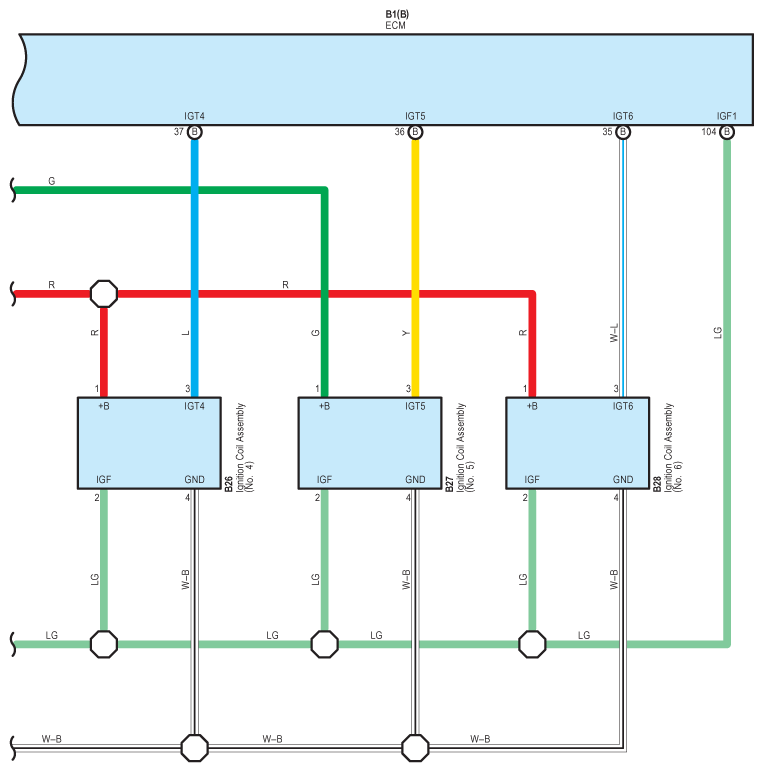

Fig 4: Ignition Wiring Diagram (2GR-FE; 4 Of 4)
G08846067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
