Audio System (w/o Navigation System): Notes

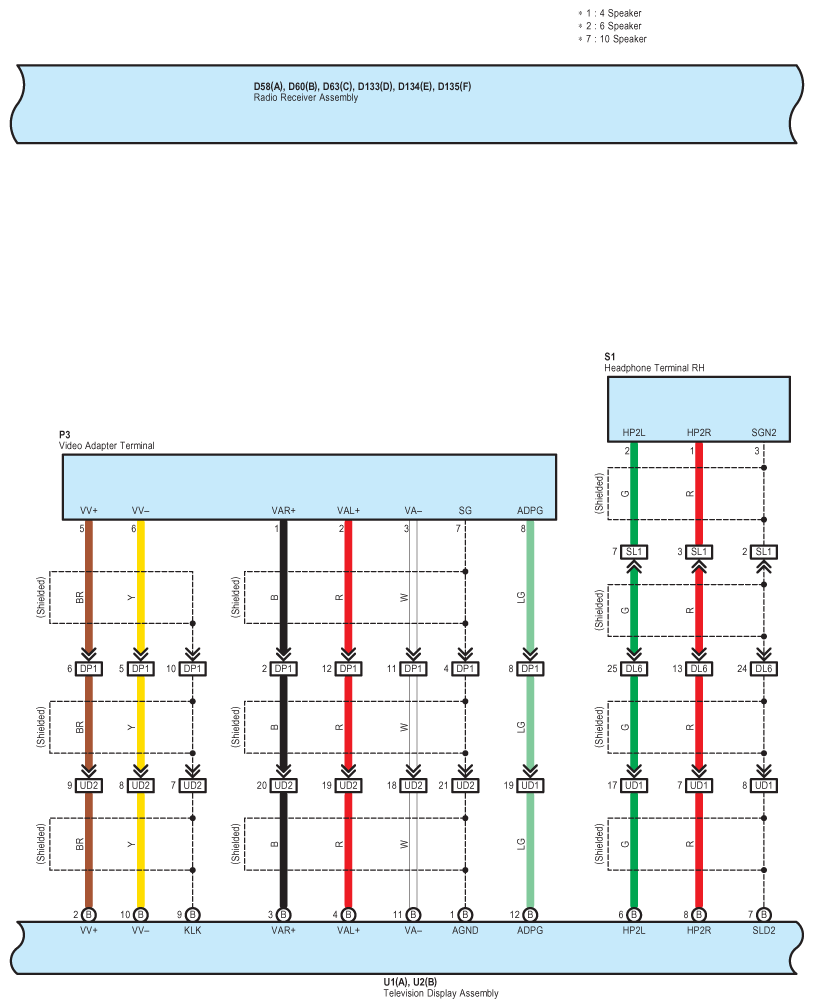

Fig 1: Audio System Wiring Diagram (W/O Navigation System; 1 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

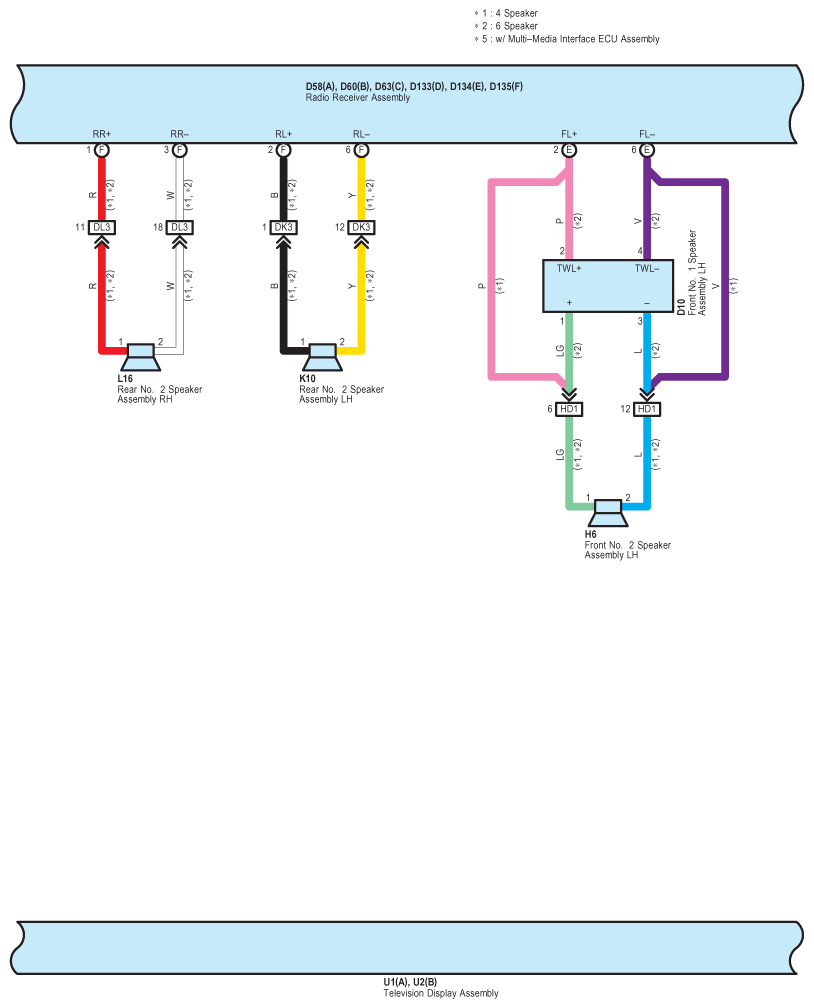

Fig 2: Audio System Wiring Diagram (W/O Navigation System; 2 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

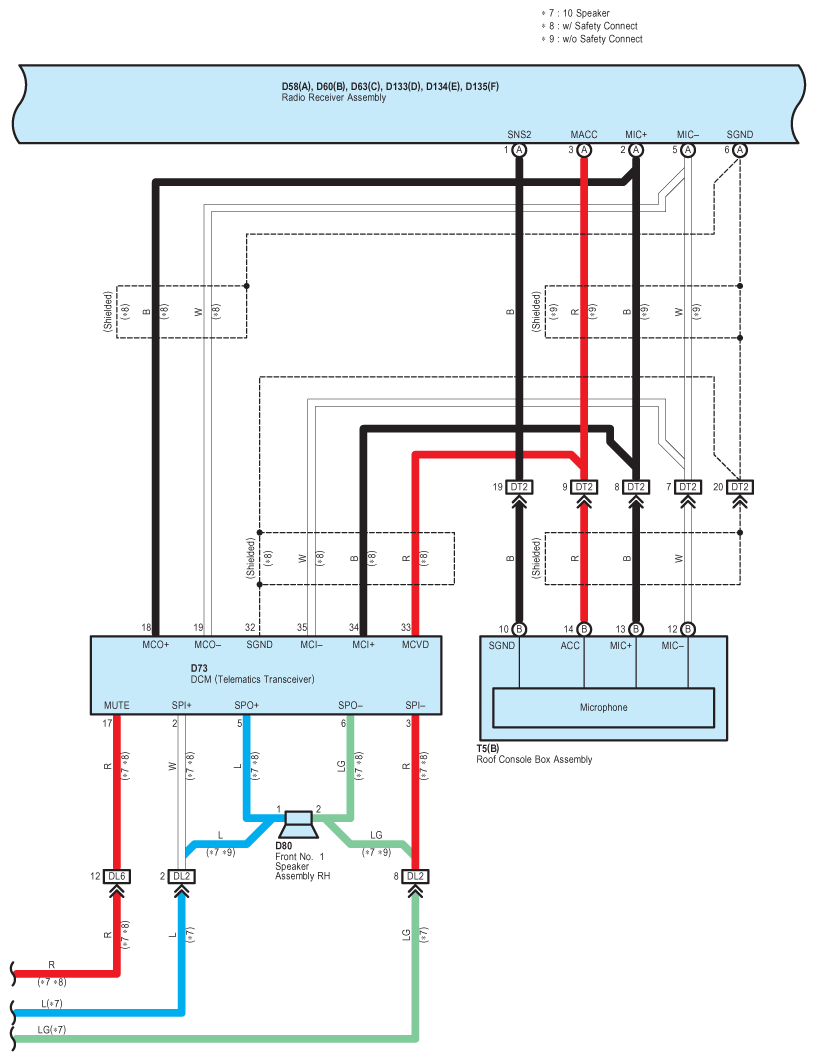

Fig 3: Audio System Wiring Diagram (W/O Navigation System; 3 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

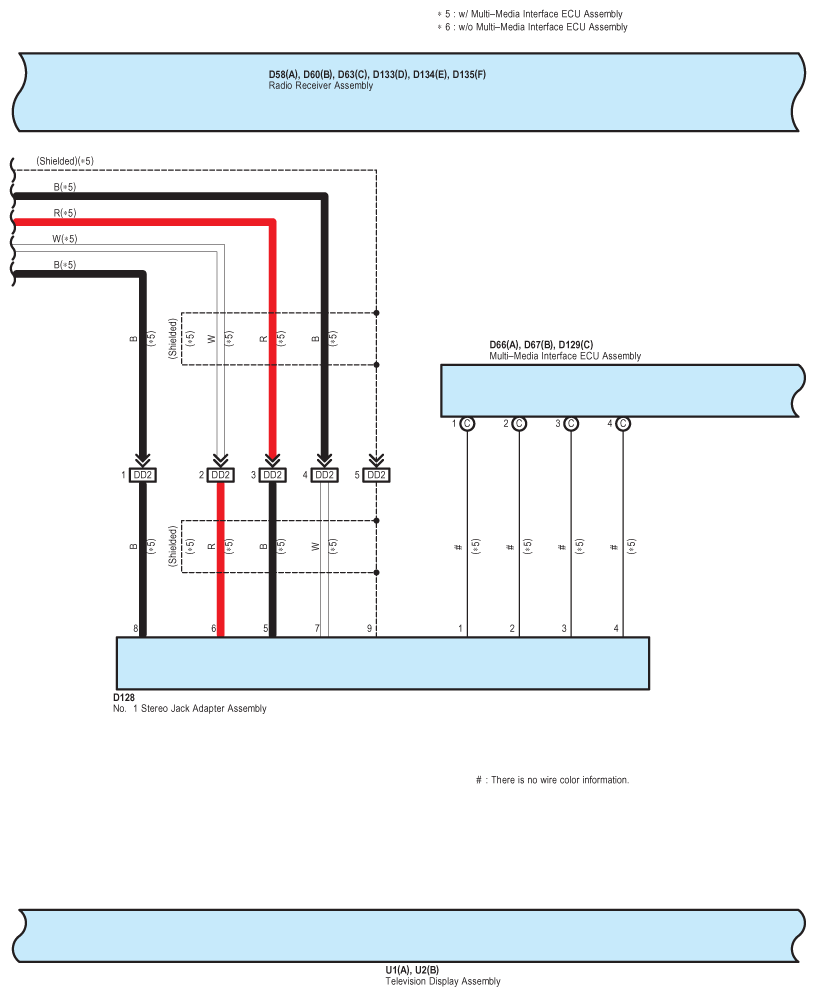

Fig 4: Audio System Wiring Diagram (W/O Navigation System; 4 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

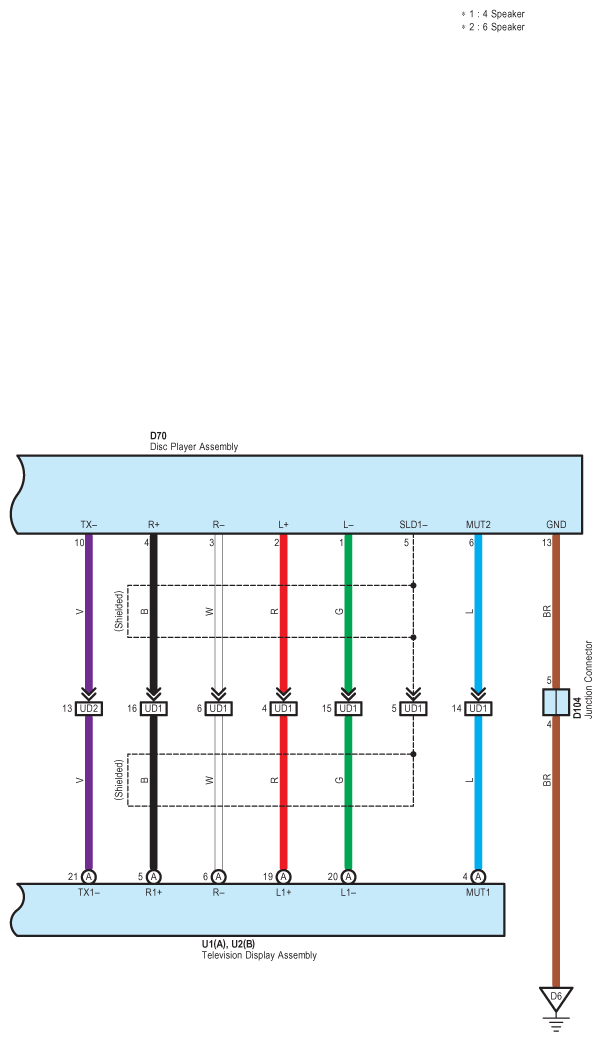

Fig 5: Audio System Wiring Diagram (W/O Navigation System; 5 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

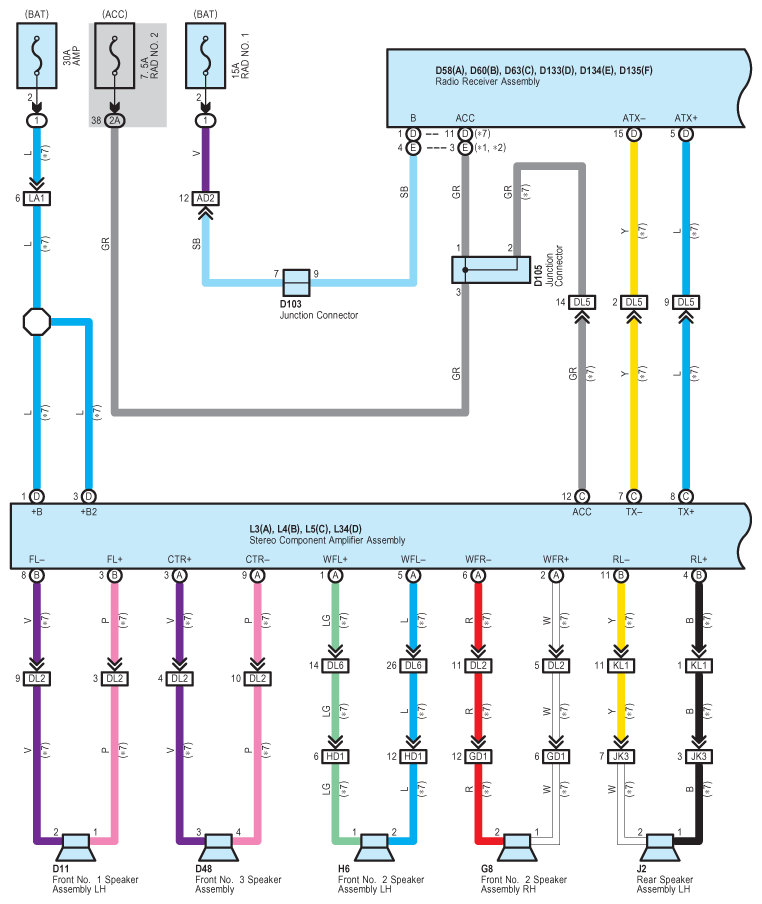

Fig 6: Audio System Wiring Diagram (W/O Navigation System; 6 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

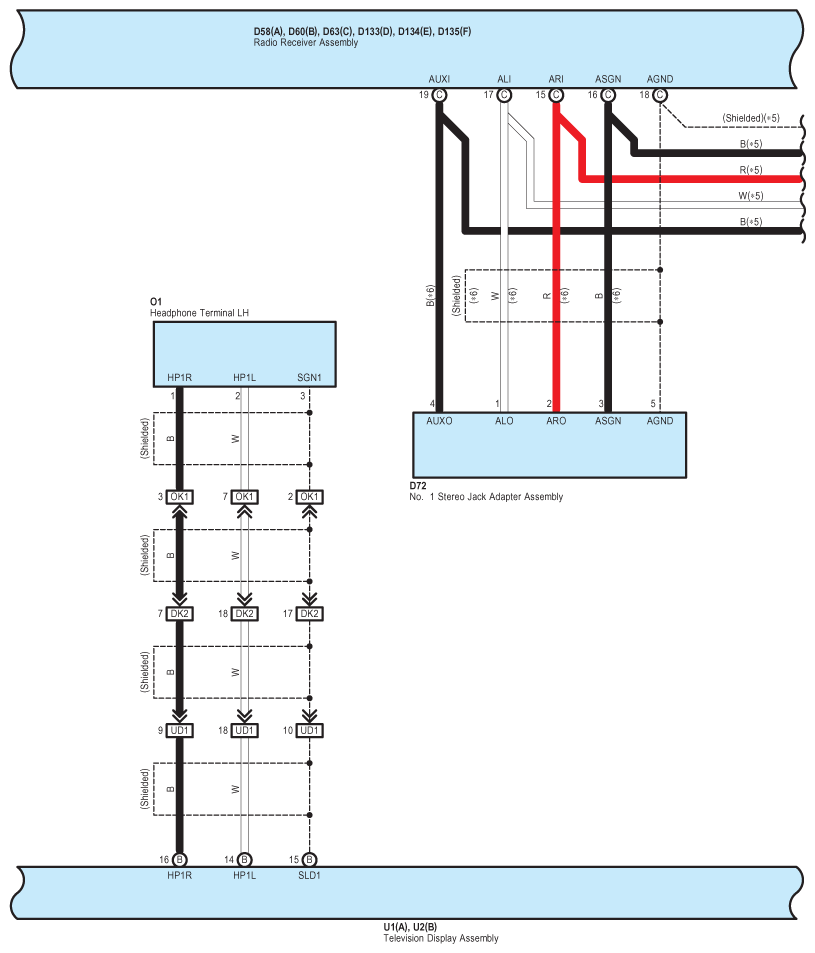

Fig 7: Audio System Wiring Diagram (W/O Navigation System; 7 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

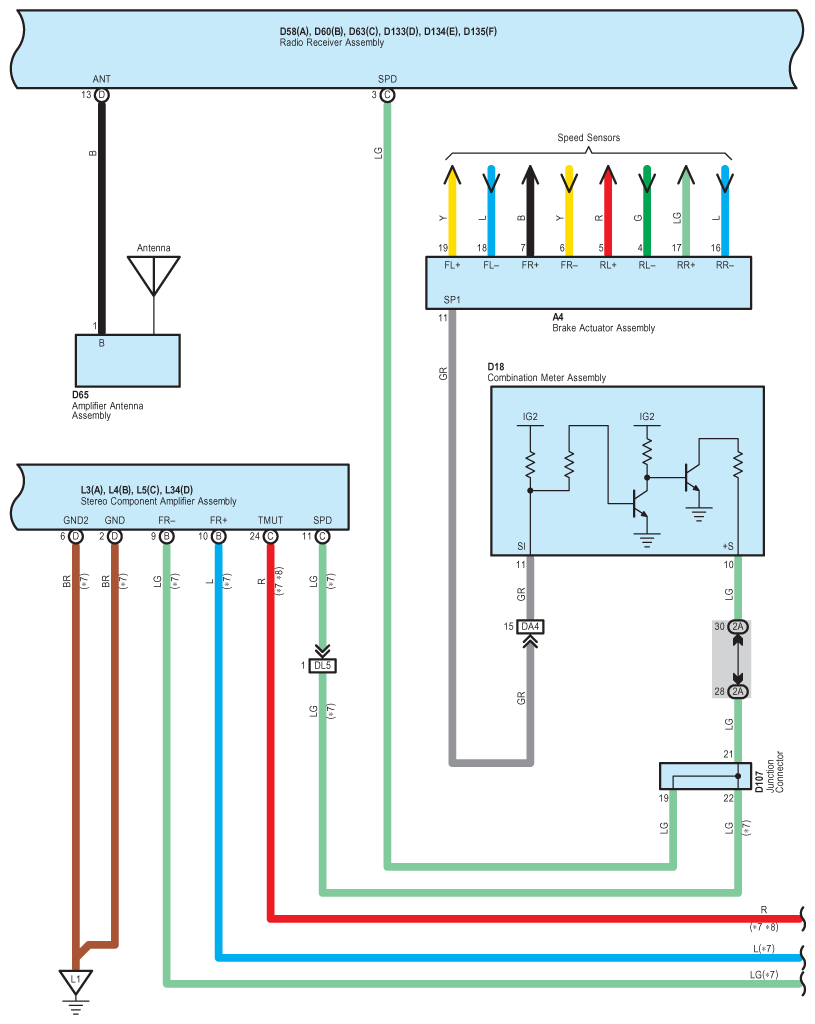

Fig 8: Audio System Wiring Diagram (W/O Navigation System; 8 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

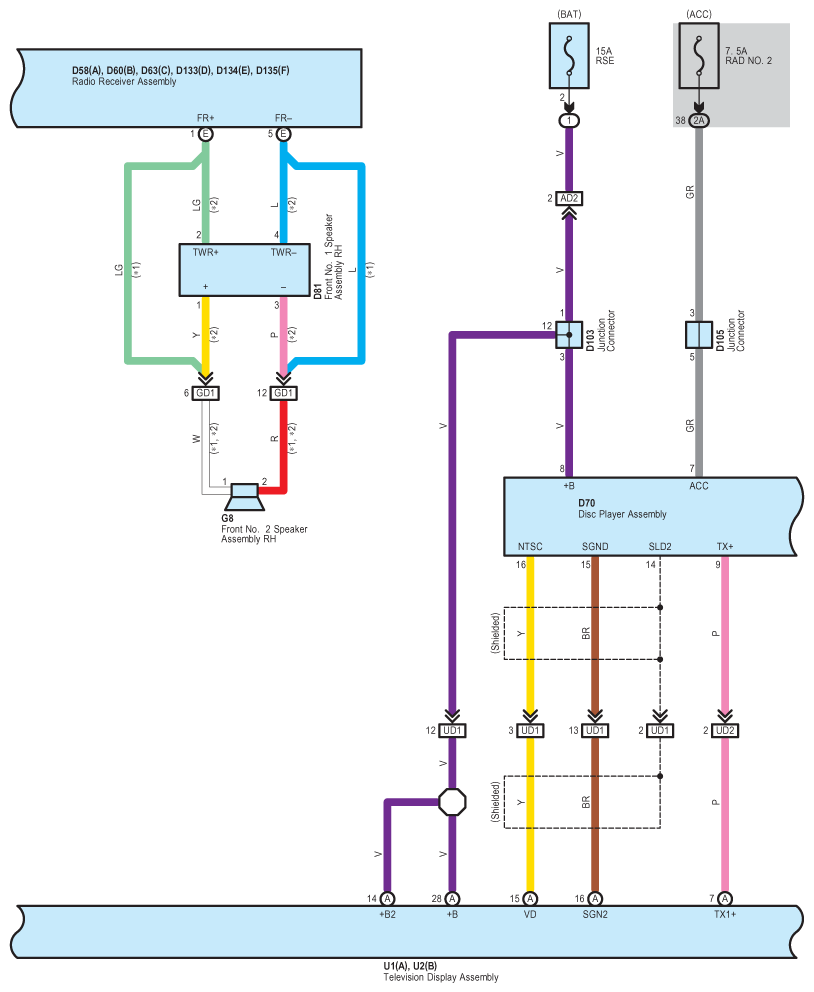

Fig 9: Audio System Wiring Diagram (W/O Navigation System; 9 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

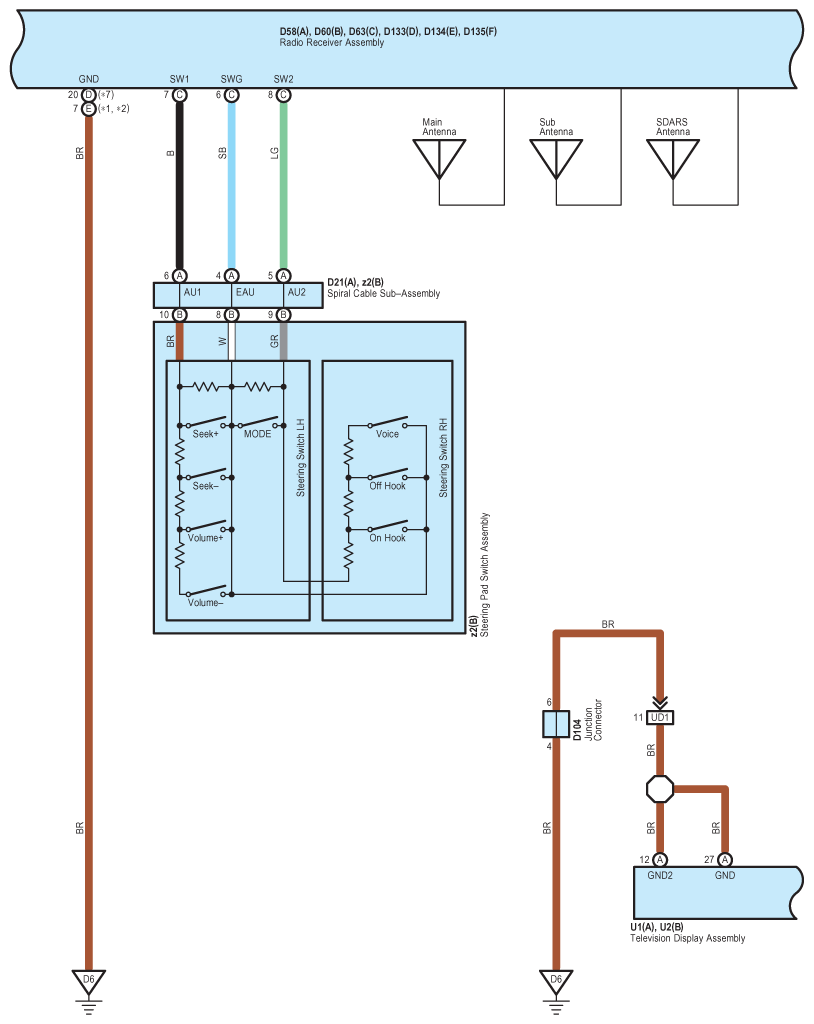

Fig 10: Audio System Wiring Diagram (W/O Navigation System; 10 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

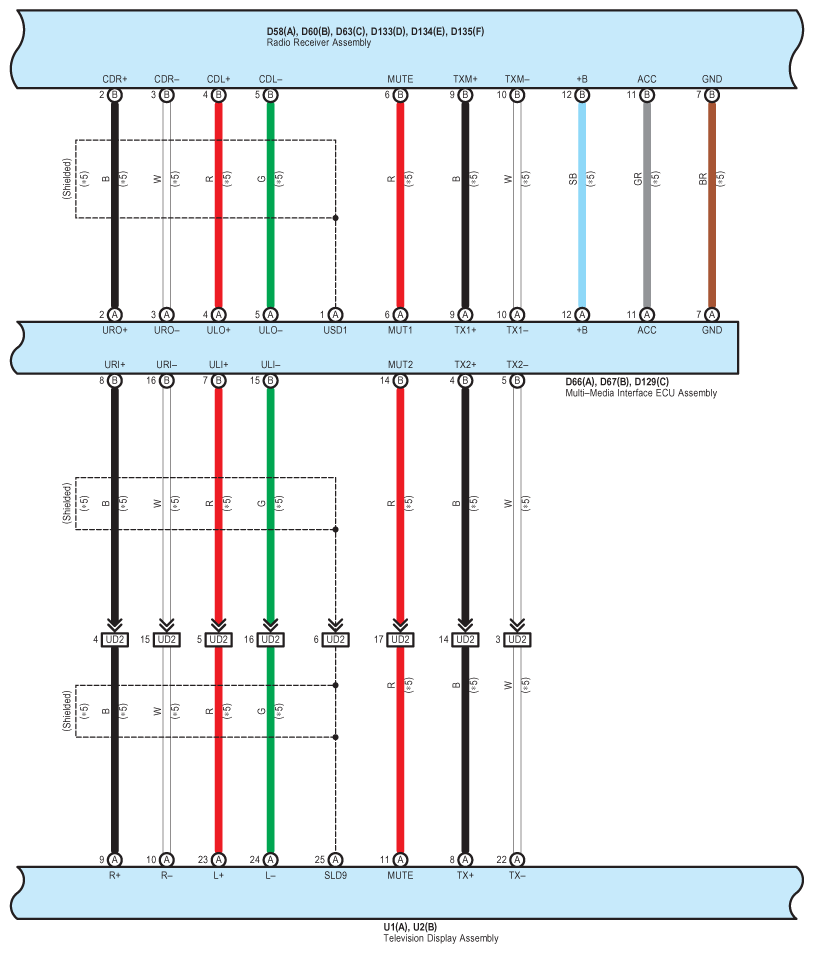

Fig 11: Audio System Wiring Diagram (W/O Navigation System; 11 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

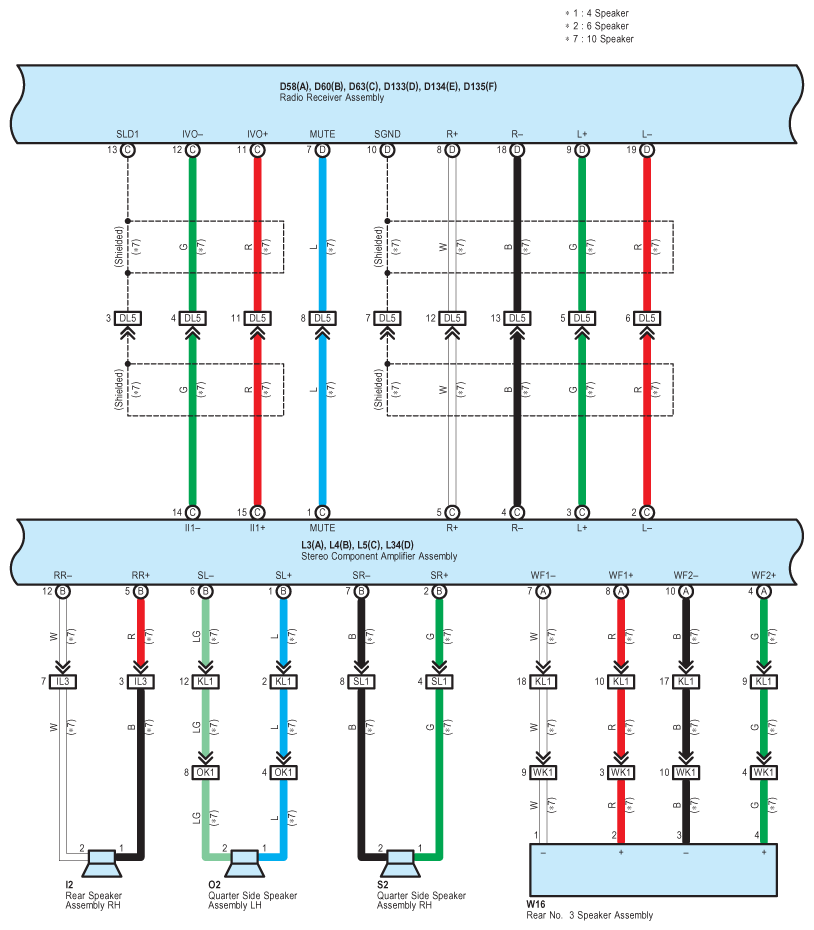

Fig 12: Audio System Wiring Diagram (W/O Navigation System; 12 Of 12)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
