Throttle Body: Installation: Installation

  1. INSTALL THROTTLE WITH MOTOR BODY ASSEMBLY
    1. Install a new gasket to the intake air surge tank assembly.
      Fig 1: Identifying Gasket At Intake Air Surge Tank Assembly
      GTY295336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Recess
      *b Protrusion
      *c New Gasket
    2. Install the throttle body and wire harness clamp stay to the intake air surge tank assembly with the 4 bolts.

      Torque: 10 N*m (102 kgf*cm, 7 ft.*lbf)

    3. Connect the throttle body connector and wire harness clamp.
  2. INSTALL NO. 2 WATER BY-PASS HOSE
    1. Connect the No. 2 water bypass hose with the clip.
      Fig 2: Installing No. 2 Water By-Pass Hose & Clip
      GTY296204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a View A
      *b Top

      HINT:

      Connect the hose so that the direction of the hose clip is as indicated in the illustration.

  3. INSTALL WATER BY-PASS HOSE
    1. Connect the water bypass hose with the clip.
      Fig 3: Installing Water By-Pass Hose & Clip
      GTY306004Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a View A
      *b Top

      HINT:

      Connect the hose so that the direction of the hose clip is as indicated in the illustration.

  4. INSTALL AIR CLEANER AND HOSE
    1. Insert the tab of the air cleaner assembly to the hole of the vehicle body as shown in the illustration.
      Fig 4: Installing Air Cleaner Assembly Tab In Hole At Vehicle Body
      GTY304508Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Tab
      *b Hole
    2. Install the air cleaner assembly with the 2 bolts.

      Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)

    3. Connect the air cleaner hose to the throttle body with the hose clamp.

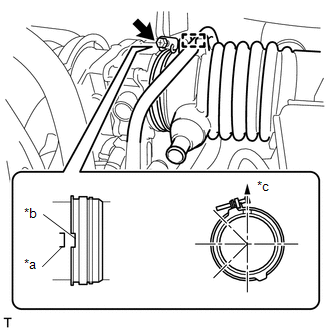

      Fig 5: Identifying Air Cleaner Hose & Clamp At Throttle Body
      GTY296542Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a Protrusion
      *b Groove
      *c Upper

      HINT:

      Connect the hose so that the direction of the hose clip is as indicated in the illustration.

    4. Install the fuel vapor feed hose to the hose clamp.
    5. Connect the No. 2 ventilation hose with the clip.

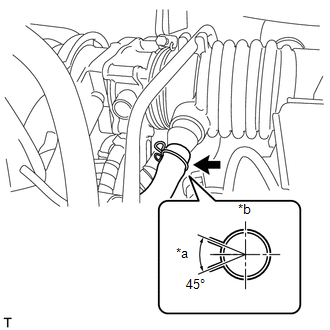

      Fig 6: Identifying No. 2 Ventilation Hose & Clip
      GTY299379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      TEXT IN ILLUSTRATION

      *a RH
      *b Upper

      HINT:

      Connect the hose so that the direction of the hose clip is as indicated in the illustration.

    6. Connect the 2 vacuum hoses.
    7. Engage the 2 wire harness clamps.
    8. Connect the vacuum switching valve connector.
    9. Install the vacuum hose to the hose clamp.
    10. Connect the vacuum hose to the intake air surge tank assembly.
    11. Engage the wire harness clamp.
    12. Connect the mass air flow meter connector.
  5. INSTALL AIR CLEANER INLET COVER ASSEMBLY SEAL
    1. Install the air cleaner inlet cover assembly seal with the 2 bolts.

      Torque: 6.0 N*m (61 kgf*cm, 53 in.*lbf)

    2. Engage the 3 vacuum hose clamps to the air cleaner inlet cover assembly seal.
  6. ADD ENGINE COOLANT  . Refer to REPLACEMENT - Step 4
  7. INSPECT FOR COOLANT LEAK  . Refer to ON-VEHICLE INSPECTION - Step 1
  8. INSTALL NO. 1 ENGINE UNDER COVER  . Refer to INSTALLATION - Step 16
  9. INSTALL V-BANK COVER SUB-ASSEMBLY  . Refer to REMOVAL - Step 24
  10. INSTALL FRONT OUTER COWL TOP PANEL SUB-ASSEMBLY  . Refer to INSTALLATION - Step 12
  11. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION - Step 2

  12. PERFORM INITIALIZATION
    NOTE:
    • Be sure to perform this procedure after reassembling the throttle body or removing and reinstalling any throttle body component.
    • Perform the following procedure after replacing the ECM, throttle body assembly or any throttle body components. The following procedure should also be performed if the throttle body is cleaned.
    • Be sure to perform this procedure after replacing the ECM and reconnecting the battery cable.
    1. Disconnect the cable from the negative (-) battery terminal. Wait at least 60 seconds and reconnect the cable.
    2. Turn the ignition switch to ON without operating the accelerator pedal.
      NOTE:

      If the accelerator pedal is operated, perform the above steps again.

    3. Connect the Techstream to the DLC3 and clear the DTCs. Refer to DTC CHECK / CLEAR .
    4. Start the engine and check that the MIL is not illuminated and that the idle speed is within the specified range when the A/C is switched off after the engine is warmed up.

      Standard

      Condition Engine Idle Speed
      A/C switched off 600 to 700 RPM
      NOTE:
      • Be sure to perform this step with all accessories off.
      • Make sure that the shift lever is in neutral.
    5. Enter the following menus: Powertrain / Engine / Data List / Throttle Sensor Position. Fully depress the accelerator pedal and check that the value is 60% or more.
    6. Perform a road test and confirm that there are no abnormalities.
