Cruise Control (1GR-FE): Notes

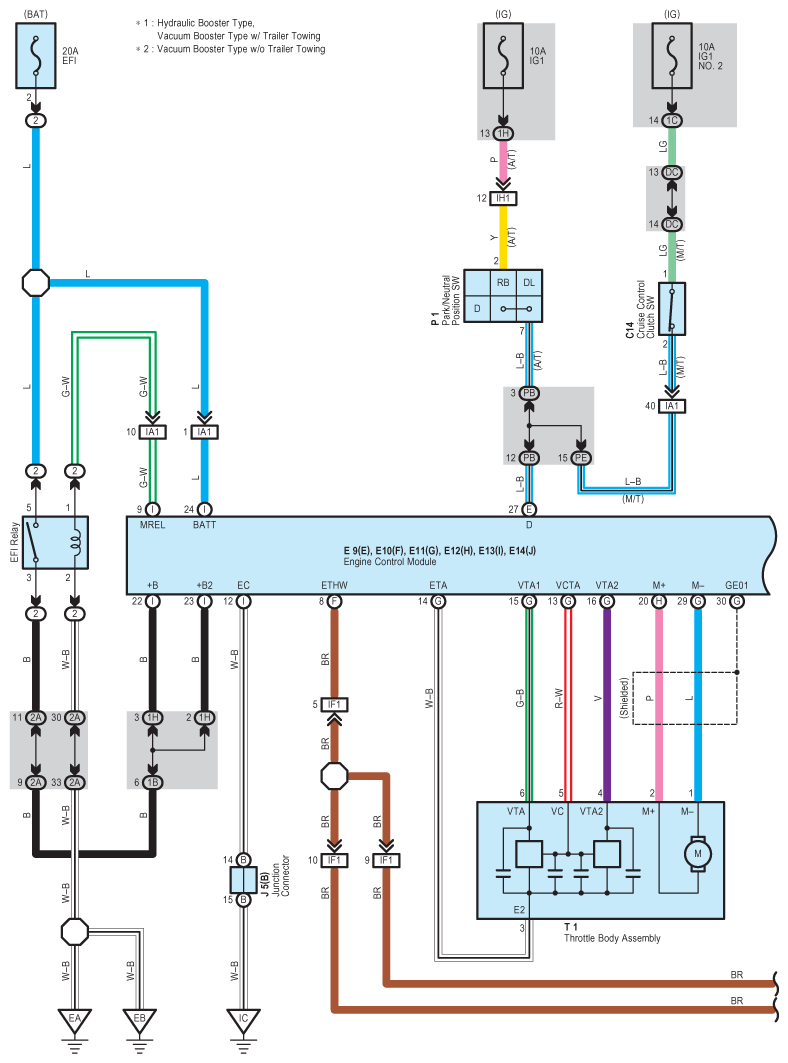

Fig 1: Cruise Control Wiring Diagram (1GR-FE; 1 Of 5)
G08847211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

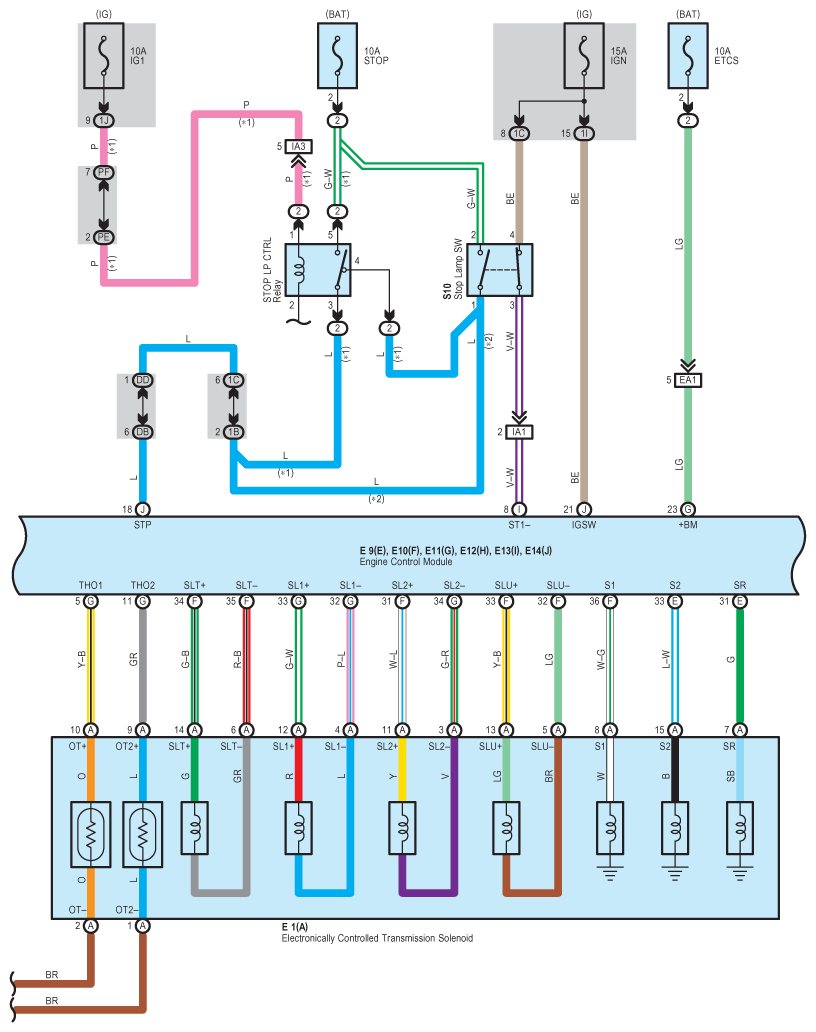

Fig 2: Cruise Control Wiring Diagram (1GR-FE; 2 Of 5)
G08847212Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

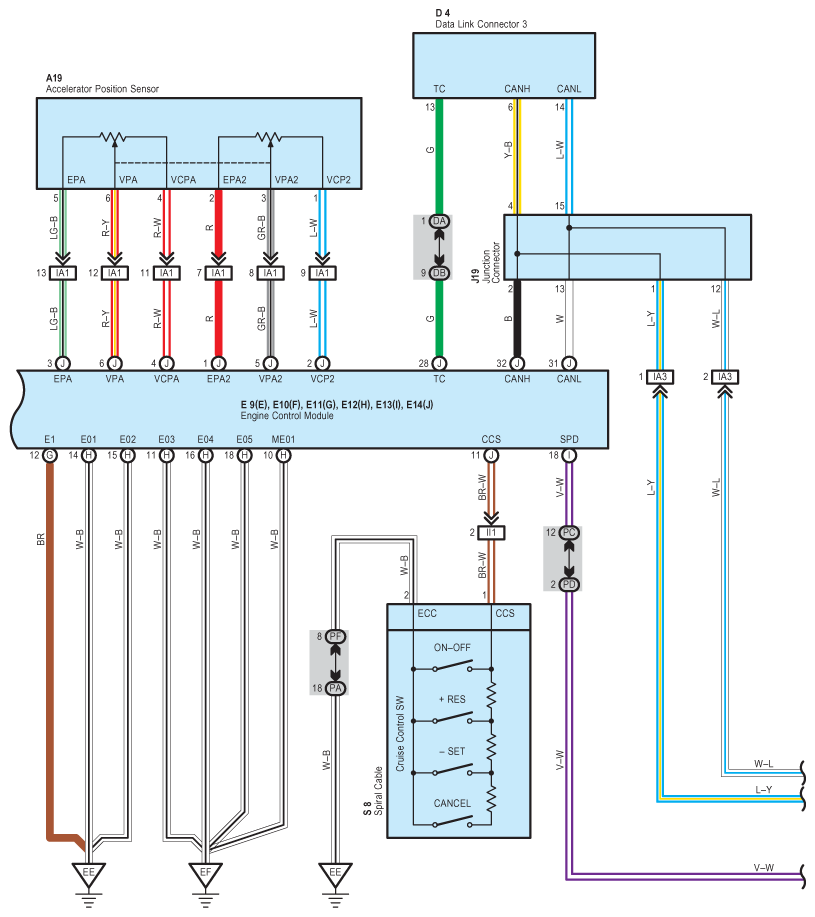

Fig 3: Cruise Control Wiring Diagram (1GR-FE; 3 Of 5)
G08847213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

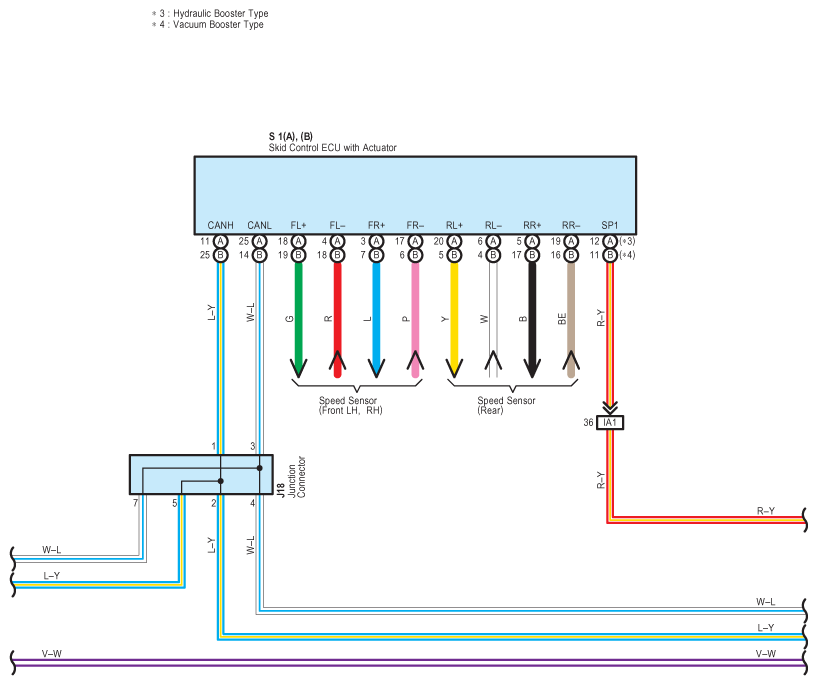

Fig 4: Cruise Control Wiring Diagram (1GR-FE; 4 Of 5)
G08847214Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

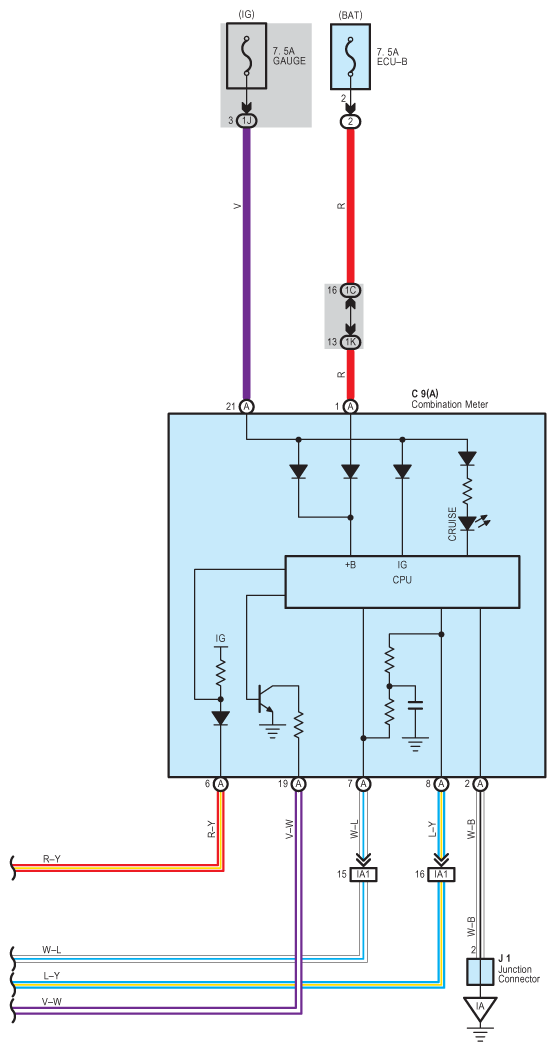

Fig 5: Cruise Control Wiring Diagram (1GR-FE; 5 Of 5)
G08847215Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
