Engine Control (2TR-FE): Notes

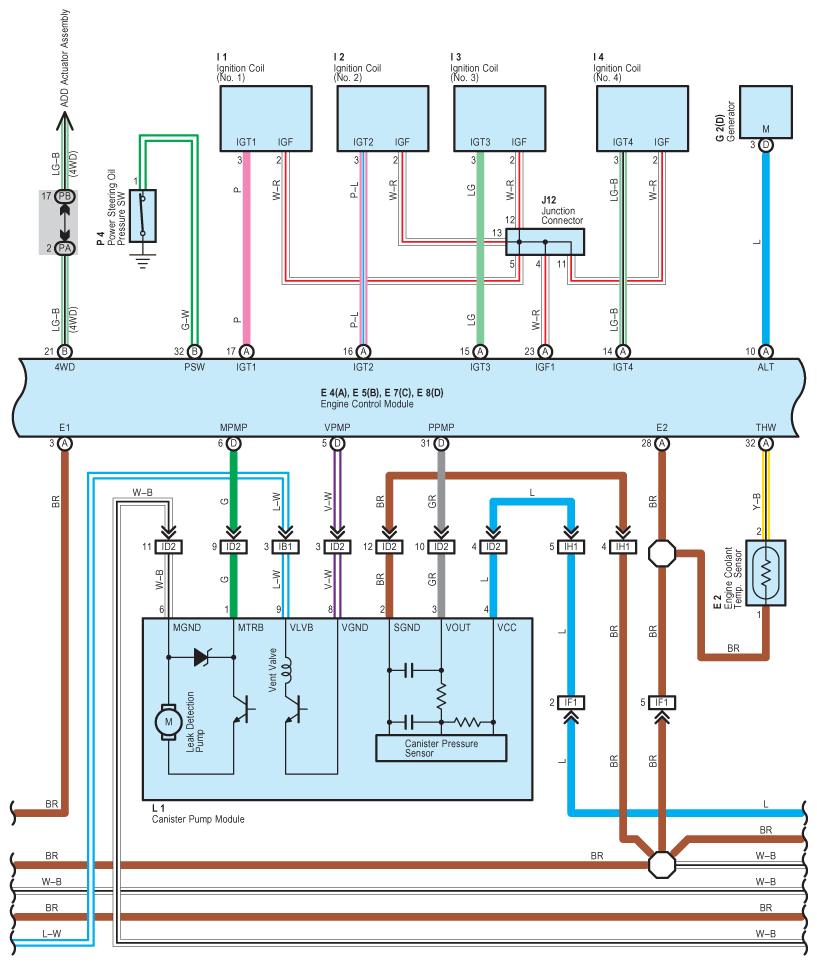

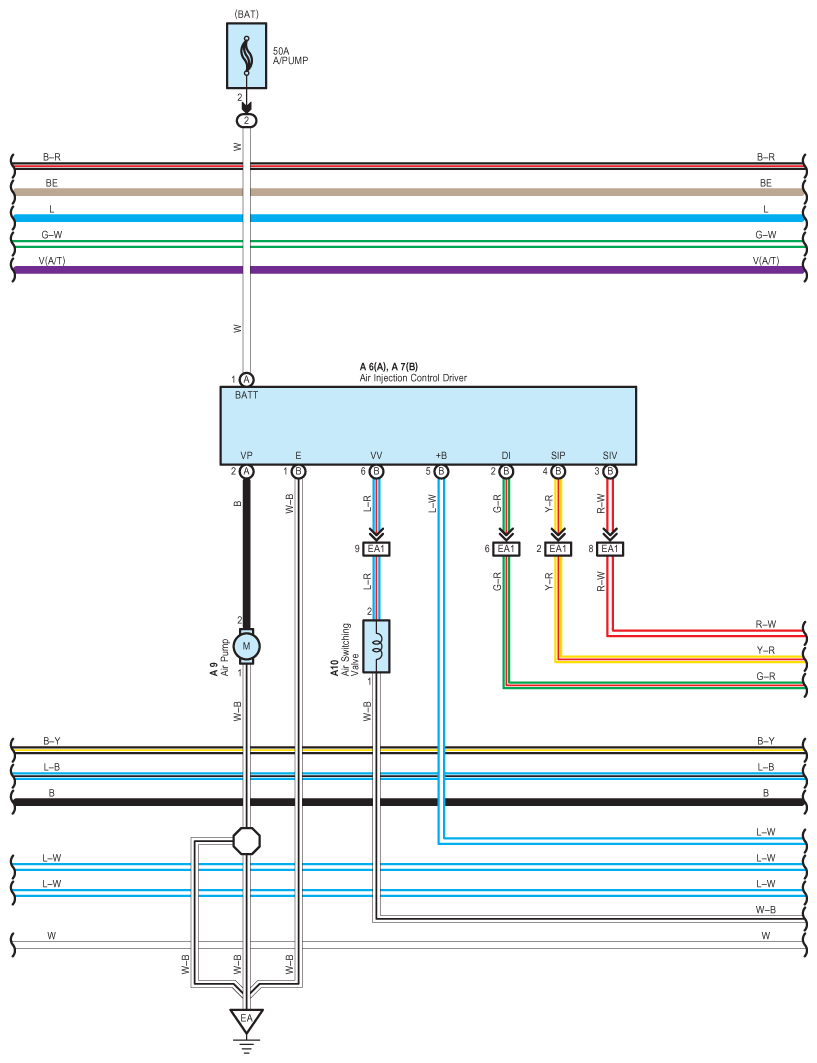

Fig 1: Engine Control System Wiring Diagram (2TR-FE; 1 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

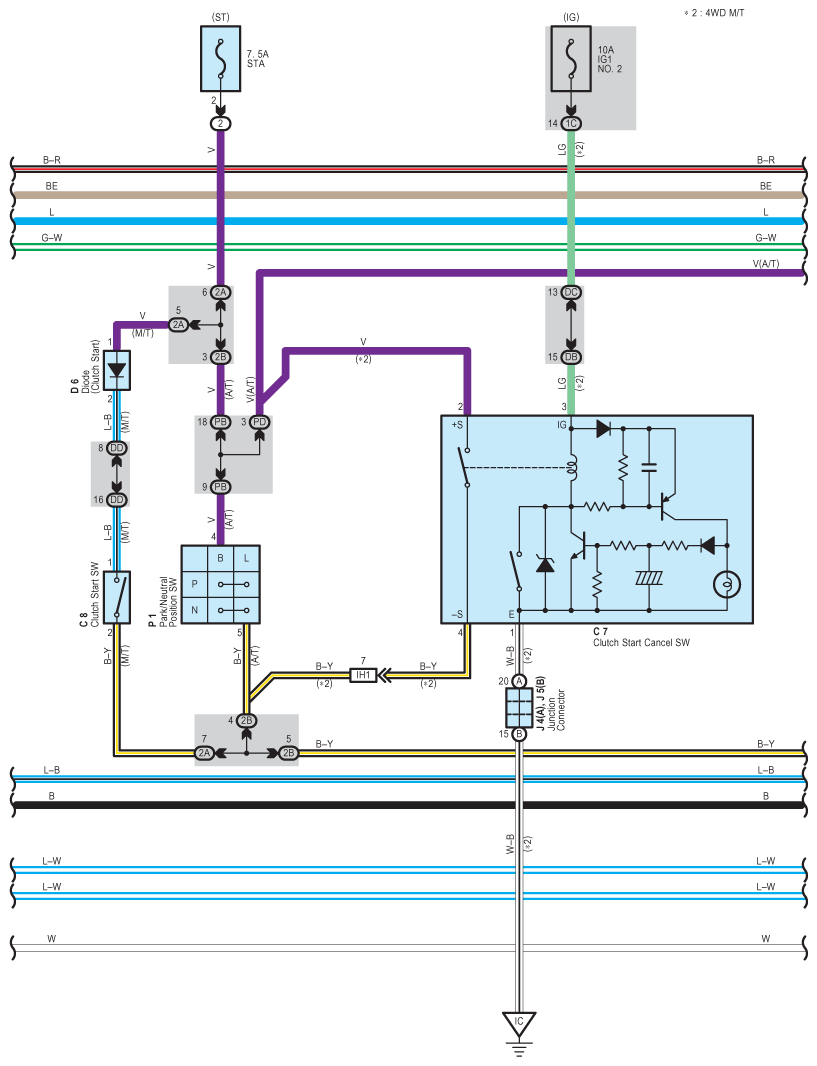

Fig 2: Engine Control System Wiring Diagram (2TR-FE; 2 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

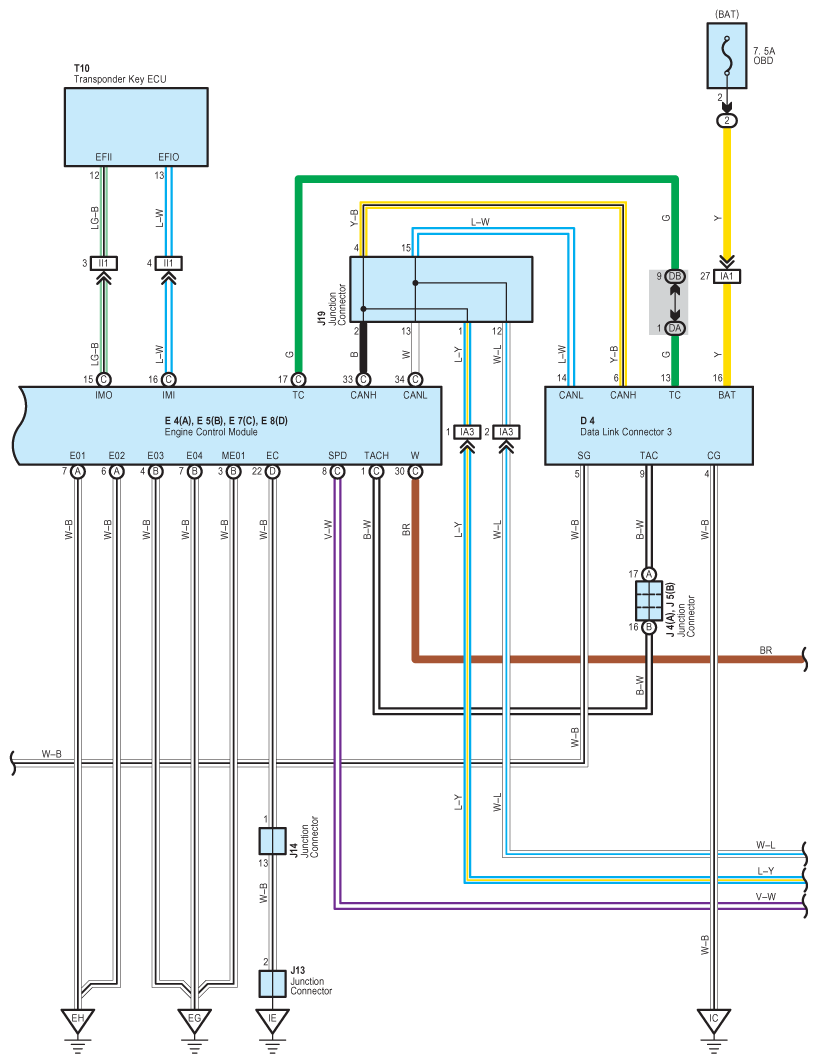

Fig 3: Engine Control System Wiring Diagram (2TR-FE; 3 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

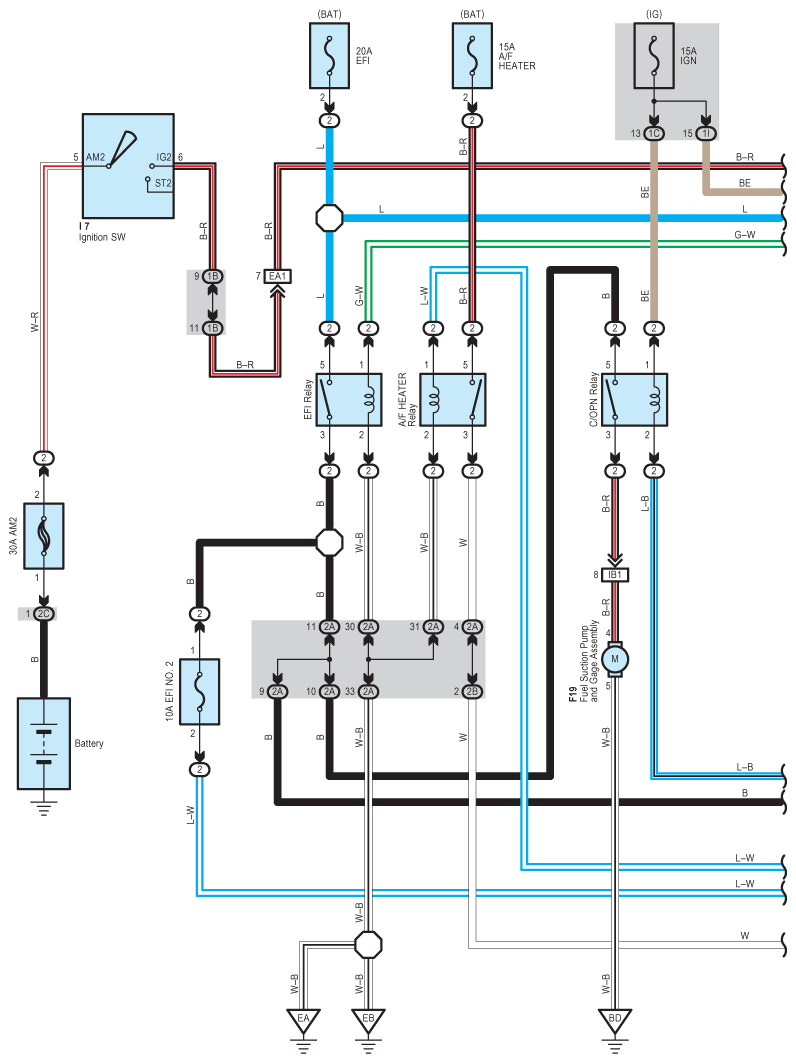

Fig 4: Engine Control System Wiring Diagram (2TR-FE; 4 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

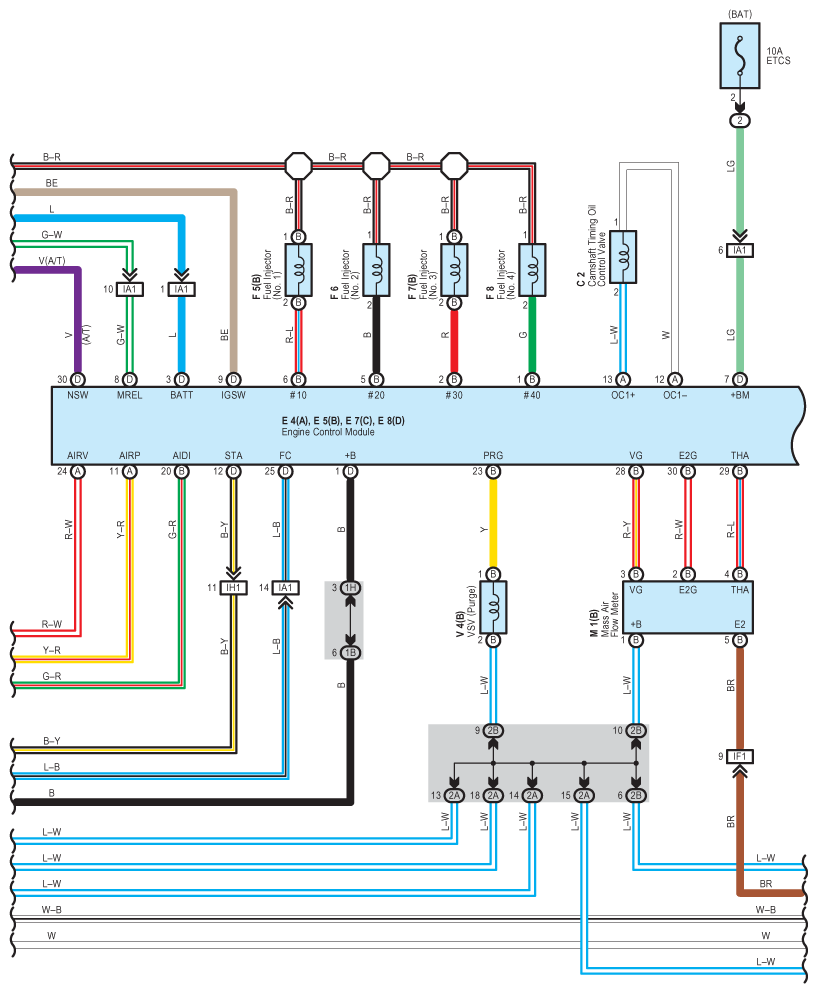

Fig 5: Engine Control System Wiring Diagram (2TR-FE; 5 Of 9)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

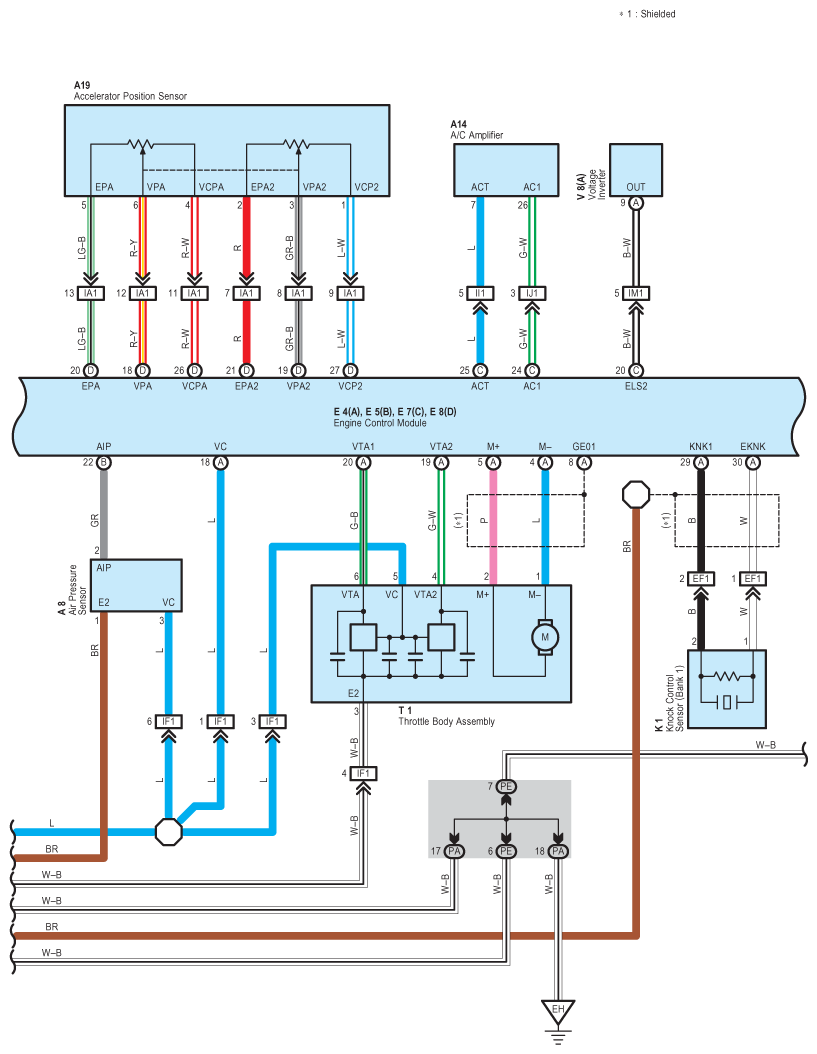

Fig 6: Engine Control System Wiring Diagram (2TR-FE; 6 Of 9)

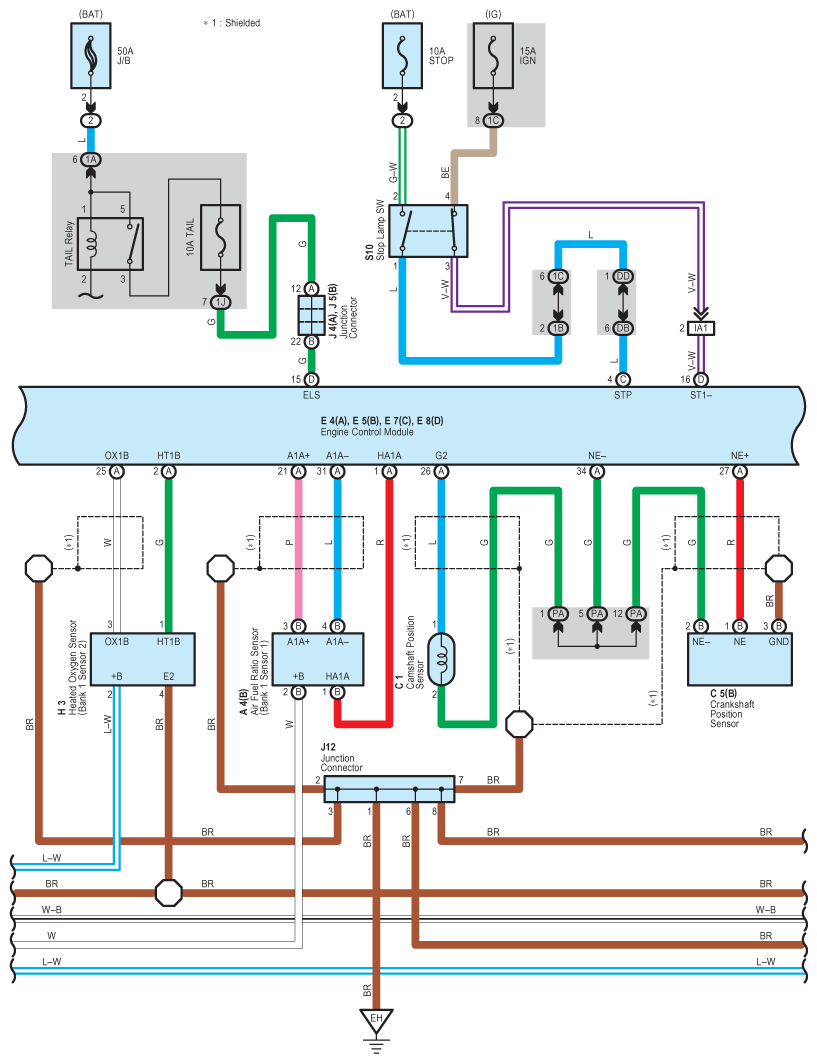

Fig 7: Engine Control System Wiring Diagram (2TR-FE; 7 Of 9)

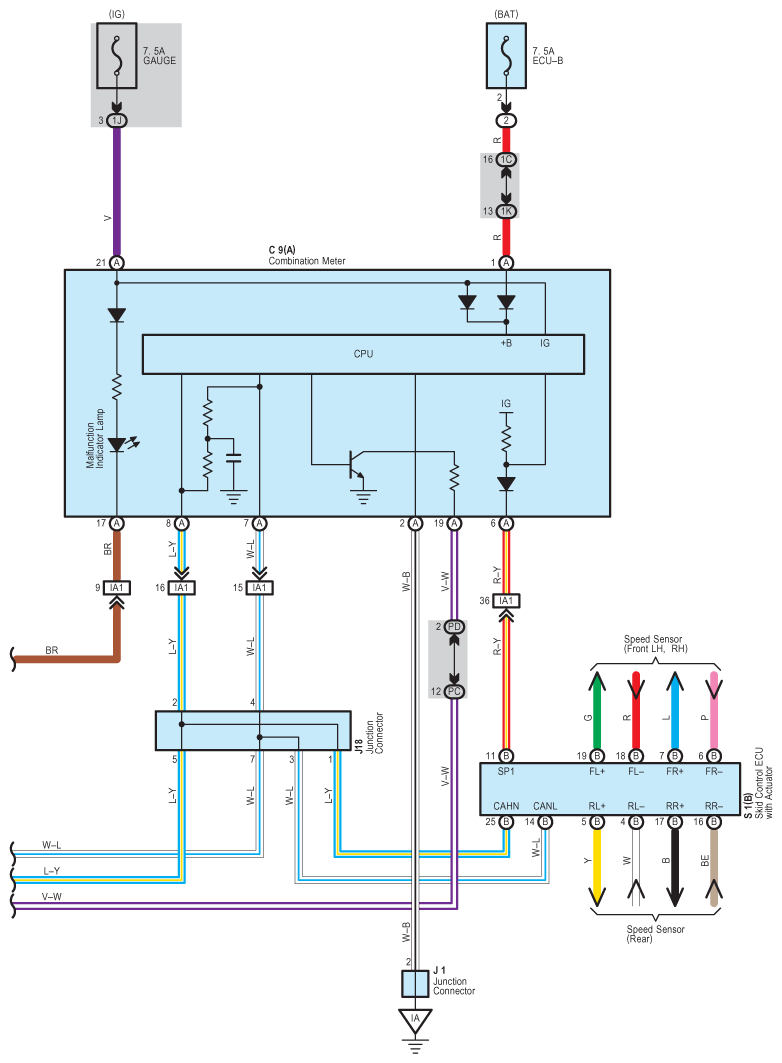

Fig 8: Engine Control System Wiring Diagram (2TR-FE; 8 Of 9)

Fig 9: Engine Control System Wiring Diagram (2TR-FE; 9 Of 9)
