Wireless Door Lock Control System (w/ Smart Key System)

DOOR LOCK: WIRELESS DOOR LOCK CONTROL SYSTEM (w/ Smart Key System): CUSTOMIZE PARAMETERS

1. CUSTOMIZING FUNCTION WITH THE TECHSTREAM

HINT
The following items can be customized.

NOTICE:
* When the customer requests a change in a function, first make sure that the function can be customized.
* Be sure to make a note of the current settings before customizing.
* When troubleshooting a function, first make sure that the function is set to the default setting.

2. CUSTOMIZE

(a) Connect the Techstream to the DLC3.

(b) Turn the engine switch on (IG).

(c) Turn the Techstream on.

(d) Enter the following menu: Body Electrical / Main Body or Illuminated Entry / Utility / Customize.

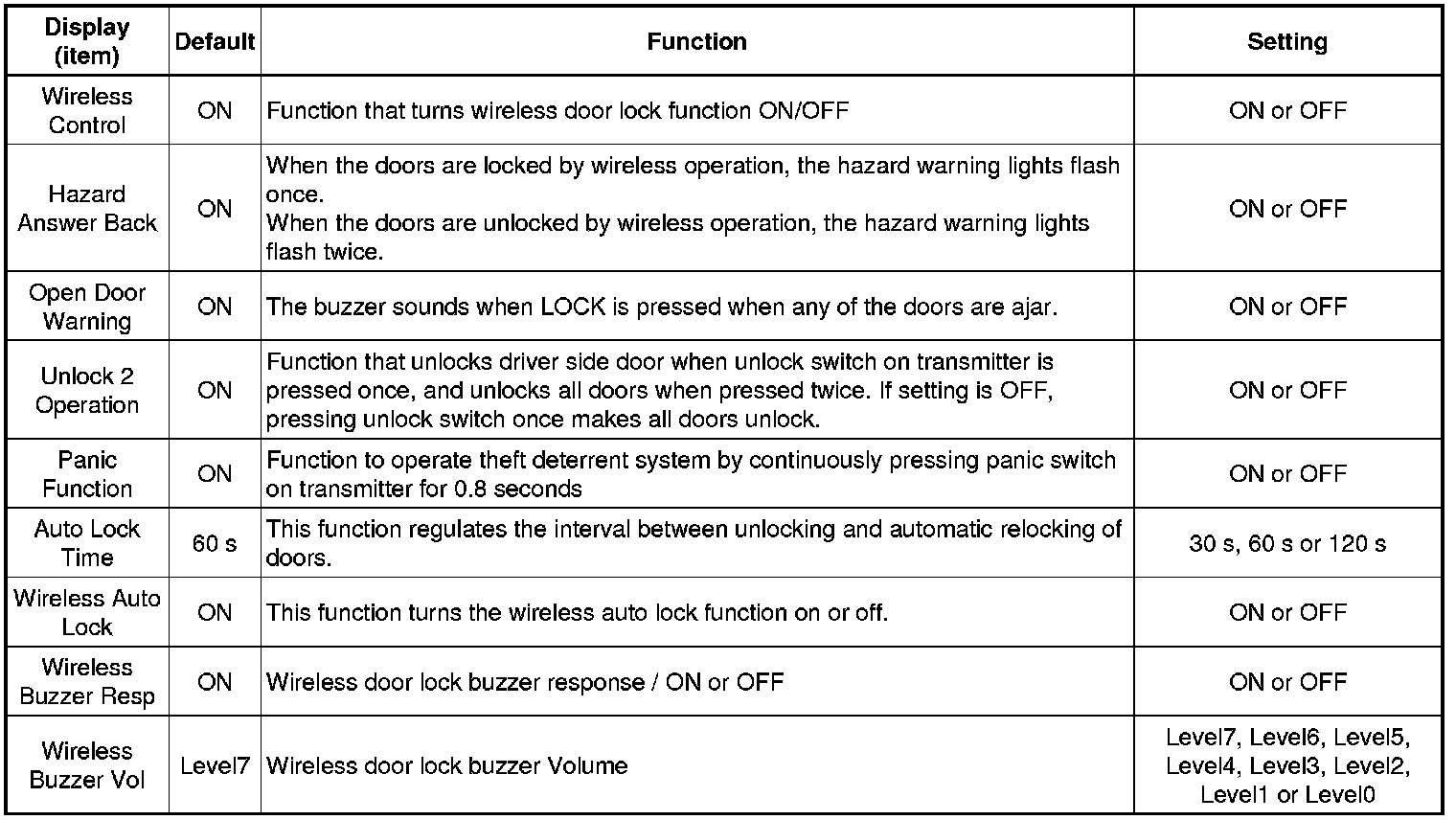

(e) Select the setting by referring to the table below.

Wireless Door Lock Control System
