CAN Communication System

NETWORKING: CAN COMMUNICATION SYSTEM: PARTS LOCATION

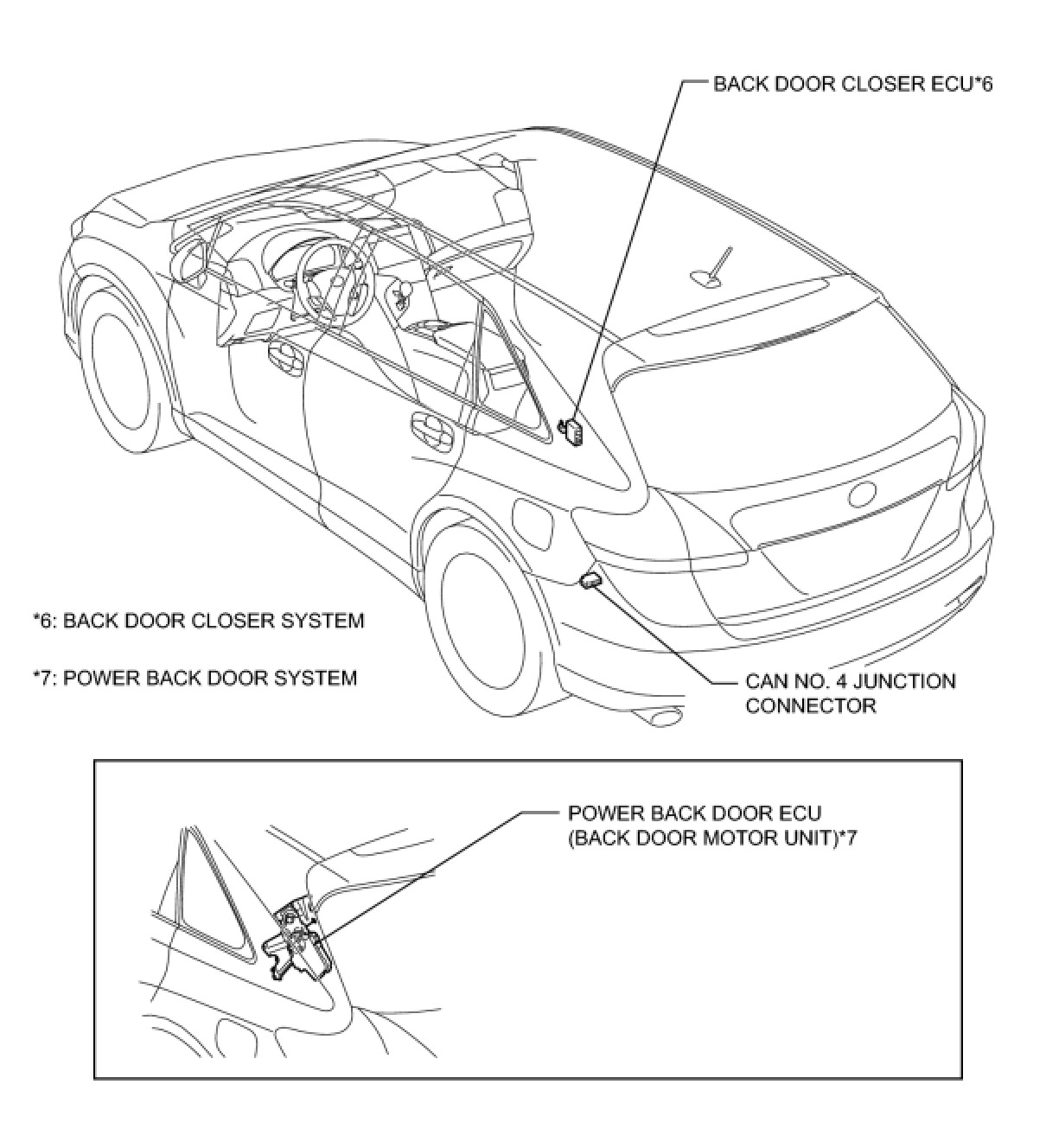

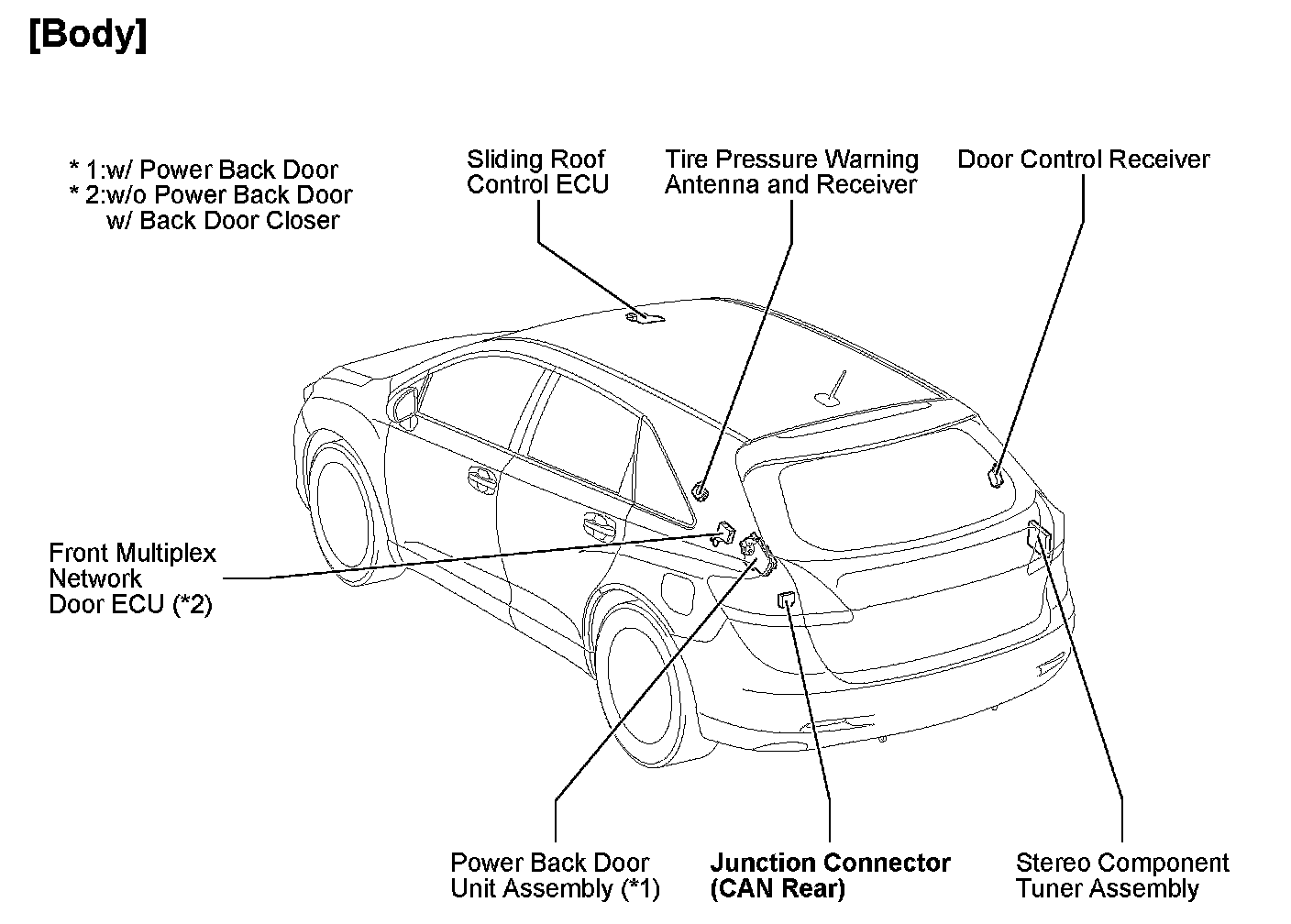

Body:

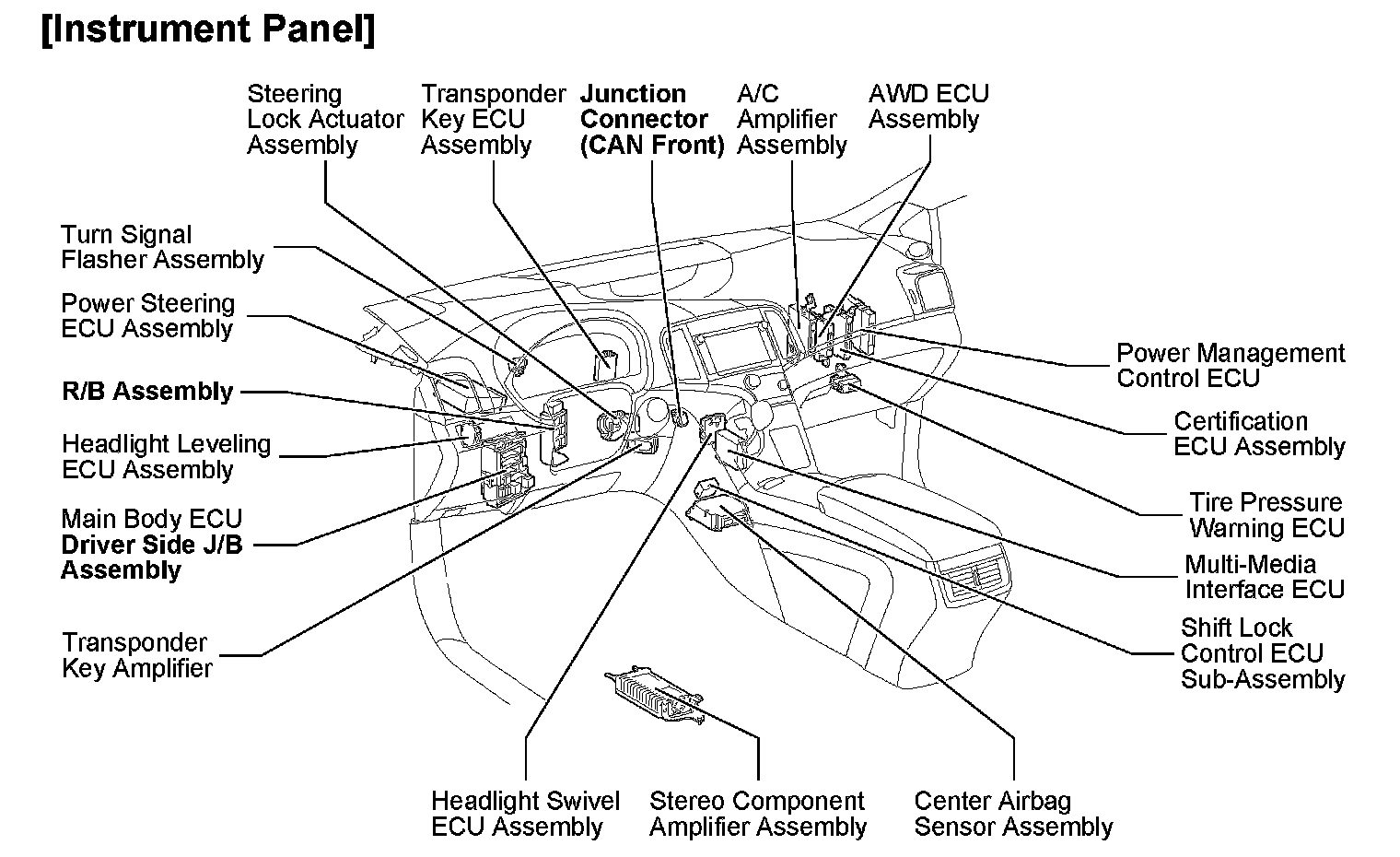

Instrument Panel:

The Terminating Resistors are in Junction Connector (CAN) Front and Junction Connector (CAN) Rear.
