Installation





POWER DISTRIBUTION: INTEGRATION RELAY: INSTALLATION

1. INSTALL POWER DISTRIBUTION

(a) Connect the 3 connectors.

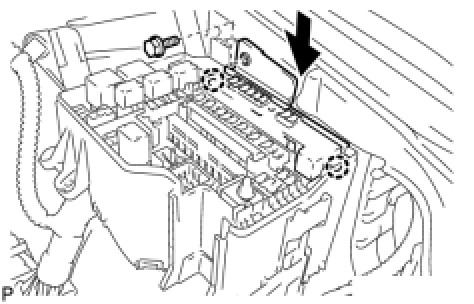

(b) Engage the 2 claws to temporarily install the power distribution as shown in the illustration.





(c) Install the power distribution with the bolt.
