Removal





POWER DISTRIBUTION: INTEGRATION RELAY: REMOVAL

1. REMOVE POWER DISTRIBUTION

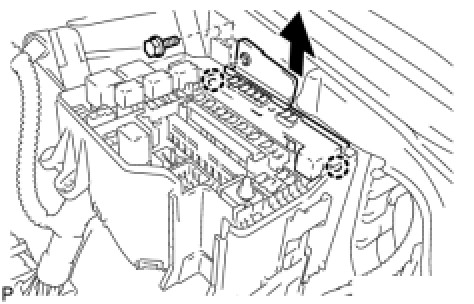

(a) Remove the bolt.





(b) Disengage the 2 claws and disconnect the power distribution from the relay box as shown in the illustration.

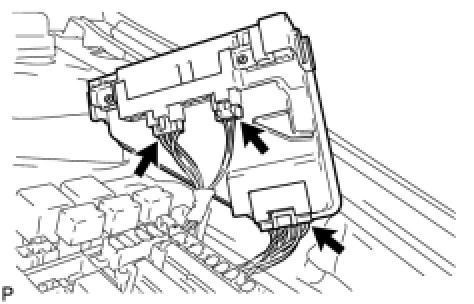

(c) Disconnect the 3 connectors and remove the power distribution.
